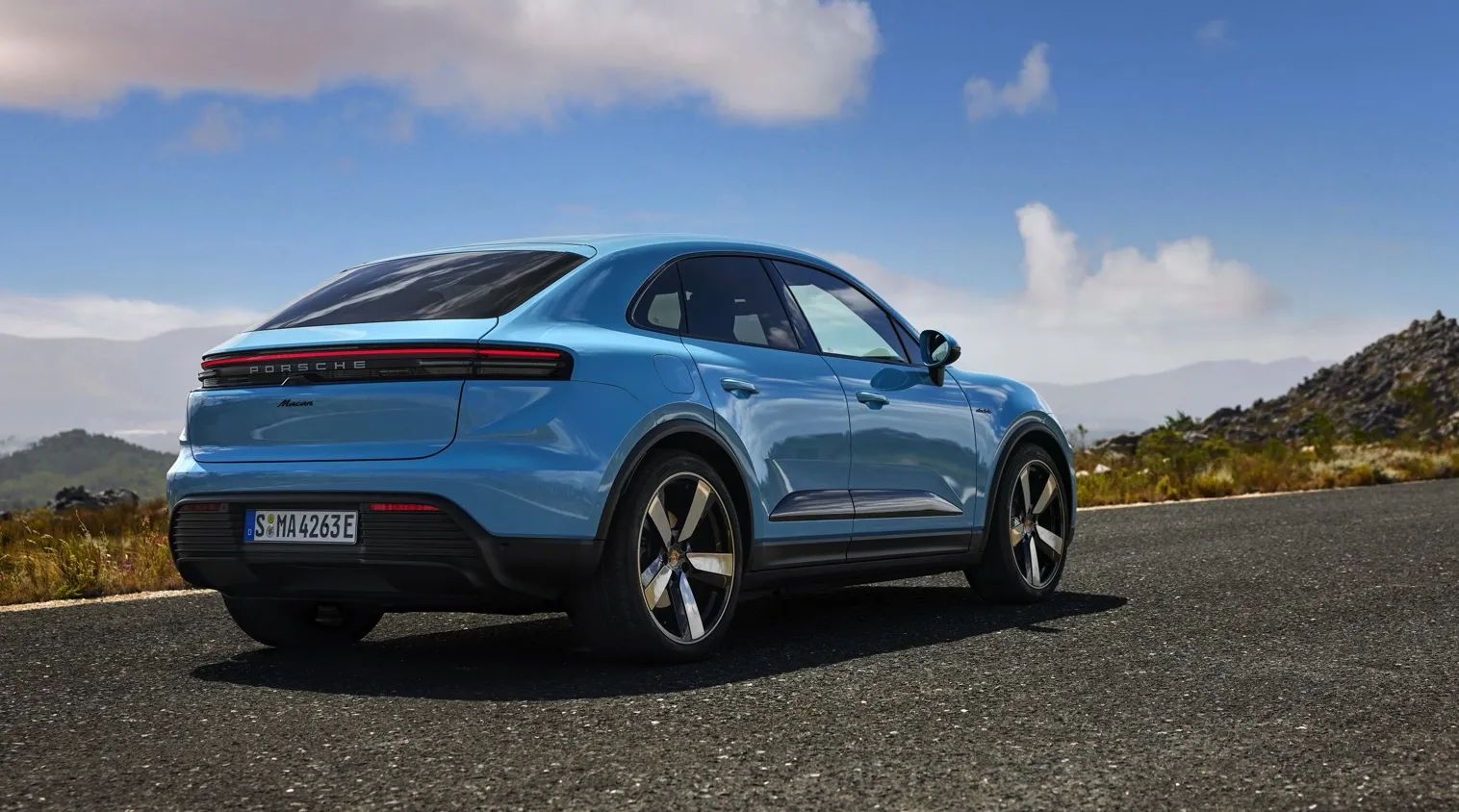

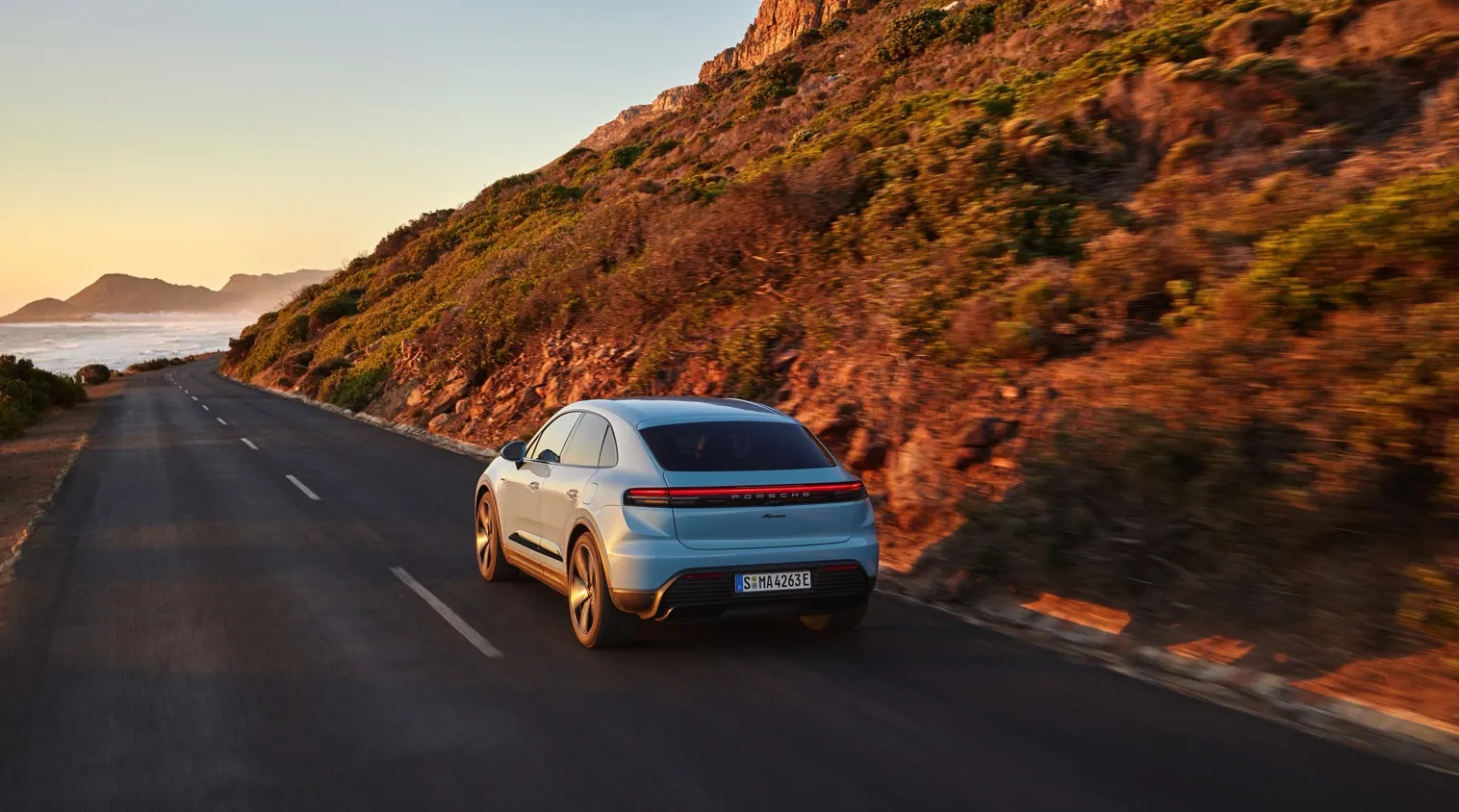

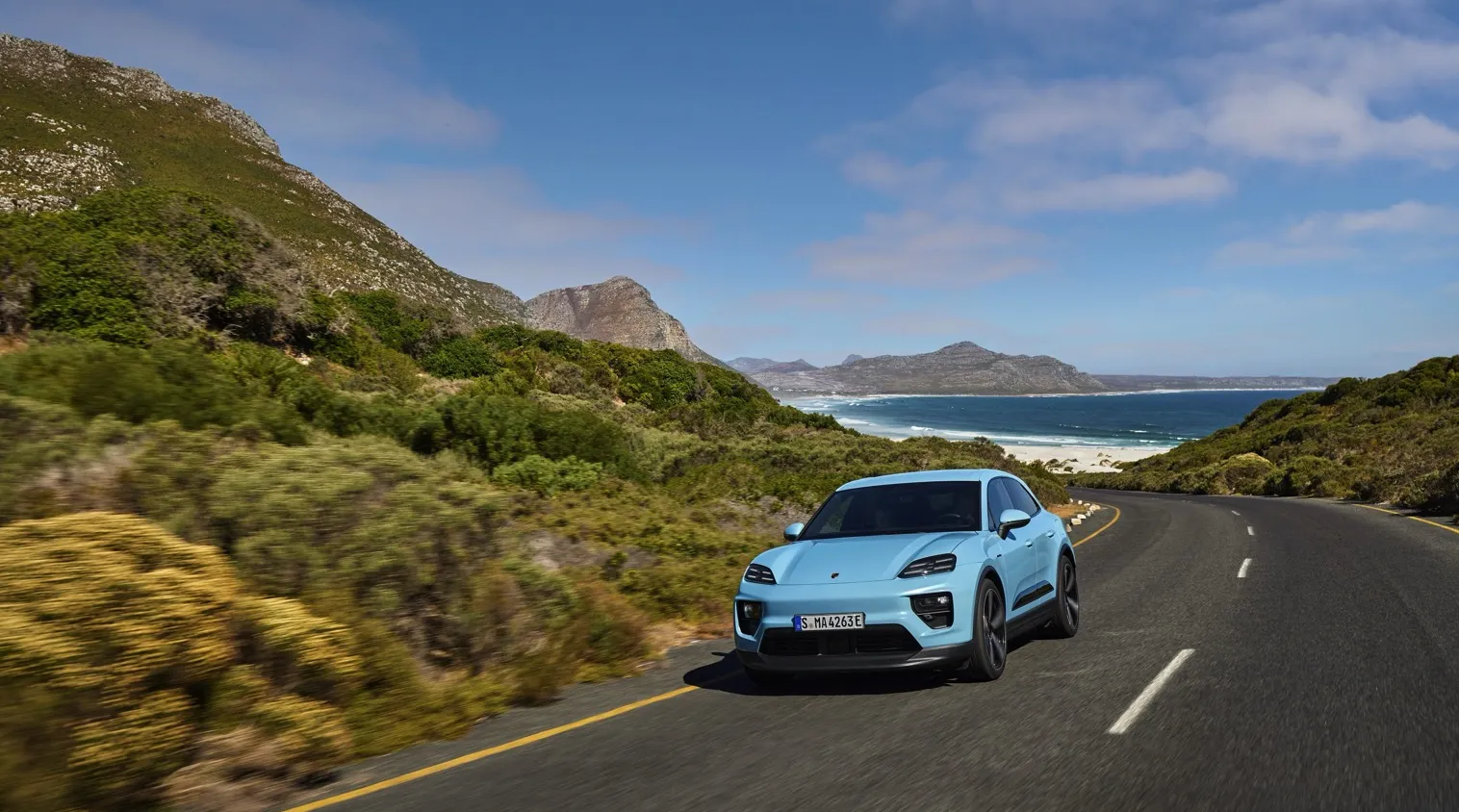

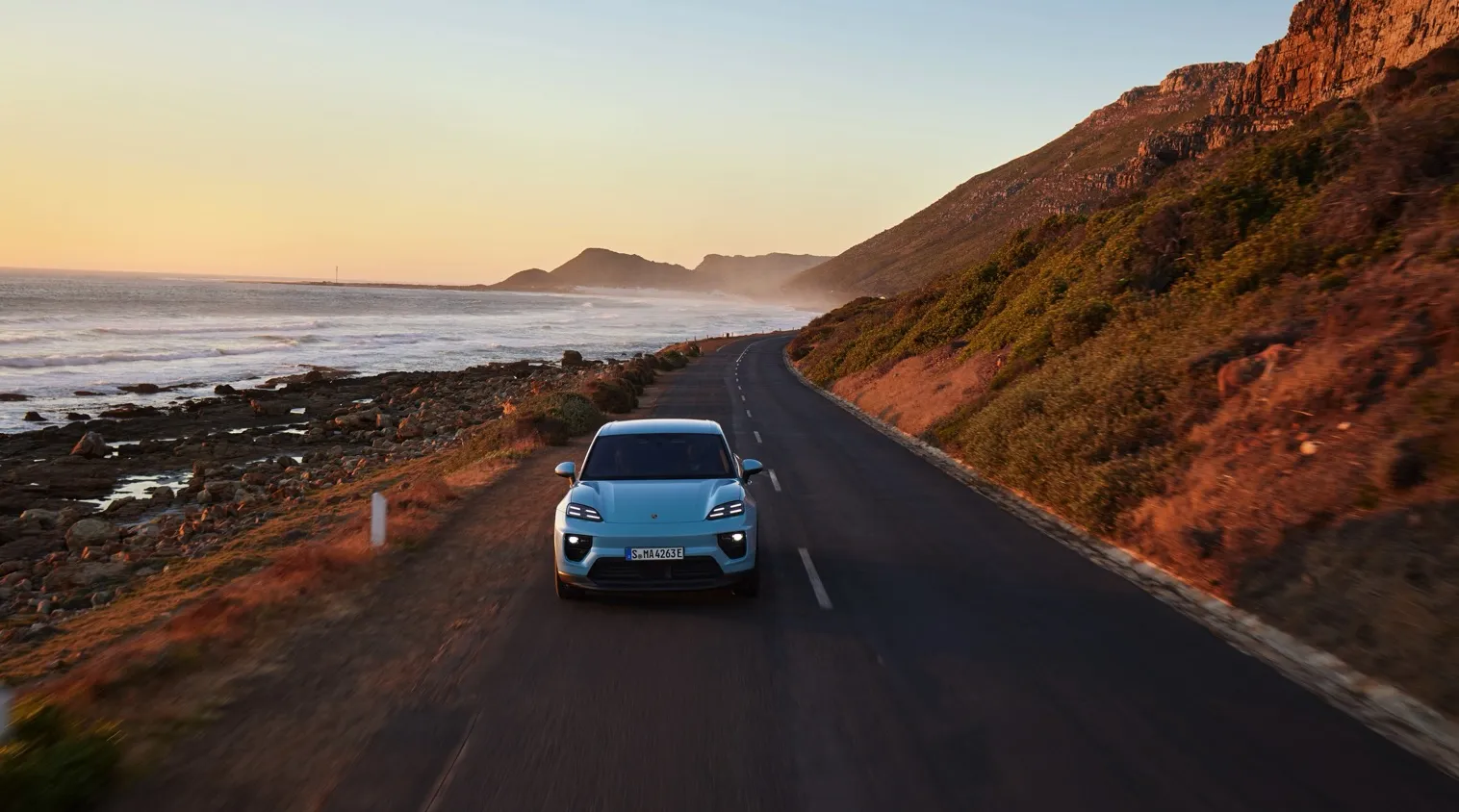

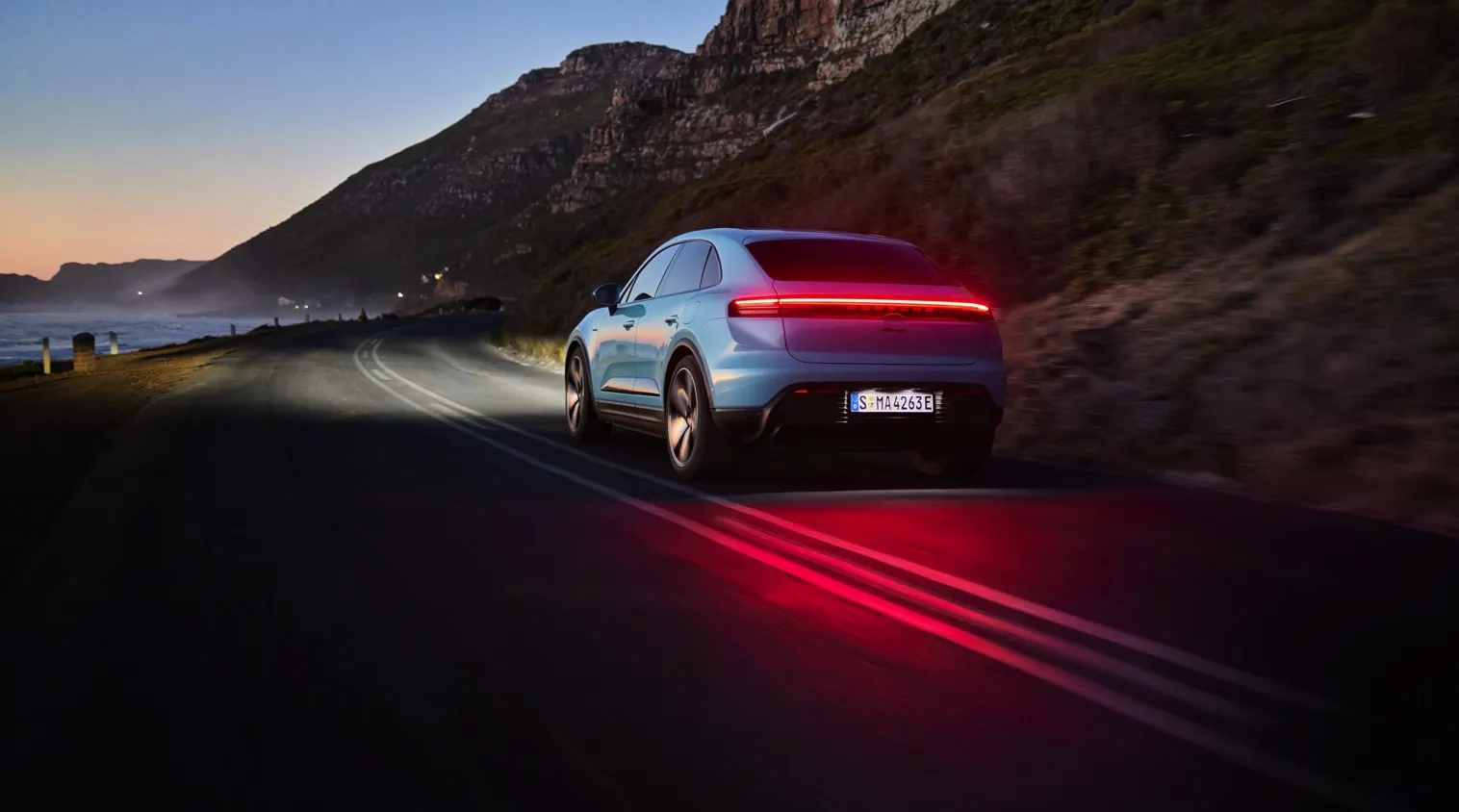

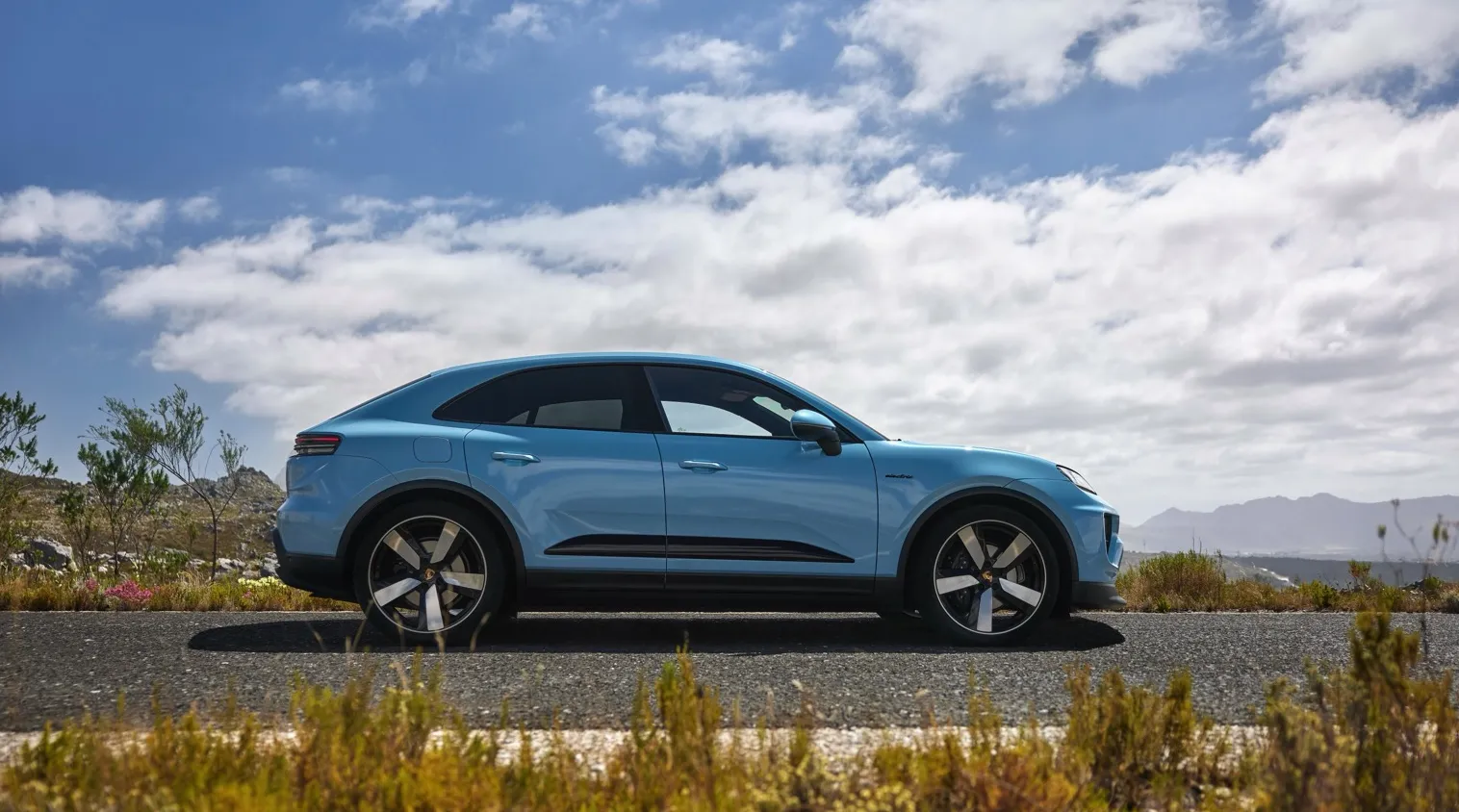

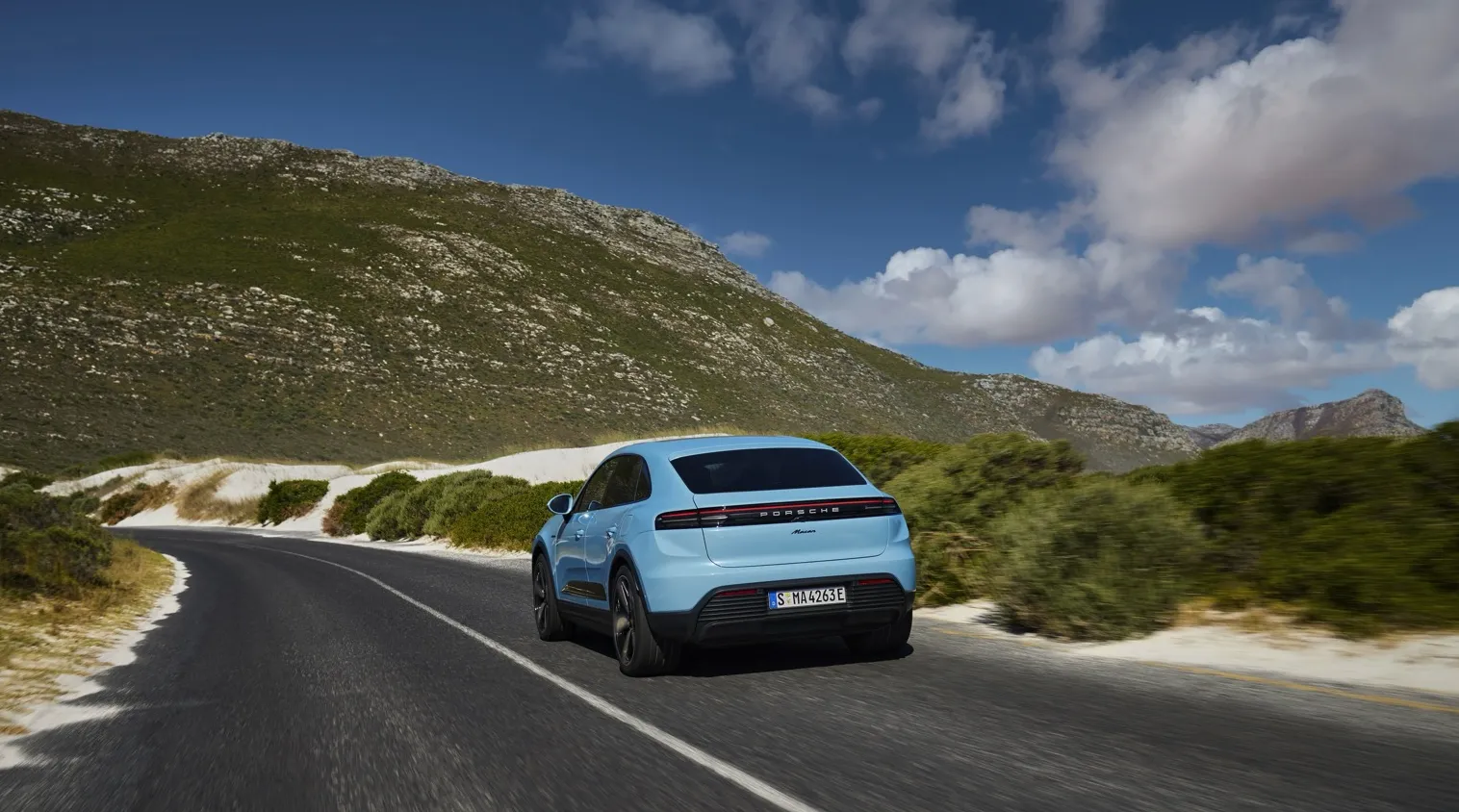

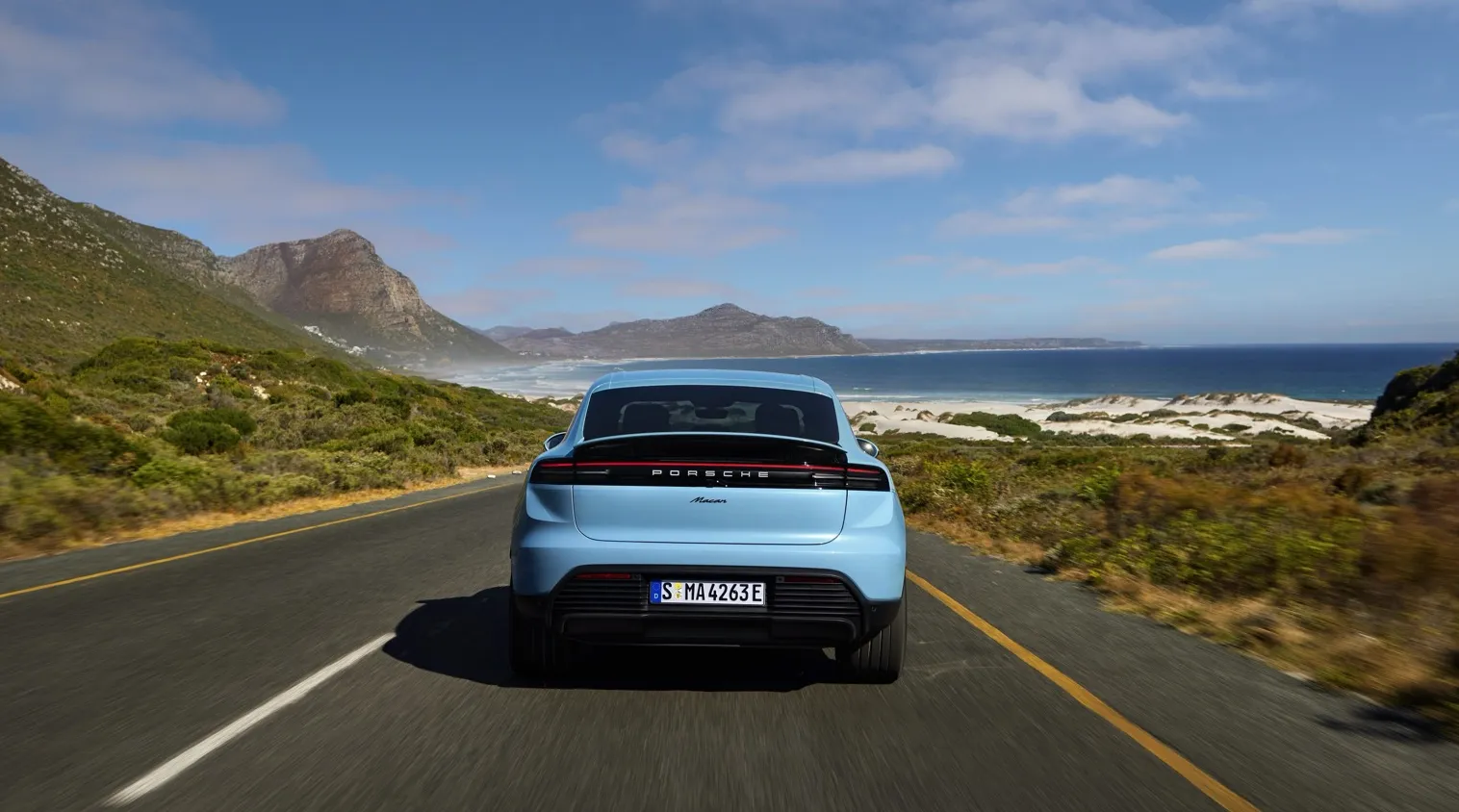

Porsche Macan Electric
Model: Porsche
- : 95.0 kWh
- : 510 km *
- : 186 Wh/km *
Real Range Estimation
| City - Cold Weather * | 495 km |
| Highway - Cold Weather * | 365 km |
| Combined - Cold Weather * | 430 km |
between 365 - 735 km
| City - Mild Weather * | 735 km |
| Highway - Mild Weather * | 470 km |
| Combined - Mild Weather * | 580 km |
Performance
| Acceleration 0 - 100 km/h | 5.7 sec |
| Top Speed | 220 km/h |
| Electric Range * | 510 km |
| Total Power | 250 kW (340 PS) |
| Total Torque | 563 Nm |
| Drive | Rear |
Battery
| Nominal Capacity | 100.0 kWh |
| Battery Type | Lithium-ion |
| Number of Cells | 180 |
| Architecture | 800 V |
| Warranty Period | No Data |
| Warranty Mileage | No Data |
| Useable Capacity | 95.0 kWh |
| Cathode Material | NCM811 |
| Pack Configuration | 180s1p |
| Nominal Voltage | 662 V |
| Form Factor | Prismatic |
| Name / Reference | No Data |
Bidirectional Charging (V2X / BPT)
Vehicle-to-Load (V2L)
| V2L Supported | No |
| Max. Output Power | - |
Vehicle-to-Home (V2H)
| V2H via AC Supported | No |
| Max. Output Power | - |
Vehicle-to-Grid (V2G)
| V2G via AC Supported | No |
| Max. Output Power | - |
Energy Consumption
EVDB Real Range
| Range * | 510 km |
| Vehicle Consumption * | 186 Wh/km |
WLTP Ratings (TEL)
| Range | 641 km |
| Rated Consumption | 170 Wh/km |
| Vehicle Consumption | 148 Wh/km |
WLTP Ratings (TEH)
| Range | 536 km |
| Rated Consumption | 198 Wh/km |
| Vehicle Consumption | 177 Wh/km |
Dimensions and Weight
| Length | 4784 mm |
| Width | 1938 mm |
| Width with mirrors | 2152 mm |
| Height | 1623 mm |
| Wheelbase | 2893 mm |
| Weight Unladen (EU) | 2295 kg |
| Gross Vehicle Weight (GVWR) | 2810 kg |
| Max. Payload | 590 kg |
| Cargo Volume | 540 L |
| Cargo Volume Max | 1348 L |
| Cargo Volume Frunk | 84 L |
| Roof Load | 75 kg |
| Tow Hitch Possible | Yes |
| Towing Weight Unbraked | 750 kg |
| Towing Weight Braked | 2000 kg |
| Vertical Load Max | 80 kg |
Miscellaneous
| Seats | 5 people |
| Isofix | Yes, 3 seats |
| Turning Circle | 12.1 m |
| Platform | VW PPE |
| EV Dedicated Platform | Yes |
| Car Body | SUV |
| Segment | JD - Large |
| Roof Rails | Yes |
| Heat pump (HP) | Yes |
| HP Standard Equipment | Yes |
Home and Destination Charging (0 -> 100%)
Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Porsche Macan Electric. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Porsche Macan Electric can be charged, but some modes of charging might not be widely available in certain countries.
| Type 2 (Mennekes - IEC 62196) |
|---|
 |
| Charging Point | Max. Power | Power | Time | Rate |
|---|---|---|---|---|
| Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 48h45m | 10 km/h |
| 1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 30h15m | 17 km/h |
| 1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 15h15m | 33 km/h |
| 3-phase 16A (11 kW) | 400V / 3x16A | 11 kW | 10h15m | 50 km/h |
| 3-phase 32A (22 kW) | 400V / 3x16A | 11 kW † | 10h15m | 50 km/h |
† = Limited by on-board charger, vehicle cannot charge faster.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Porsche Macan Electric.
- Max. Power: maximum power provided by charge point
- Avg. Power: average power provided by charge point over a session from 10% to 80%
- Time: time needed to charge from 10% to 80%
- Rate: average charging speed over a session from 10% to 80%
| Combined Charging System (CCS Combo 2) |
|---|
 |
| Charging Point | Max. Power | Avg. Power | Time | Rate |
|---|---|---|---|---|
| CCS (50 kW DC) | 50 kW | 50 kW | 84 min | 250 km/h |
| CCS (100 kW DC) | 100 kW | 95 kW † | 44 min | 480 km/h |
| CCS (150 kW DC) | 150 kW | 125 kW † | 34 min | 630 km/h |
| CCS (175 kW DC) | 175 kW | 145 kW † | 29 min | 730 km/h |
| CCS (350 kW DC) | 270 kW † | 200 kW † | 21 min | 1020 km/h |
† = Limited by charging capabilities of vehicle
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
Porsche Claimed Specifications
The table below shows the claimed specifications from the manufacturer for charging the Porsche Macan Electric. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.
- Max. Power: maximum charge power during charging session
- Charge From: battery percentage (% SoC) where charging session is started
- Charge To: battery percentage (% SoC) where charging session is ended
- Time: time needed for charging session
| Porsche Claimed Specifications |
|---|
| Max. Power | Charge From | Charge To | Time |
|---|---|---|---|
| 270 kW | 10 % | 80 % | 21 min |
