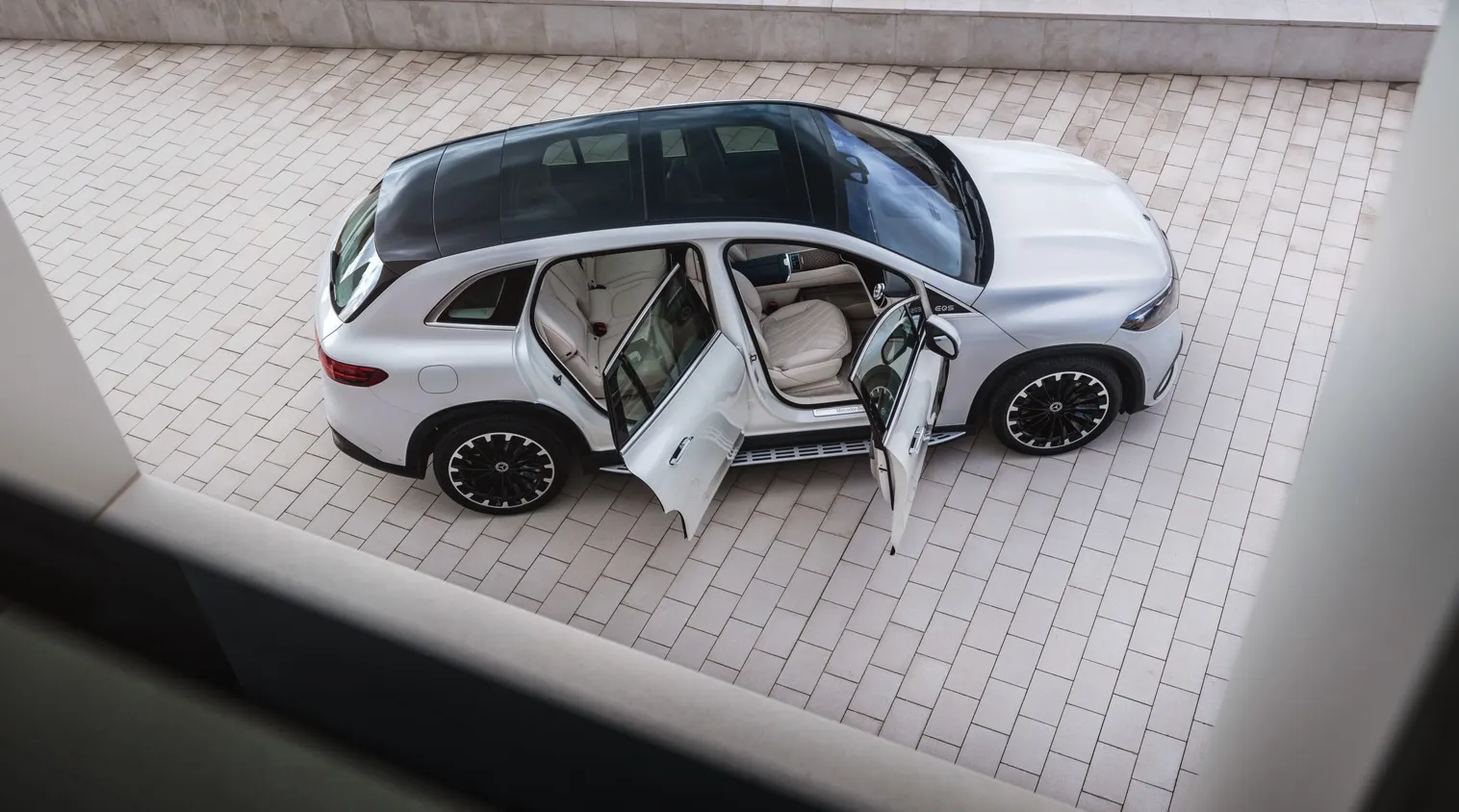

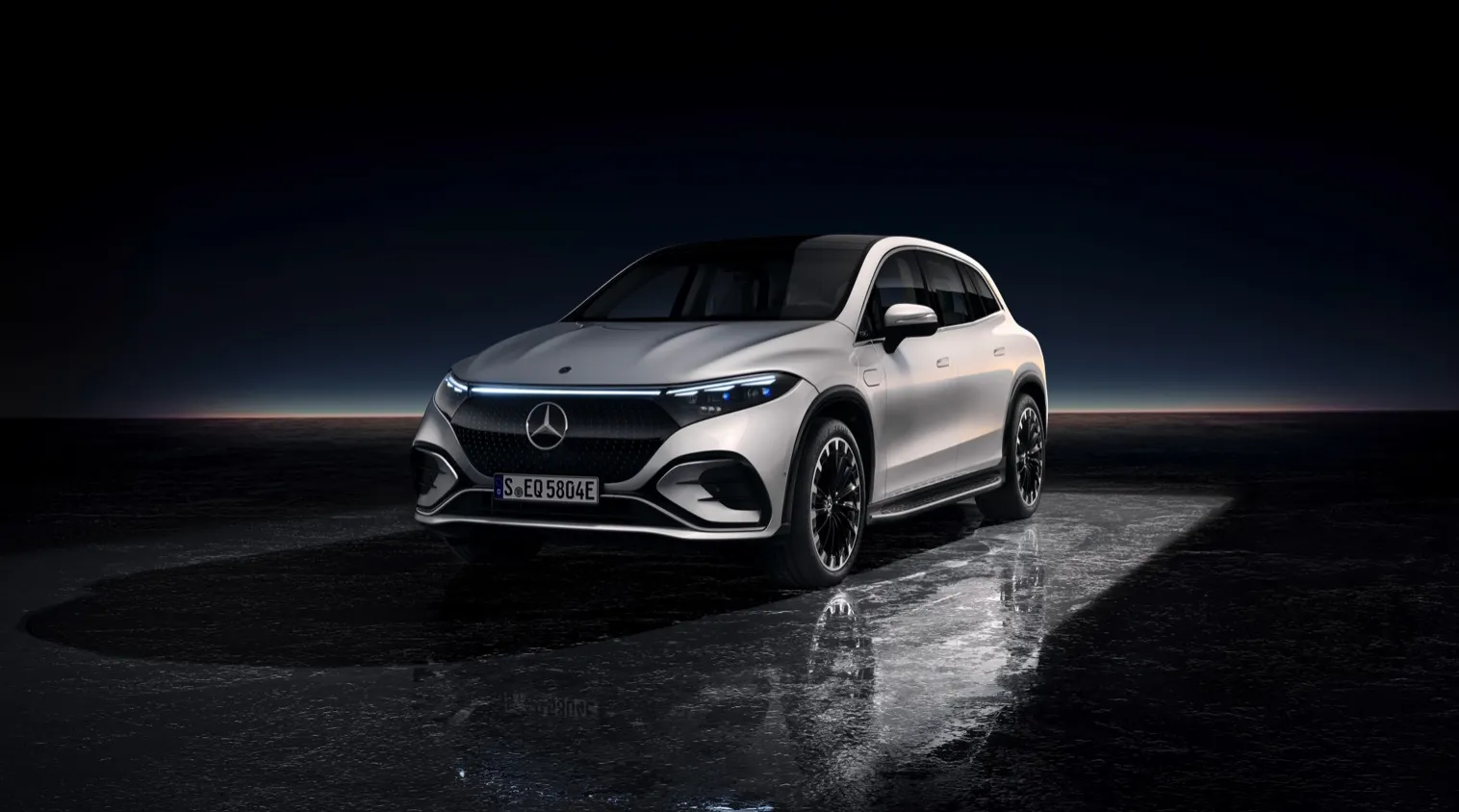

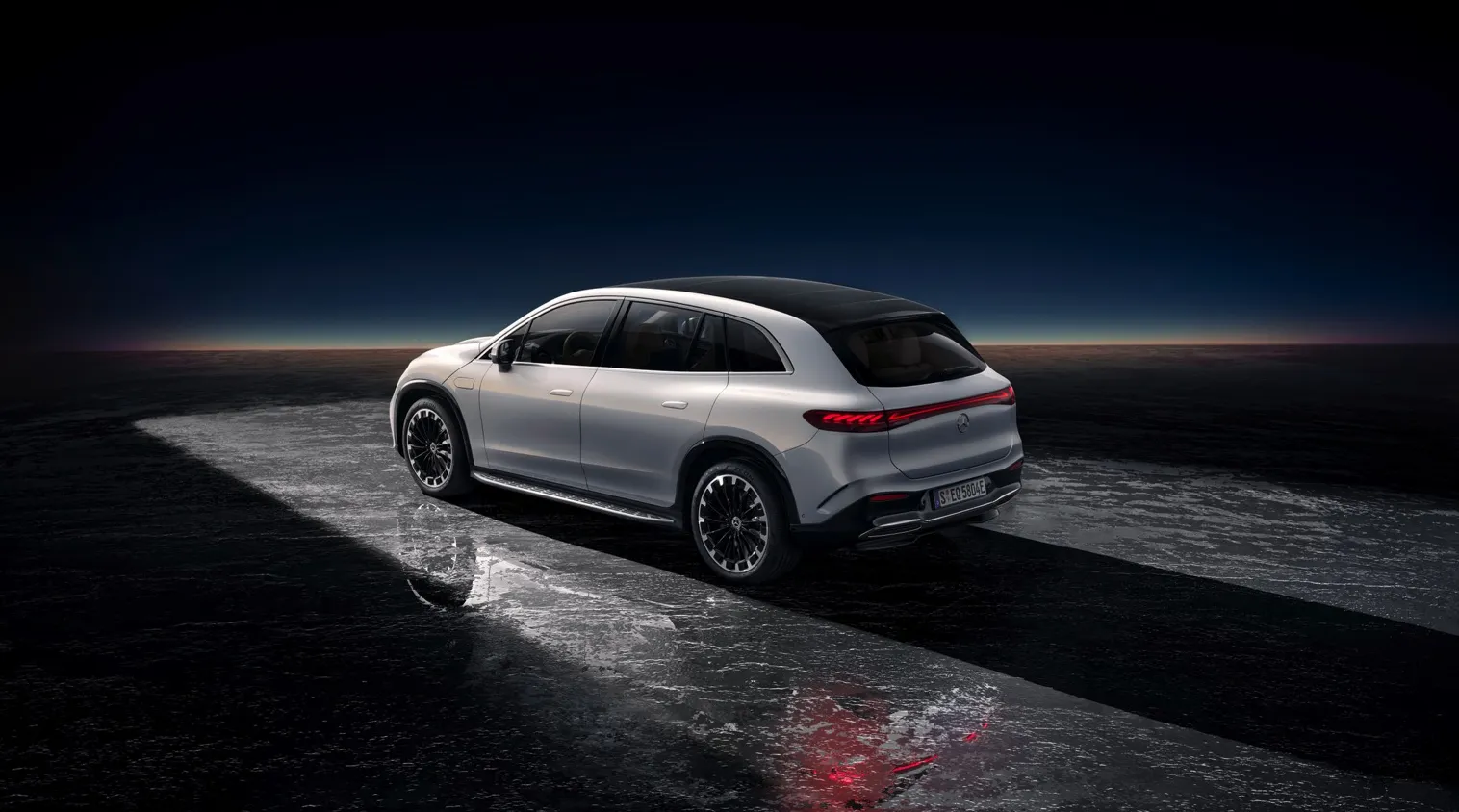

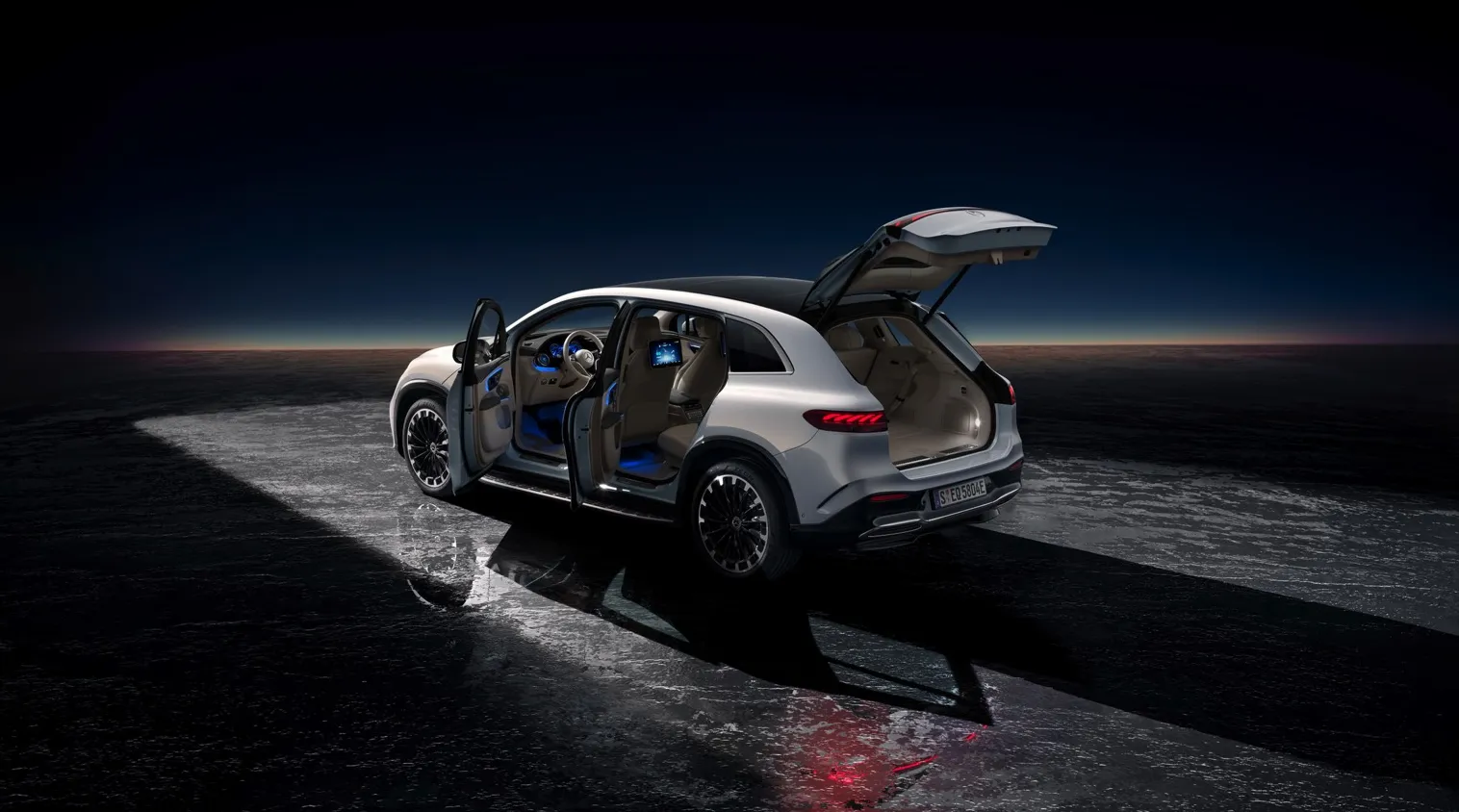

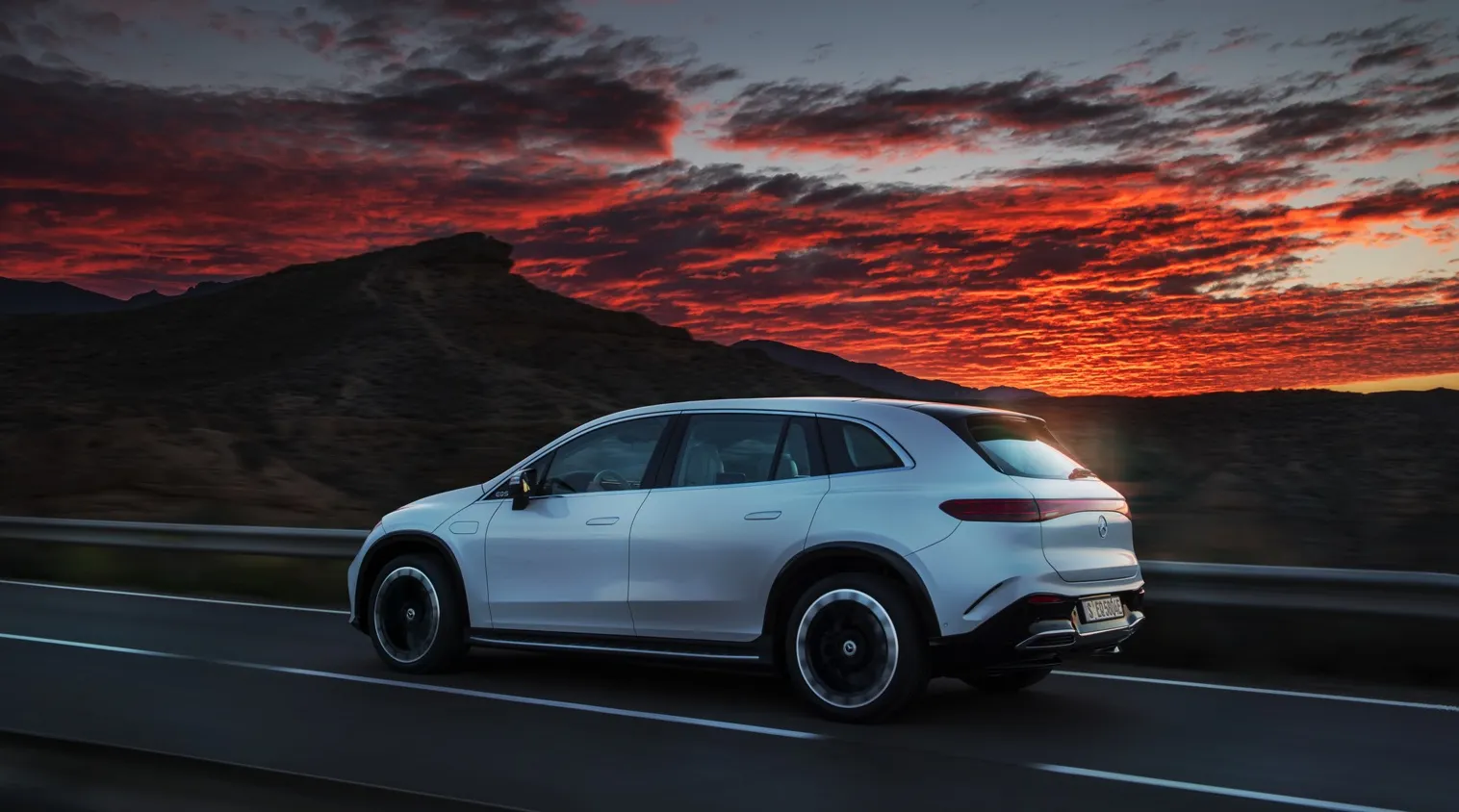

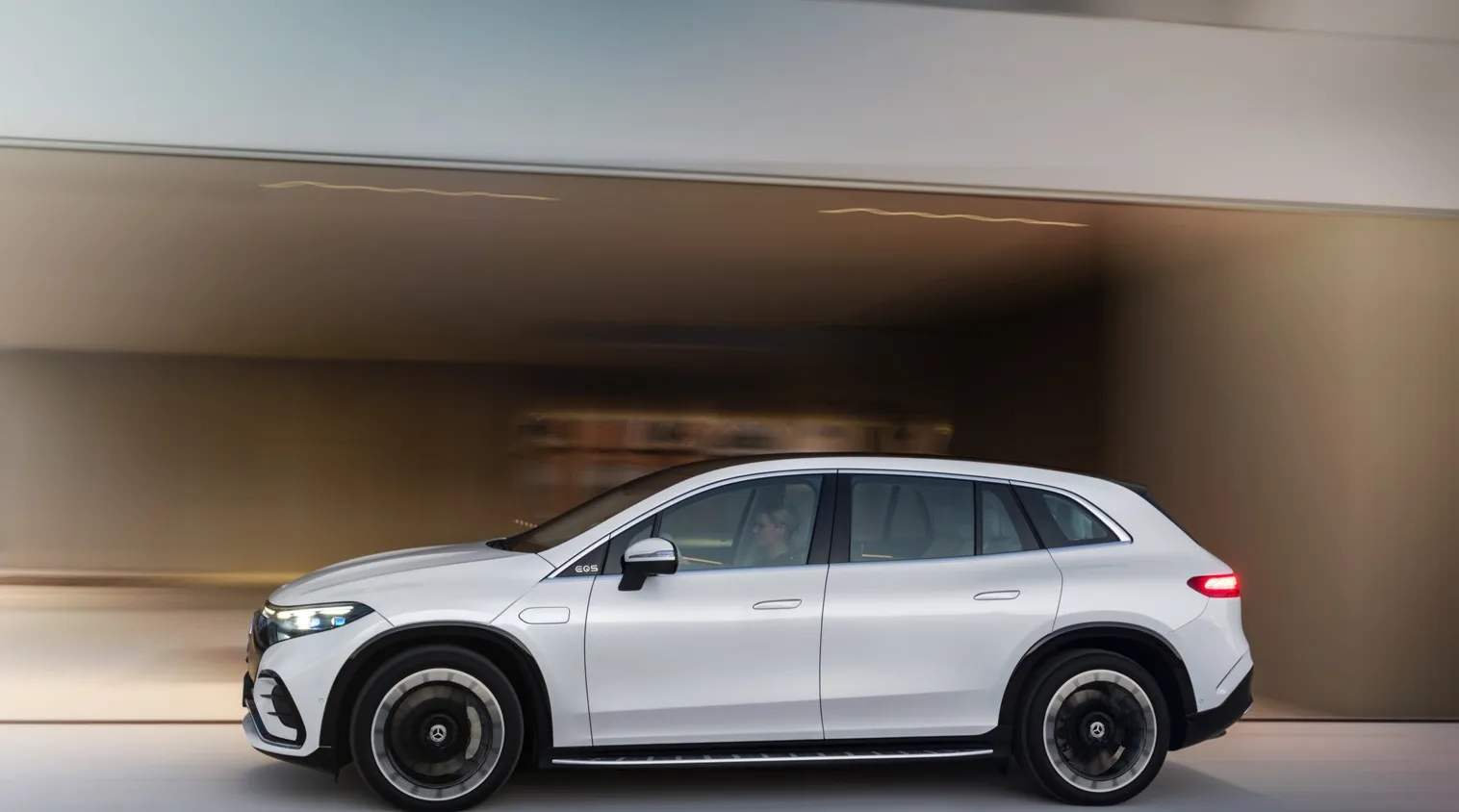

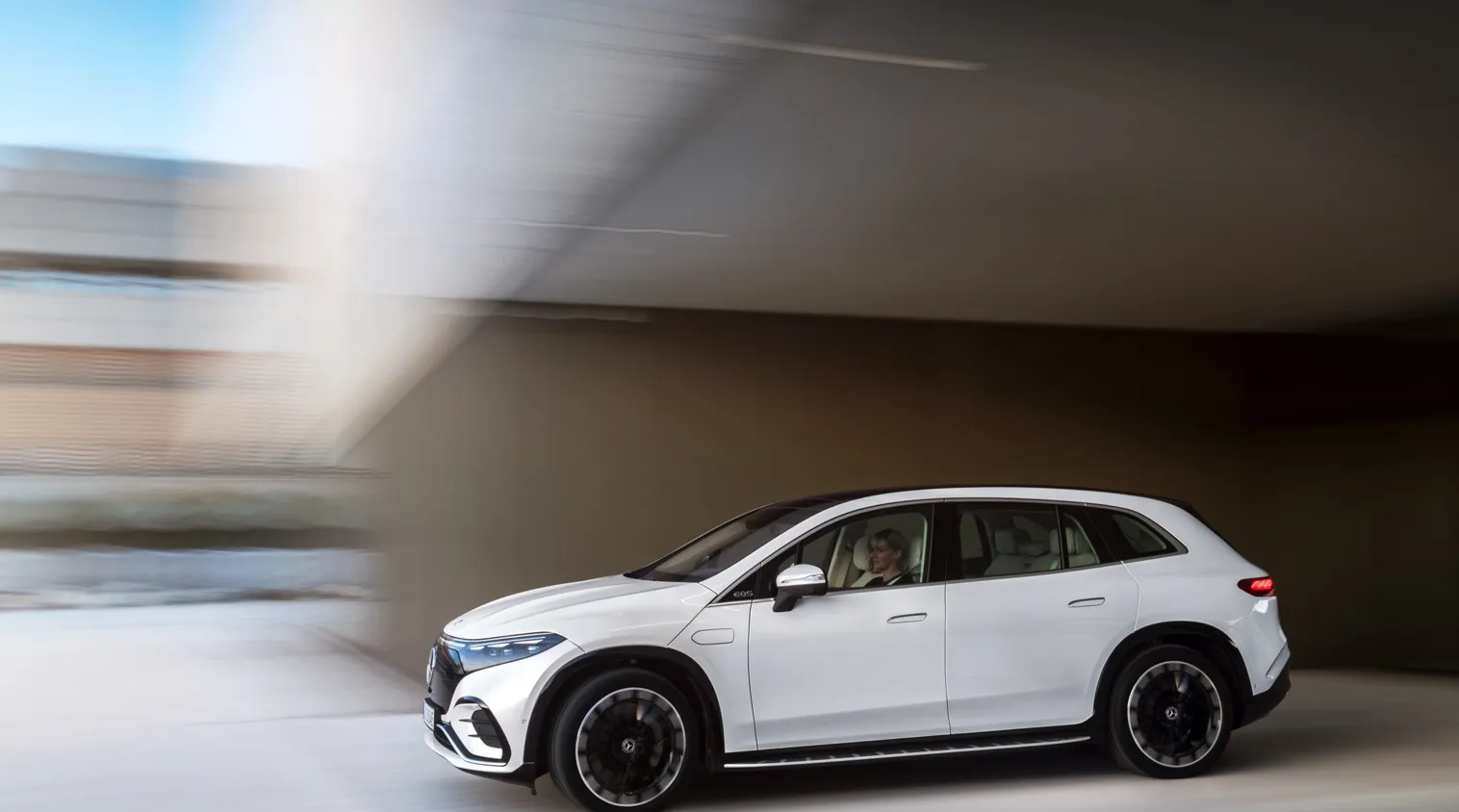

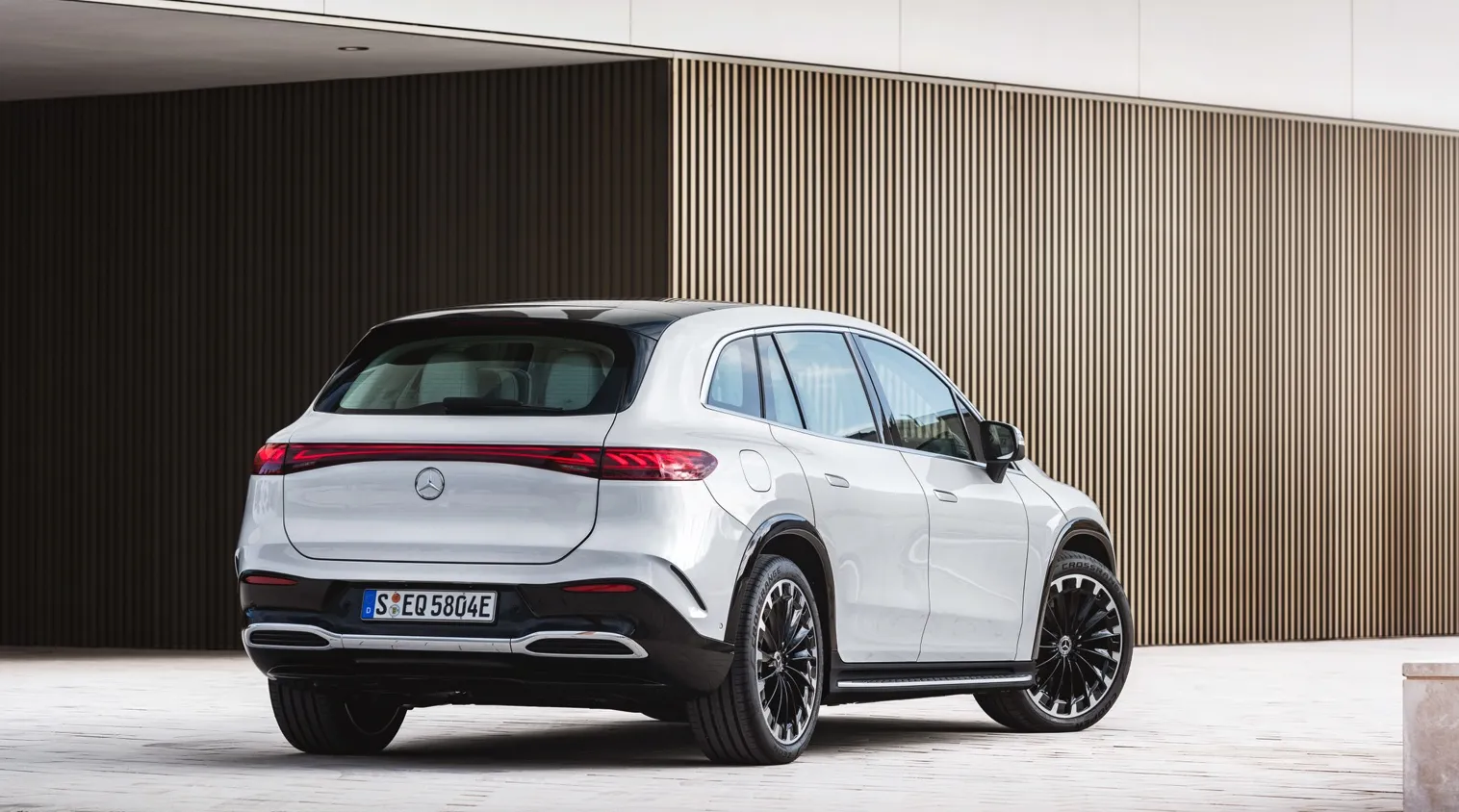

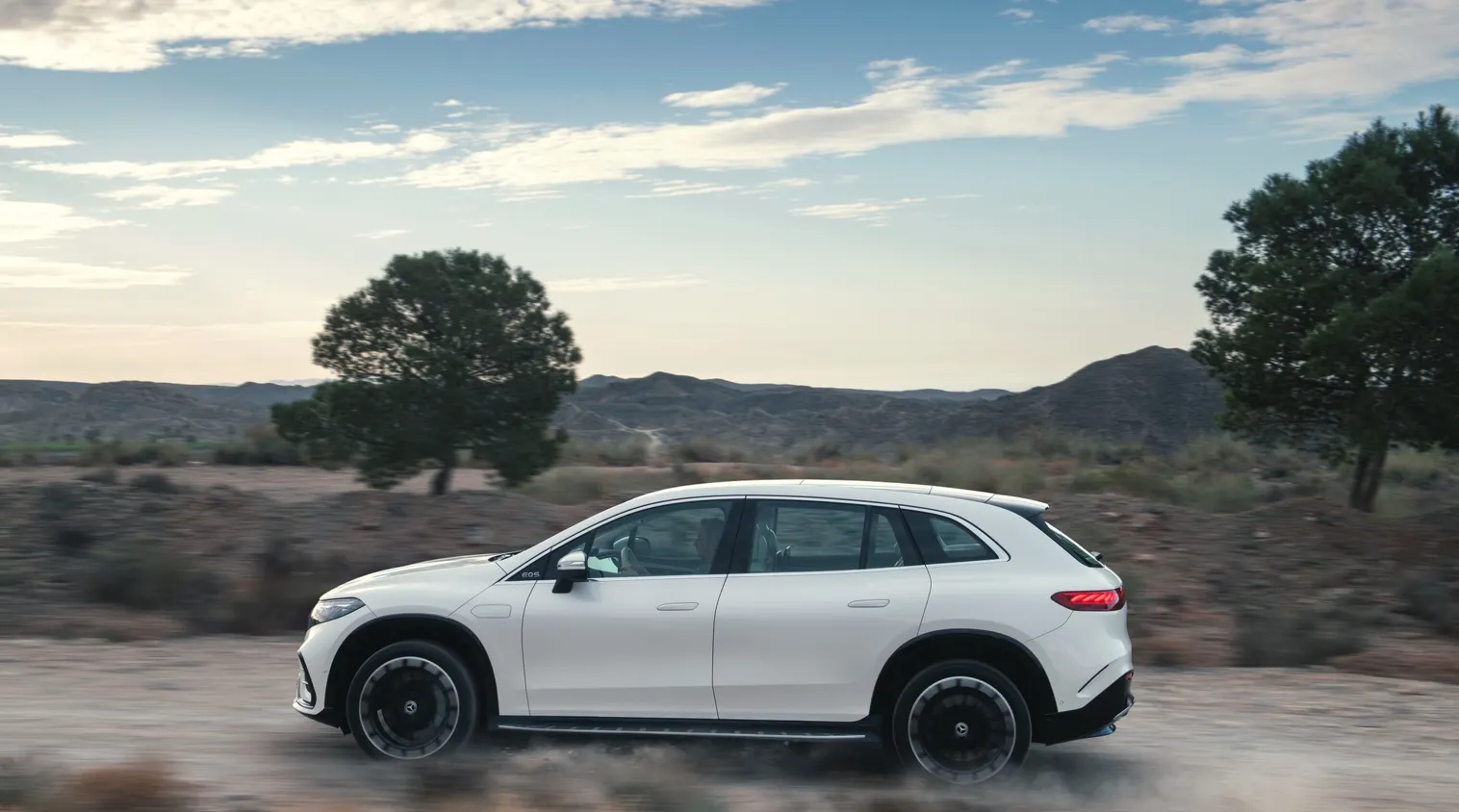

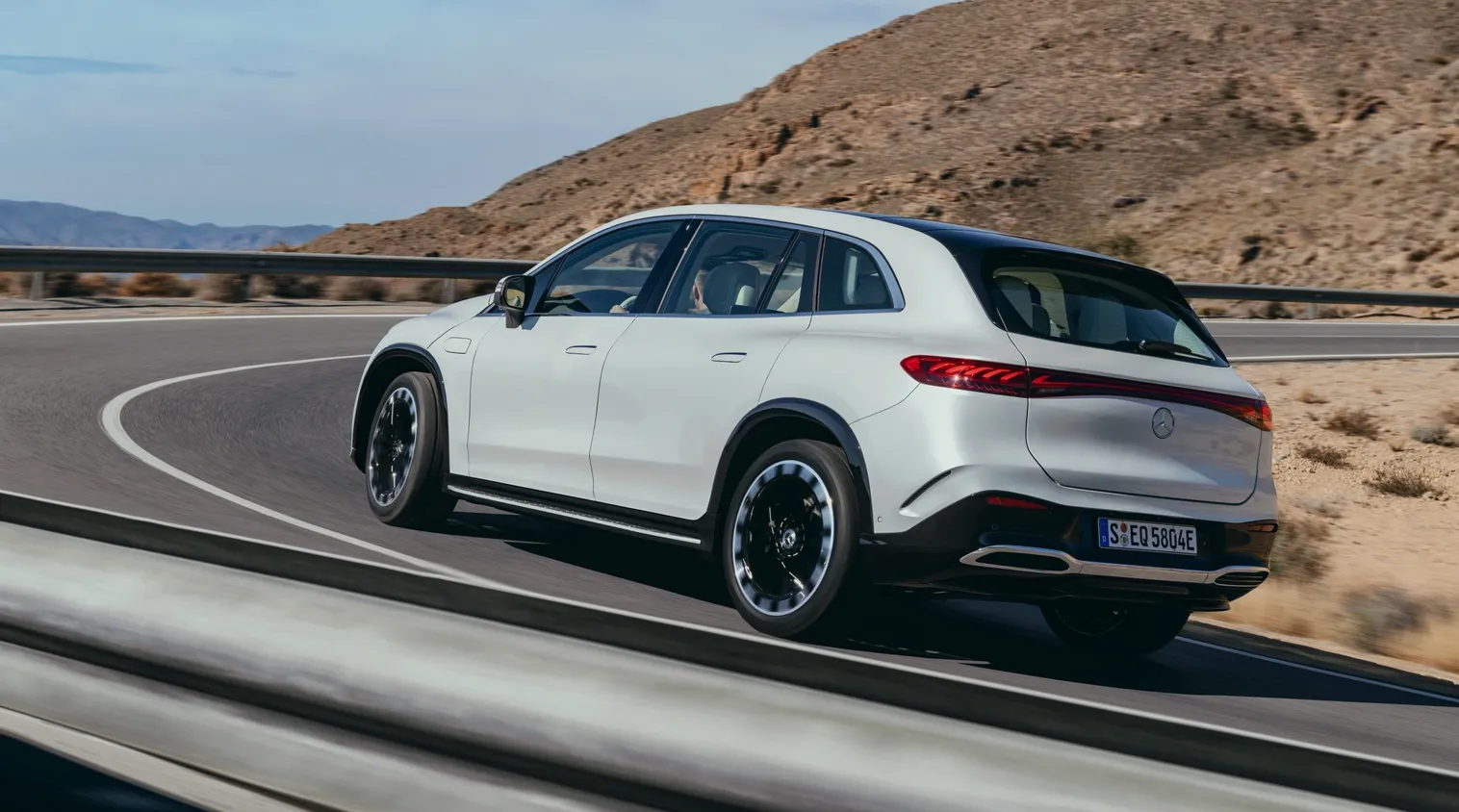

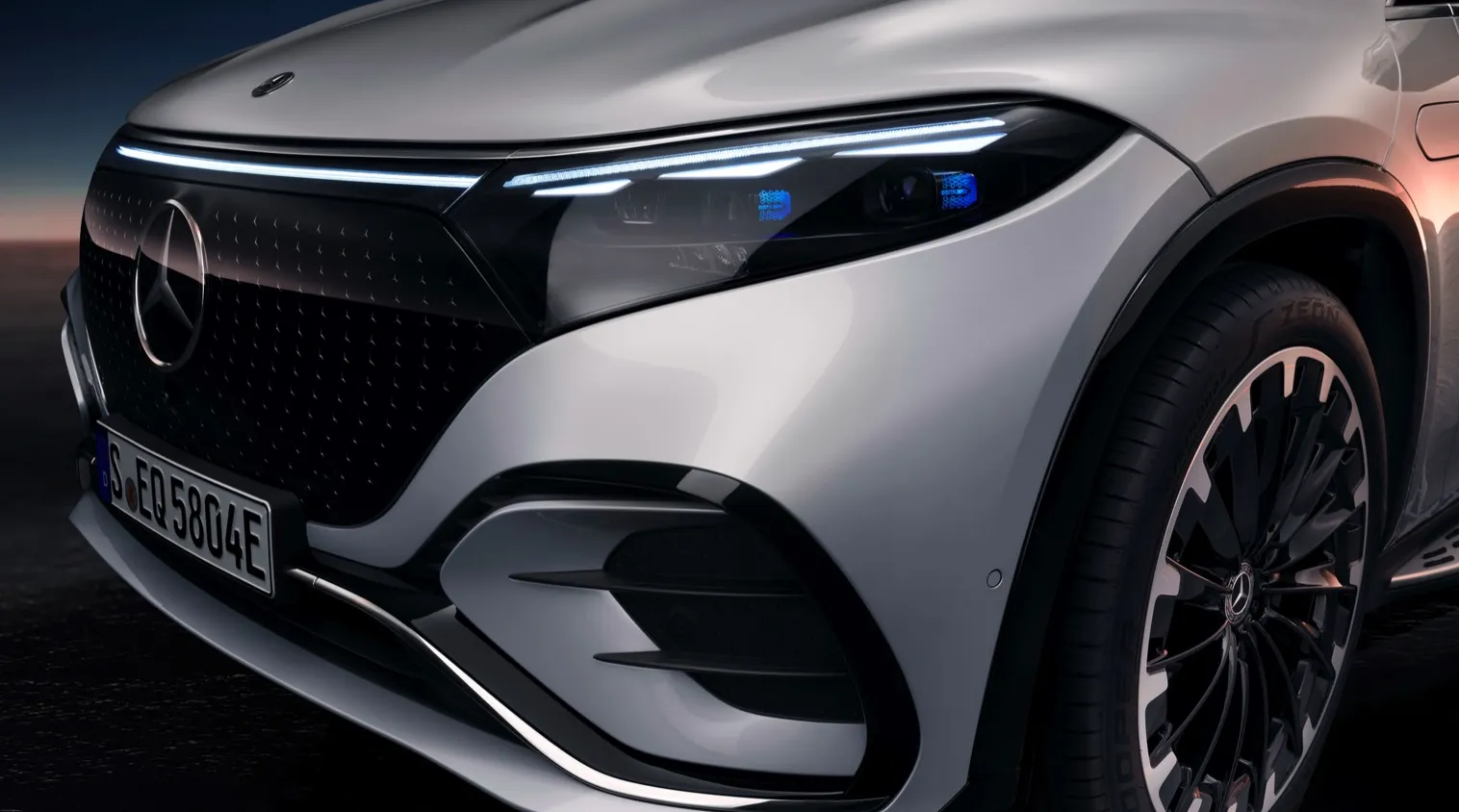

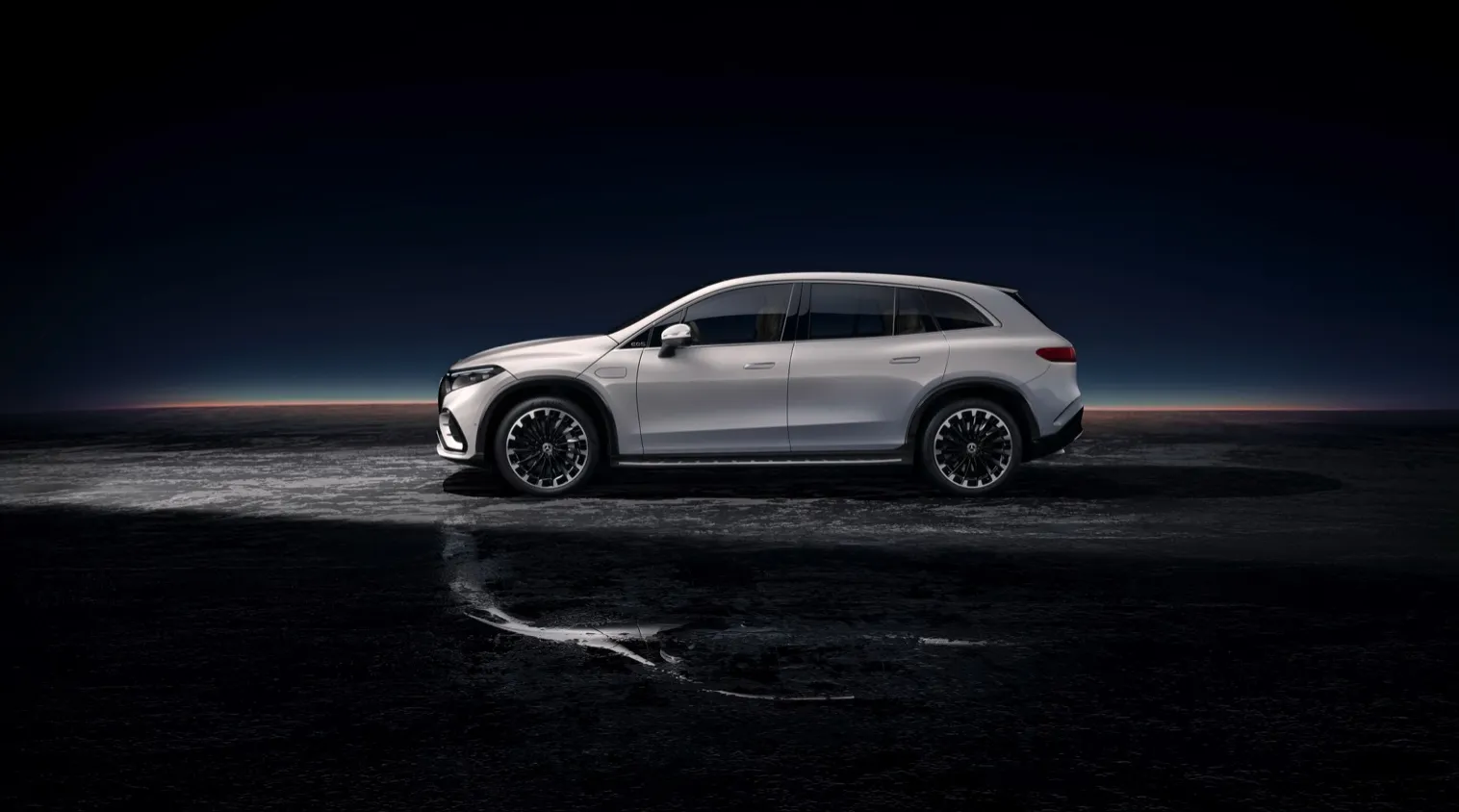

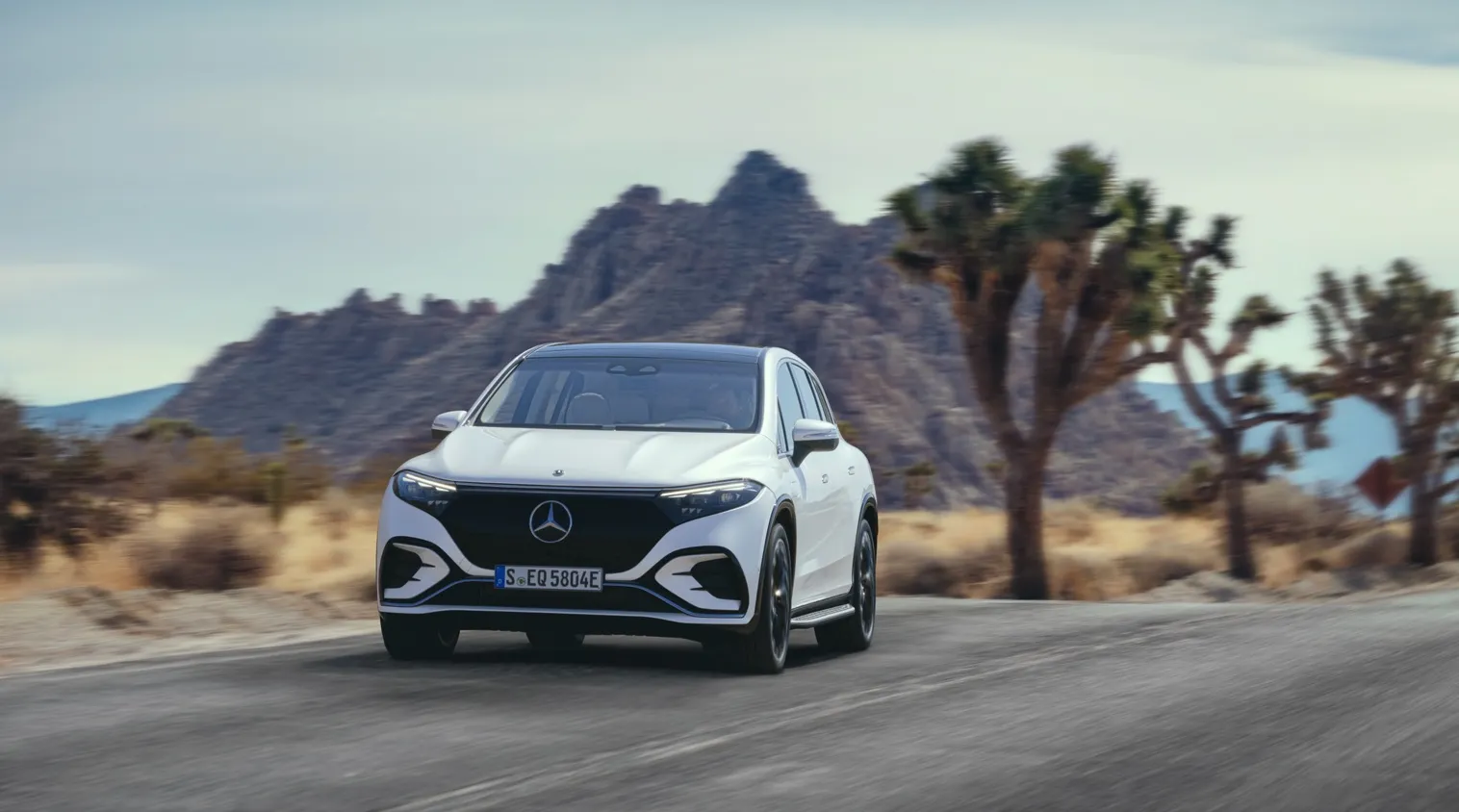

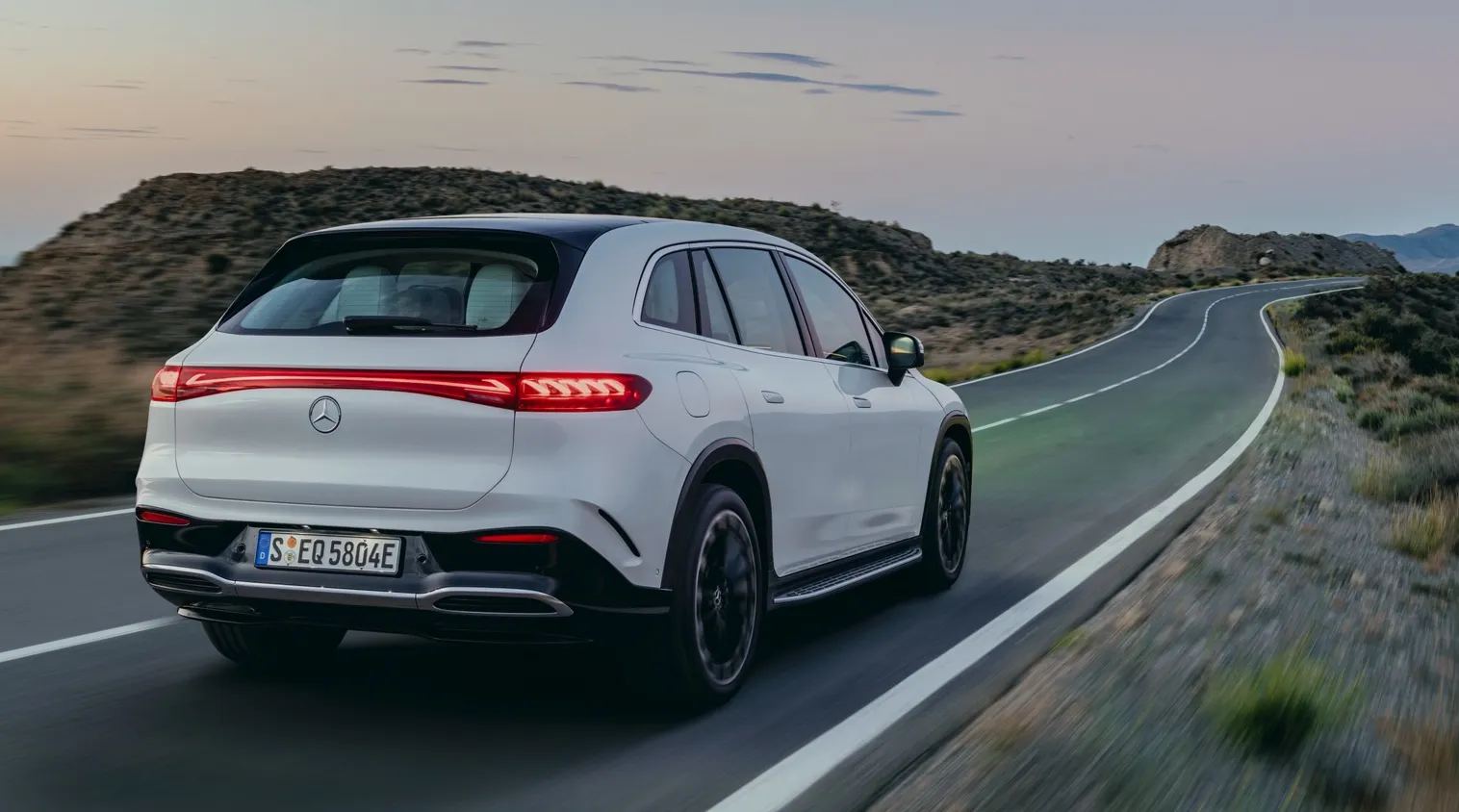

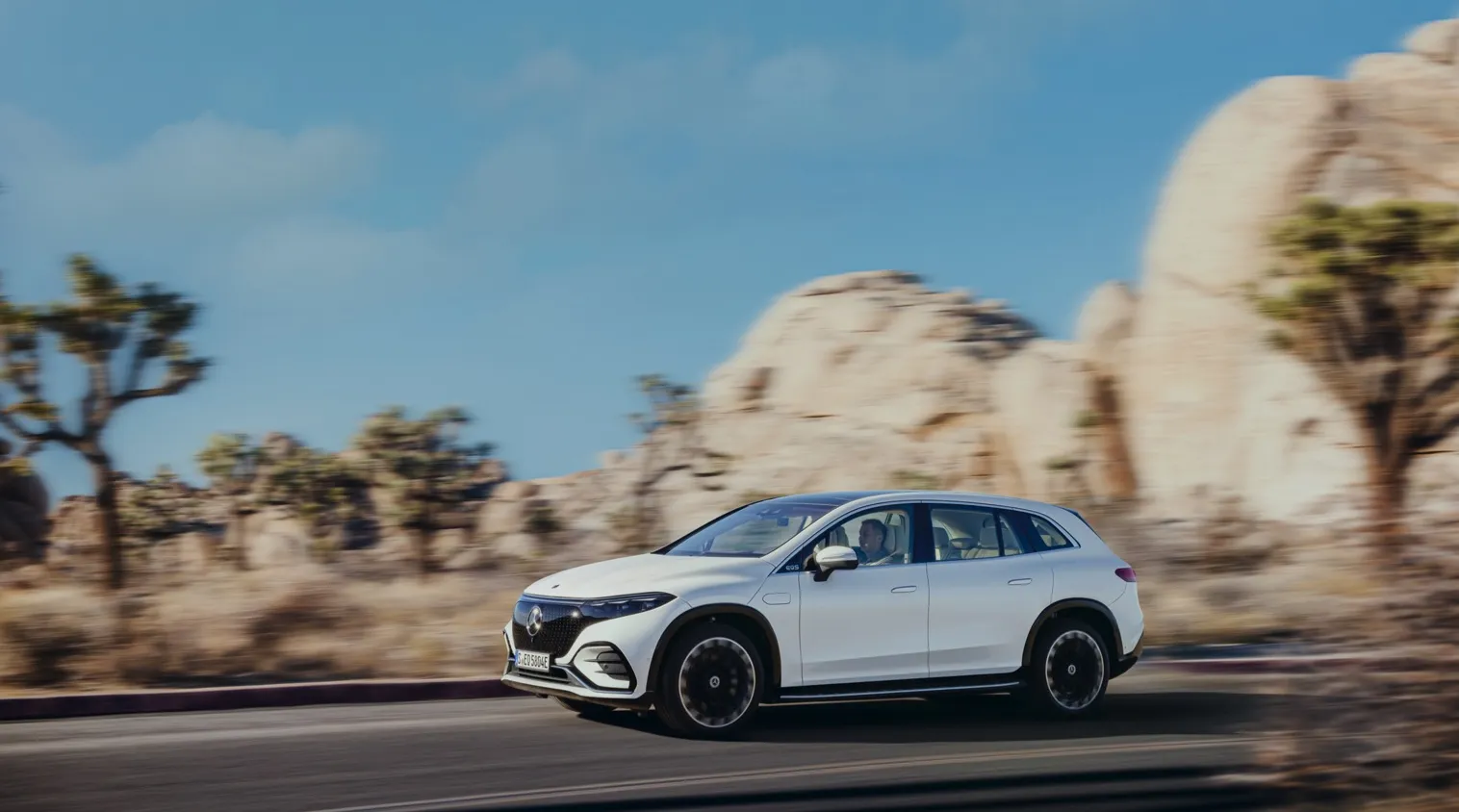

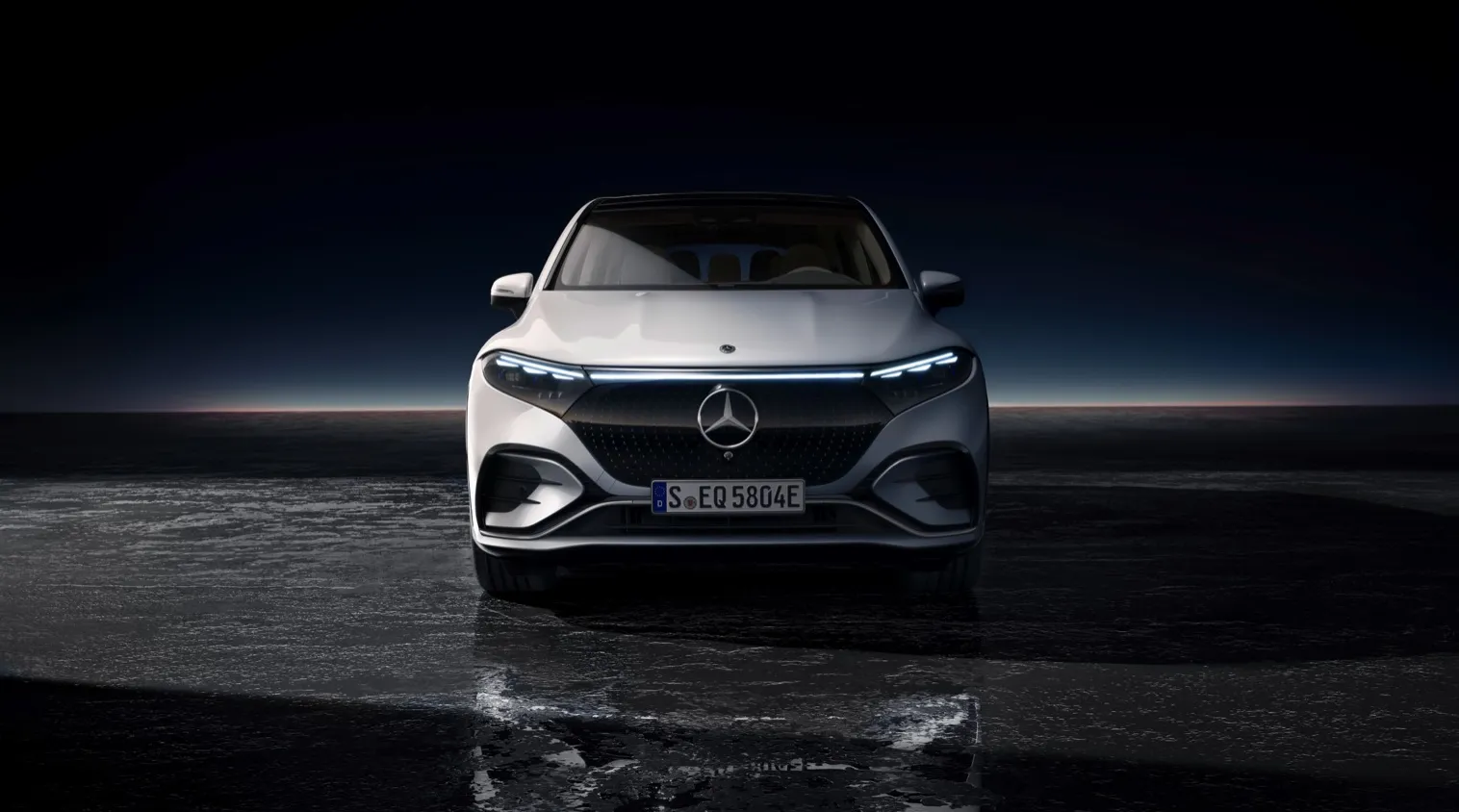

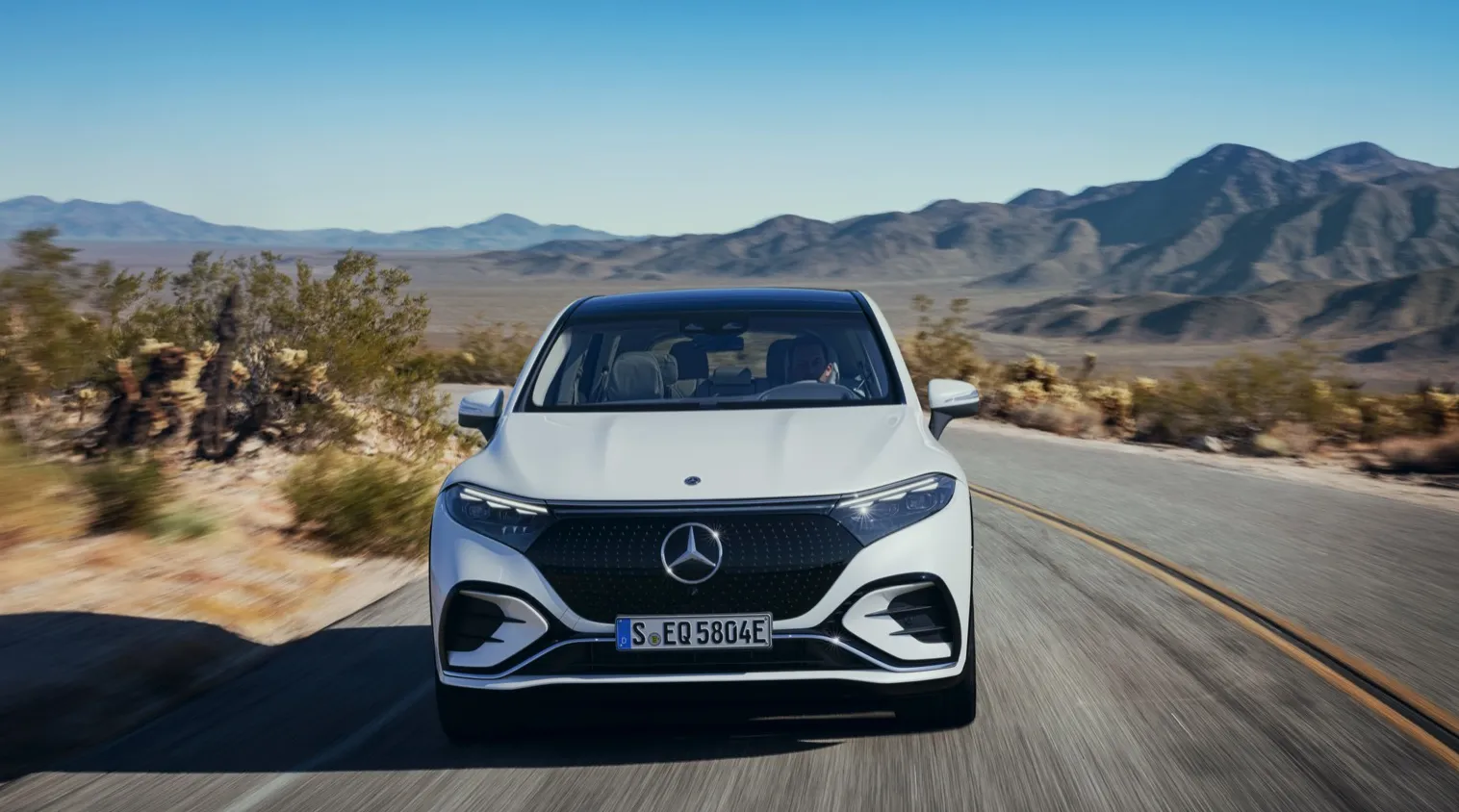

Mercedes-Benz EQS SUV 580 4MATIC
Model: Mercedes-Benz
- : 118.0 kWh
- : 530 km *
- : 223 Wh/km *
Real Range Estimation
| City - Cold Weather * | 530 km |
| Highway - Cold Weather * | 380 km |
| Combined - Cold Weather * | 450 km |
between 380 - 750 km
| City - Mild Weather * | 750 km |
| Highway - Mild Weather * | 480 km |
| Combined - Mild Weather * | 595 km |
Performance
| Acceleration 0 - 100 km/h | 4.7 sec |
| Top Speed | 210 km/h |
| Electric Range * | 530 km |
| Total Power | 400 kW (544 PS) |
| Total Torque | 858 Nm |
| Drive | AWD |
Battery
| Nominal Capacity* | 125.0 kWh |
| Battery Type | Lithium-ion |
| Number of Cells | No Data |
| Architecture | 400 V |
| Warranty Period | 10 years |
| Warranty Mileage | 250,000 km |
| Useable Capacity | 118.0 kWh |
| Cathode Material | No Data |
| Pack Configuration | No Data |
| Nominal Voltage | No Data |
| Form Factor | No Data |
| Name / Reference | No Data |
Bidirectional Charging (V2X / BPT)
Vehicle-to-Load (V2L)
| V2L Supported | No |
| Max. Output Power | - |
Vehicle-to-Home (V2H)
| V2H via AC Supported | No |
| Max. Output Power | - |
Vehicle-to-Grid (V2G)
| V2G via AC Supported | No |
| Max. Output Power | - |
Energy Consumption
EVDB Real Range
| Range * | 530 km |
| Vehicle Consumption * | 223 Wh/km |
WLTP Ratings (TEL)
| Range | 673 km |
| Rated Consumption | 200 Wh/km |
| Vehicle Consumption | 175 Wh/km |
WLTP Ratings (TEH)
| Range | 594 km |
| Rated Consumption | 228 Wh/km |
| Vehicle Consumption | 199 Wh/km |
Miscellaneous

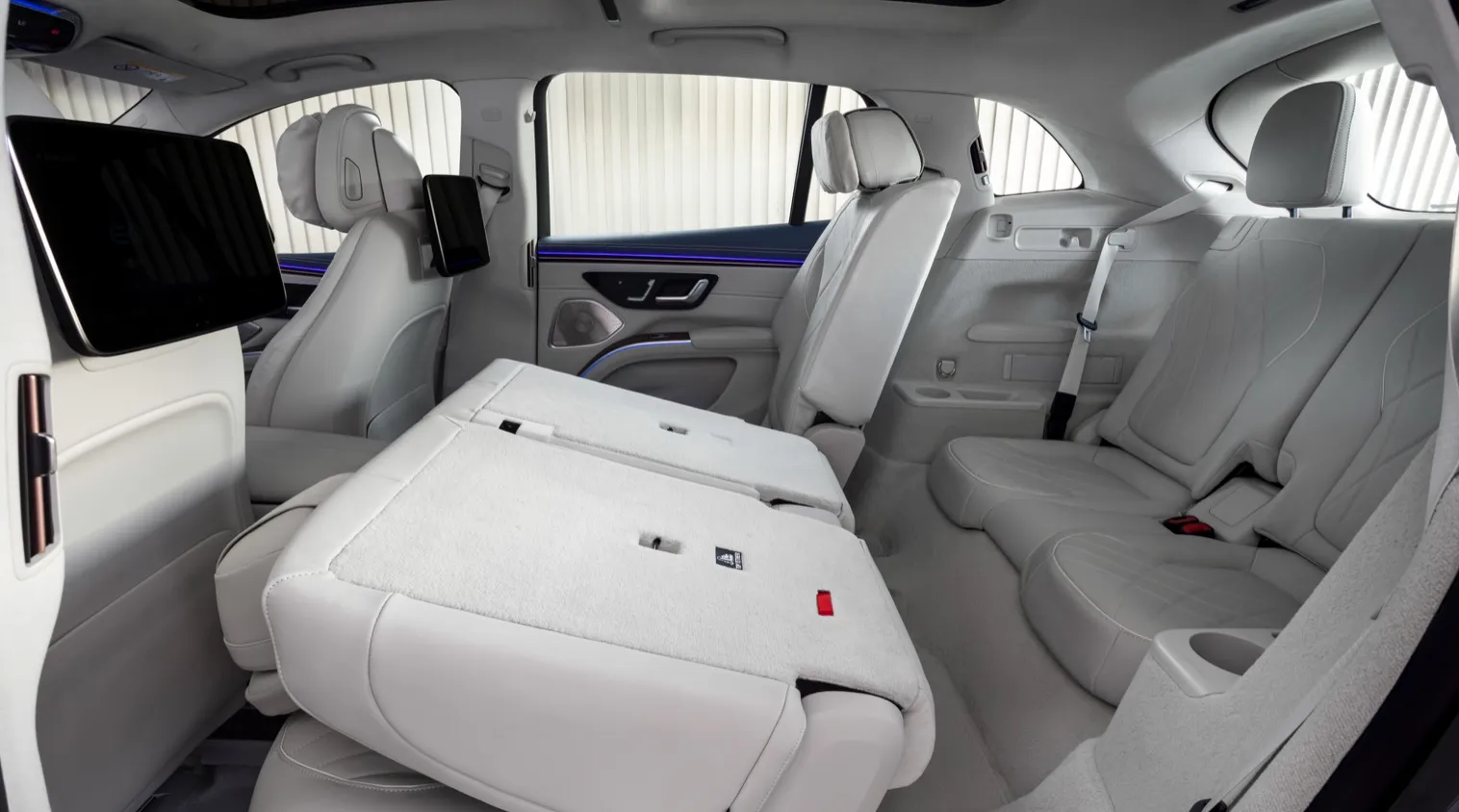

| Seats | 7 people |
| Isofix | Yes, 2 seats |
| Turning Circle | 11 m |
| Platform | MB EVA2 |
| EV Dedicated Platform | Yes |
| Car Body | SUV |
| Segment | JF - Luxury |
| Roof Rails | No |
| Heat pump (HP) | Yes |
| HP Standard Equipment | Yes |

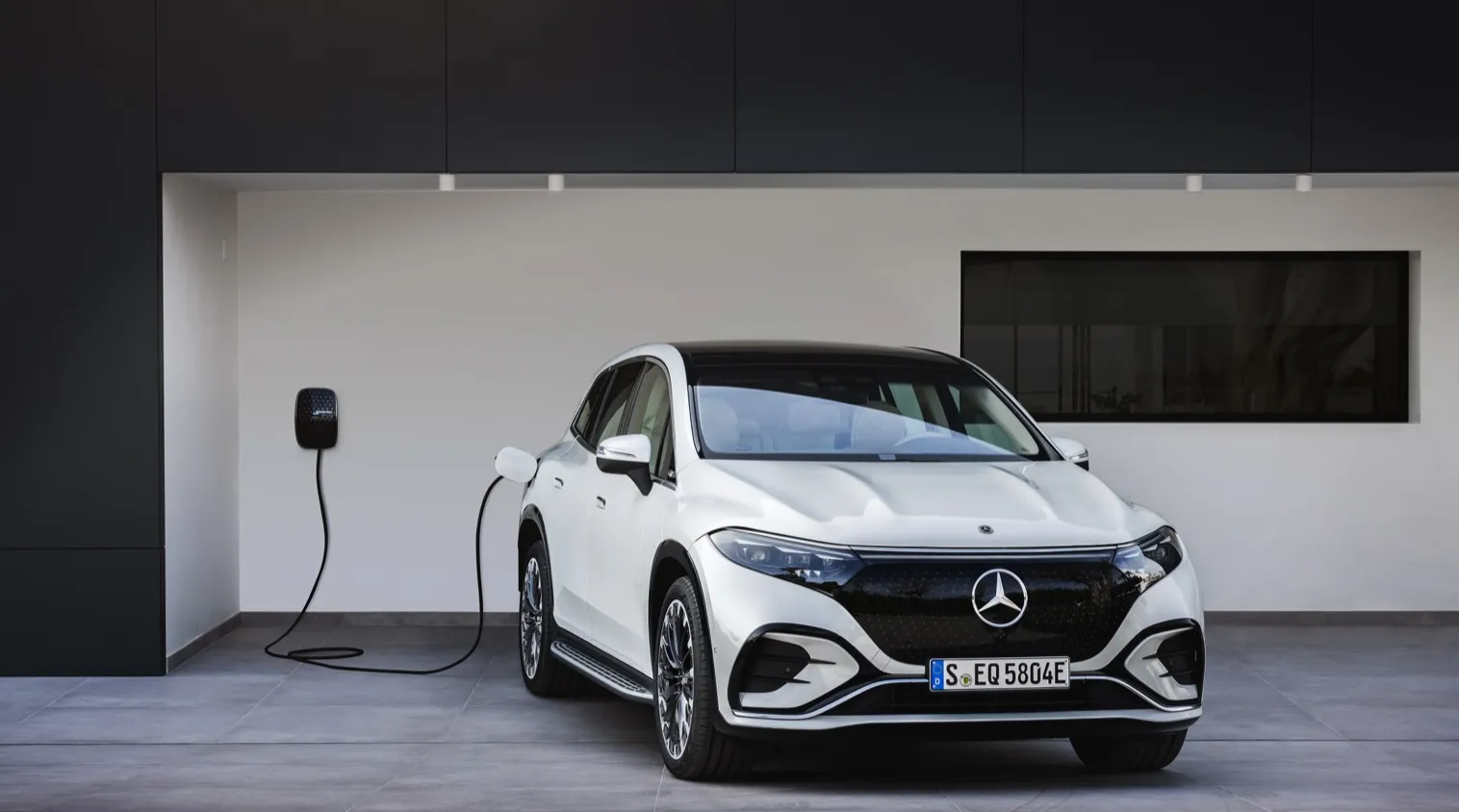

Home and Destination Charging (0 -> 100%)
Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Mercedes-Benz EQS SUV 580 4MATIC. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Mercedes-Benz EQS SUV 580 4MATIC can be charged, but some modes of charging might not be widely available in certain countries.
| Type 2 (Mennekes - IEC 62196) |
|---|
 |
| Charging Point | Max. Power | Power | Time | Rate |
|---|---|---|---|---|
| Standard 11.0 kW On-Board Charger | ||||
| Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 60h30m | 9 km/h |
| 1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 37h45m | 14 km/h |
| 1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 18h45m | 28 km/h |
| 3-phase 16A (11 kW) | 400V / 3x16A | 11 kW | 12h45m | 42 km/h |
| 3-phase 32A (22 kW) | 400V / 3x16A | 11 kW † | 12h45m | 42 km/h |
| Optional 22.0kW On-Board Charger * | ||||
| Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 60h30m | 9 km/h |
| 1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 37h45m | 14 km/h |
| 1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 18h45m | 28 km/h |
| 3-phase 16A (11 kW) | 400V / 3x16A | 11 kW | 12h45m | 42 km/h |
| 3-phase 32A (22 kW) | 400V / 3x32A | 22 kW † | 6h30m | 82 km/h |
† = Limited by on-board charger, vehicle cannot charge faster.
* = Optional in some countries, standard in others. Check local specifications for details.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Mercedes-Benz EQS SUV 580 4MATIC.
- Max. Power: maximum power provided by charge point
- Avg. Power: average power provided by charge point over a session from 10% to 80%
- Time: time needed to charge from 10% to 80%
- Rate: average charging speed over a session from 10% to 80%
| Combined Charging System (CCS Combo 2) |
|---|
 |
| Charging Point | Max. Power | Avg. Power | Time | Rate |
|---|---|---|---|---|
| CCS (50 kW DC) | 50 kW | 50 kW | 104 min | 210 km/h |
| CCS (100 kW DC) | 100 kW | 95 kW † | 55 min | 400 km/h |
| CCS (150 kW DC) | 150 kW | 125 kW † | 42 min | 530 km/h |
| CCS (175 kW DC) | 175 kW | 140 kW † | 37 min | 600 km/h |
| CCS (350 kW DC) | 200 kW † | 160 kW † | 33 min | 670 km/h |
| This vehicle supports Autocharge |
|---|
| This vehicle supports Plug & Charge |
† = Limited by charging capabilities of vehicle
Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.
Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
Mercedes-Benz Claimed Specifications
The table below shows the claimed specifications from the manufacturer for charging the Mercedes-Benz EQS SUV 580 4MATIC. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.
- Max. Power: maximum charge power during charging session
- Charge From: battery percentage (% SoC) where charging session is started
- Charge To: battery percentage (% SoC) where charging session is ended
- Time: time needed for charging session
| Mercedes-Benz Claimed Specifications |
|---|
| Max. Power | Charge From | Charge To | Time |
|---|---|---|---|
| 200 kW | 10 % | 80 % | 31 min |
