Lexus RZ 450e

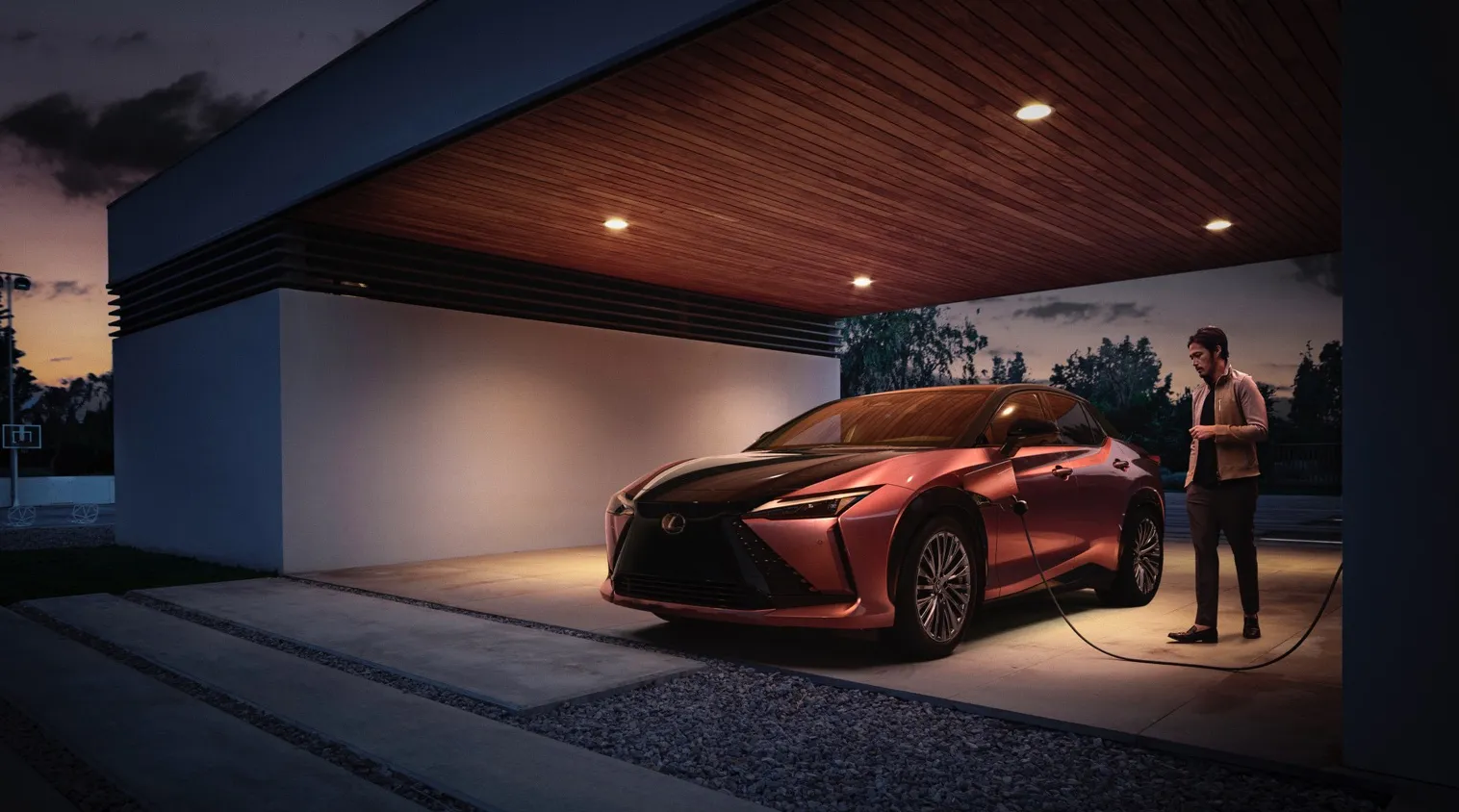

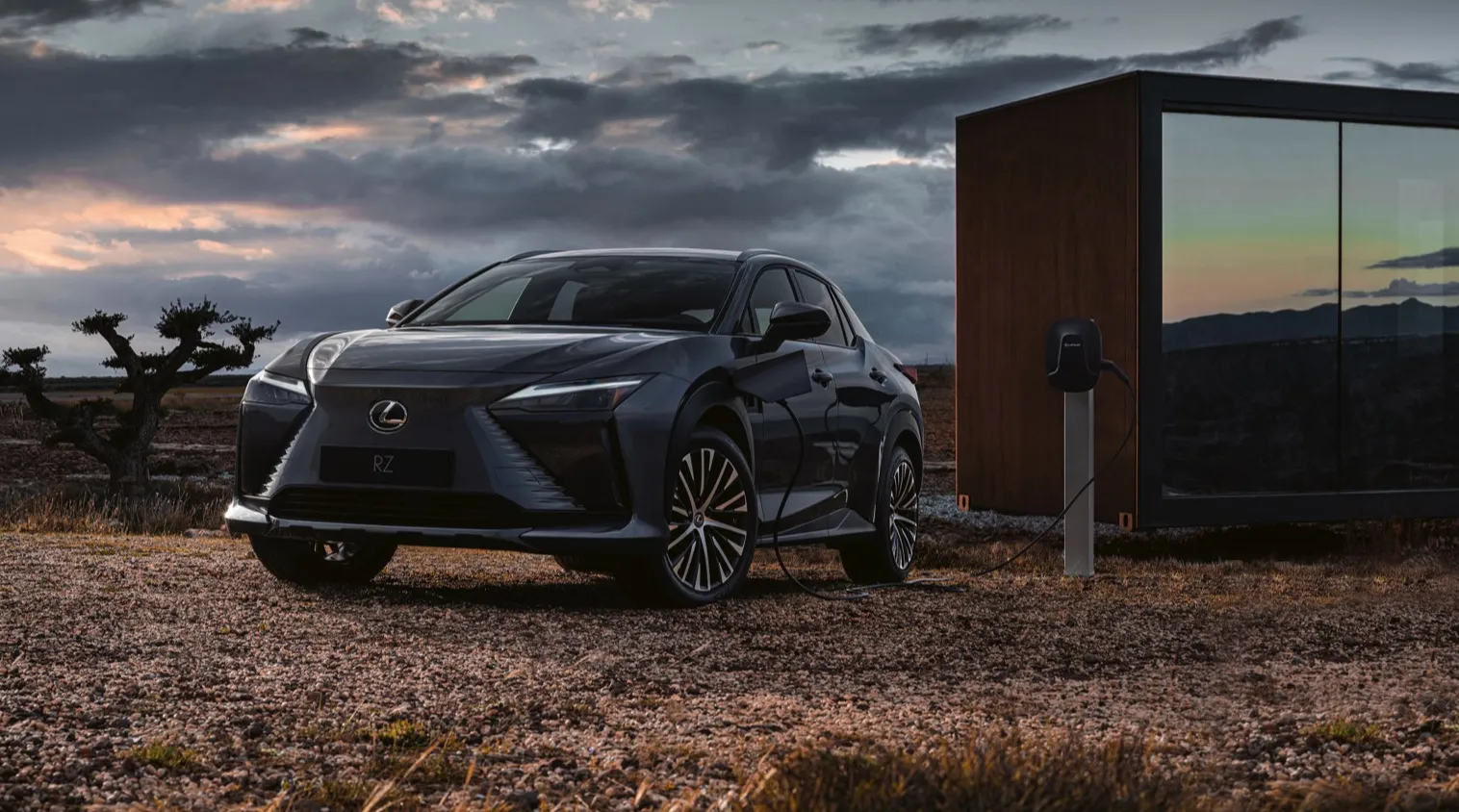

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Lexus RZ 450e. Each option shows how fast the battery can be charged from empty to full.

Europe

Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Lexus RZ 450e can be charged, but some modes of charging might not be widely available in certain countries.

Type 2 (Mennekes - IEC 62196)

Charging Point	Max. Power	Power	Time	Rate
Standard 6.6 kW On-Board Charger
Wall Plug (2.3 kW)	230V / 1x10A	2.3 kW	32h45m	11 km/h
1-phase 16A (3.7 kW)	230V / 1x16A	3.7 kW	20h30m	17 km/h
1-phase 32A (7.4 kW)	230V / 1x29A	6.6 kW †	11h30m	30 km/h
3-phase 16A (11 kW)	230V / 1x16A	3.7 kW †	20h30m	17 km/h
3-phase 32A (22 kW)	230V / 1x29A	6.6 kW †	11h30m	30 km/h
Optional 11.0kW On-Board Charger *
Wall Plug (2.3 kW)	230V / 1x10A	2.3 kW	32h45m	11 km/h
1-phase 16A (3.7 kW)	230V / 1x16A	3.7 kW	20h30m	17 km/h
1-phase 32A (7.4 kW)	230V / 1x32A	7.4 kW	10h15m	34 km/h
3-phase 16A (11 kW)	400V / 3x16A	11 kW	7 hours	50 km/h
3-phase 32A (22 kW)	400V / 3x16A	11 kW †	7 hours	50 km/h

† = Limited by on-board charger, vehicle cannot charge faster.

* = Optional in some countries, standard in others. Check local specifications for details.

Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Lexus RZ 450e.

• Max. Power: maximum power provided by charge point
• Avg. Power: average power provided by charge point over a session from 10% to 80%
• Time: time needed to charge from 10% to 80%
• Rate: average charging speed over a session from 10% to 80%

Combined Charging System (CCS Combo 2)

Charging Point	Max. Power	Avg. Power	Time	Rate
CCS (50 kW DC)	48 kW †	46 kW †	62 min	230 km/h
CCS (150 kW DC)	147 kW †	100 kW †	28 min	520 km/h

Charge Curve
Data made available by Fastned

This vehicle supports Autocharge
This vehicle does not support Plug & Charge

† = Limited by charging capabilities of vehicle

Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.

Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.

Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.

Lexus Claimed Specifications

The table below shows the claimed specifications from the manufacturer for charging the Lexus RZ 450e. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.

• Max. Power: maximum charge power during charging session
• Charge From: battery percentage (% SoC) where charging session is started
• Charge To: battery percentage (% SoC) where charging session is ended
• Time: time needed for charging session

Lexus Claimed Specifications

Max. Power	Charge From	Charge To	Time
150 kW	No Data	No Data	No Data
