DAB E RS
Introducing the Concept-E RS: Embodying High-Tech Performance
Price – $33.060
DAB Motors, renowned for revolutionizing electric motorcycles, proudly presents the Concept-E RS, a limited-edition vehicle that flawlessly blends cutting-edge technology with exceptional performance. Building upon the resounding success of their debut electric prototype, the CONCEPT-E, DAB Motors has taken the next stride by creating the road-legal version, Concept-E RS.
Crafted with meticulous attention to detail, the Concept-E RS showcases high-performance equipment designed explicitly for the road. Moreover, skilled local artisans meticulously hand-build each unit, ensuring unrivaled quality and precision. Excitingly, the Concept-E RS is now available for pre-order, offering enthusiasts the rare opportunity to own one of only 29 unique examples.

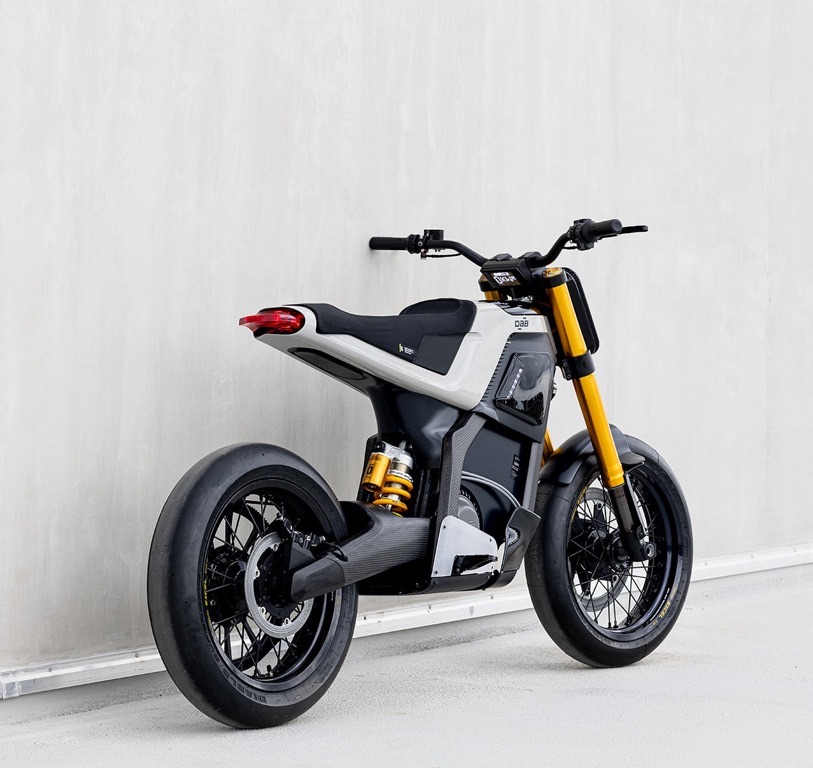

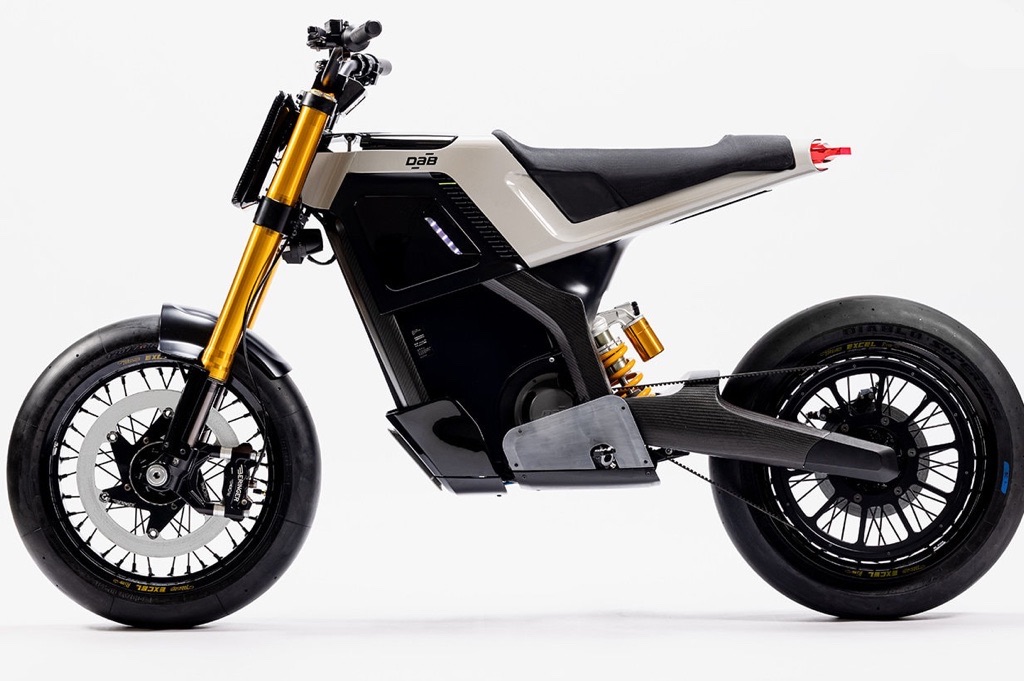

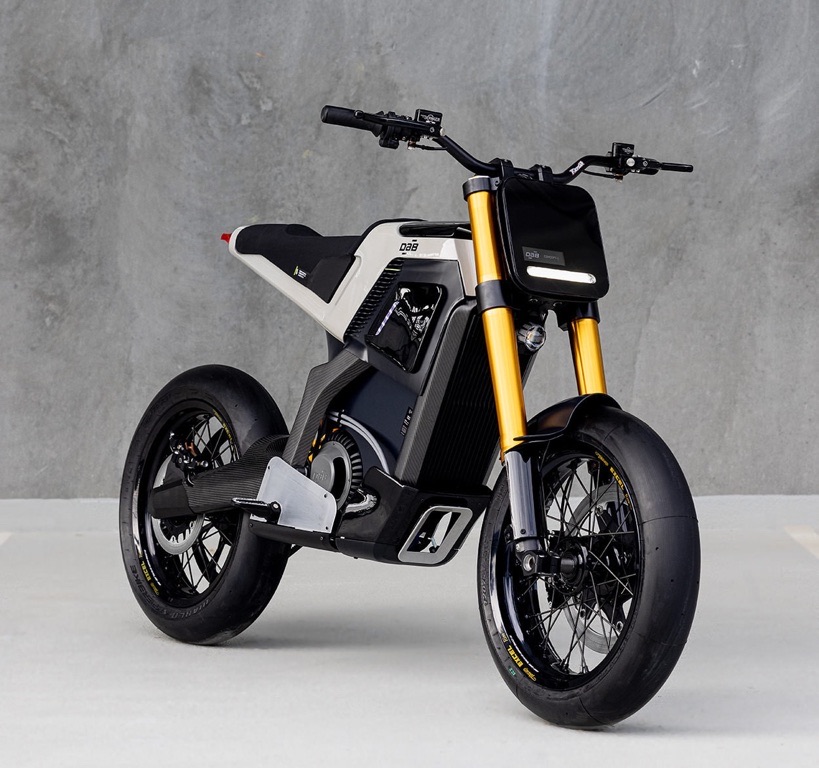

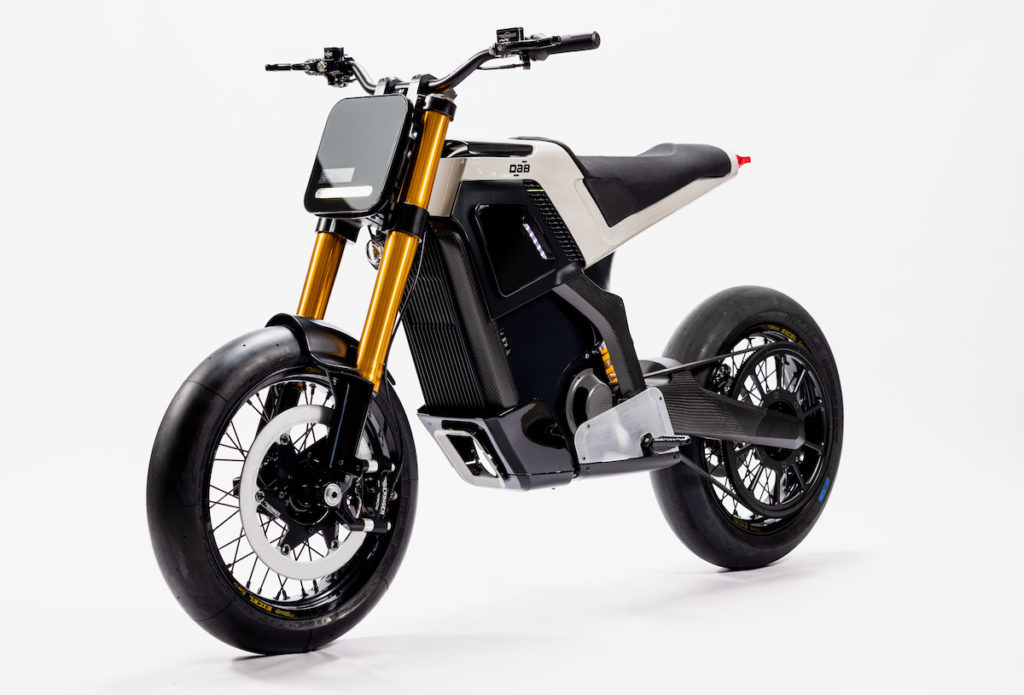

DAB E RS electric motorcycle

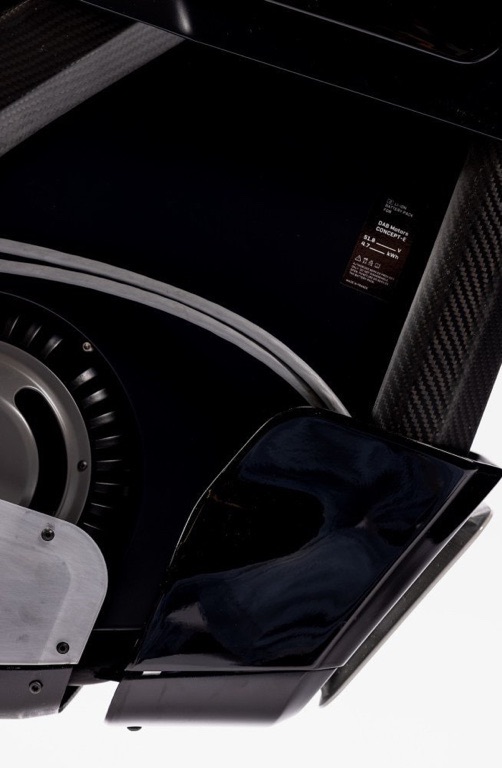

Beneath the sleek exterior, lies a formidable powertrain. The Concept-E RS propels forward with a robust 9 kW electric motor seamlessly connected to a cutting-edge 51.8 V lithium-ion battery. This potent combination grants the vehicle an impressive range of 110 km, significantly reducing range anxiety during extended journeys. Additionally, the Concept-E RS delivers exhilarating acceleration and an unforgettable ride experience with its top speed of 105 km/h.
DAB Motors’ team of engineers diligently works towards homologating the Concept-E RS, ensuring seamless compliance with regulatory requirements and safety standards. This comprehensive process includes rigorous EMC testing, meticulous approval of lighting systems, and stringent braking tests. Moreover, the vehicle will feature essential components such as a digital instrument panel, turn signals, mirrors, a license plate holder, and reflectors. Notably, DAB Motors seamlessly integrates these mandatory elements in a minimalist and cohesive manner, further enhancing the vehicle’s sleek aesthetic.

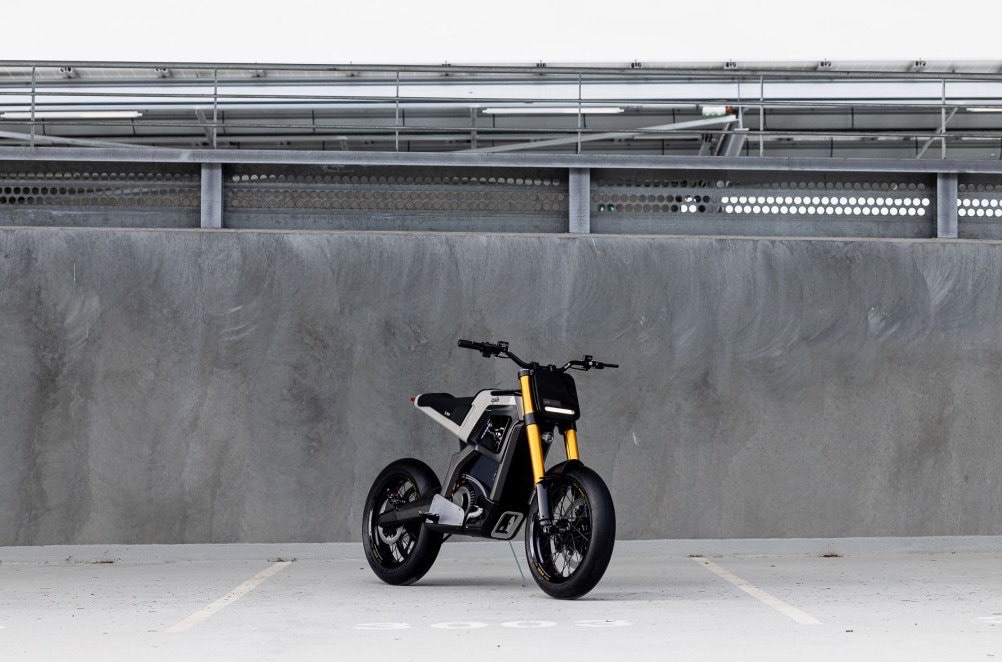

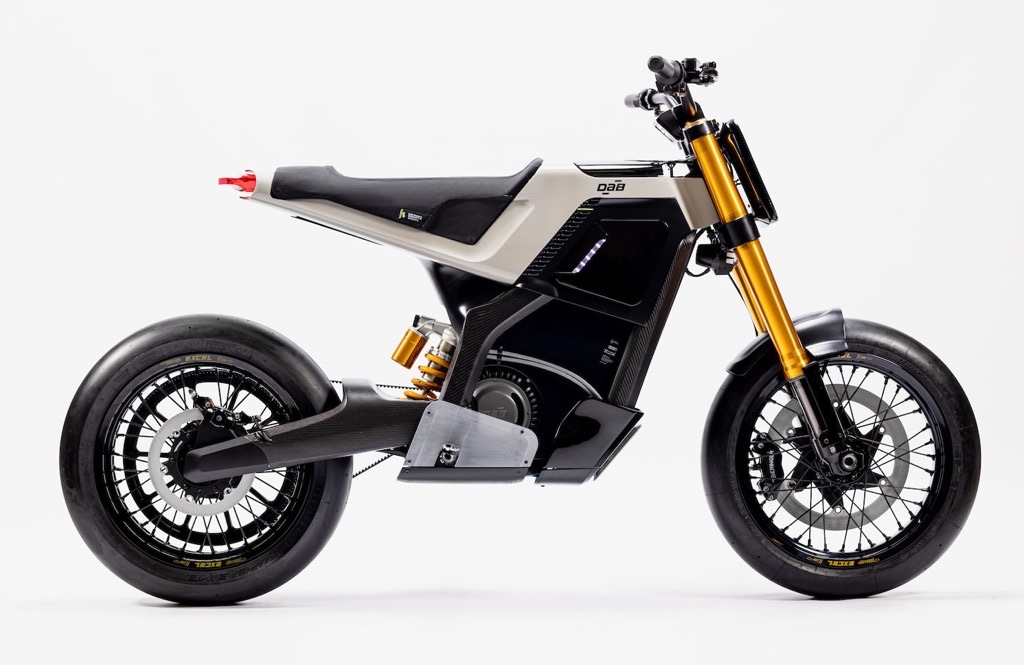

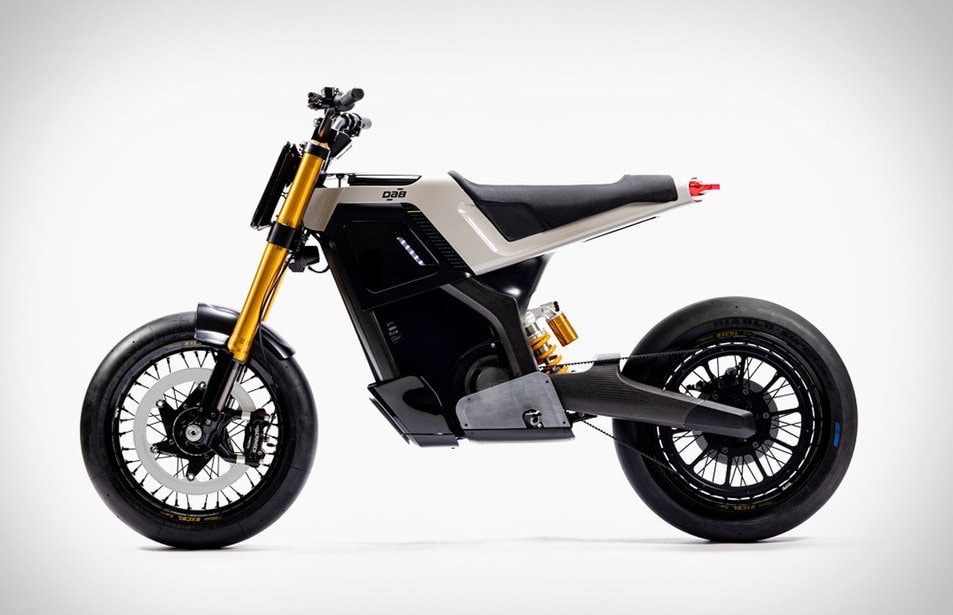

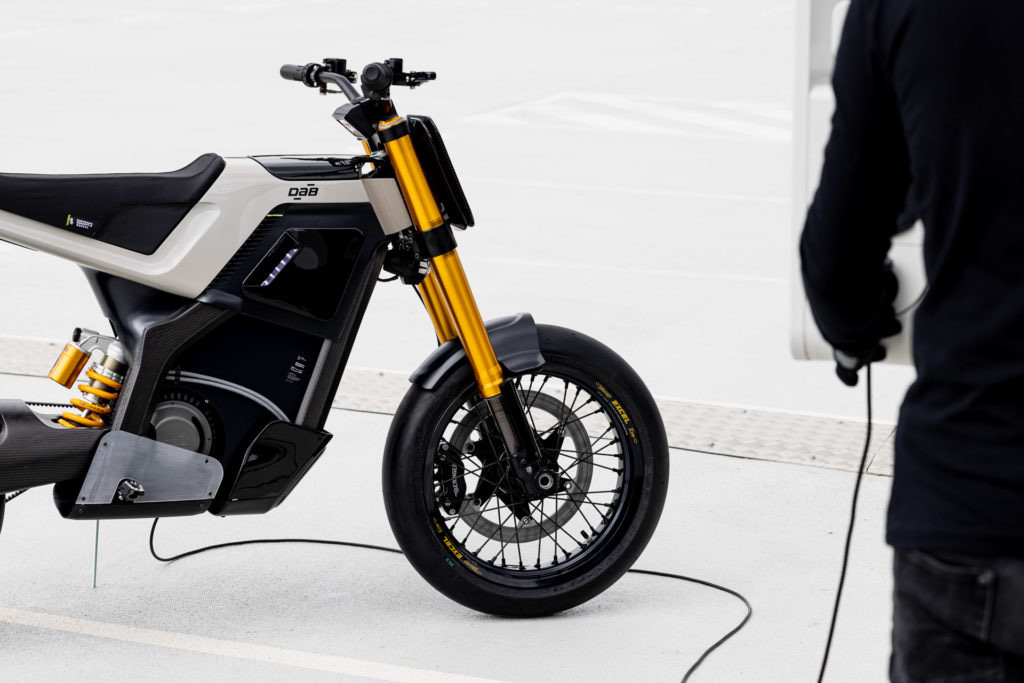

DAB E RS electric motorcycle
The Concept-E RS represents a harmonious blend of advanced technology, captivating design, and exceptional performance. With only 29 exclusive units available, securing a pre-order for this remarkable electric vehicle guarantees not only a thrilling ride but also the pride of owning a truly unique masterpiece. Stay tuned as DAB Motors continues to redefine the boundaries of electric mobility, setting new benchmarks for innovation and craftsmanship in the automotive world.
| POWERTRAIN | |
| Motor: |
Brushless DC – 9kW nominal | 20kW pic regenerative braking
|
| Torque: | 60 Nm |
| Battery: | LI-ION 51,8V / 4,7kWh |
| Range: | 100 km |
| Top speed: | 105 km/h |
| BODYWORK | |
| Bodywork: | Handmade fiberglass bodywork. |
| Seat: |
Handmade saddle made from high-density foam, upholstered with configurable fabric.
|
| Front-end: |

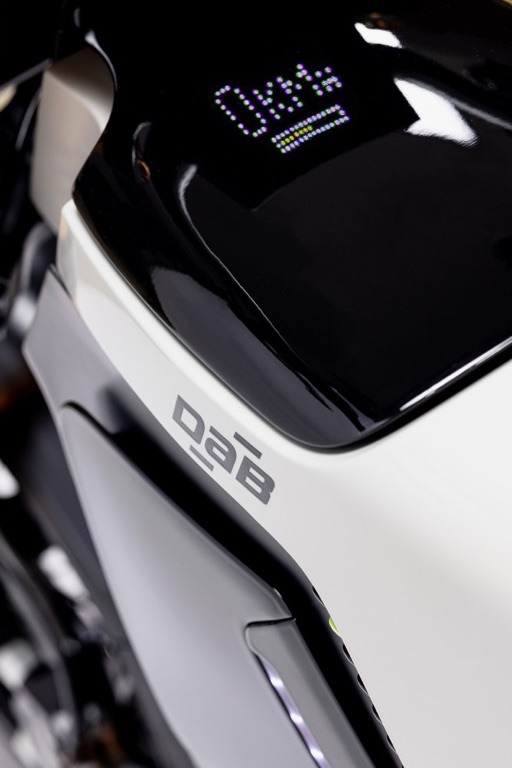

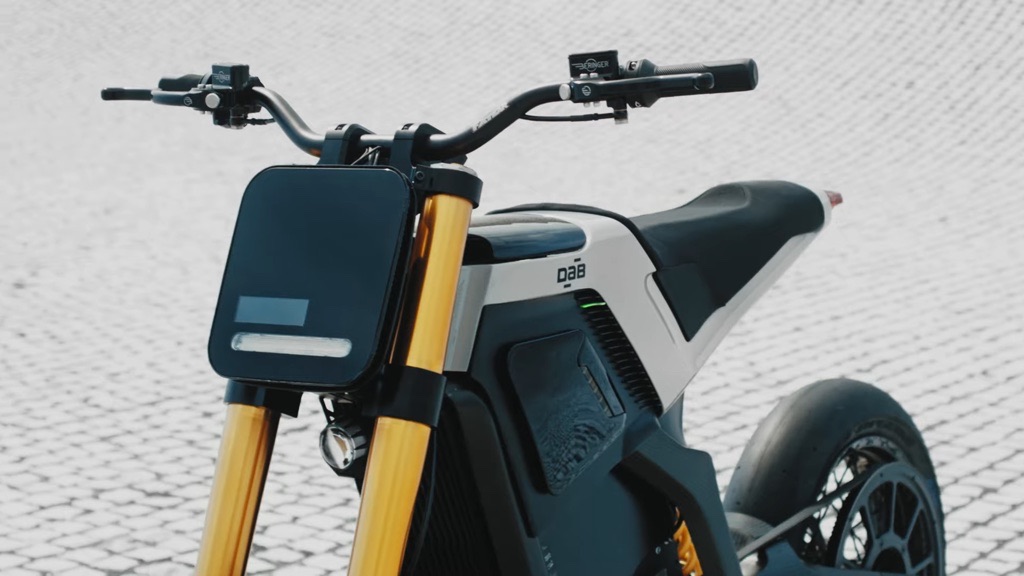

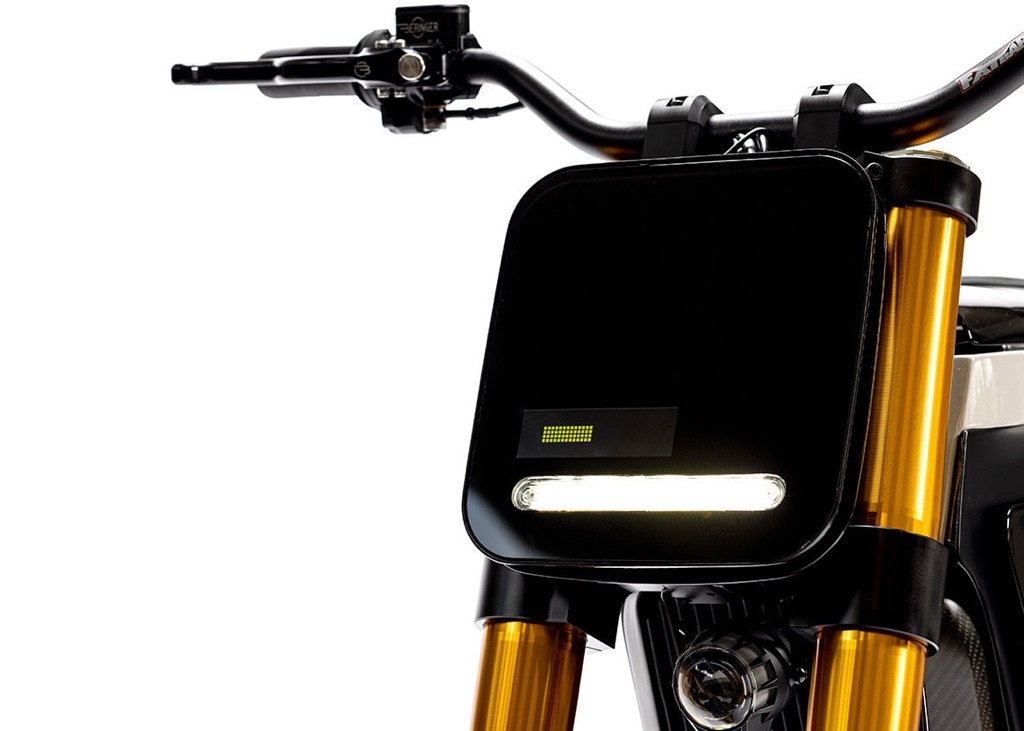

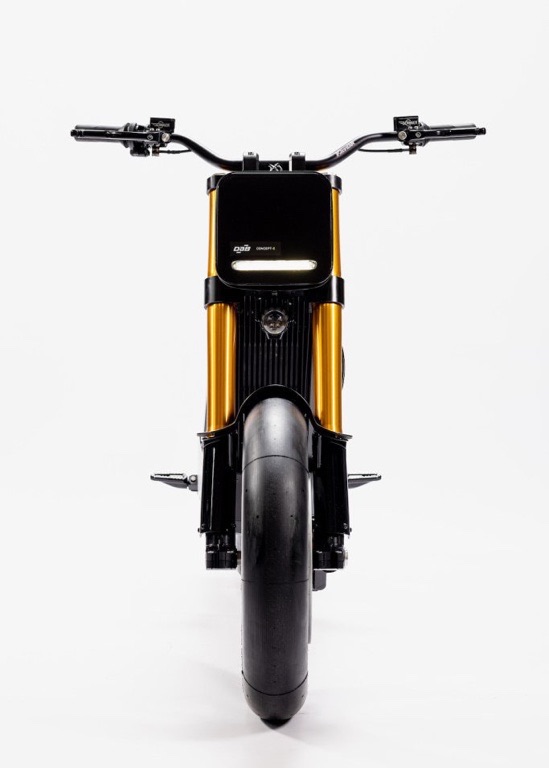

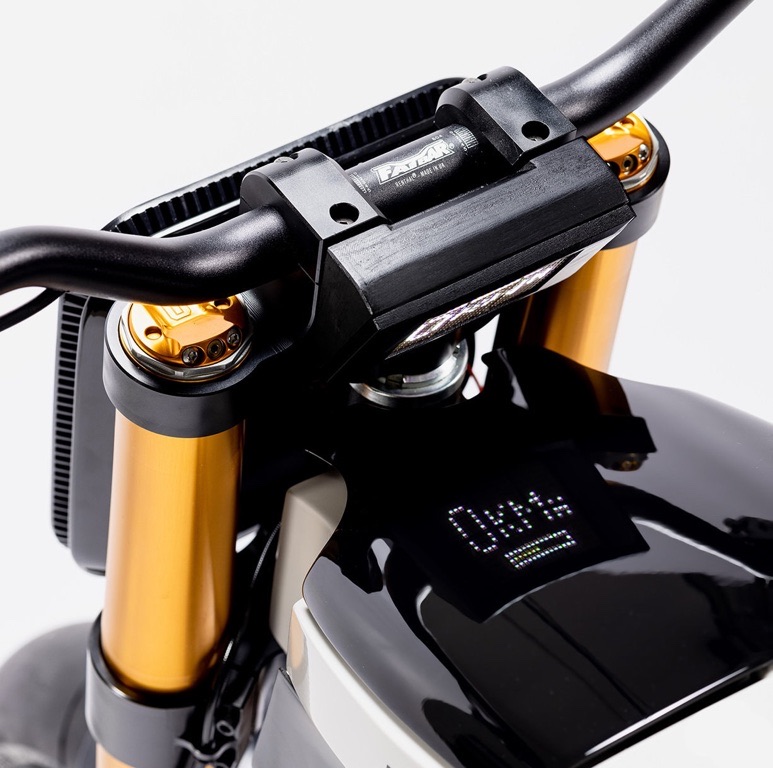

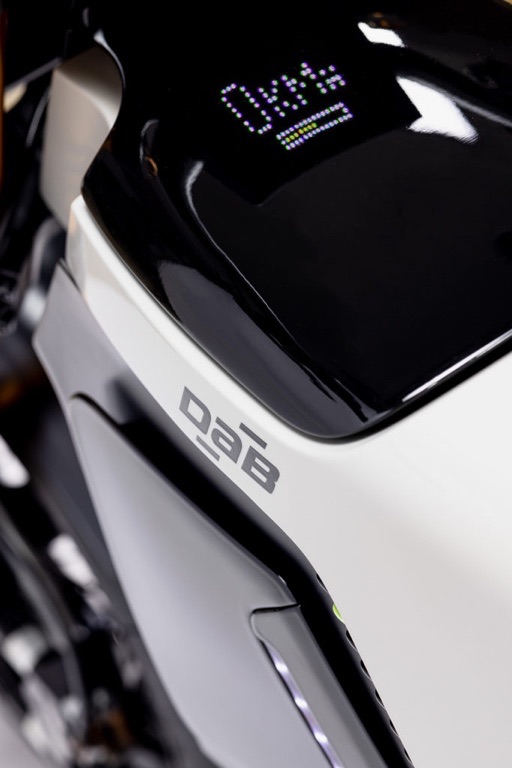

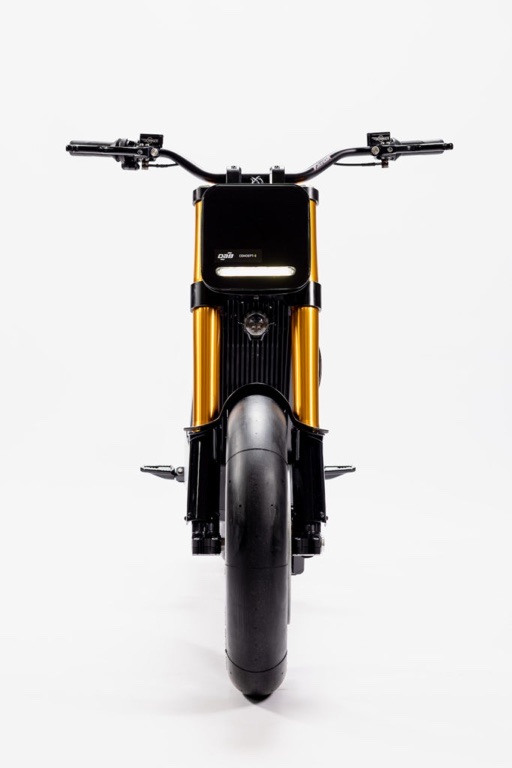

Minimalist front plate design with integrated OLED front screen LED Daylight strip and lenticular headlight.
|
| Rear-end: |

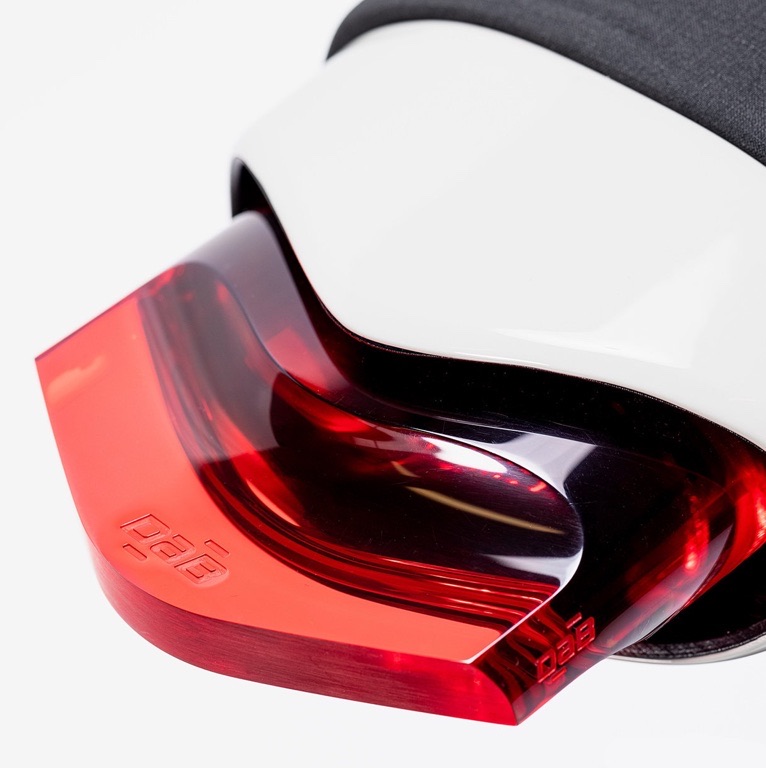

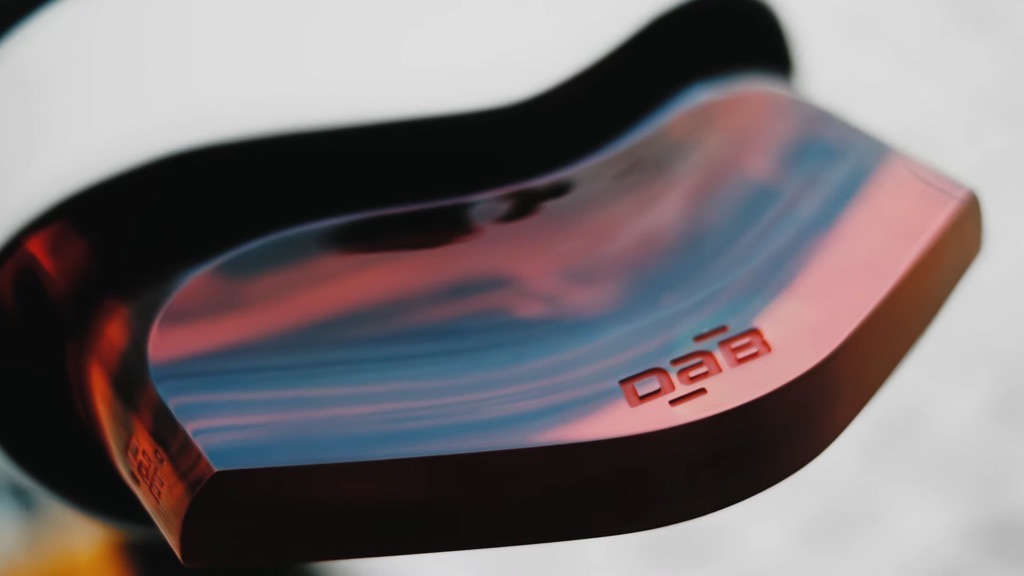

Monobloc translucent LED tail light and stainless plate holder with LED mini-blinkers.
|
| Handlebar: | Renthal Fatbar. |
| WHEELS | |

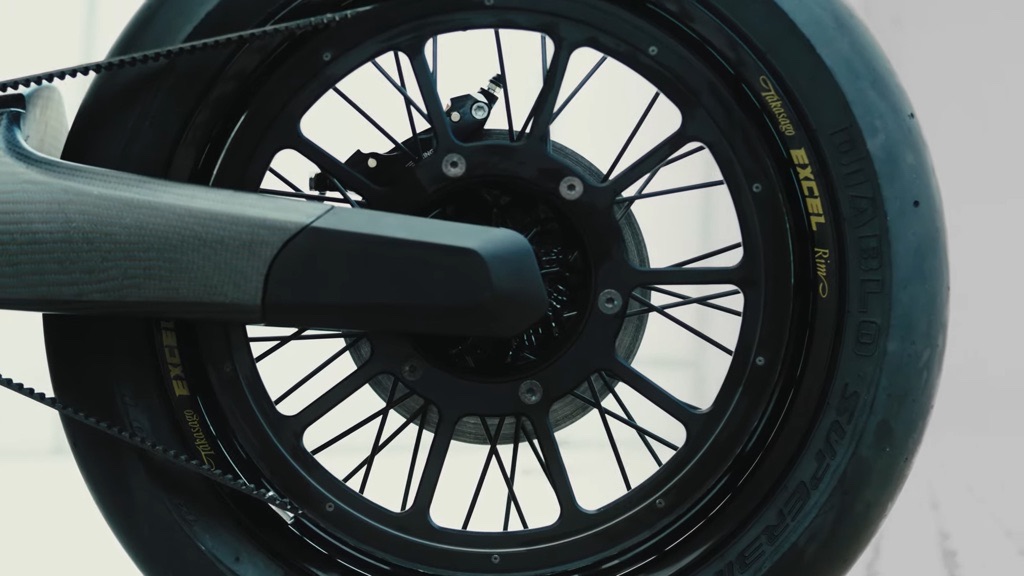

| Wheels: | Front 17 x 3.5, Rear 17 x 4.25 |
| Option 1 (Standard): |
Black Dab Motors Wheels (Silver spokes & nipples, matte grey hubs).
|
| Option 2: | Customized Dab Motors Wheels. |
| Tires: | |
| Option 1 (Standard): | MICHELIN PILOT POWER |
| Option 2: | CONTINENTAL TKC 80 |
| Option 3: | PIRELLI MT 60 RS |
| Option 4: | PIRELLI DIABLO SUPERCORSA SC V2 |
| CHASSIS | |
| Frame: | Handmade and high-strength tubular steel frame. |
| Front Suspension: |
Option 1: 48 mm USD Black Kayaba fork with compression and rebound damping adjustment
|
|
Option 2: 48 mm USD Gold Kayaba fork with compression and rebound damping adjustment
|
|
|
Option 3: 48 mm USD Gold Ohlins MX 48 RXF – fully adjustable
|
|

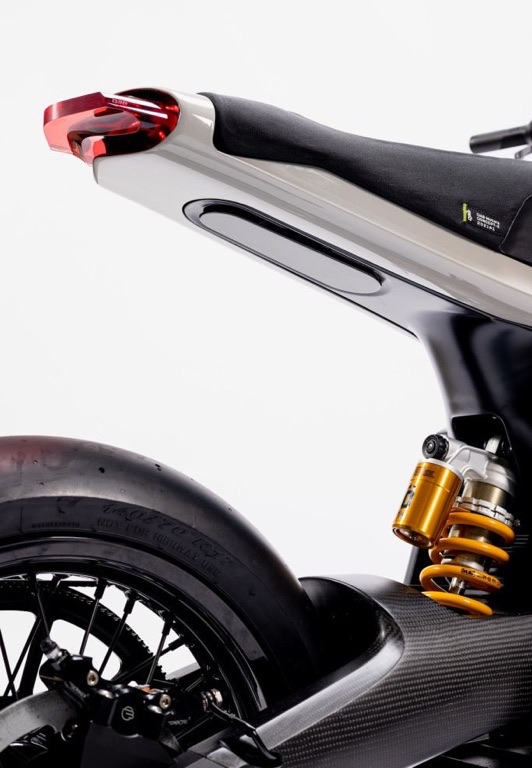

| Rear Suspension: | Ohlins – fully adjustable. |
| BRAKES | |

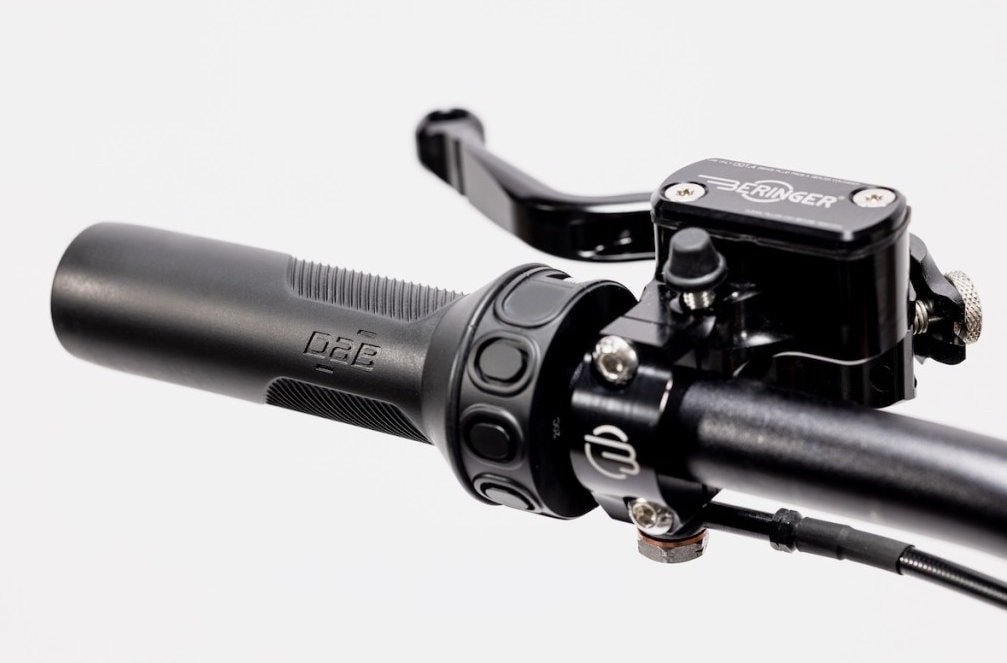

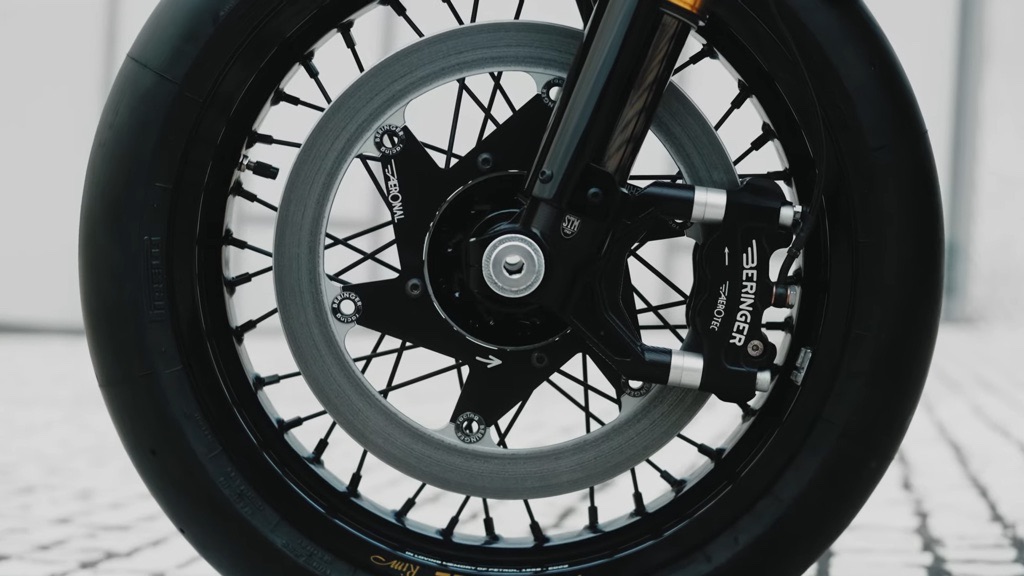

| Front Brake Caliper: | Beringer Radial 4-piston or Brembo Radial 4-piston |
| Rear Brake Caliper: | Beringer single-piston or Brembo floating single-piston |
| Front Brake Disc: | 320 mm Beringer disc or 320 mm Brembo disc |
| Rear Brake Disc: | 240 mm Beringer disc or 240 mm Brembo disc |
| DIMENSIONS | |
| Seat Height: | 900 mm. |
| Weight: | 137 kg. |
| Brand | DAB |
| Model | E RS |
| Motor power | Electric |
| Maximum power, kW | 20 |
| Maximum power, kW/h | 4.7 |
| Maximum torque, Nm | 60 |
| Battery type | LI-ION 51,8V / 4,7kWh |
| Top Speed, km/h | 105 |
| Weight, kg | 137 |
| Power reserve, km | 100 |
