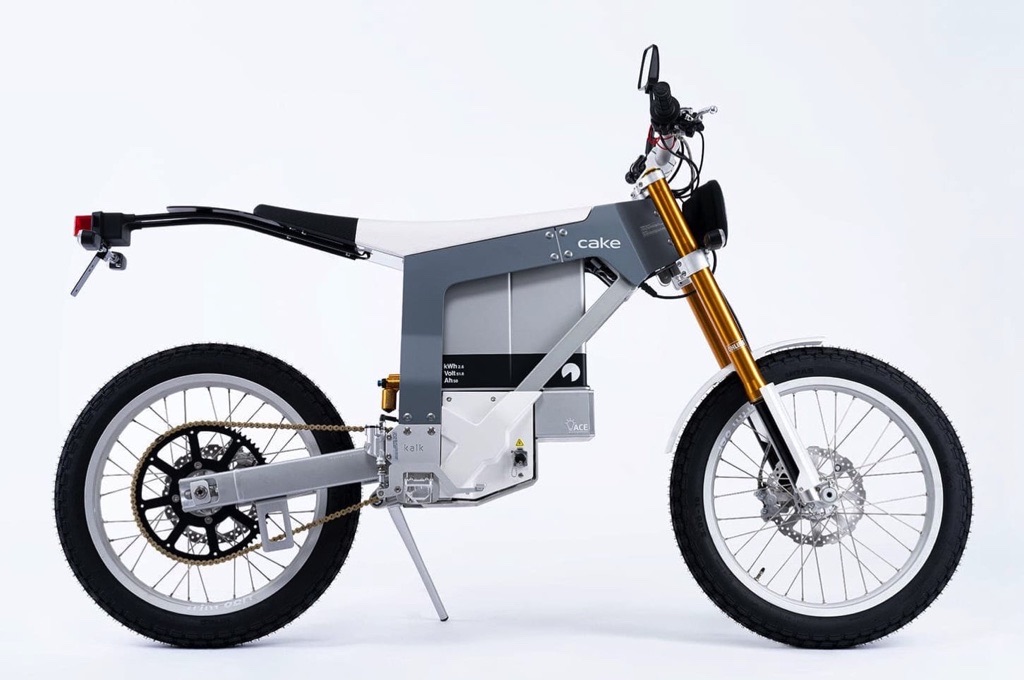

CAKE Kalk&
Desctiption
Specifications
| DRIVETRAIN SPECS | |
| Type: | Direct drive, chain |
| Electric motor: | Interior permanent magnet motor |
| Power: | 10 kW (13,5 hp) |
| Top speed: | 90 km/h / 56 mph |
| Torque (motor axle): | 42 Nm |
| Torque (wheel): | 252 Nm |

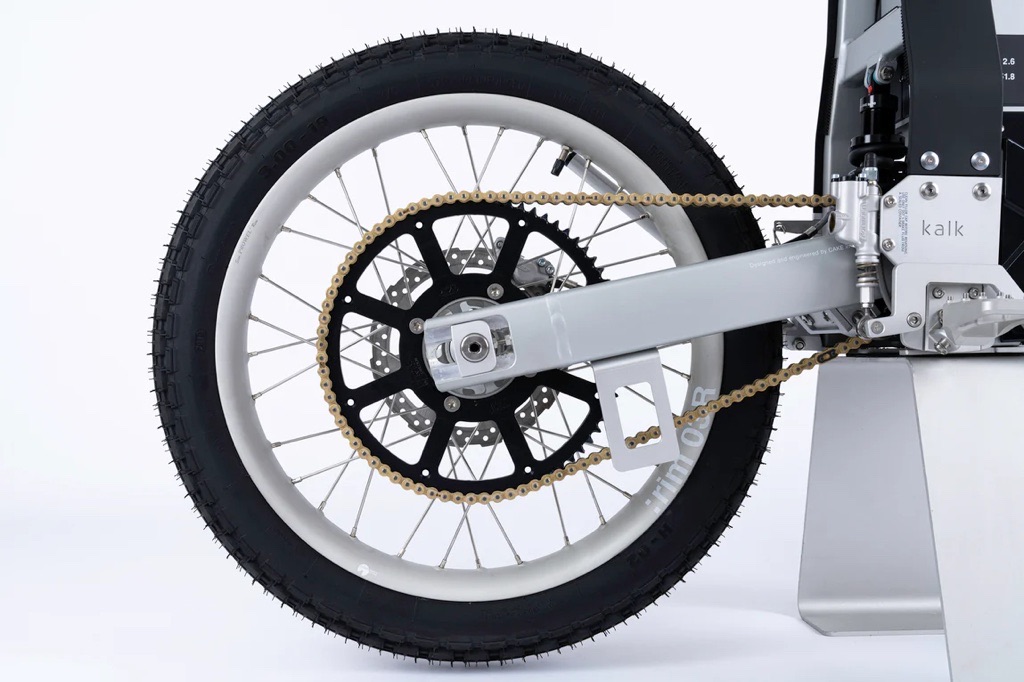

| Front sprocket: | 12 teeth |
| Rear sprocket: | 72 teeth |
| Chain/Belt: | 420 chain with O-ring |
| BRAKE SPECS | |
| Type: |
Formula motorcycle disc brakes, four pistons calipers, alloy levers. Hand lever for front- and rear brake.
|
| Disc: | Stainless steel, 220 mm diameter, 3.2 mm thickness |
| BRAKE MODES | |
| 1) Freewheel: |
No motor brakes. Gives the same sensation as riding a bike, perfect for mellow riding and the ultimate freedom experience.
|
| 2) |
2-stroke motor brake with energy regeneration. Moderate engine brake. As you release the throttle you feel the bike slowing down at a slow pace.
|
| 3) |
4-stroke motor brake with energy regeneration. When releasing the throttle, the bike will slow down significantly. This brake mode is best suited for technical tracks where full control for the bike is needed.
|
| RIDE MODES | |
| 1) explore: |
The ultimate mode during exploration. It has a limited top speed of 45 km/h (28mph) with a 3-4 hrs battery range.
|
| 2) excite: |
Enduro or active trail riding. 1-2 h riding time. With a top speed of 70km/h and good acceleration, this mode is perfect for enduro riding out in the woods.
|
| 3) excel: |
Maximal torque and speed, with no restrictions when it comes to performance. This mode is perfect when you need all the power available. Riding time up to 1 h.
|
|
* The actual range depends on a number of different aspects, e.g. riding style, rider weight, weather conditions, temperature, road surface, and tire pressure.
|
|
| CHARGING | |
| Type: | External charger from standard 110 V/220 V outlets |
| 0-80%: | 2 hours |
| 0-100%: | 3 hours |

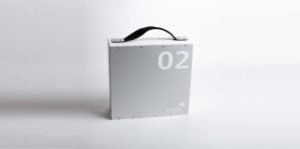

| BATTERY SPECS | |
| Cells: | premium 18650 lithium cells |
| Voltage (nominal): | 51.8 V |
| Capacity: | 50 Ah / 2.6 kWh |
| Features: | Removable, can be charged when installed in the bike or separately |
| Built in SoC indicator | |
| FRONT SUSPENSION | |
|
Upside-down MX spring forks with rebound adjustment, specially engineered for kalk INK.
|
|
| Travel: 200mm | 200mm |

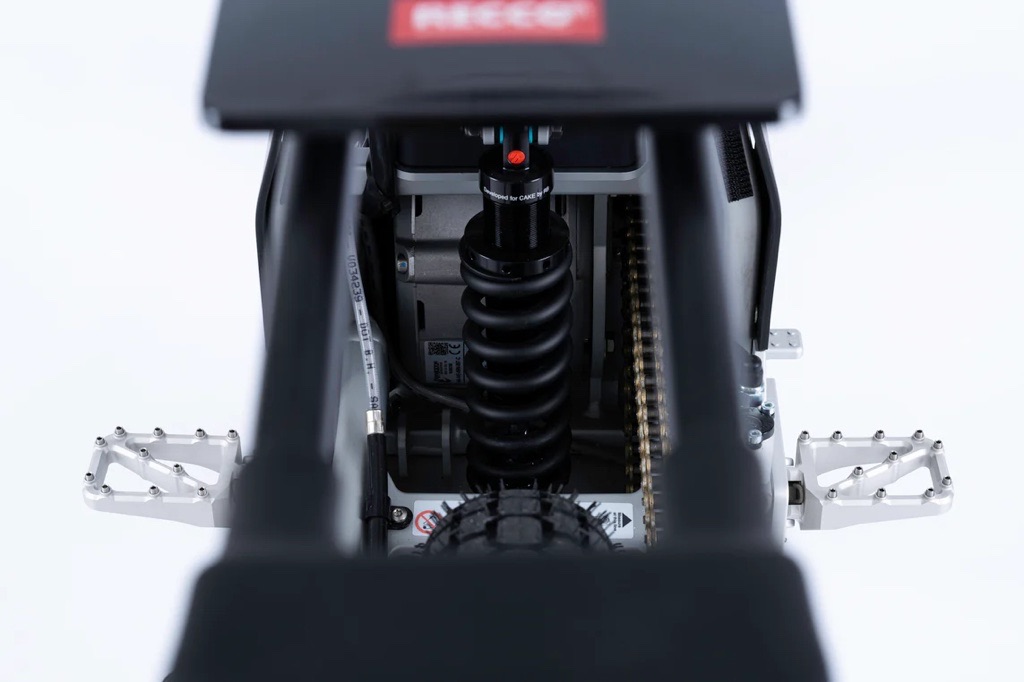

| REAR SUSPENSION | |
| Type: |
205mm Öhlins TTX22 shock with CAKE internals and spring. Used with linkage for optimal performance
|

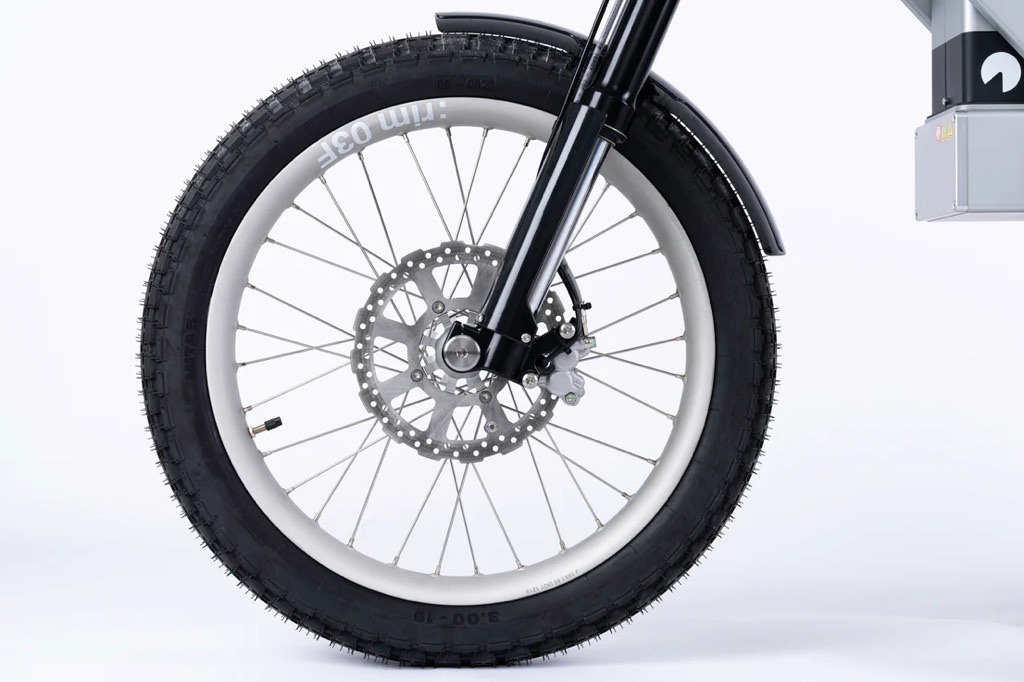

| WHEELS AND TIRES | |
| Hubs: | Forged and CNC aluminum CAKE hubs with 25 mm axle |
| Rims: | 19″x1.85” custom designed 7116-T6 aluminium motorcycle rims |
| Tires: | 19″x3.00″ dual sport motorcycle tires |
| FRAME | |
| Build: | 6061 aluminum, extruded, forged and CNC jointed and welded |
| FENDERS AND BODYWORK | |
| PC/ABS plastic | |

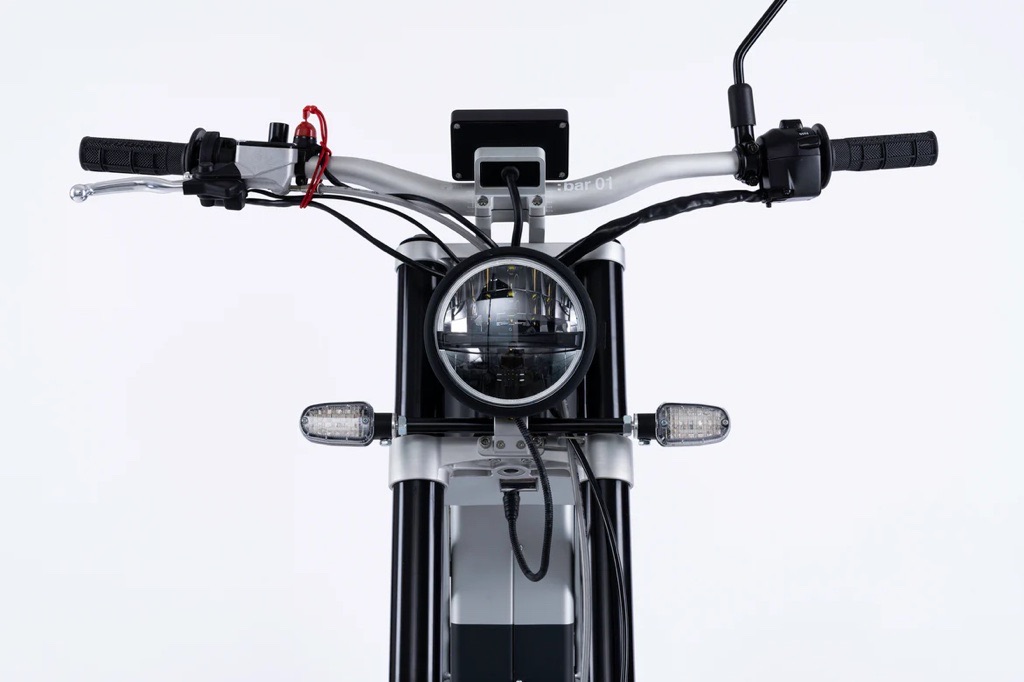

| HANDLEBAR | |
| Material: | Aerospace grade 7050 aluminum |
| Interface: | 31.8 mm |
| Width: | 800 mm |
| Rise: | 20 mm |

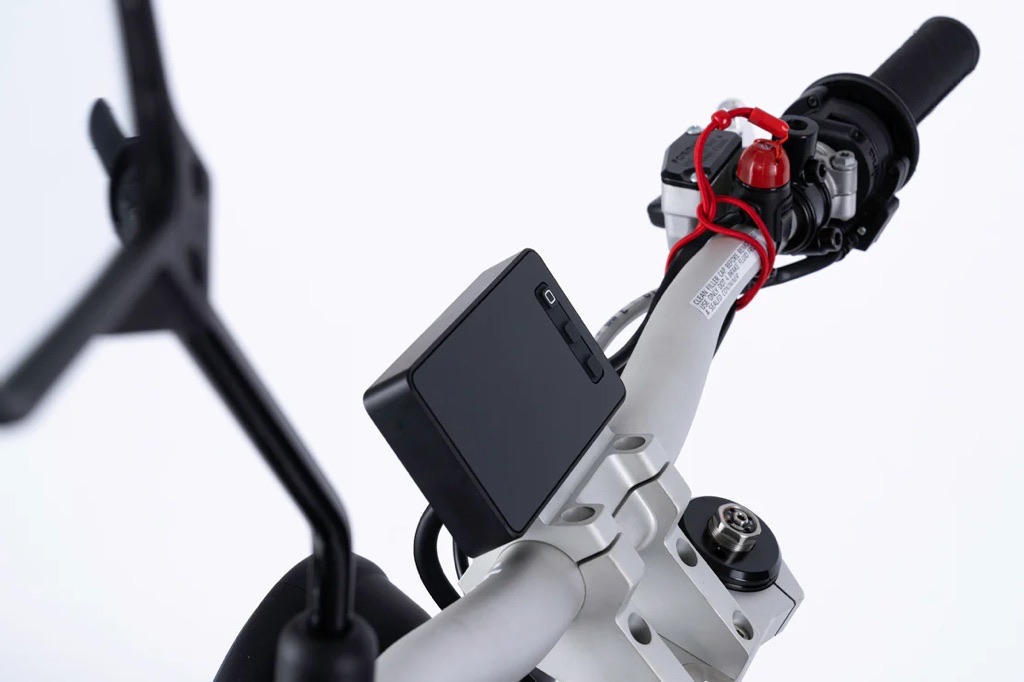

| DASHBOARD | |
| Features: |
Dashboard integrated into stem with battery SoC indicator, ride- and brake mode selection, a warning indicator
|
| DIMENSIONS | |
| Wheelbase: | 1310mm – 51.5” |
| Seat height: | 910mm – 35.75” |
| Ground clearance: | 300mm – 11.75” |
| Fork angle: | 25° |
| Trail: | 87.4mm – 3.5” |
| Offset: | 22mm in triple clamps, 36mm in forks 7/8” and 1 3/8” |
| REGULATORY | |
| Classification: | L3e-A1E (EU / Motorcycle (USA) |
| License requirement: | A1 (EU) / M1 (USA) |
| Brand | CAKE |
| Model | Kalk& |
| Maximum power, kW | 10 |
| Maximum power, kW/h | 252 |
| Maximum torque, Nm | 252 |
| Battery type | premium 18650 lithium cells |
| Charging time, hours | 2.0 |
| Top Speed, km/h | 90 |
| Weight, kg | 62 kg + 17 kg battery |
| Power reserve, km | 85 |
