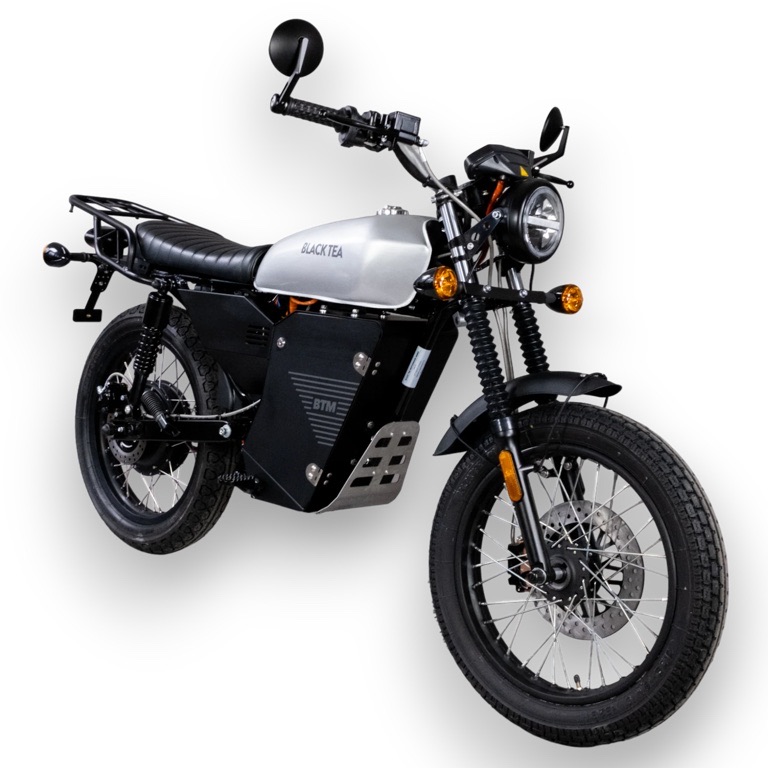

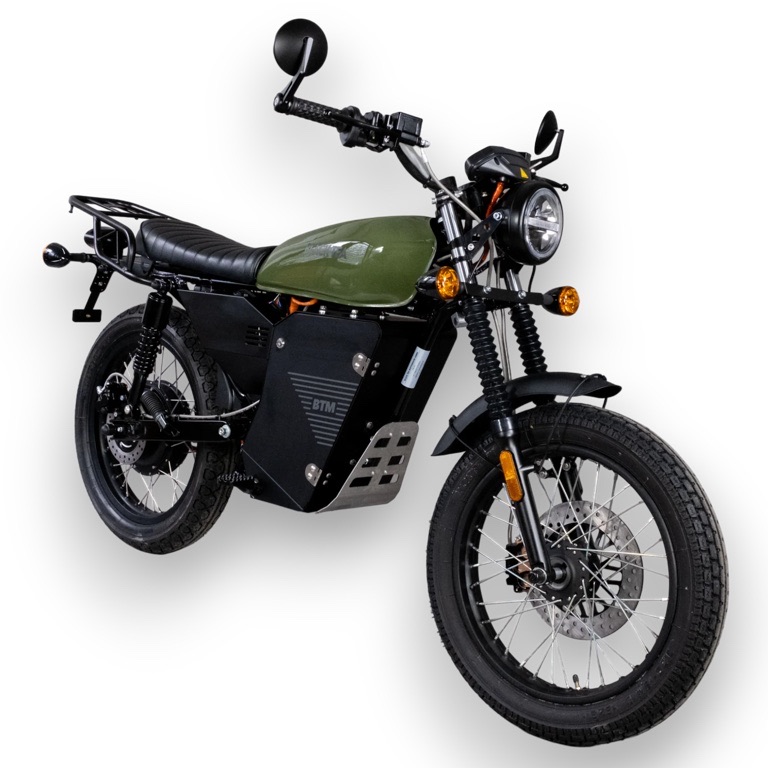

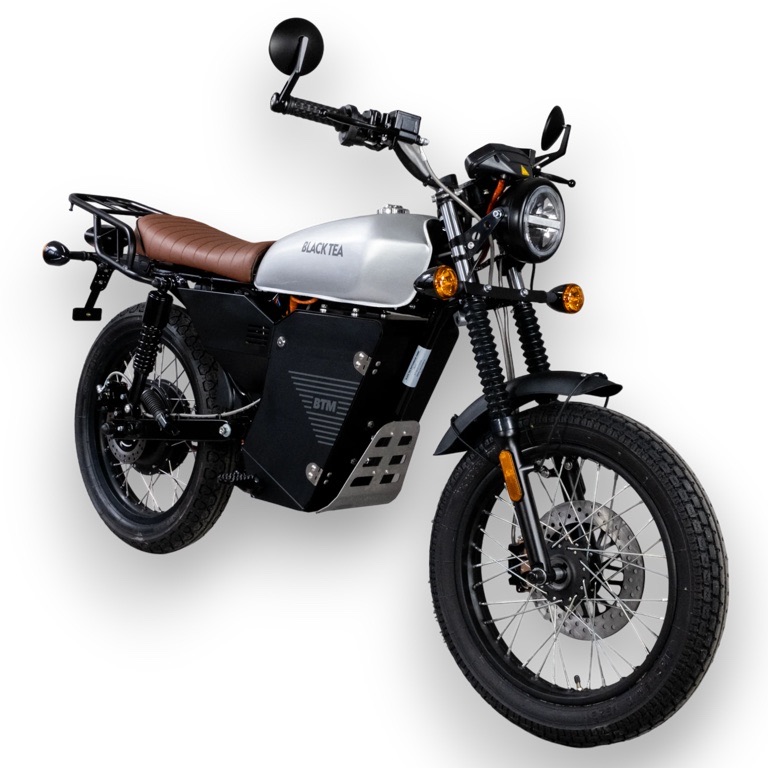

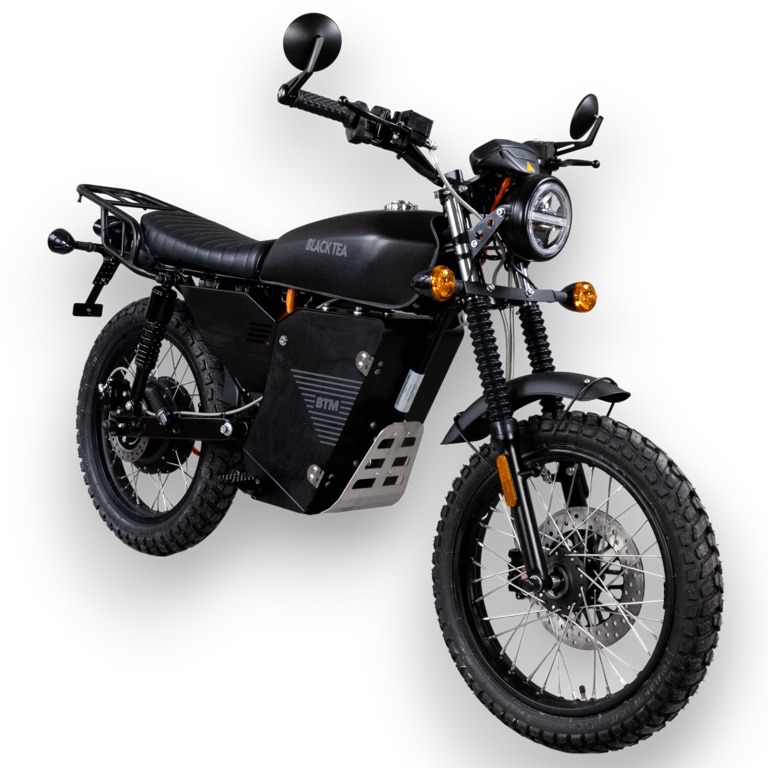

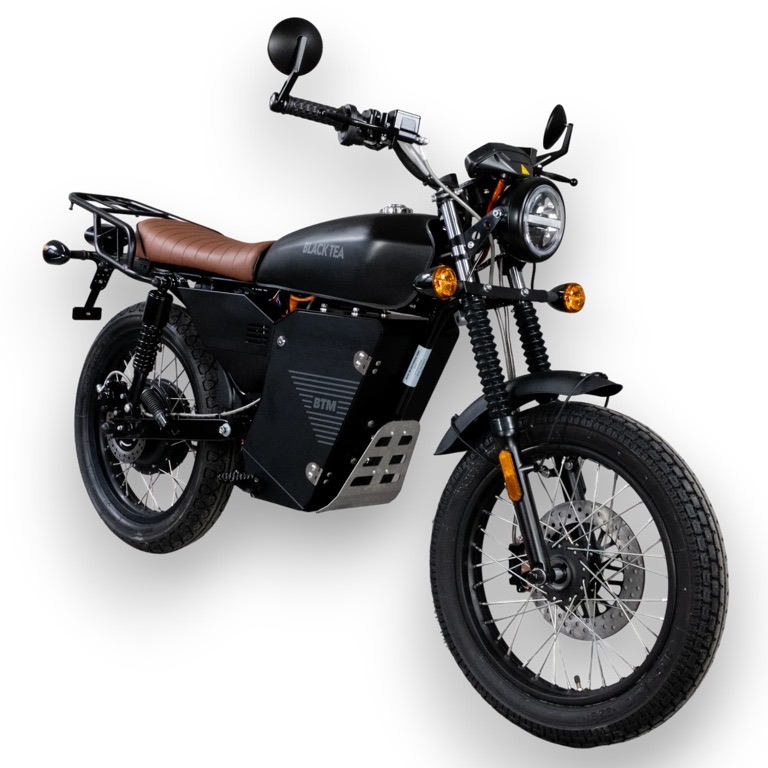

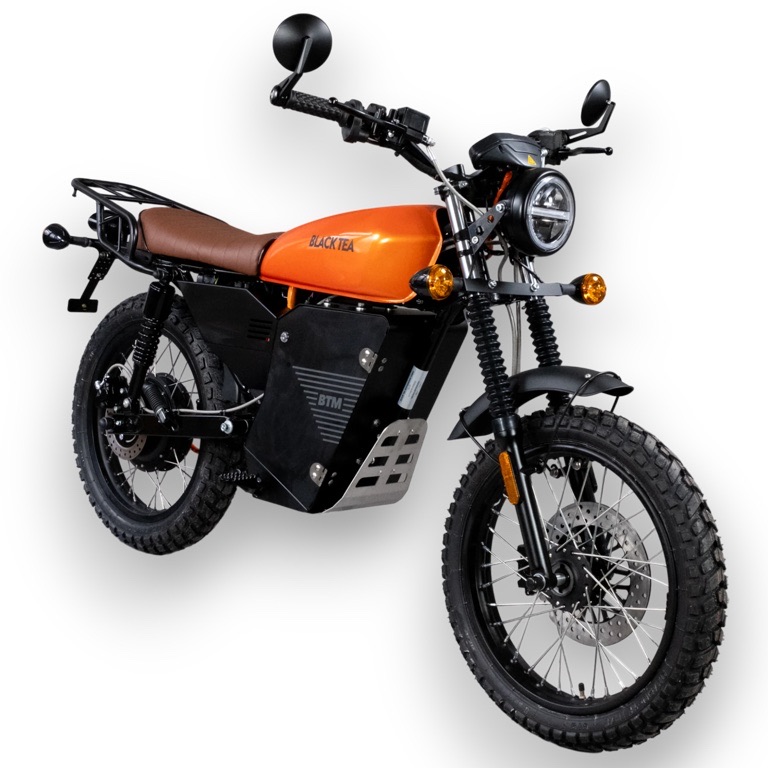

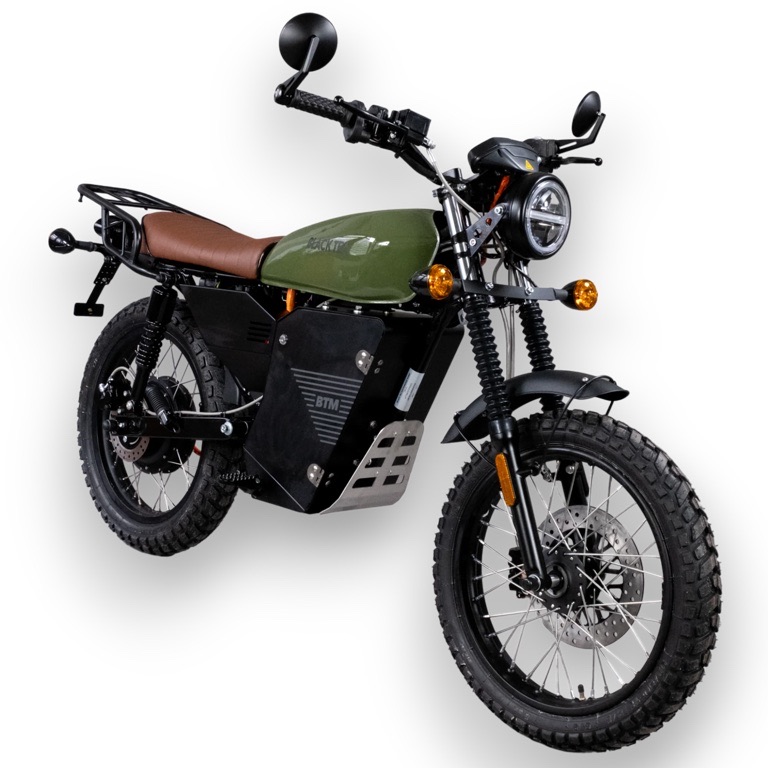

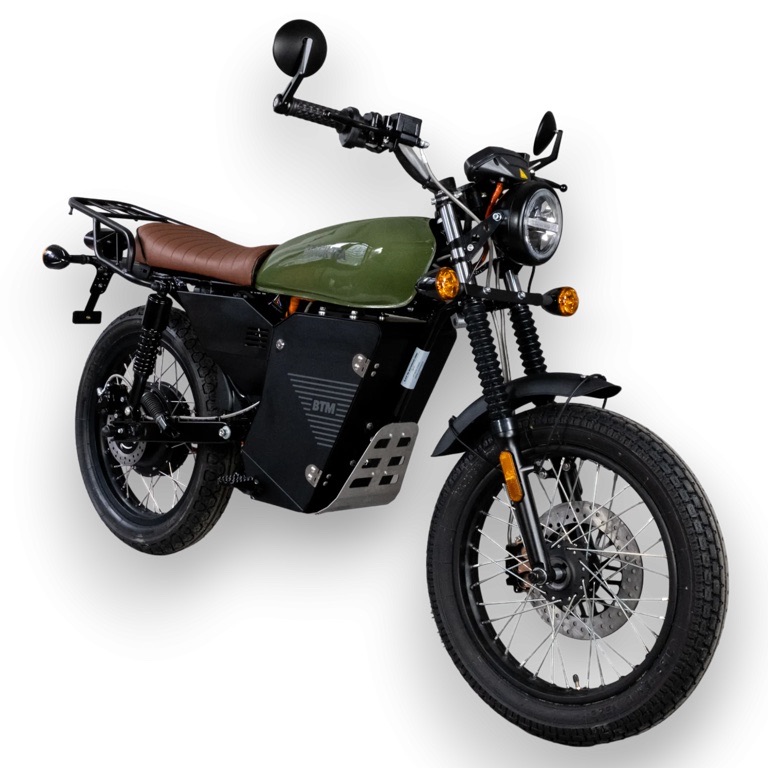

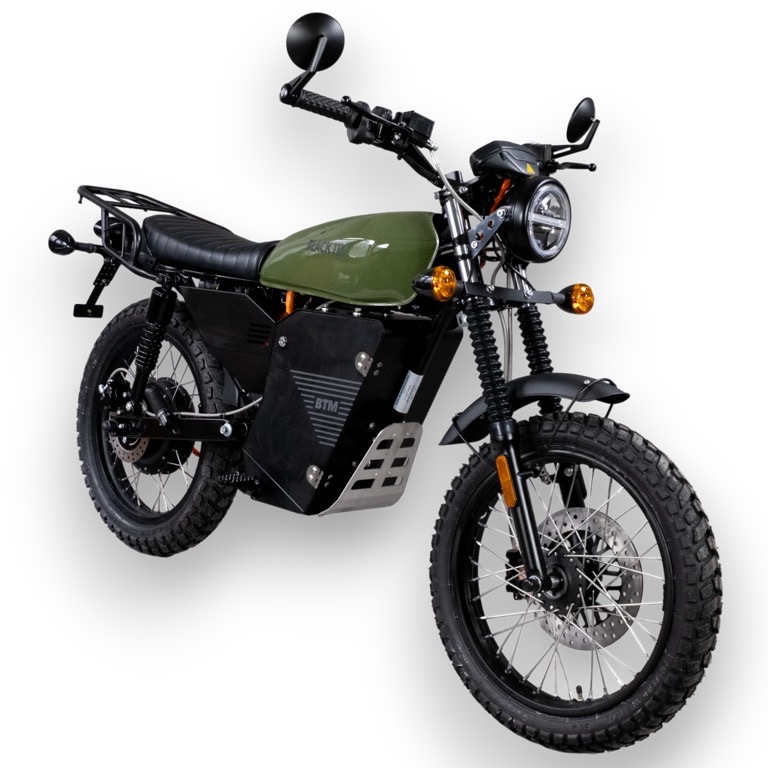

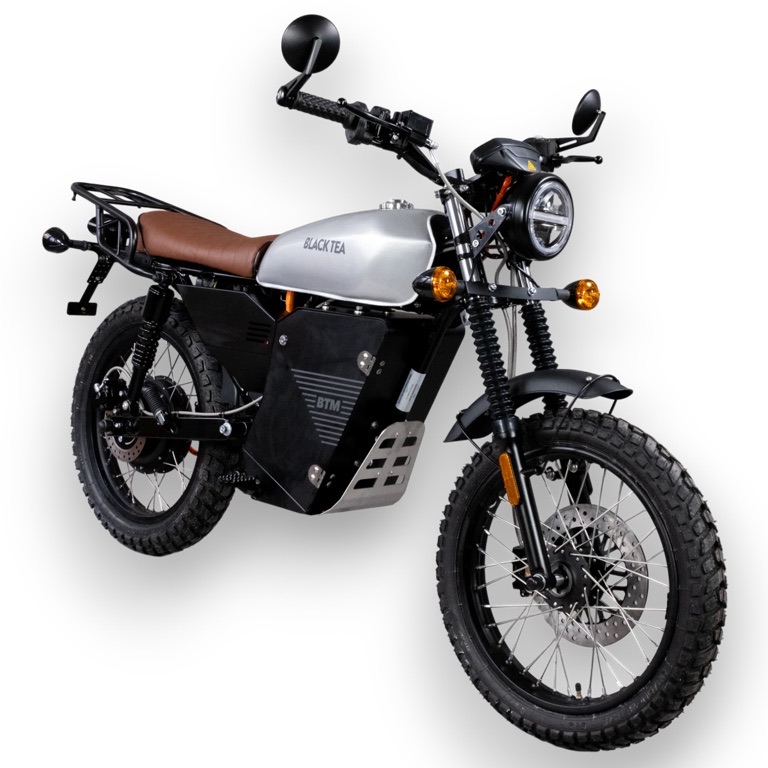

Black Tea Motorbikes Bonfire S
Specifications
| Battery & Drivetrain | |
| Drivetrain | |
| Type: | PSM Hub Motor |
| Rated Power: | 3 kW (4 hp) |
| Max Power: | 5,4 kW (7 hp) |
| Torque: | 195 Nm |
| Ride Modes | |
| Speed Mode: | Top speed 45 km/h |
| Normal Mode: | Top speed of 40 km/h |
| Eco Mode: | Top Speed 35 km/h |
| Charging | |
| Type: | External charger for standard 110 V/220 V outlets |
| 0-80 %: | 3 hours |
| 0-100 %: | 4 hours |
| Power: | 58.8 V & 10 A |
| Range (per battery) | |
| Speed Mode: | 55 km |
| Normal Mode: | 65 km |
| Eco Mode: | 75 km |
| Battery | |
| Cells: | Premium 18650 Li-Ion cells |
| Voltage: | 52V |
| Capacity: | 35 Ah/ 1.8 kW |
| Weight: | 11,5 kg |
| Features: | Removable, can be charged when installed in bike or separately |
| Brakes & Suspension | |
| Brakes | |
| Type: | Two pistons callipers |
| Feature: | Hydraulic, Hand lever Style |
| Disc: | 220 mm diameter, 3.2 mm thickness |
| Regenerative Braking | |
|
10 % Energy Recuperation. As you release the throttle you feel the bike slowing down.
|
|
| Front Suspension | |
| Type: |
Hydraulic forks featuring 31mm tubes for extra rigidity and strength.
|
| Travel: | 200mm |
| Rear Suspension | |
| Type: Adjustable 335mm dual shocks | Adjustable 335mm dual shocks |
| Travel: 80mm | 80mm |
| Display | |
|

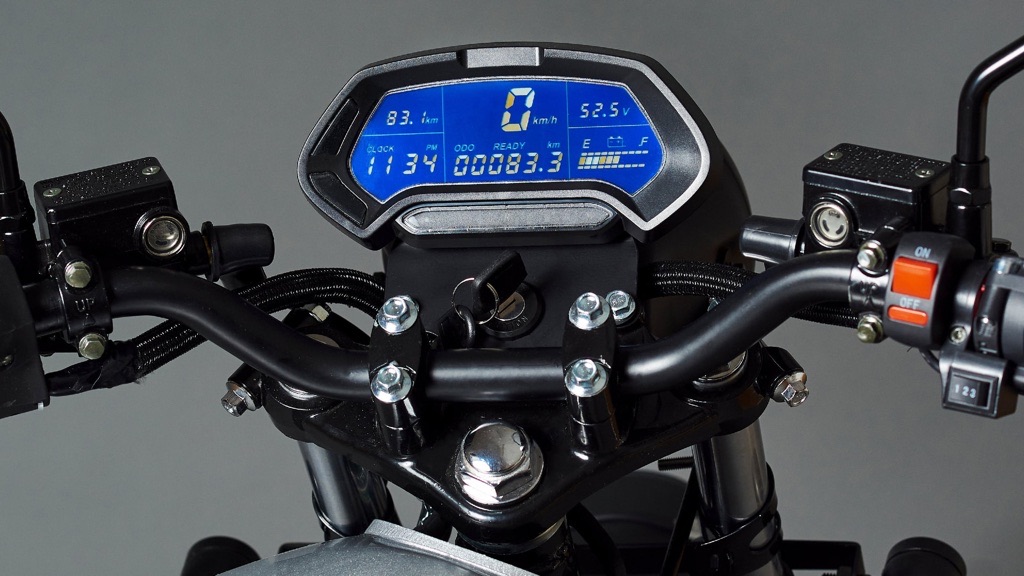

Dashboard with battery SoC, voltage, speedometer, odometer, trip meter, ride mode, time and tell-tales.
|
|
| Body & Legal | |
| Wheels | |
| Front Hub: | Aluminium with 12 mm axle |

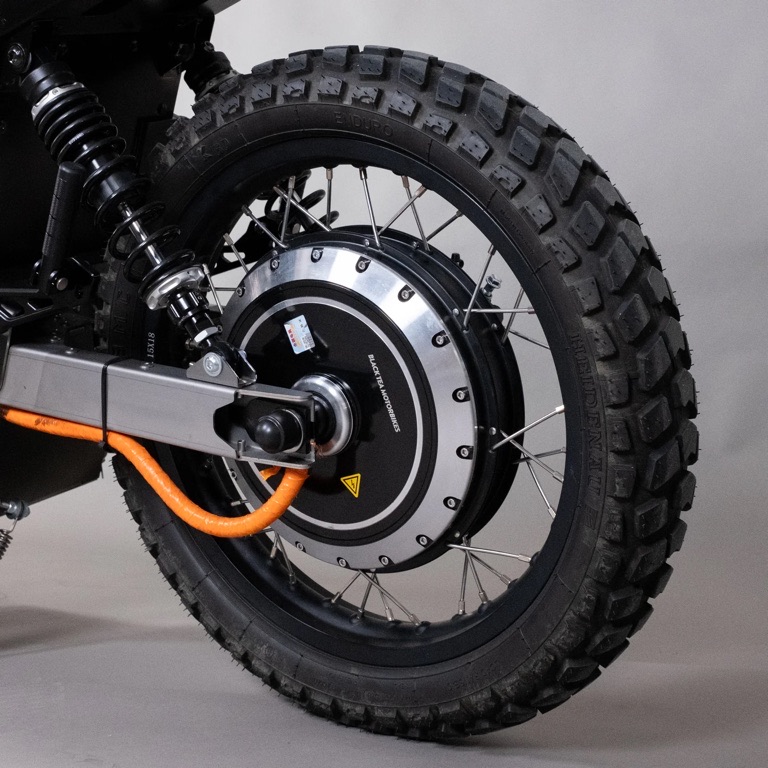

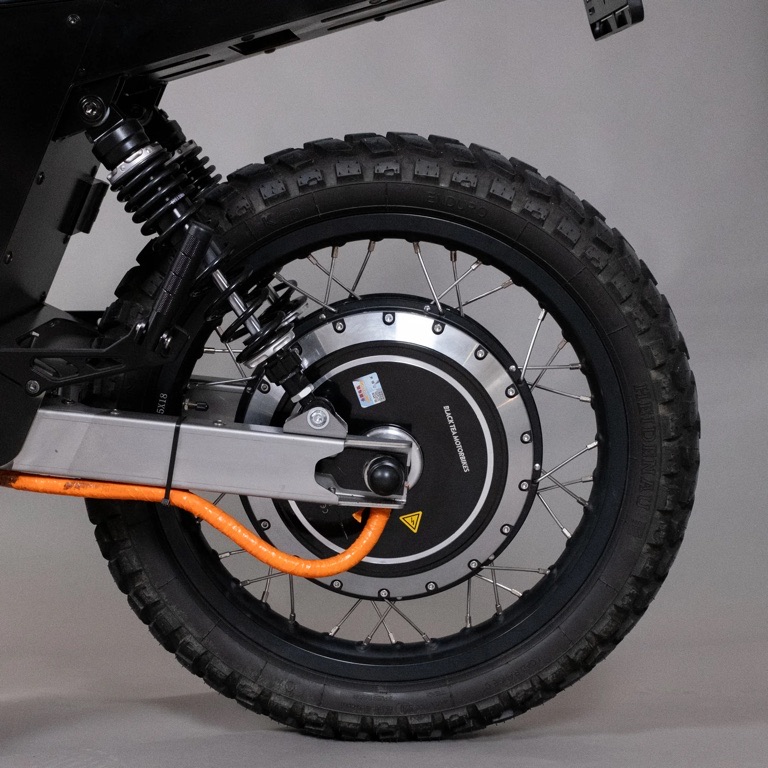

| Rear Hub: | Hub Motor |
| Rim: | 18” x 1.85” 36 spoked aluminium rims |
| Street Tire: | 18-3.00 Heidenau K33 |
| Offroad Tire: | 18-3.00 Heidenau K41 |
| Body | |
|
Frame, Swing Arm, Box, Side Panels & Fenders are made out of high quality steel
|
|
| Frame: Steel Tube Chassis | |
| Dimensions | |
| Wheel Base: | 1300 mm |
| Seat Height: | 780 mm |
| Ground Clearance: | 240 mm |
| Fork Angle: | 24,5° |
| Regulatory | |
| Classification: L1e-b (EU) / Motor-Driven Cycle (USA) | L1e-b (EU) / Motor-Driven Cycle (USA) |
| License requirement: AM or B (EU) / M1 (USA) | AM or B (EU) / M1 (USA) |
| Brand | Black Tea Motorbikes |
| Model | Bonfire S |
| Maximum power, kW | 5.7 |
| Maximum power, kW/h | 1.8 |
| Maximum torque, Nm | 195 |
| Battery type | Premium 18650 Li-Ion cells |
| Charging time, hours | 4.0 |
| Top Speed, km/h | 45 |
| Weight, kg | 86 |
| Power reserve, km | 75 |
