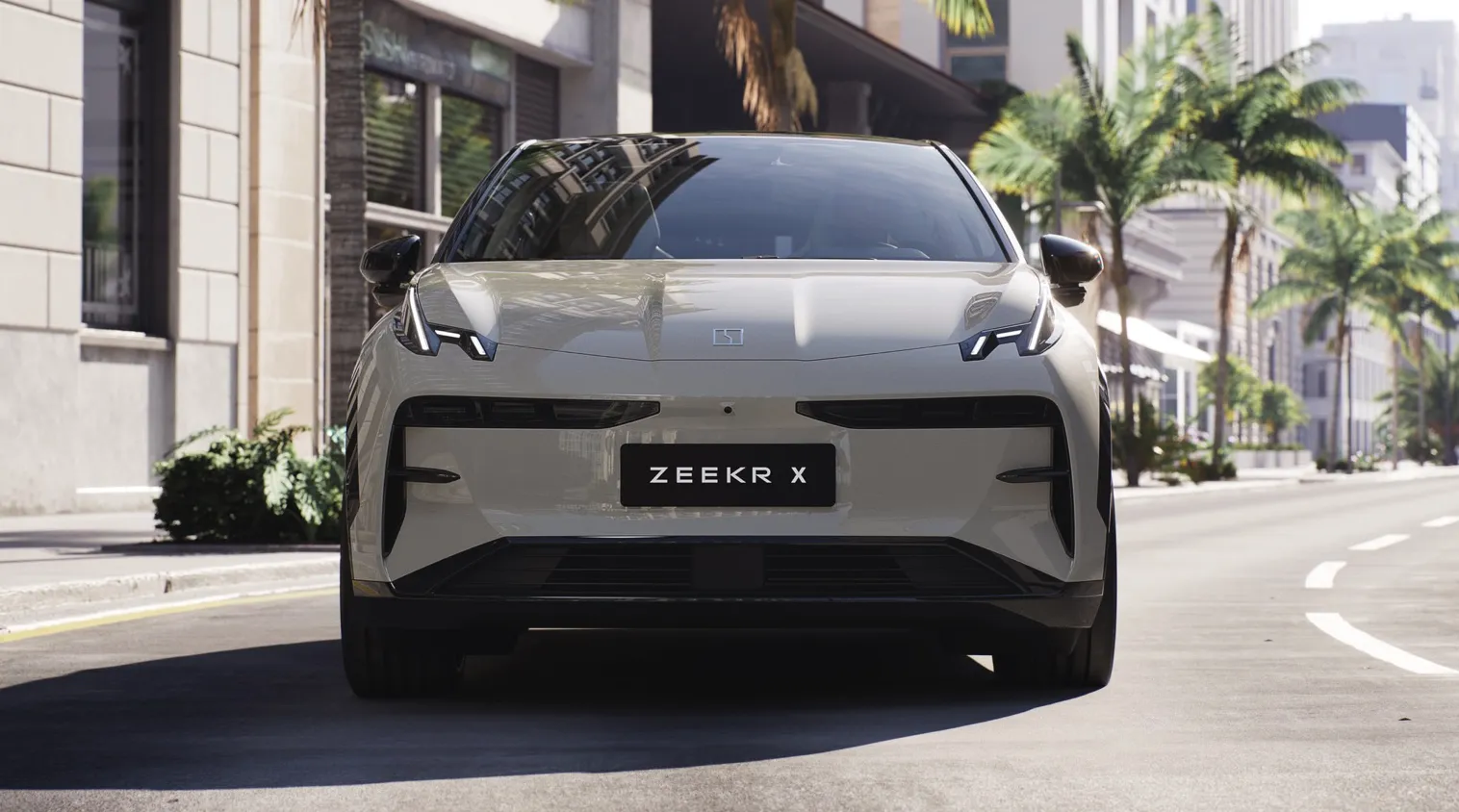

Zeekr X Privilege AWD

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Zeekr X Privilege AWD. Each option shows how fast the battery can be charged from empty to full.

Europe

Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Zeekr X Privilege AWD can be charged, but some modes of charging might not be widely available in certain countries.

Type 2 (Mennekes - IEC 62196)

Charging Point	Max. Power	Power	Time	Rate
Wall Plug (2.3 kW)	230V / 1x10A	2.3 kW	32h45m	11 km/h
1-phase 16A (3.7 kW)	230V / 1x16A	3.7 kW	20h30m	17 km/h
1-phase 32A (7.4 kW)	230V / 1x32A	7.4 kW	10h15m	34 km/h
3-phase 16A (11 kW)	400V / 3x16A	11 kW	7 hours	49 km/h
3-phase 32A (22 kW)	400V / 3x32A	22 kW †	3h30m	99 km/h

† = Limited by on-board charger, vehicle cannot charge faster.

Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Zeekr X Privilege AWD.

• Max. Power: maximum power provided by charge point
• Avg. Power: average power provided by charge point over a session from 10% to 80%
• Time: time needed to charge from 10% to 80%
• Rate: average charging speed over a session from 10% to 80%

Combined Charging System (CCS Combo 2)

Charging Point	Max. Power	Avg. Power	Time	Rate
CCS (50 kW DC)	50 kW	50 kW	57 min	250 km/h
CCS (150 kW DC)	150 kW	111 kW †	25 min	580 km/h
CCS (300 kW DC)	158 kW †	113 kW †	25 min	580 km/h

Charge Curve
Data made available by Fastned

This vehicle supports Autocharge
This vehicle does not support Plug & Charge

† = Limited by charging capabilities of vehicle

Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.

Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.

Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
