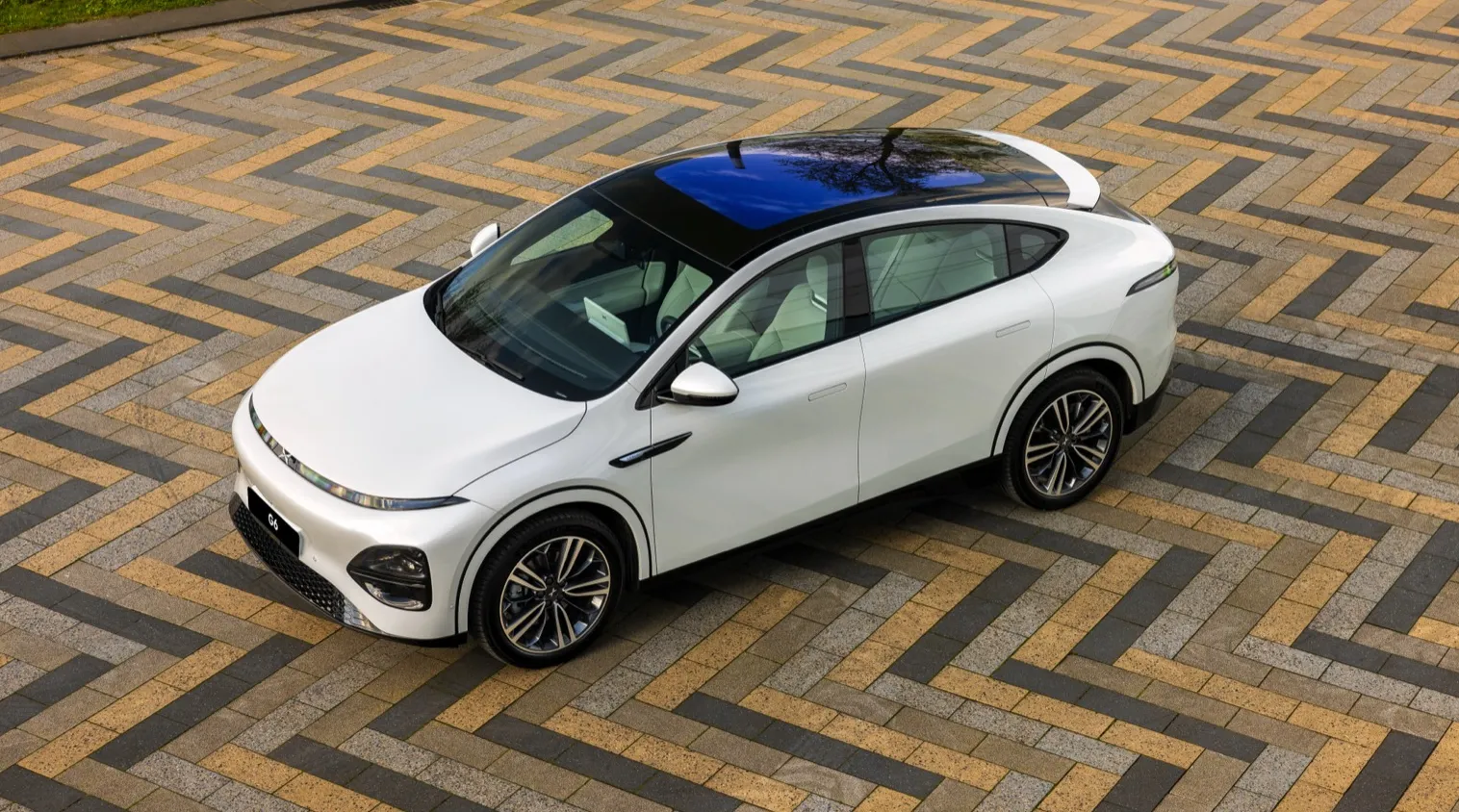

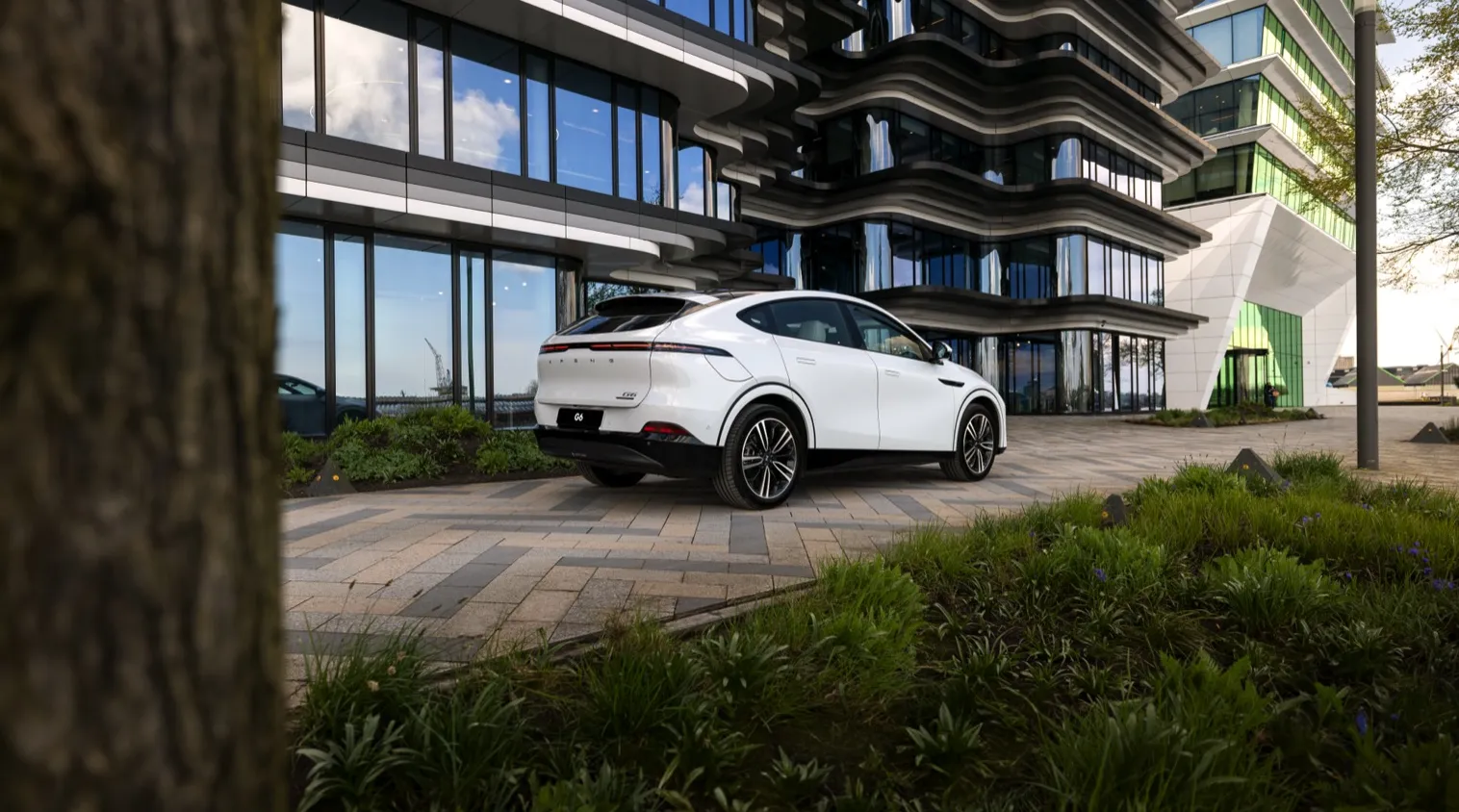

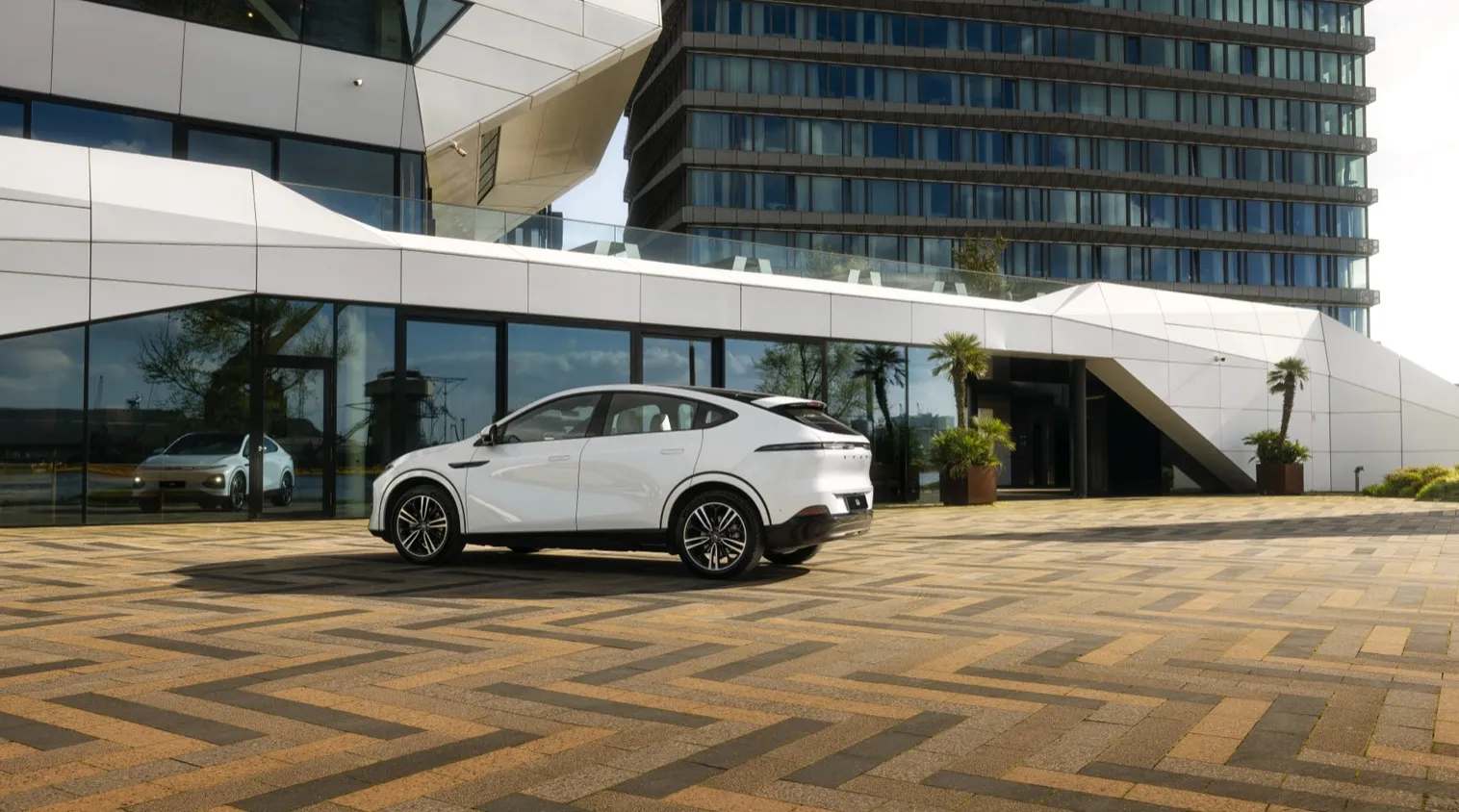

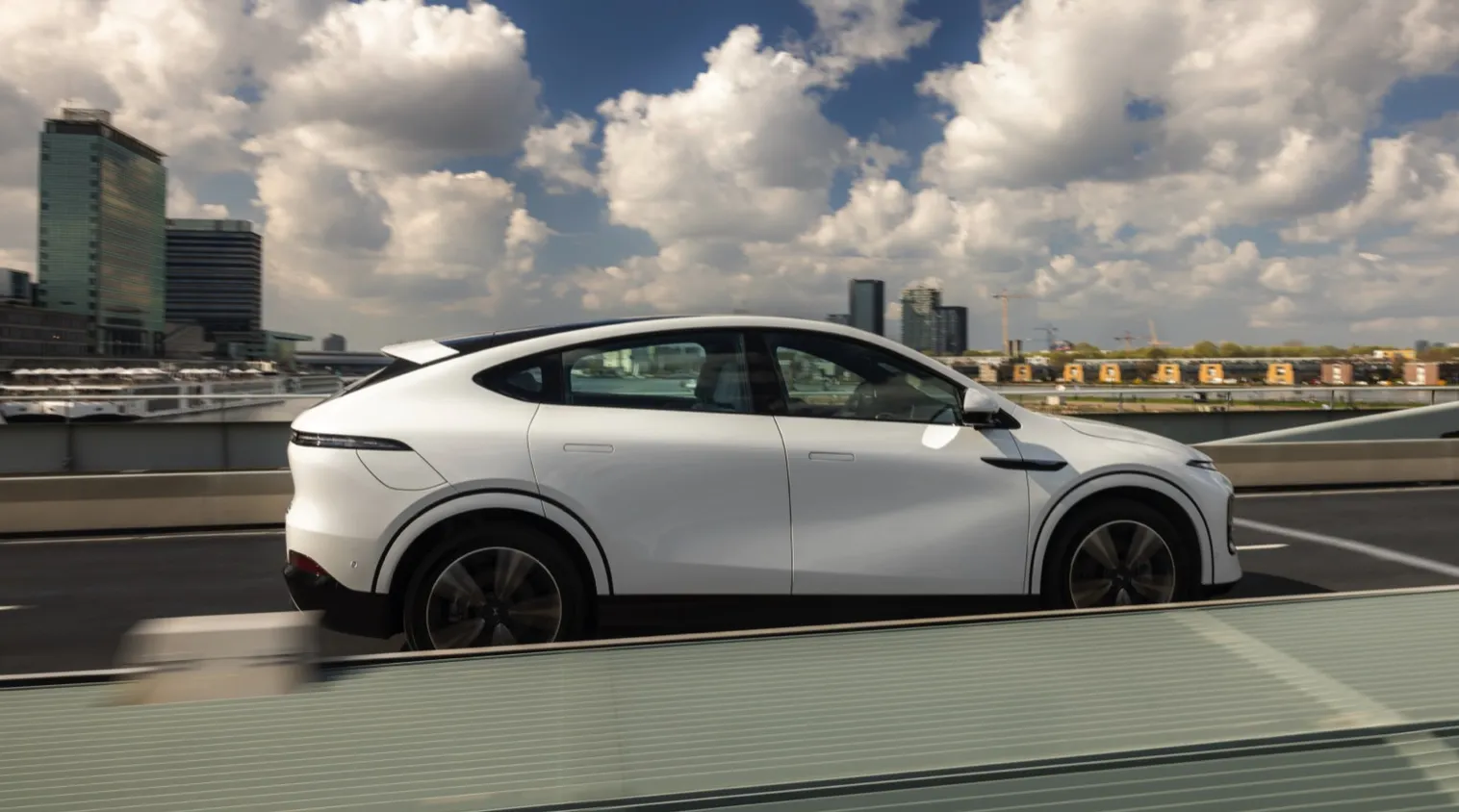

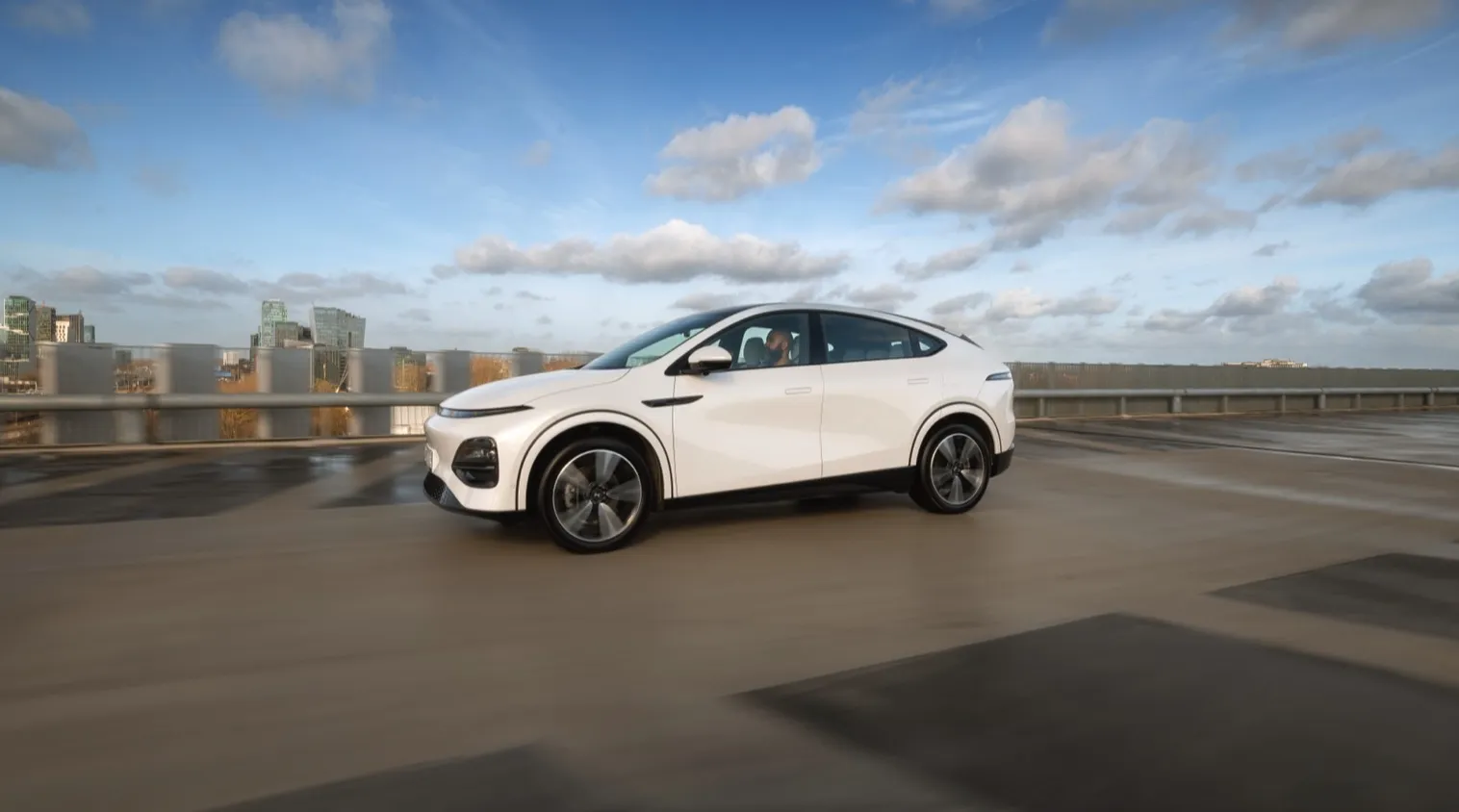

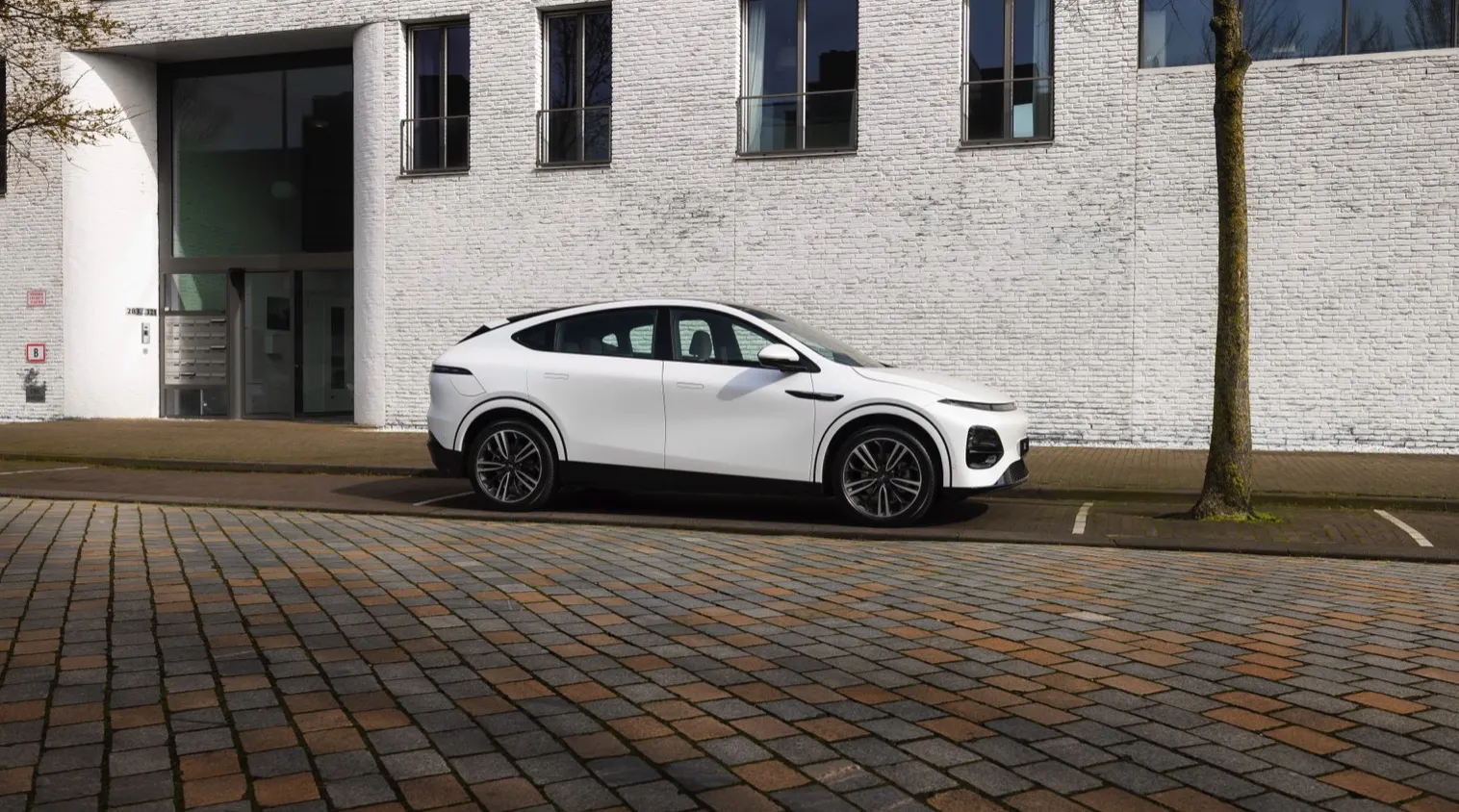

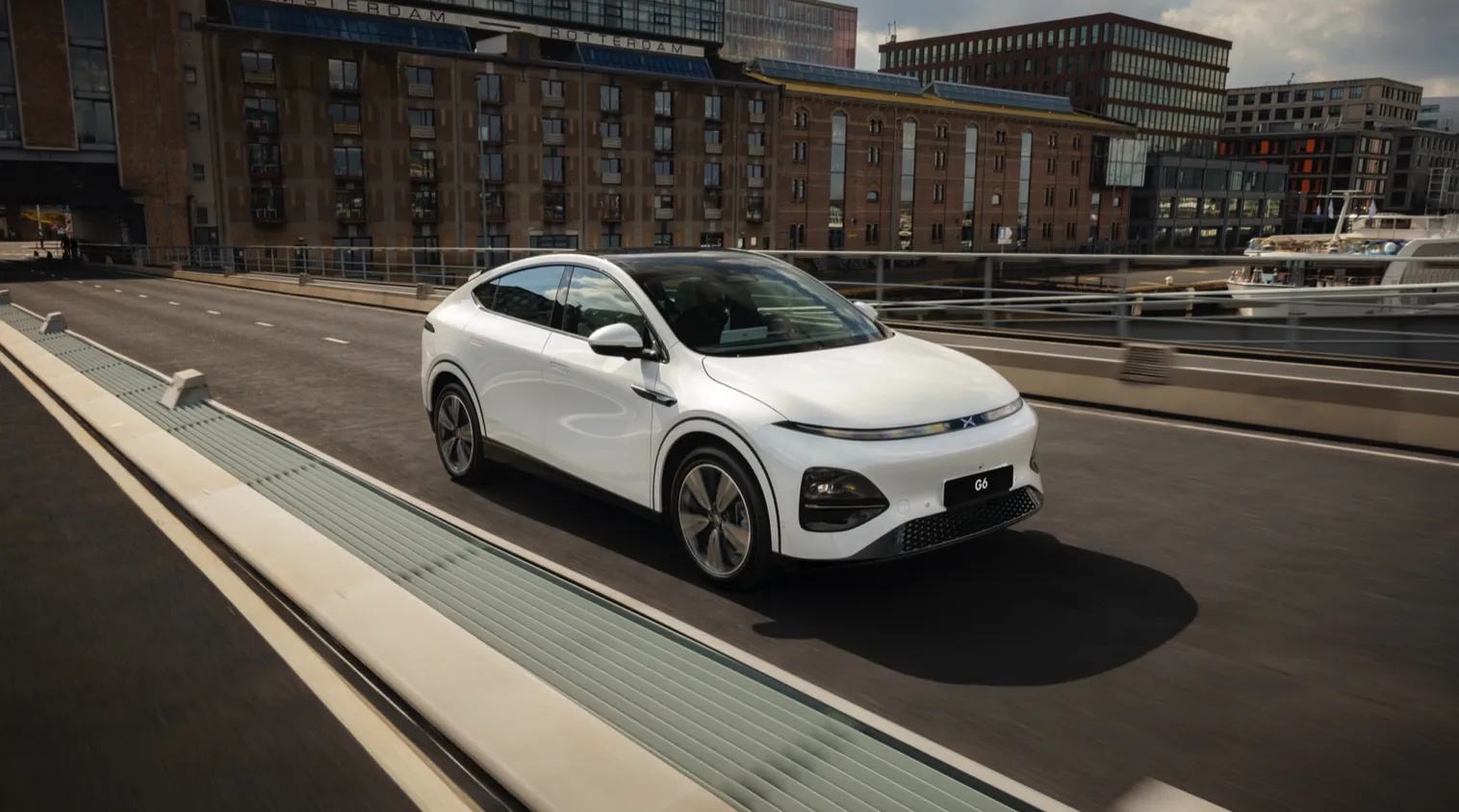

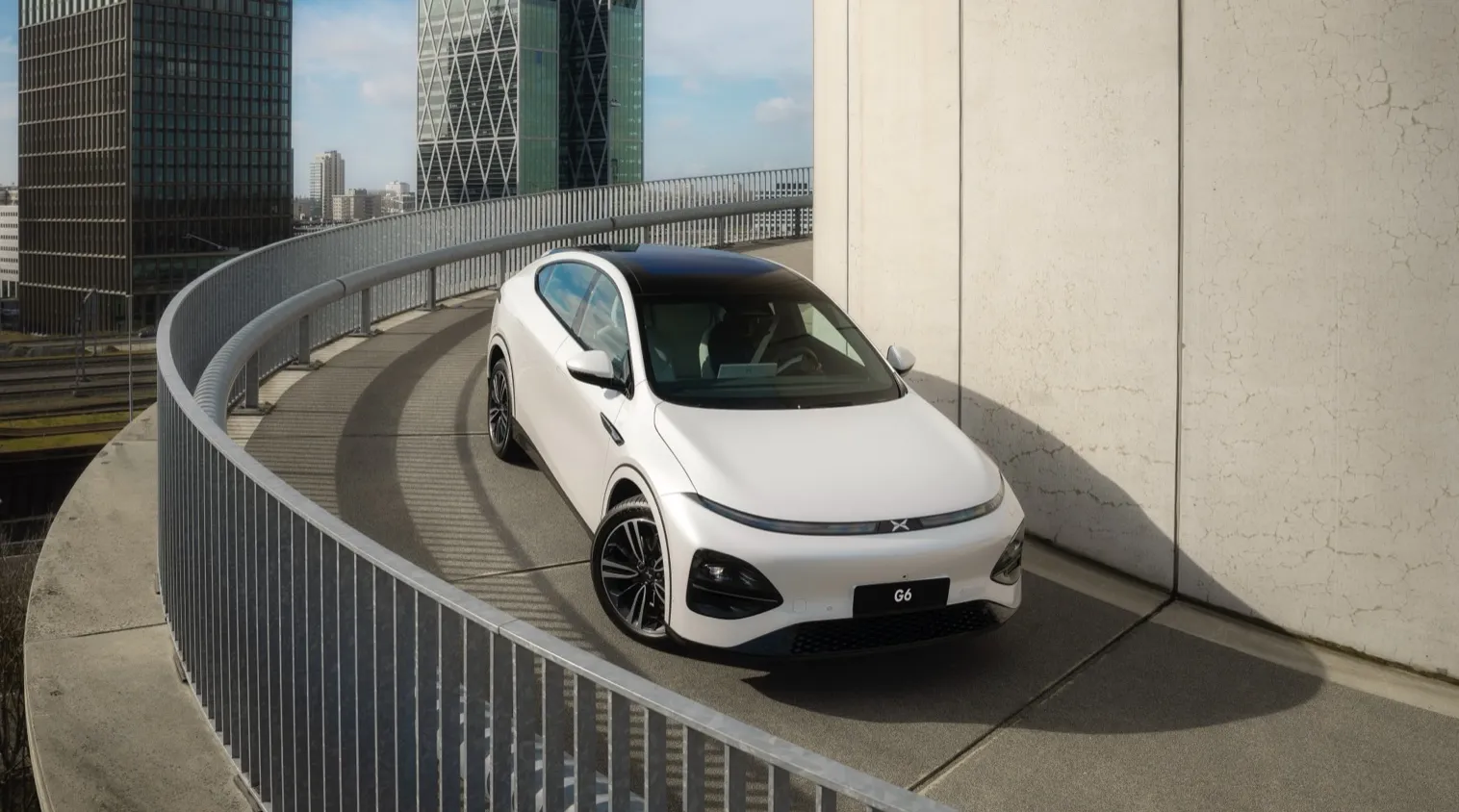

XPENG G6 AWD Performance

Model: XPENG


  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     87.5 kWh

  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     475 km

  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     184 Wh/km

Real Range

City - Cold Weather465 km
Highway - Cold Weather340 km
Combined - Cold Weather400 km

between 340 - 685 km

City - Mild Weather685 km
Highway - Mild Weather435 km
Combined - Mild Weather540 km

Performance

Acceleration 0 - 100 km/h4.1 sec
Top Speed200 km/h
Electric Range475 km
Total Power350 kW (476 PS)
Total Torque660 Nm
DriveAWD

Battery

Nominal Capacity*92.0 kWh
Battery TypeLithium-ion
Number of CellsNo Data
Architecture800 V
Warranty Period7 years
Warranty Mileage160,000 km
Useable Capacity87.5 kWh
Cathode MaterialNCM
Pack ConfigurationNo Data
Nominal VoltageNo Data
Form FactorNo Data
Name / ReferenceNo Data

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L SupportedYes
Max. Output Power3.3 kW AC

Vehicle-to-Home (V2H)

V2H via AC SupportedNo
Max. Output Power-

Vehicle-to-Grid (V2G)

V2G via AC SupportedNo
Max. Output Power-

Energy Consumption

EVDB Real Range

Range475 km
Vehicle Consumption184 Wh/km

WLTP Ratings

Range550 km
Rated Consumption179 Wh/km
Vehicle Consumption159 Wh/km

Dimensions and Weight

Length4753 mm
Width1920 mm
Width with mirrorsNo Data
Height1650 mm
Wheelbase2890 mm
Weight Unladen (EU)2195 kg
Gross Vehicle Weight (GVWR)2638 kg
Max. Payload518 kg
Cargo Volume571 L
Cargo Volume Max1374 L
Cargo Volume FrunkNo Data
Roof LoadNo Data
Tow Hitch PossibleYes
Towing Weight UnbrakedNo Data
Towing Weight BrakedNo Data
Vertical Load MaxNo Data

Miscellaneous

Seats 5 people
IsofixNo Data
Turning CircleNo Data
PlatformXPENG SEPA 2.0
EV Dedicated PlatformYes
Car BodySUV
SegmentJD - Large
Roof RailsNo Data
Heat pump (HP)Yes
HP Standard EquipmentYes

Home and Destination Charging (0 -> 100%)

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the XPENG G6 AWD Performance. Each option shows how fast the battery can be charged from empty to full.

Europe

Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the XPENG G6 AWD Performance can be charged, but some modes of charging might not be widely available in certain countries.

Type 2 (Mennekes - IEC 62196)
Charging PointMax. PowerPowerTimeRate
Wall Plug (2.3 kW)230V / 1x10A2.3 kW44h45m11 km/h
1-phase 16A (3.7 kW)230V / 1x16A3.7 kW28 hours17 km/h
1-phase 32A (7.4 kW)230V / 1x32A7.4 kW14 hours34 km/h
3-phase 16A (11 kW)400V / 3x16A11 kW9h30m50 km/h
3-phase 32A (22 kW)400V / 3x16A11 kW †9h30m50 km/h

† = Limited by on-board charger, vehicle cannot charge faster.

Fast Charging (10 -> 80%)

Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the XPENG G6 AWD Performance.

  • Max. Power: maximum power provided by charge point
  • Avg. Power: average power provided by charge point over a session from 10% to 80%
  • Time: time needed to charge from 10% to 80%
  • Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2)
Charging PointMax. PowerAvg. PowerTimeRate
CCS (50 kW DC)50 kW50 kW77 min250 km/h
CCS (100 kW DC)100 kW90 kW †43 min460 km/h
CCS (150 kW DC)150 kW120 kW †32 min620 km/h
CCS (175 kW DC)175 kW135 kW †29 min680 km/h
CCS (350 kW DC)280 kW †180 kW †21 min950 km/h
This vehicle supports Autocharge
This vehicle does not support Plug & Charge

† = Limited by charging capabilities of vehicle

Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.

Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.

Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.

XPENG Claimed Specifications

The table below shows the claimed specifications from the manufacturer for charging the XPENG G6 AWD Performance. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.

  • Max. Power: maximum charge power during charging session
  • Charge From: battery percentage (% SoC) where charging session is started
  • Charge To: battery percentage (% SoC) where charging session is ended
  • Time: time needed for charging session
XPENG Claimed Specifications
Max. PowerCharge FromCharge ToTime
280 kW 10 % 80 % 20 min
