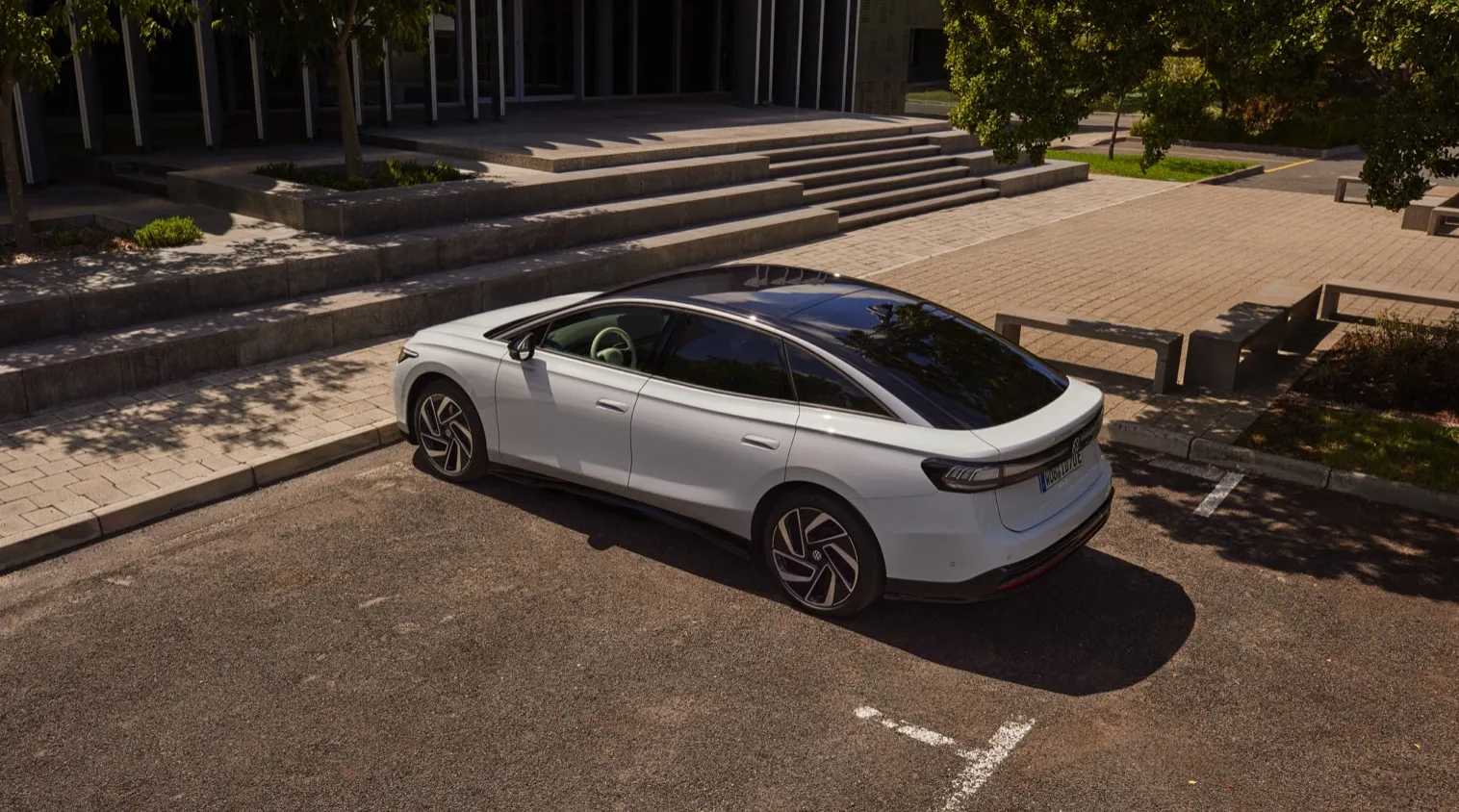

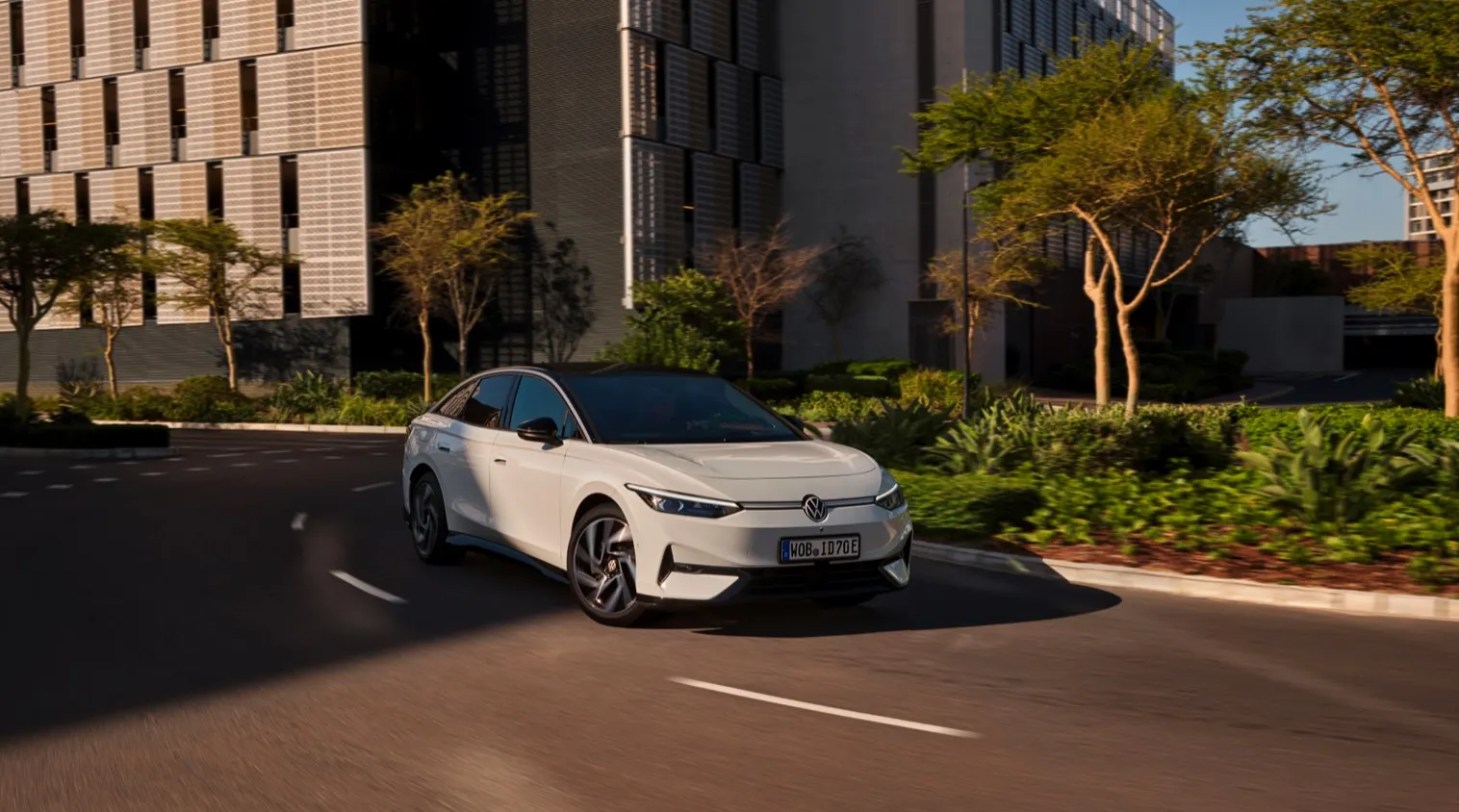

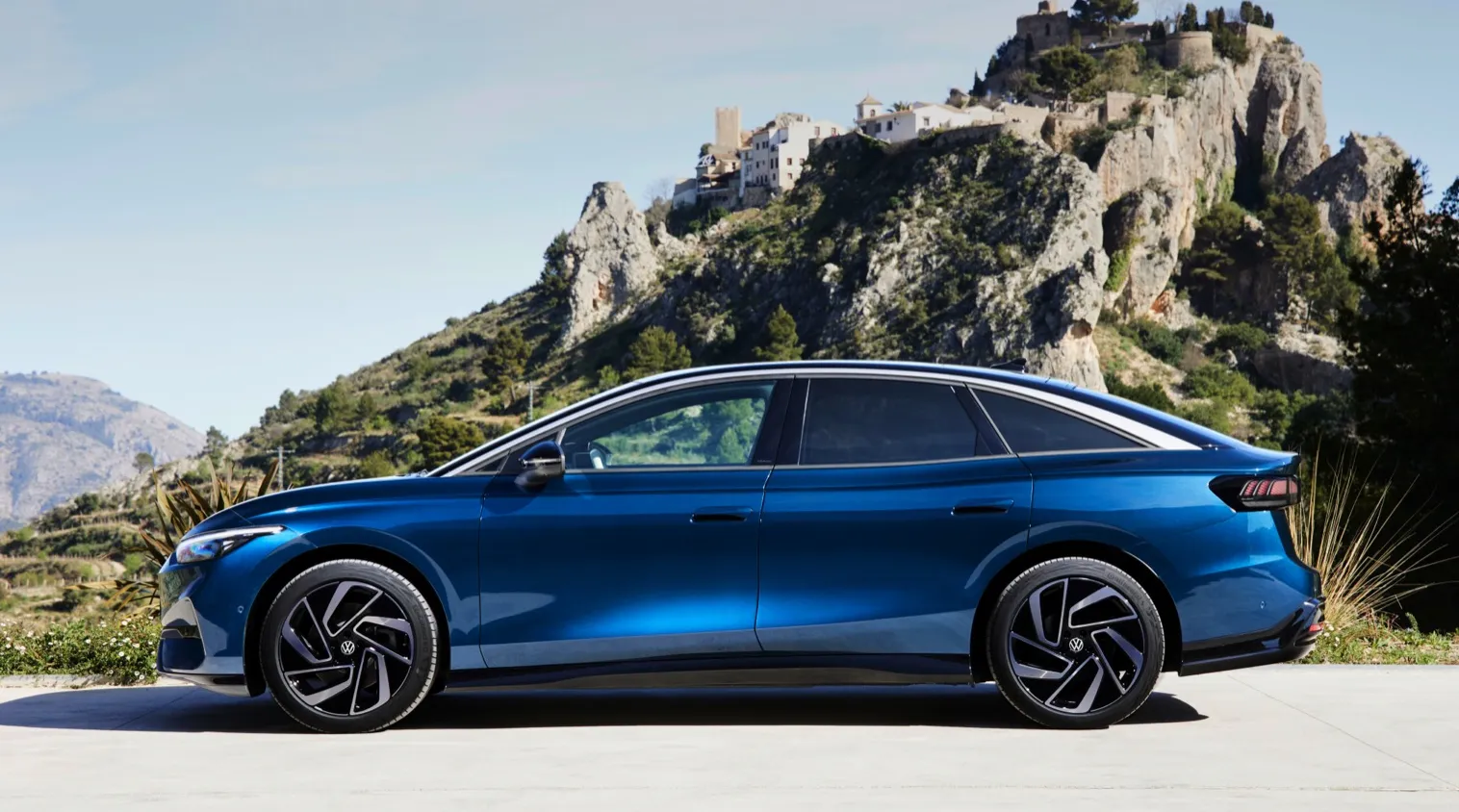

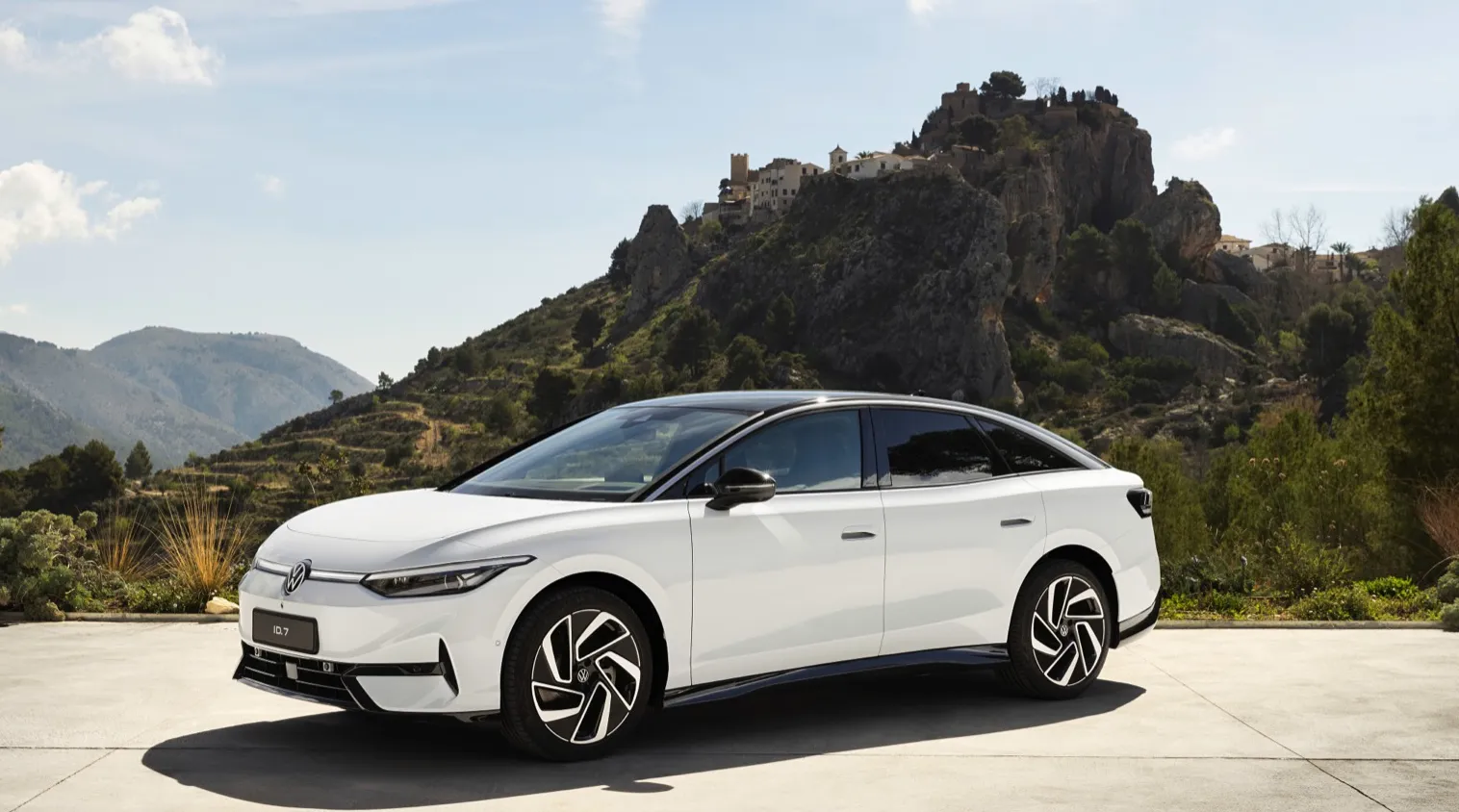

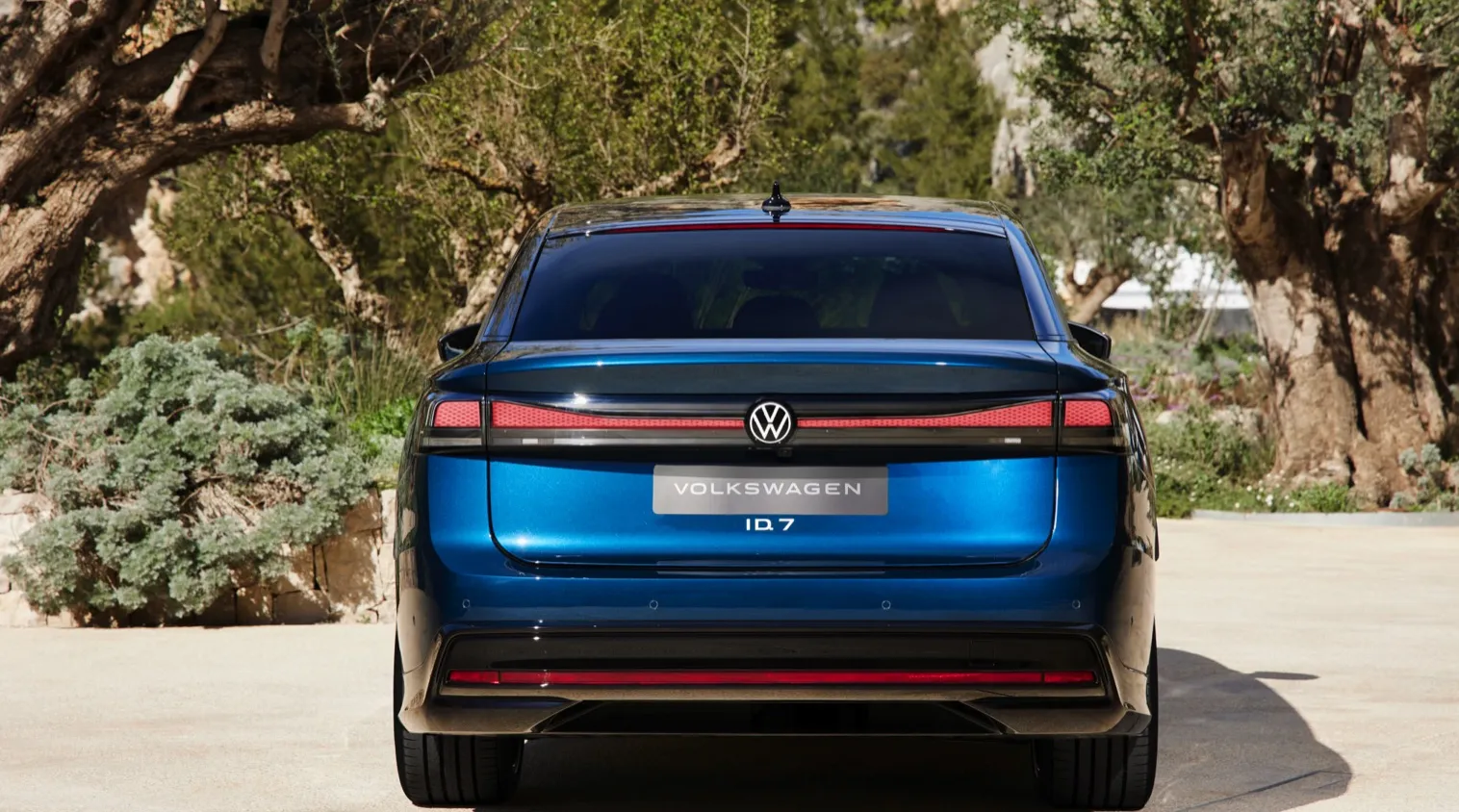

Volkswagen ID.7 Pro

Model: Volkswagen


  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     77.0 kWh

  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     475 km

  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     162 Wh/km

Real Range

City - Cold Weather450 km
Highway - Cold Weather345 km
Combined - Cold Weather395 km

between 345 - 685 km

City - Mild Weather685 km
Highway - Mild Weather450 km
Combined - Mild Weather550 km

Performance

Acceleration 0 - 100 km/h6.5 sec
Top Speed180 km/h
Electric Range475 km
Total Power210 kW (286 PS)
Total Torque550 Nm
DriveRear

Battery

Nominal Capacity82.0 kWh
Battery TypeLithium-ion
Number of Cells288
Architecture400 V
Warranty Period8 years
Warranty Mileage160,000 km
Useable Capacity77.0 kWh
Cathode MaterialNCM
Pack Configuration96s3p
Nominal Voltage352 V
Form FactorNo Data
Name / ReferenceNo Data

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L SupportedNo
Max. Output Power-

Vehicle-to-Home (V2H)

V2H via AC SupportedNo
Max. Output Power-

Vehicle-to-Grid (V2G)

V2G via AC SupportedNo
Max. Output Power-

Energy Consumption

EVDB Real Range

Range475 km
Vehicle Consumption162 Wh/km

WLTP Ratings (TEL)

Range621 km
Rated Consumption140 Wh/km
Vehicle Consumption124 Wh/km

WLTP Ratings (TEH)

Range618 km
Rated Consumption163 Wh/km
Vehicle Consumption125 Wh/km

Dimensions and Weight

Length4961 mm
Width1862 mm
Width with mirrors2141 mm
Height1536 mm
Wheelbase2971 mm
Weight Unladen (EU)2172 kg
Gross Vehicle Weight (GVWR)2630 kg
Max. Payload533 kg

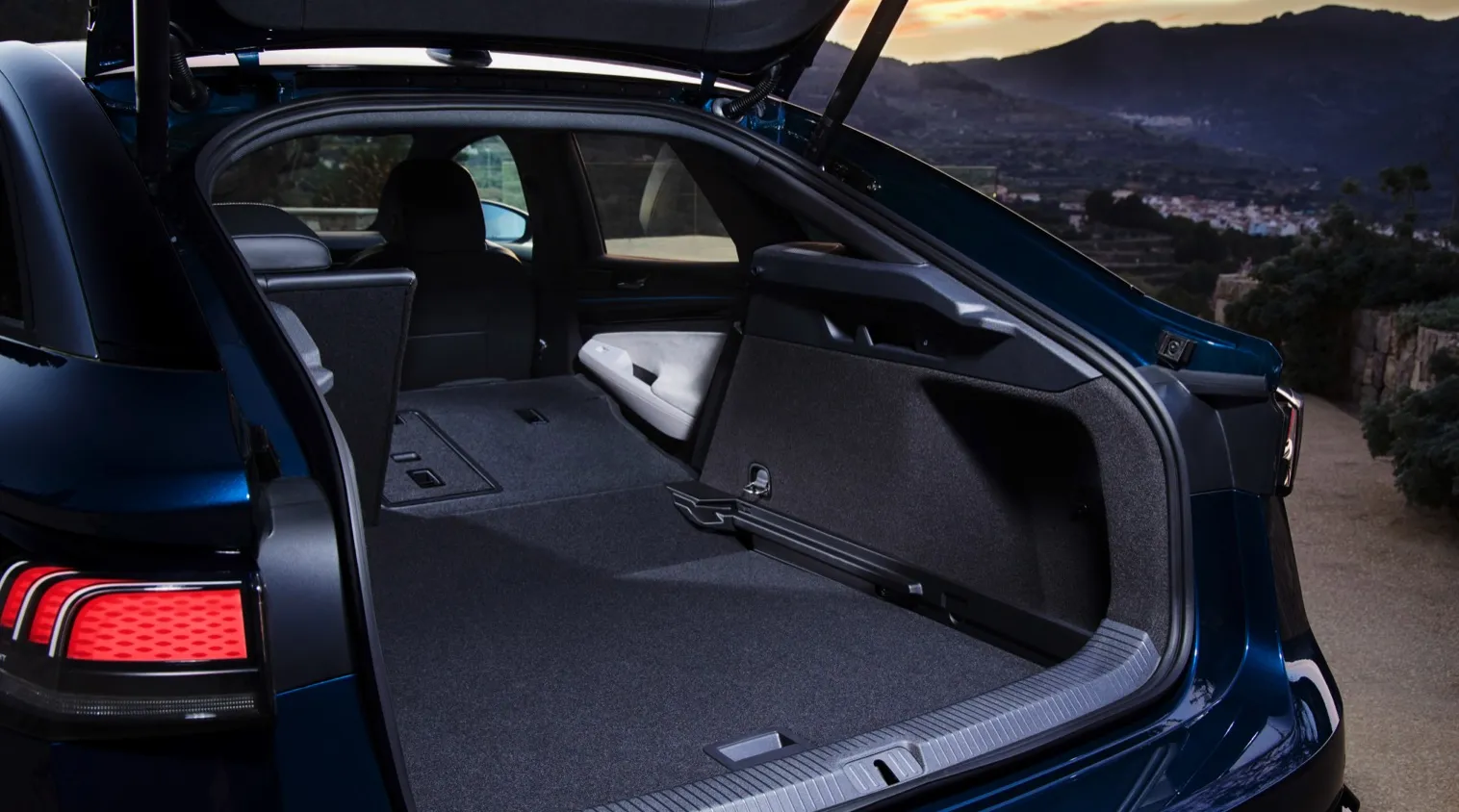

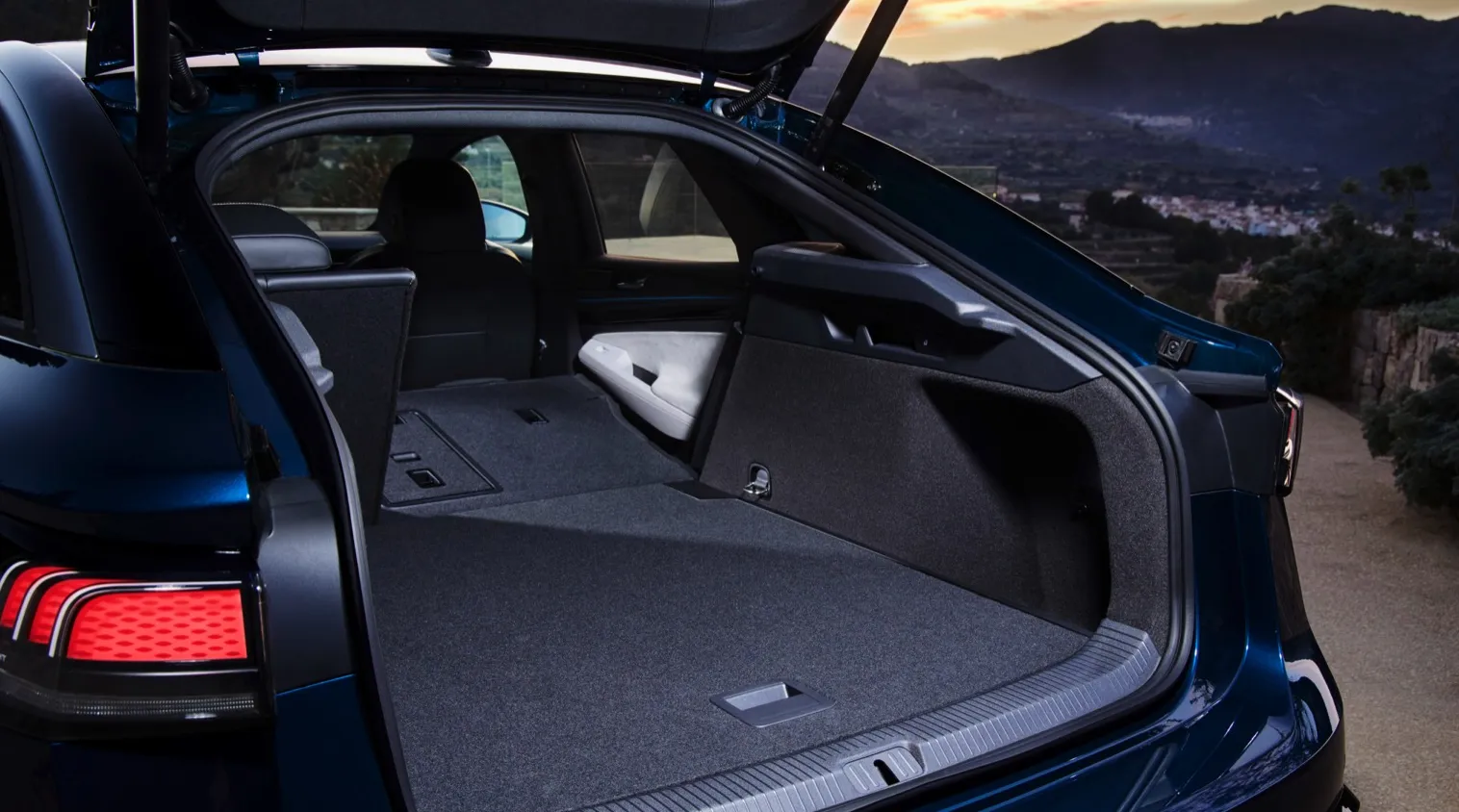

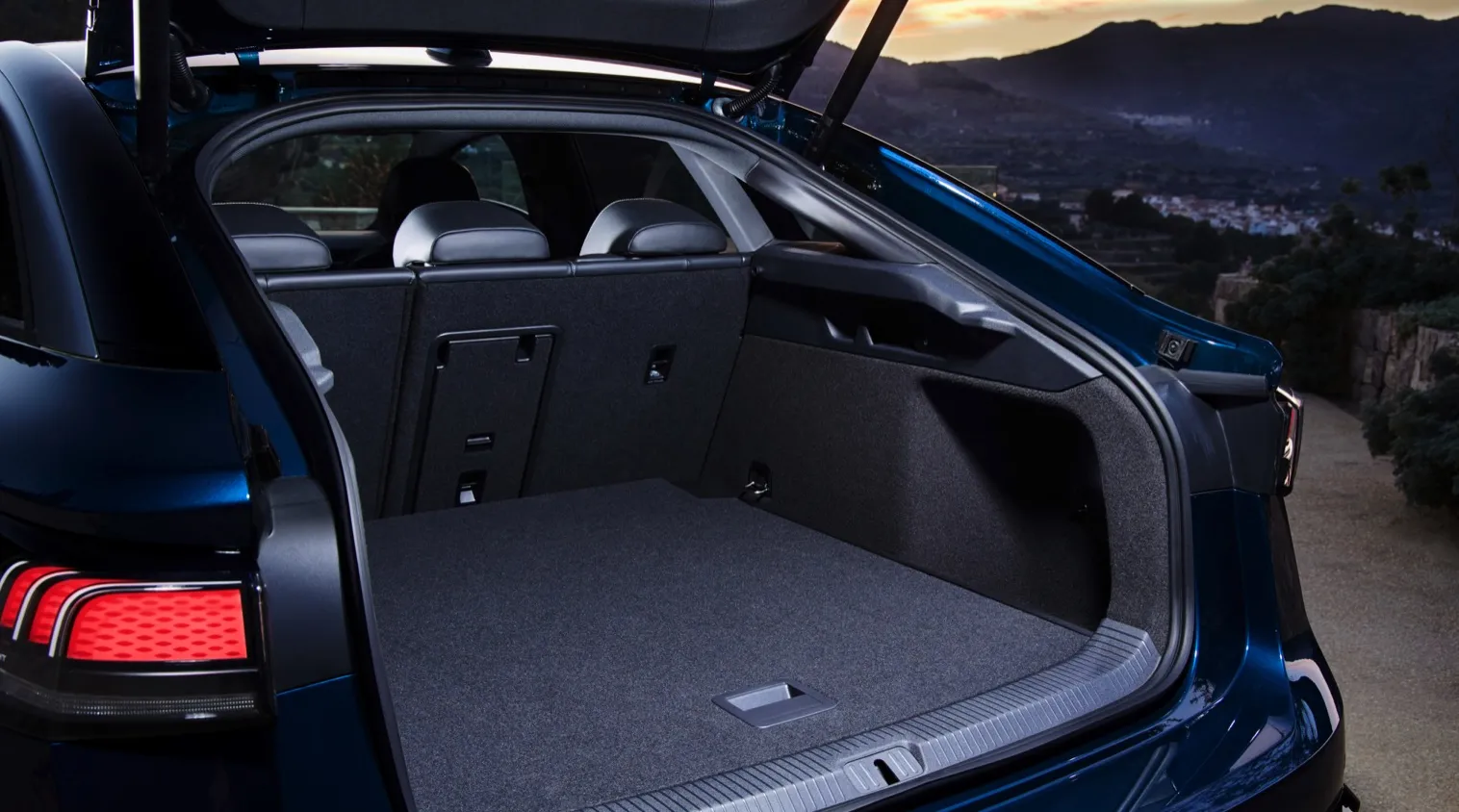

Cargo Volume532 L
Cargo Volume Max1586 L
Cargo Volume FrunkNo Data
Roof Load75 kg
Tow Hitch PossibleYes
Towing Weight Unbraked750 kg
Towing Weight Braked1000 kg
Vertical Load Max75 kg

Miscellaneous

Seats 5 people
IsofixYes, 3 seats
Turning Circle10.9 m
PlatformVW MEB
EV Dedicated PlatformYes
Car BodyLiftback Sedan
SegmentE - Executive
Roof RailsNo
Heat pump (HP)Yes
HP Standard EquipmentNo, optional

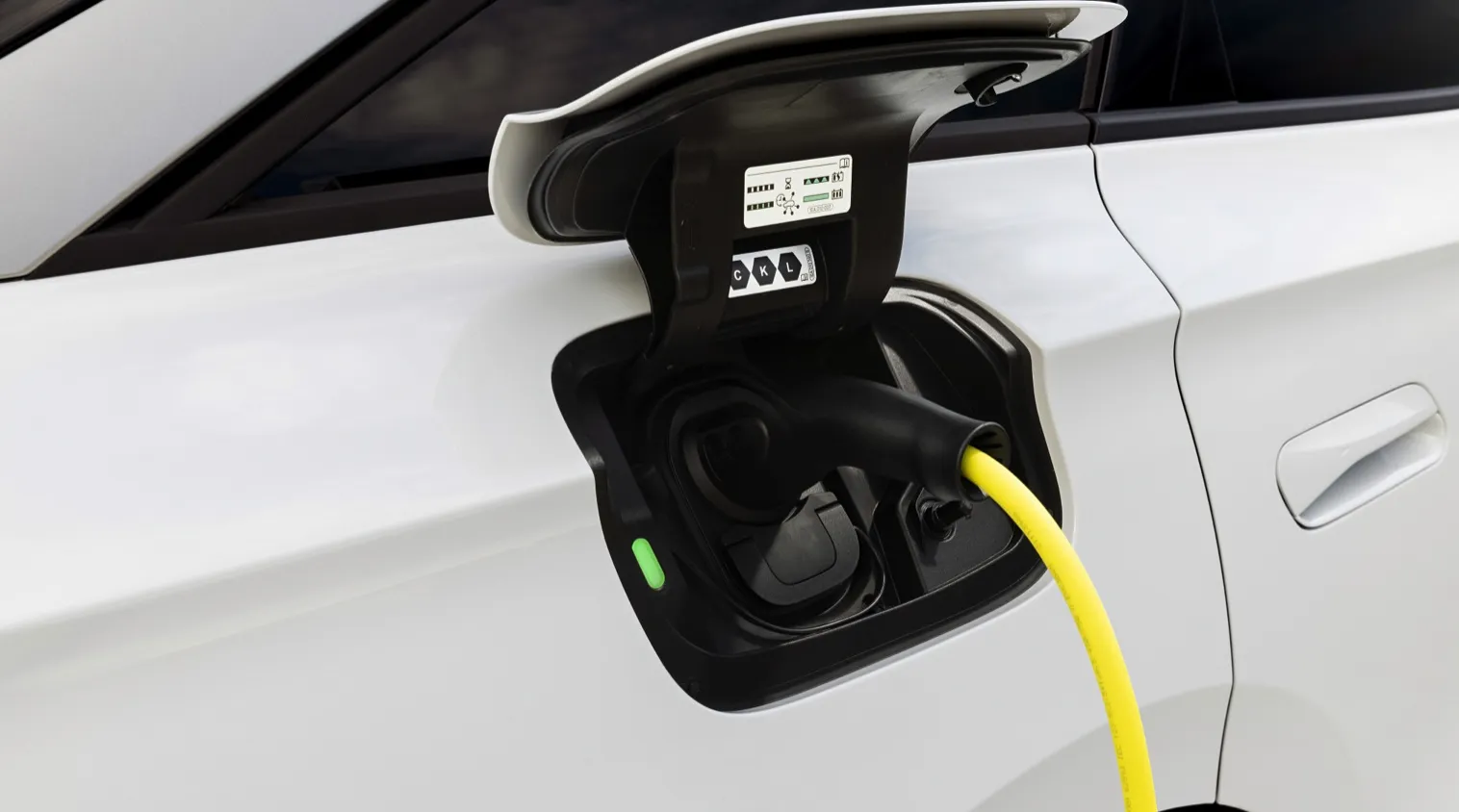

Home and Destination Charging (0 -> 100%)

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Volkswagen ID.7 Pro. Each option shows how fast the battery can be charged from empty to full.

Europe

Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Volkswagen ID.7 Pro can be charged, but some modes of charging might not be widely available in certain countries.

Type 2 (Mennekes - IEC 62196)
Charging PointMax. PowerPowerTimeRate
Wall Plug (2.3 kW)230V / 1x10A2.3 kW39h30m12 km/h
1-phase 16A (3.7 kW)230V / 1x16A3.7 kW24h30m19 km/h
1-phase 32A (7.4 kW)230V / 1x32A7.4 kW12h15m39 km/h
3-phase 16A (11 kW)400V / 3x16A11 kW8h15m58 km/h
3-phase 32A (22 kW)400V / 3x16A11 kW †8h15m58 km/h

† = Limited by on-board charger, vehicle cannot charge faster.

Fast Charging (10 -> 80%)

Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Volkswagen ID.7 Pro.

  • Max. Power: maximum power provided by charge point
  • Avg. Power: average power provided by charge point over a session from 10% to 80%
  • Time: time needed to charge from 10% to 80%
  • Rate: average charging speed over a session from 10% to 80%

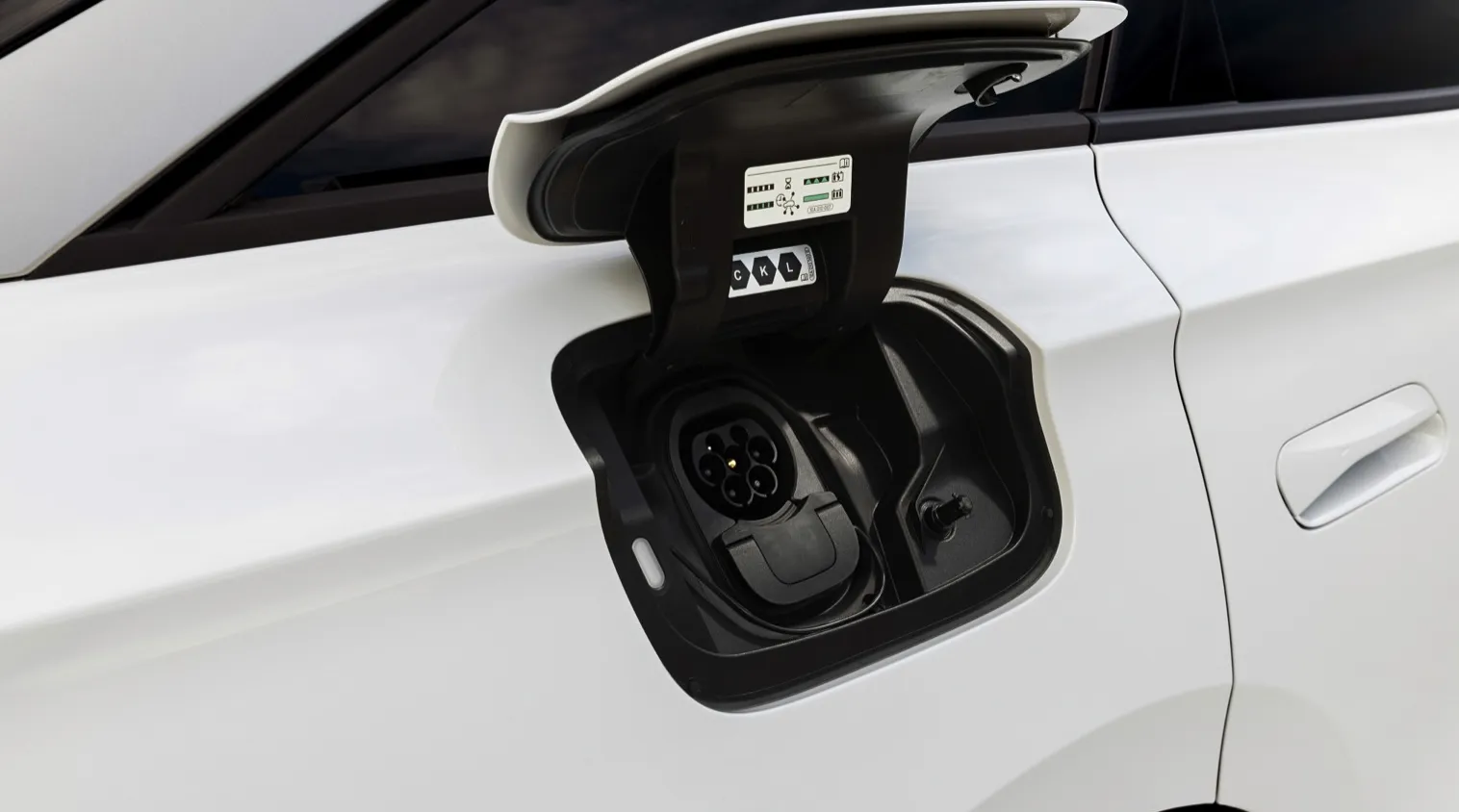

Combined Charging System (CCS Combo 2)
Charging PointMax. PowerAvg. PowerTimeRate
CCS (50 kW DC)50 kW50 kW68 min290 km/h
CCS (100 kW DC)100 kW85 kW †40 min490 km/h
CCS (150 kW DC)150 kW105 kW †32 min620 km/h
CCS (175 kW DC)175 kW115 kW †30 min660 km/h
CCS (350 kW DC)190 kW †125 kW †27 min730 km/h
This vehicle does not support Autocharge
This vehicle supports Plug & Charge

† = Limited by charging capabilities of vehicle

Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.

Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.

Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.

Volkswagen Claimed Specifications

The table below shows the claimed specifications from the manufacturer for charging the Volkswagen ID.7 Pro. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.

  • Max. Power: maximum charge power during charging session
  • Charge From: battery percentage (% SoC) where charging session is started
  • Charge To: battery percentage (% SoC) where charging session is ended
  • Time: time needed for charging session
Volkswagen Claimed Specifications
Max. PowerCharge FromCharge ToTime
175 kW 10 % 80 % 28 min
