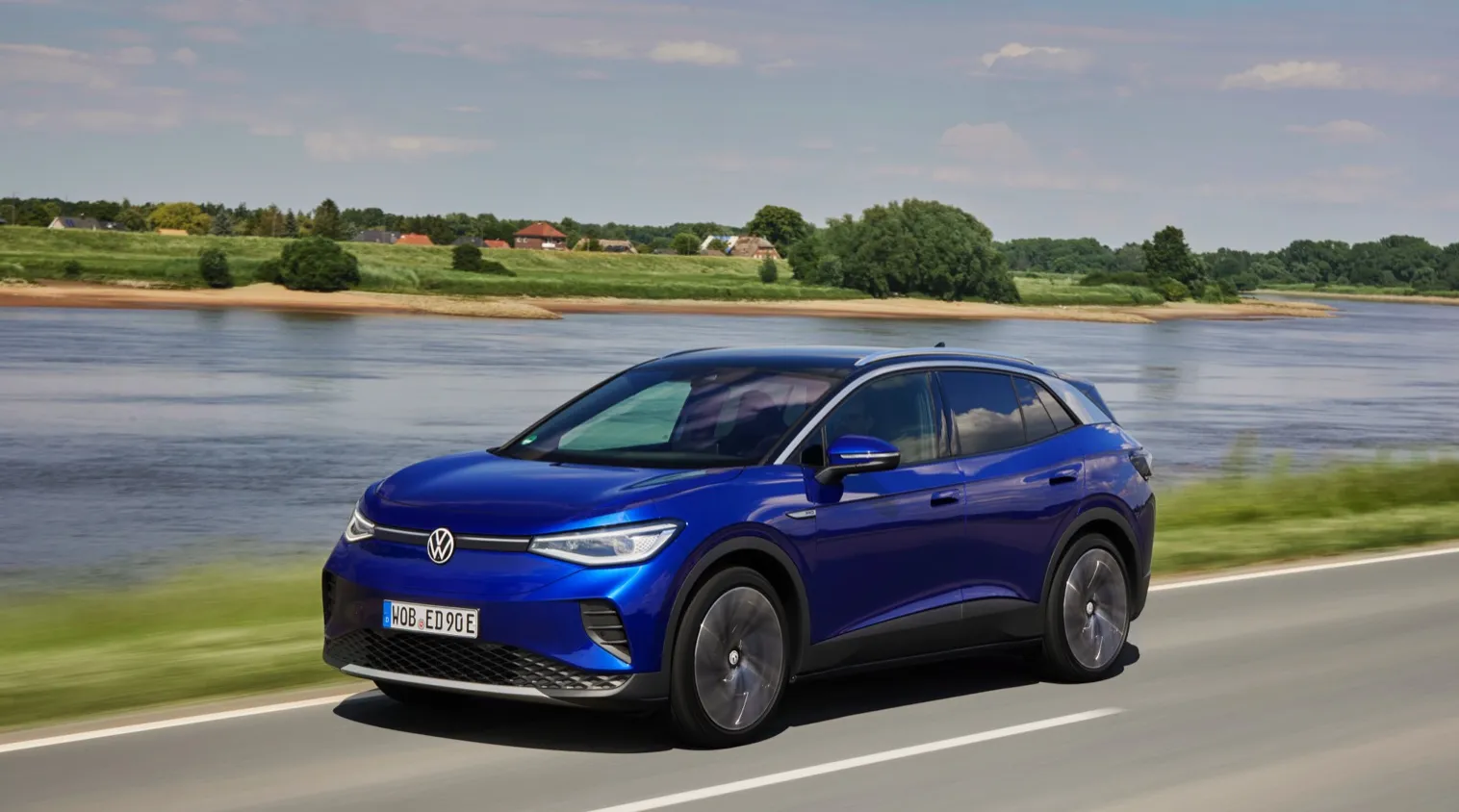

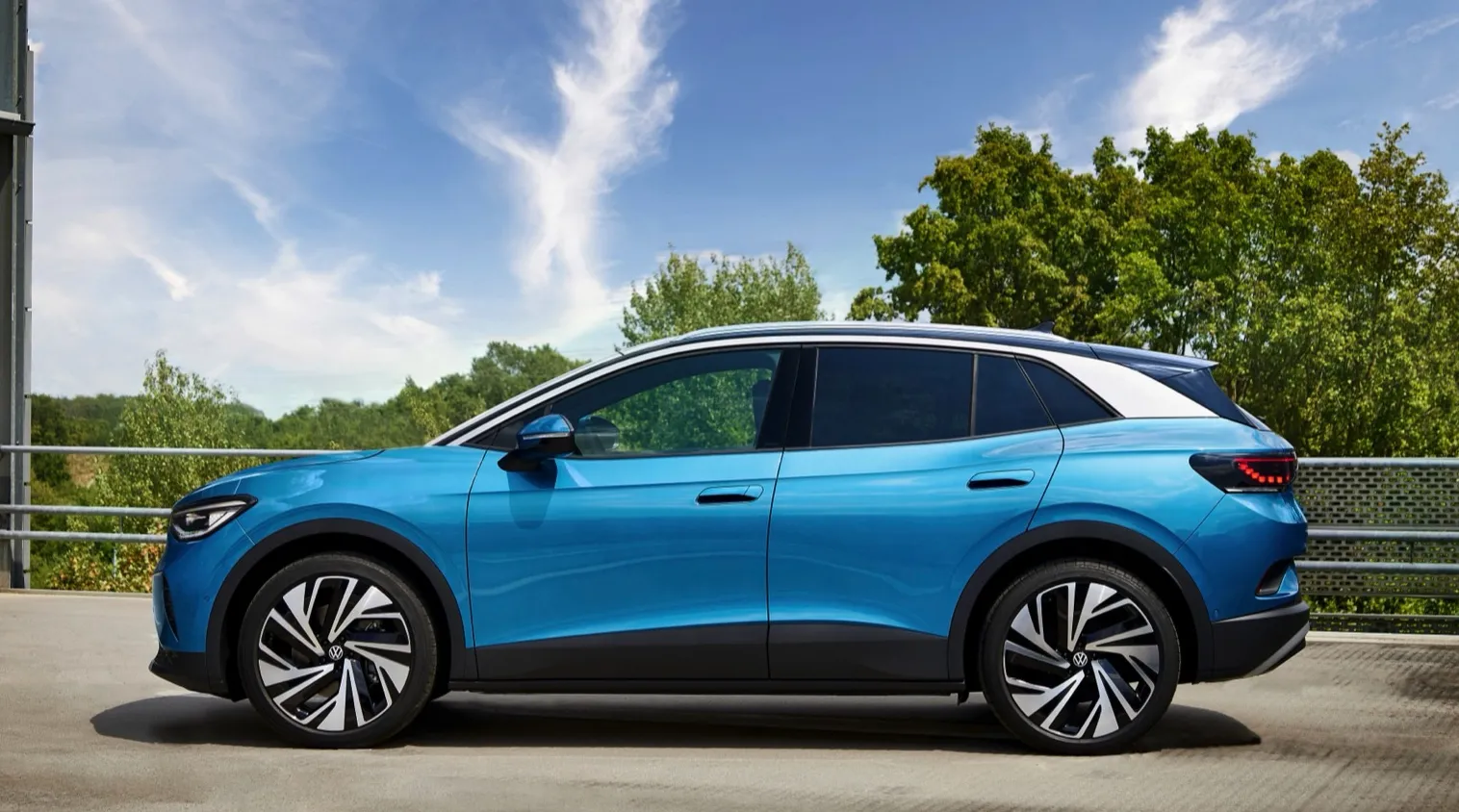

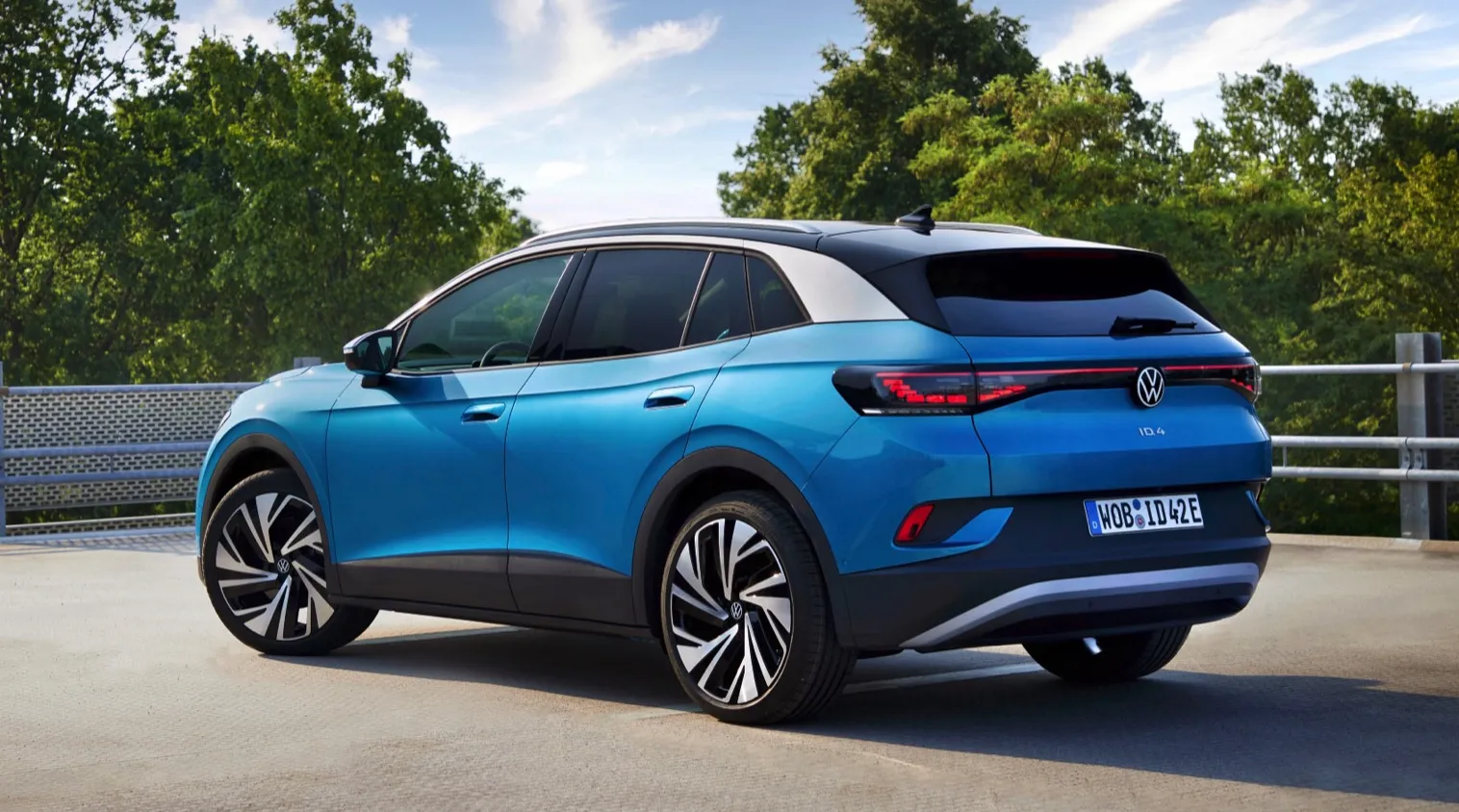

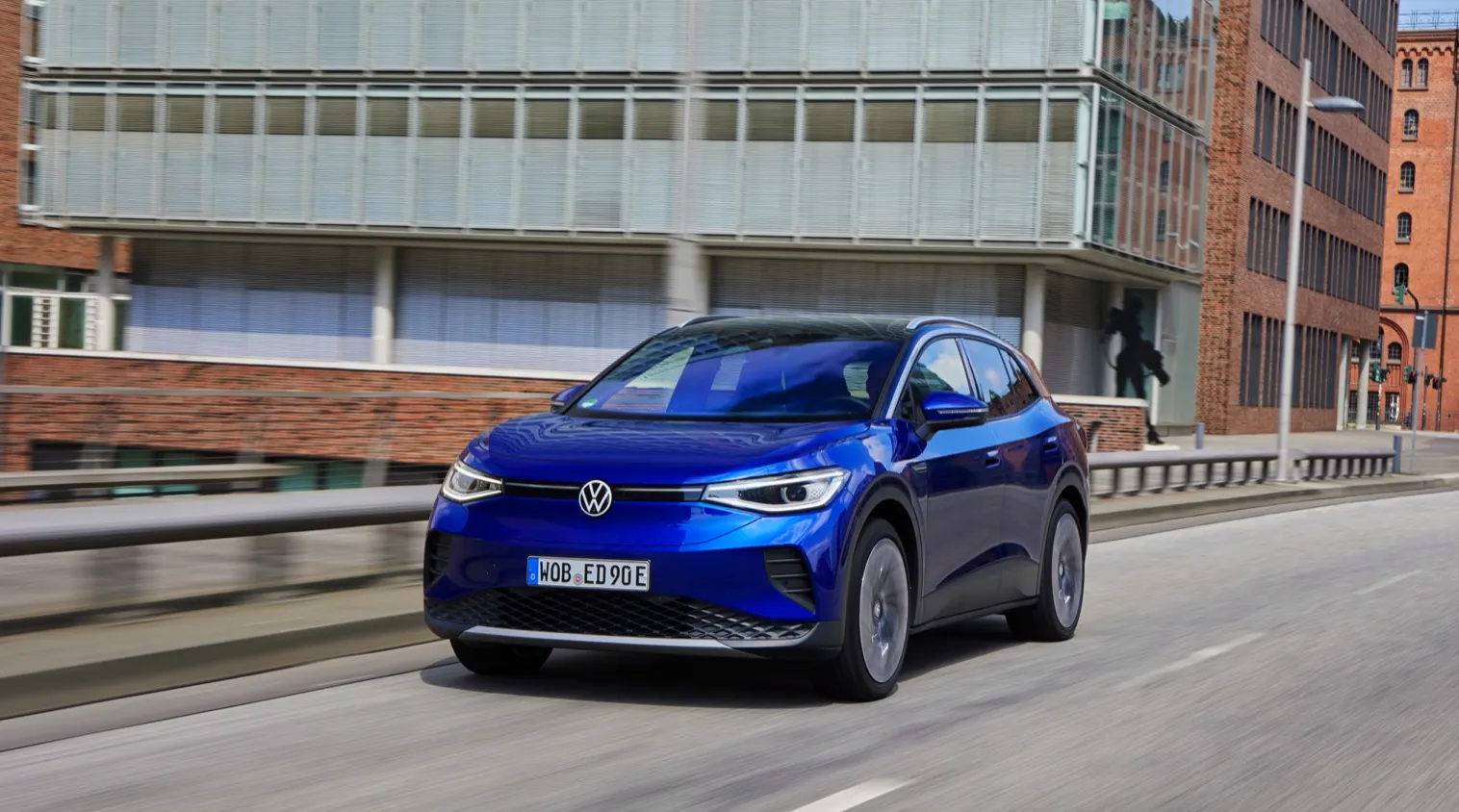

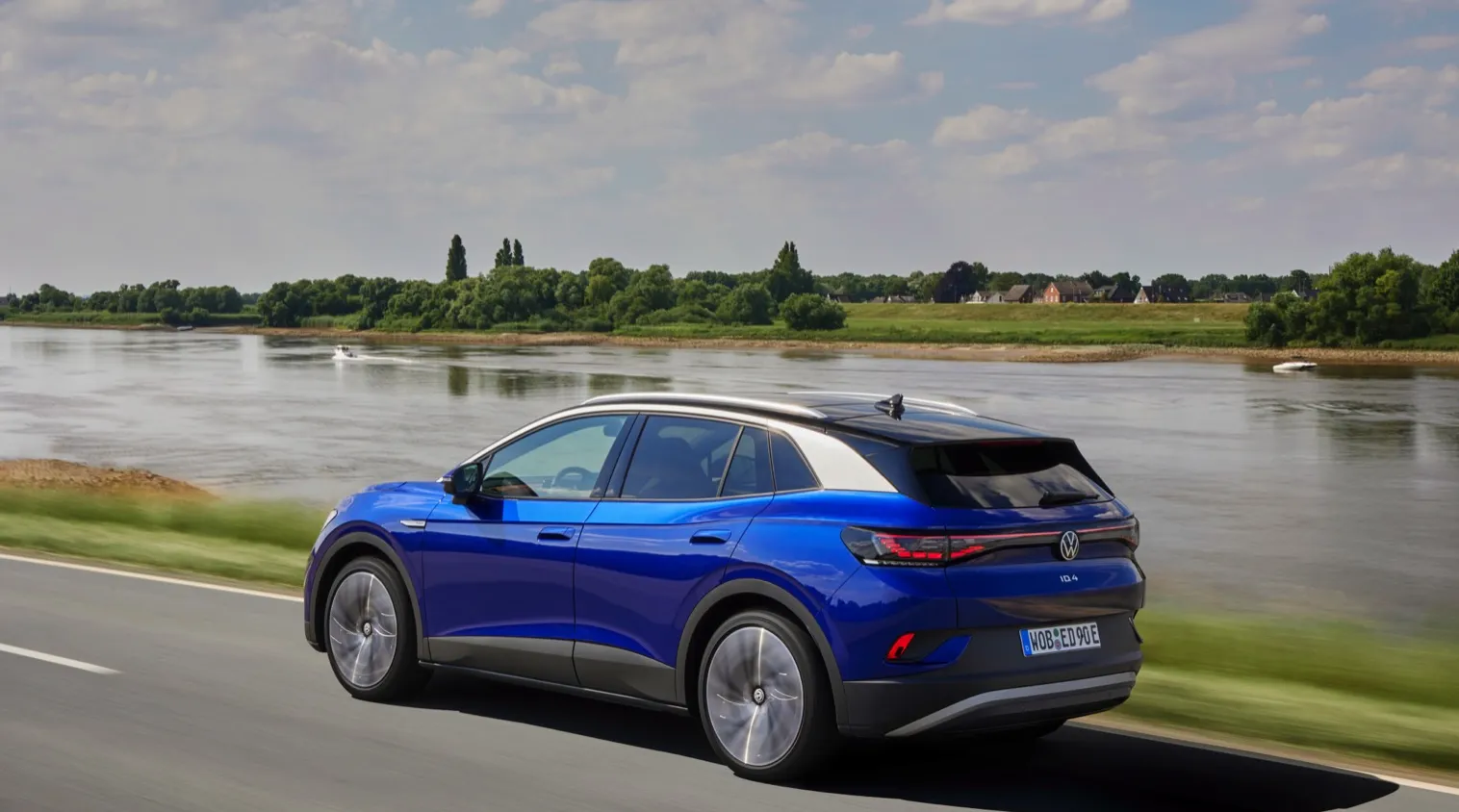

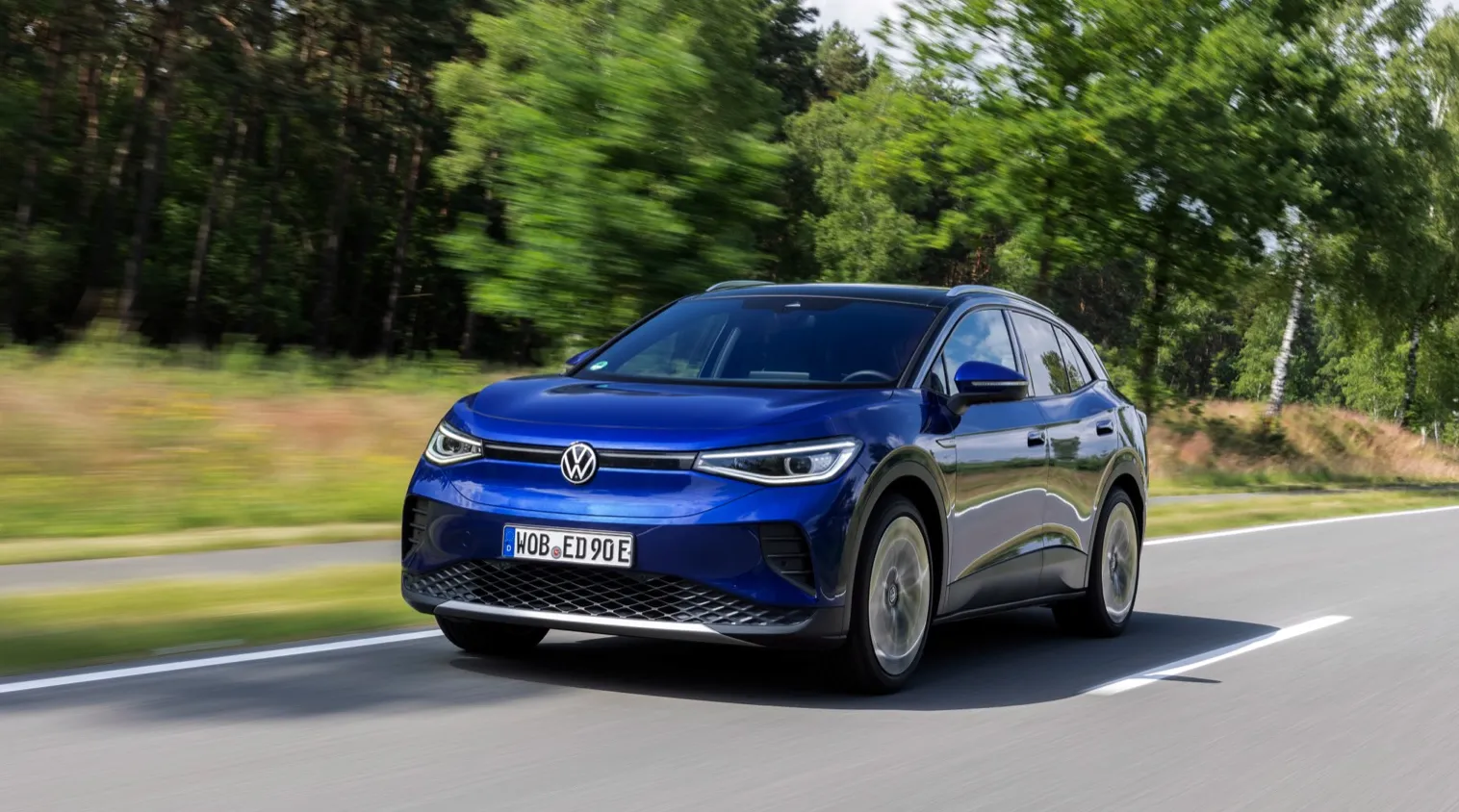

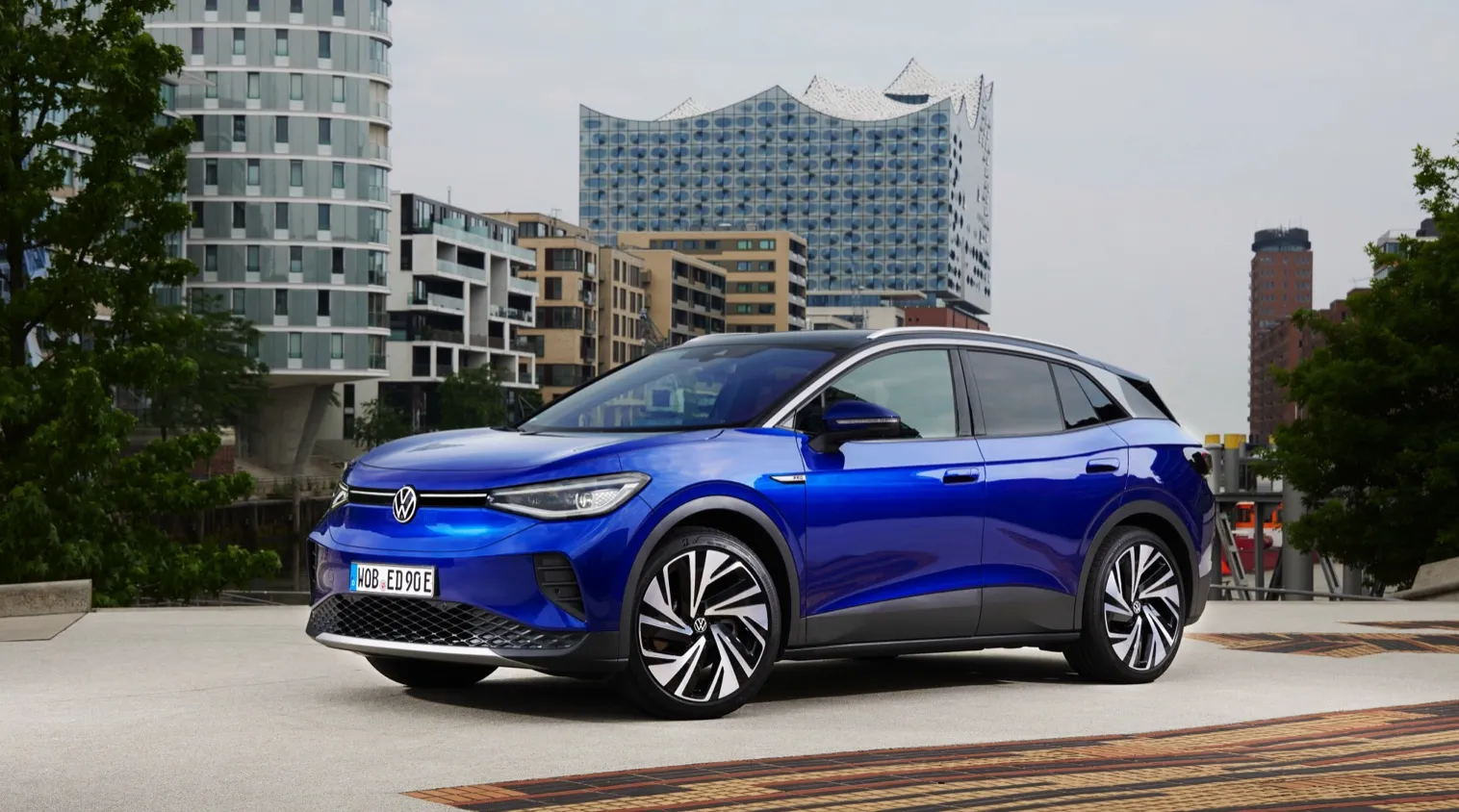

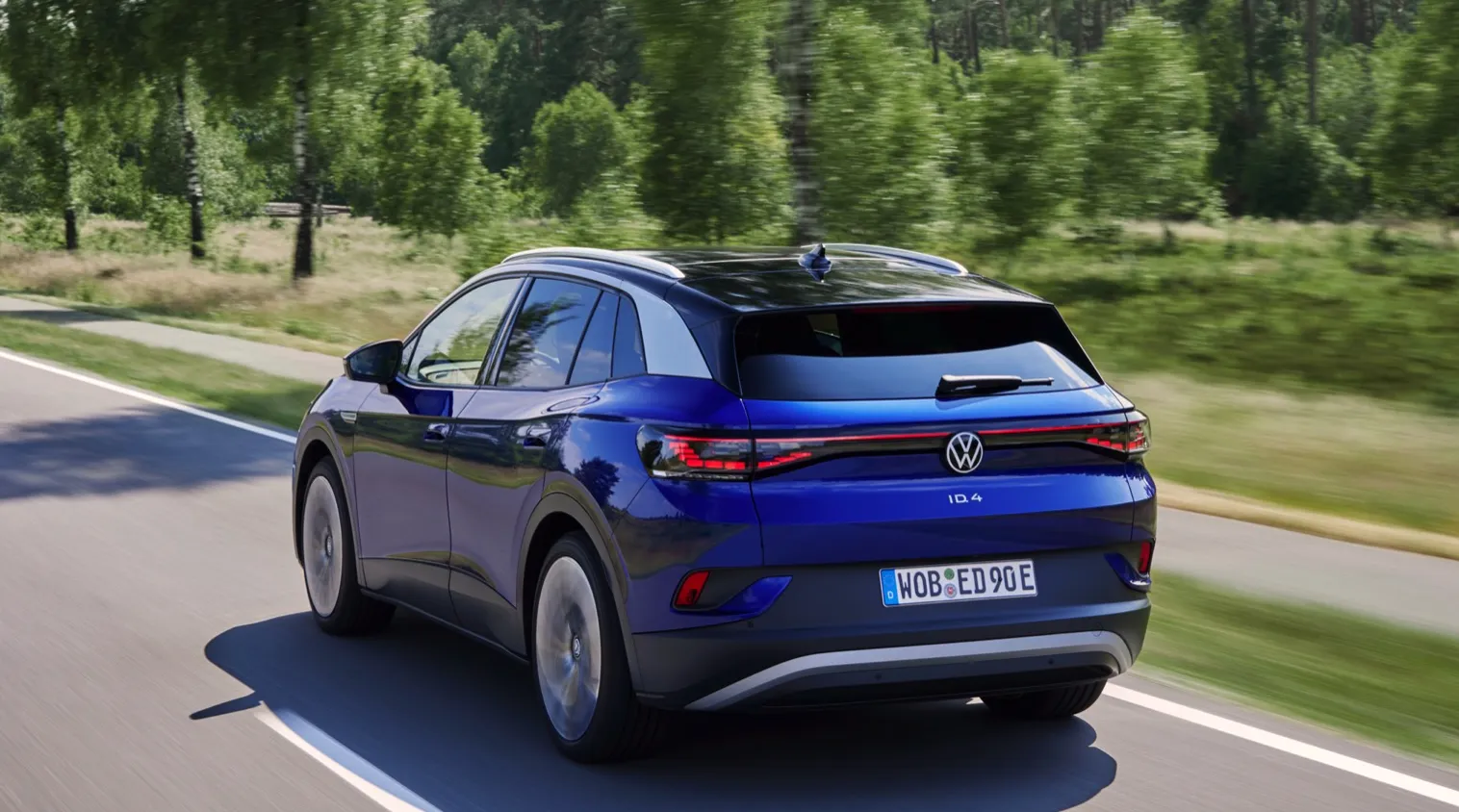

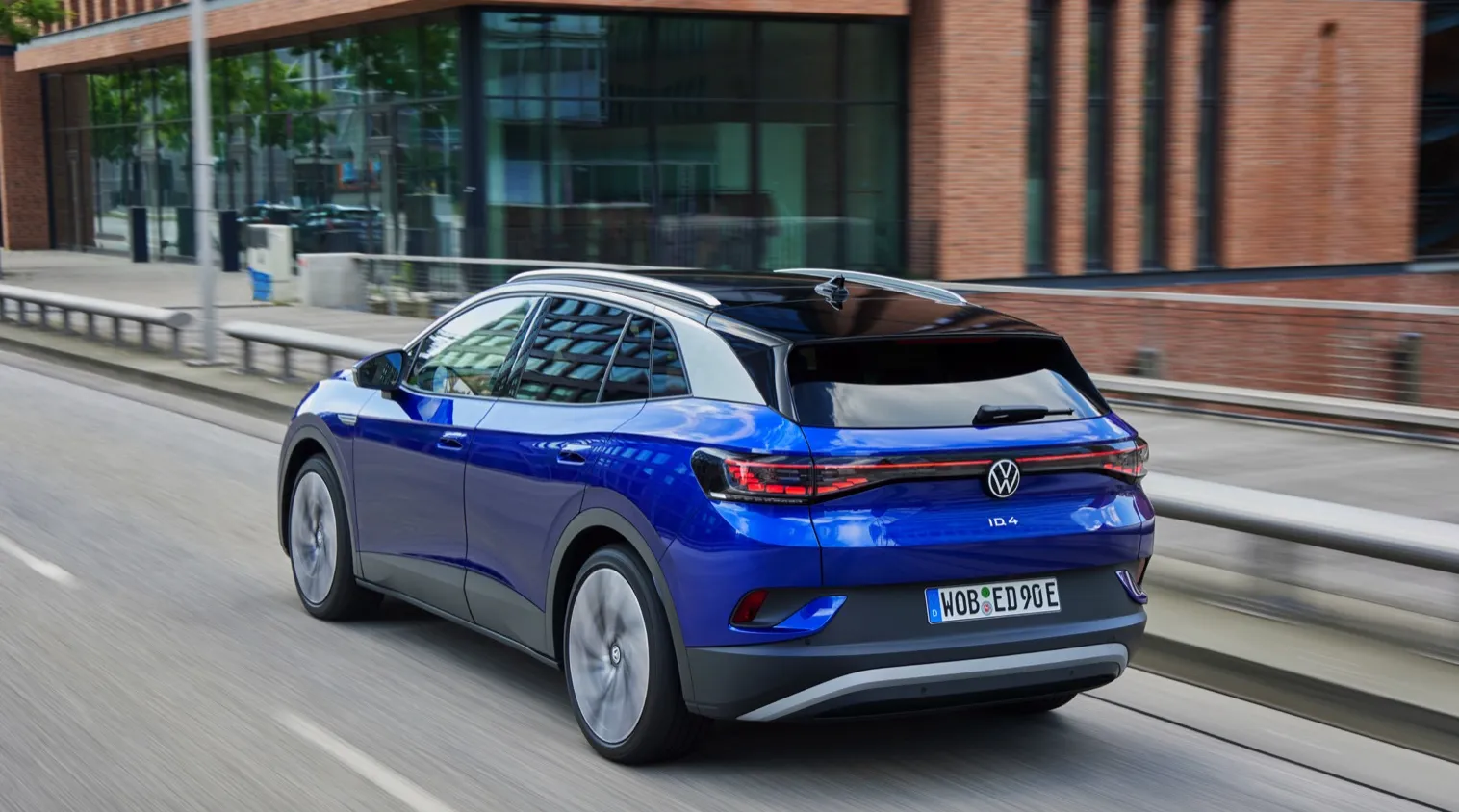

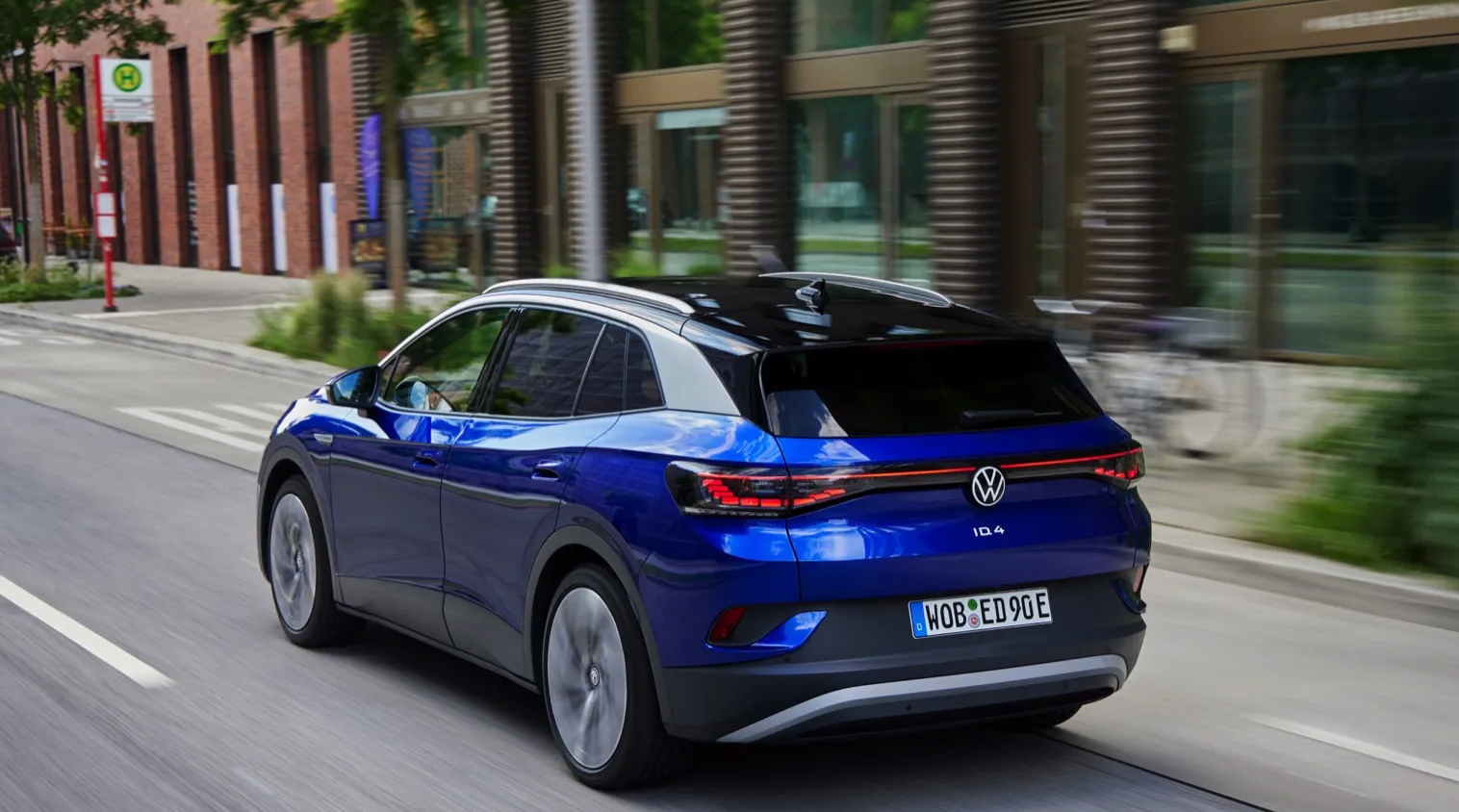

Volkswagen ID.4 Pro 4MOTION
Model: Volkswagen
- : 77.0 kWh
- : 435 km
- : 177 Wh/km
Real Range
City - Cold Weather | 425 km |
Highway - Cold Weather | 310 km |
Combined - Cold Weather | 365 km |
between 310 - 635 km
City - Mild Weather | 635 km |
Highway - Mild Weather | 400 km |
Combined - Mild Weather | 500 km |
Performance
Acceleration 0 - 100 km/h | 6.6 sec |
Top Speed | 180 km/h |
Electric Range | 435 km |
Total Power | 210 kW (286 PS) |
Total Torque | 679 Nm |
Drive | AWD |
Battery
Nominal Capacity | 82.0 kWh |
Battery Type | Lithium-ion |
Number of Cells | 288 |
Architecture | 400 V |
Warranty Period | No Data |
Warranty Mileage | No Data |
Useable Capacity | 77.0 kWh |
Cathode Material | No Data |
Pack Configuration | 96s3p |
Nominal Voltage | 352 V |
Form Factor | No Data |
Name / Reference | No Data |
Bidirectional Charging (V2X / BPT)
Vehicle-to-Load (V2L)
V2L Supported | No |
Max. Output Power | - |
Vehicle-to-Home (V2H)
V2H via AC Supported | No |
Max. Output Power | - |
Vehicle-to-Grid (V2G)
V2G via AC Supported | No |
Max. Output Power | - |
Energy Consumption
EVDB Real Range
Range | 435 km |
Vehicle Consumption | 177 Wh/km |
WLTP Ratings
Range | 530 km |
Rated Consumption | 164 Wh/km |
Vehicle Consumption | 145 Wh/km |
Dimensions and Weight
Length | 4584 mm |
Width | 1852 mm |
Width with mirrors | No Data |
Height | 1631 mm |
Wheelbase | 2771 mm |
Weight Unladen (EU) | 2237 kg |
Gross Vehicle Weight (GVWR) | 2760 kg |
Max. Payload | 598 kg |
Cargo Volume | 543 L |
Cargo Volume Max | 1575 L |
Cargo Volume Frunk | 0 L |
Roof Load | 75 kg |
Tow Hitch Possible | Yes |
Towing Weight Unbraked | 750 kg |
Towing Weight Braked | 1200 kg |
Vertical Load Max | 75 kg |
Miscellaneous
Seats | 5 people |
Isofix | Yes, 3 seats |
Turning Circle | 11.6 m |
Platform | VW MEB |
EV Dedicated Platform | Yes |
Car Body | SUV |
Segment | JC - Medium |
Roof Rails | Yes |
Heat pump (HP) | Yes |
HP Standard Equipment | No, optional |
Home and Destination Charging (0 -> 100%)
Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Volkswagen ID.4 Pro 4MOTION. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Volkswagen ID.4 Pro 4MOTION can be charged, but some modes of charging might not be widely available in certain countries.
Type 2 (Mennekes - IEC 62196) |
---|
Charging Point | Max. Power | Power | Time | Rate |
---|---|---|---|---|
Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 39h30m | 11 km/h |
1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 24h30m | 18 km/h |
1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 12h15m | 36 km/h |
3-phase 16A (11 kW) | 400V / 3x16A | 11 kW | 8h15m | 53 km/h |
3-phase 32A (22 kW) | 400V / 3x16A | 11 kW † | 8h15m | 53 km/h |
† = Limited by on-board charger, vehicle cannot charge faster.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Volkswagen ID.4 Pro 4MOTION.
- Max. Power: maximum power provided by charge point
- Avg. Power: average power provided by charge point over a session from 10% to 80%
- Time: time needed to charge from 10% to 80%
- Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2) |
---|
Charging Point | Max. Power | Avg. Power | Time | Rate |
---|---|---|---|---|
CCS (50 kW DC) | 50 kW | 50 kW | 68 min | 260 km/h |
CCS (100 kW DC) | 100 kW | 85 kW † | 40 min | 450 km/h |
CCS (150 kW DC) | 150 kW | 105 kW † | 32 min | 570 km/h |
CCS (175 kW DC) | 175 kW | 120 kW † | 28 min | 650 km/h |
CCS (350 kW DC) | 175 kW † | 120 kW † | 28 min | 650 km/h |
This vehicle does not support Autocharge |
---|
This vehicle supports Plug & Charge |
† = Limited by charging capabilities of vehicle
Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.
Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
