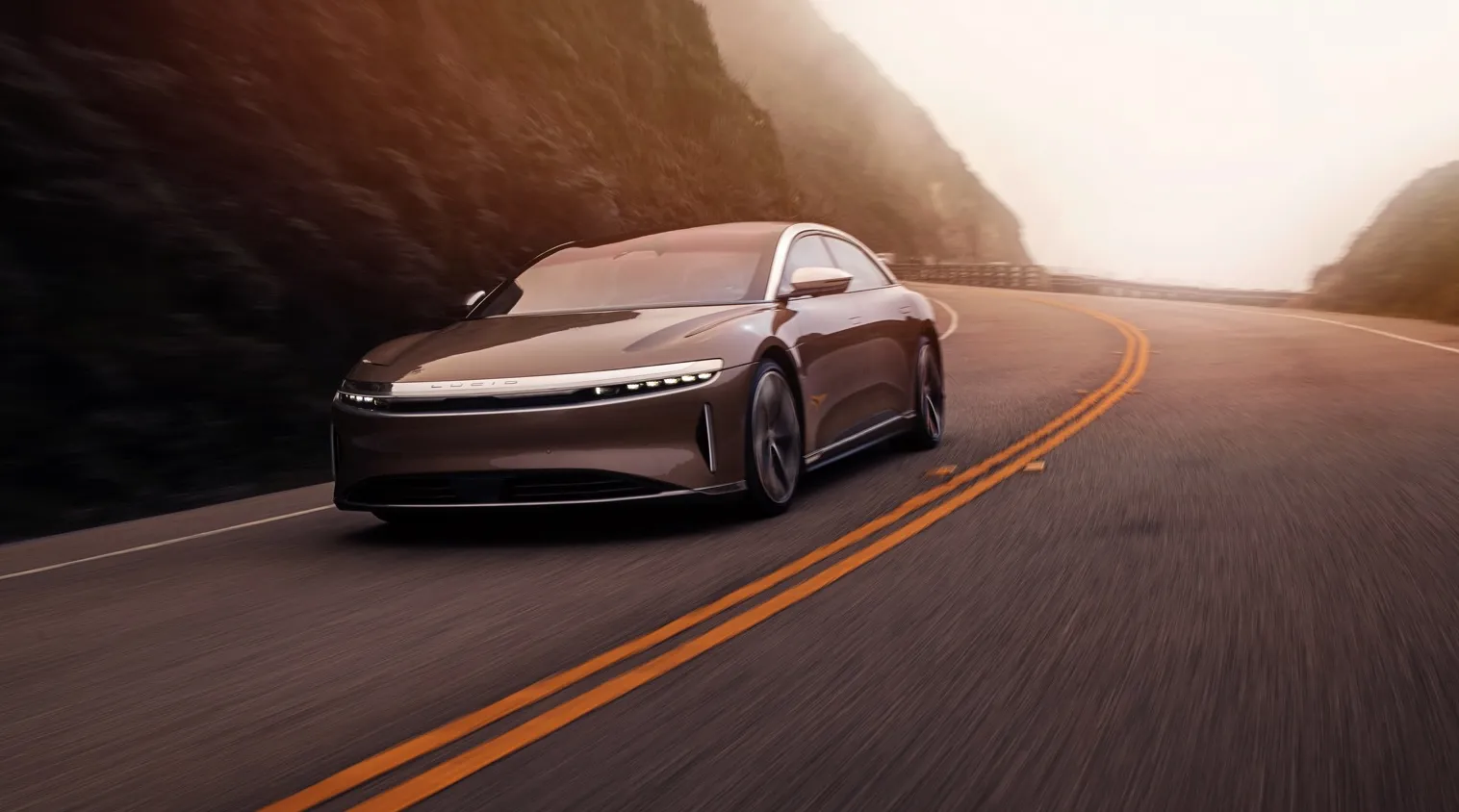

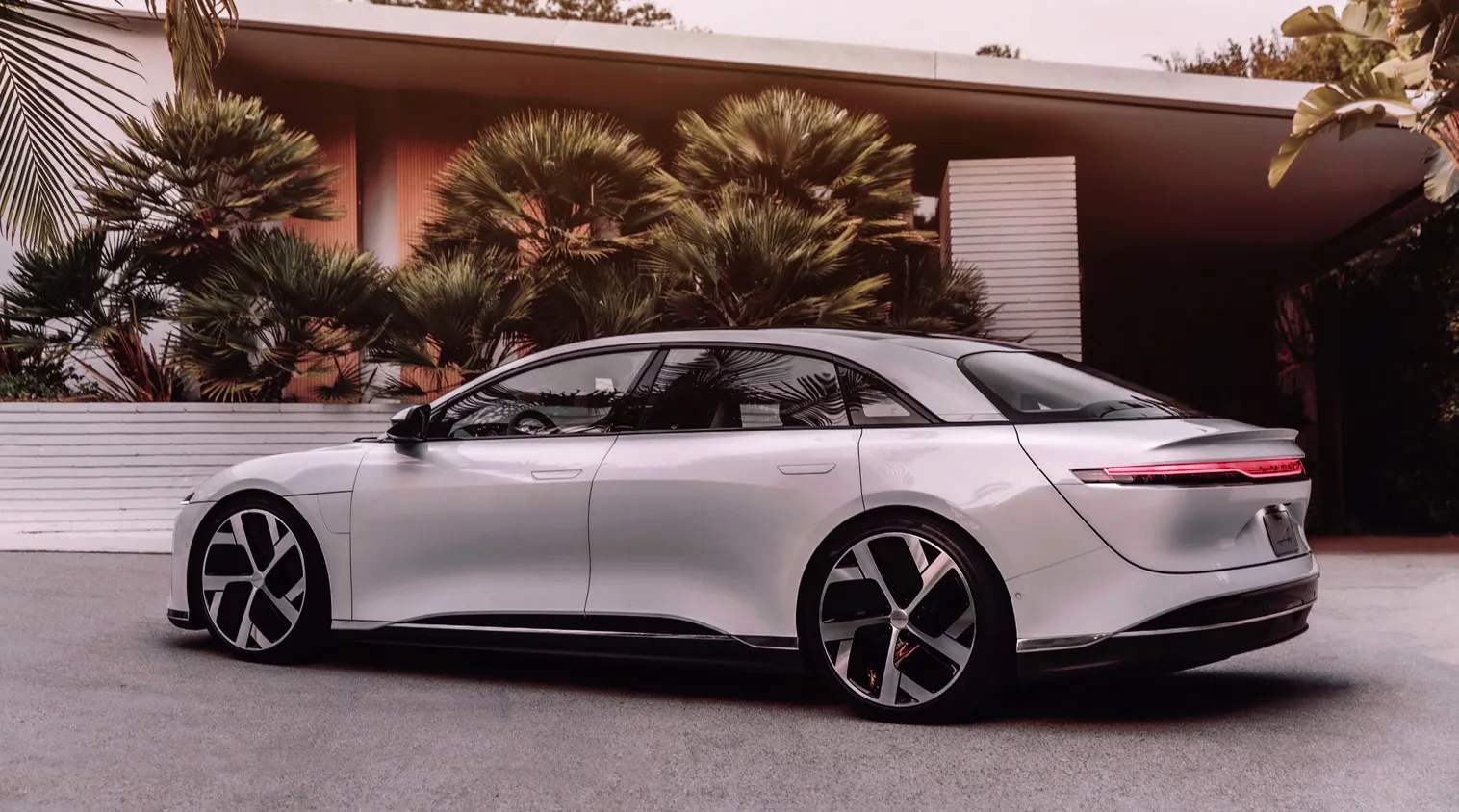

Lucid Air Grand Touring

Model: Lucid

  • : 112.0 kWh *
  • : 665 km *
  • : 168 Wh/km *

Real Range Estimation

City - Cold Weather *615 km
Highway - Cold Weather *490 km
Combined - Cold Weather *555 km

between 490 - 925 km

City - Mild Weather *925 km
Highway - Mild Weather *640 km
Combined - Mild Weather *765 km

Performance

Acceleration 0 - 100 km/h3.0 sec
Top Speed270 km/h
Electric Range *665 km
Total Power597 kW (812 PS)
Total Torque1200 Nm
DriveAWD

Battery

Nominal Capacity*114.0 kWh
Battery TypeLithium-ion
Number of Cells6600
Architecture800 V
Warranty Period8 years
Warranty Mileage160,000 km
Useable Capacity*112.0 kWh
Cathode MaterialNo Data
Pack Configuration220s30p
Nominal Voltage800 V
Form FactorCylindrical
Name / ReferenceSamsung 48X

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L SupportedAnnounced
Max. Output PowerNo Data

Vehicle-to-Home (V2H)

V2H via AC SupportedAnnounced
Max. Output PowerNo Data

Vehicle-to-Grid (V2G)

V2G via AC SupportedAnnounced
Max. Output PowerNo Data

Energy Consumption

EVDB Real Range

Range *665 km
Vehicle Consumption *168 Wh/km

WLTP Ratings (TEL)

Range839 km
Rated Consumption149 Wh/km
Vehicle Consumption133 Wh/km

WLTP Ratings (TEH)

Range783 km
Rated Consumption161 Wh/km
Vehicle Consumption143 Wh/km

Dimensions and Weight

Length4975 mm
Width1939 mm
Width with mirrors2198 mm
Height1410 mm
Wheelbase2960 mm
Weight Unladen (EU)2435 kg
Gross Vehicle Weight (GVWR)2850 kg
Max. Payload490 kg
Cargo Volume456 L
Cargo Volume Max627 L
Cargo Volume Frunk283 L
Roof LoadNo Data
Tow Hitch PossibleNo Data
Towing Weight UnbrakedNo Data
Towing Weight BrakedNo Data
Vertical Load MaxNo Data

Miscellaneous

Seats 5 people
IsofixNo Data
Turning CircleNo Data
PlatformNo Data
EV Dedicated PlatformNo Data
Car BodySedan
SegmentF - Luxury
Roof RailsNo Data
Heat pump (HP)No Data
HP Standard EquipmentNo Data

Home and Destination Charging (0 -> 100%)

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Lucid Air Grand Touring. Each option shows how fast the battery can be charged from empty to full.

Europe

Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Lucid Air Grand Touring can be charged, but some modes of charging might not be widely available in certain countries.

Type 2 (Mennekes - IEC 62196)
Charging PointMax. PowerPowerTimeRate
Wall Plug (2.3 kW)230V / 1x10A2.3 kW57h30m12 km/h
1-phase 16A (3.7 kW)230V / 1x16A3.7 kW35h45m19 km/h
1-phase 32A (7.4 kW)230V / 1x32A7.4 kW18 hours37 km/h
3-phase 16A (11 kW)400V / 3x16A11 kW12 hours55 km/h
3-phase 32A (22 kW)400V / 3x32A22 kW †6 hours110 km/h

† = Limited by on-board charger, vehicle cannot charge faster.

Fast Charging (10 -> 80%)

Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Lucid Air Grand Touring.

  • Max. Power: maximum power provided by charge point
  • Avg. Power: average power provided by charge point over a session from 10% to 80%
  • Time: time needed to charge from 10% to 80%
  • Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2)
Charging PointMax. PowerAvg. PowerTimeRate
CCS (50 kW DC)50 kW50 kW99 min280 km/h
CCS (150 kW DC)150 kW142 kW †35 min790 km/h
CCS (350 kW DC)253 kW †184 kW †27 min1030 km/h
Charge Curve

Data made available by Fastned

This vehicle does not support Autocharge
This vehicle supports Plug & Charge

† = Limited by charging capabilities of vehicle

Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.

Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.

Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.

Lucid Claimed Specifications

The table below shows the claimed specifications from the manufacturer for charging the Lucid Air Grand Touring. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.

  • Max. Power: maximum charge power during charging session
  • Charge From: battery percentage (% SoC) where charging session is started
  • Charge To: battery percentage (% SoC) where charging session is ended
  • Time: time needed for charging session
Lucid Claimed Specifications
Max. PowerCharge FromCharge ToTime
300 kW No Data No Data No Data
