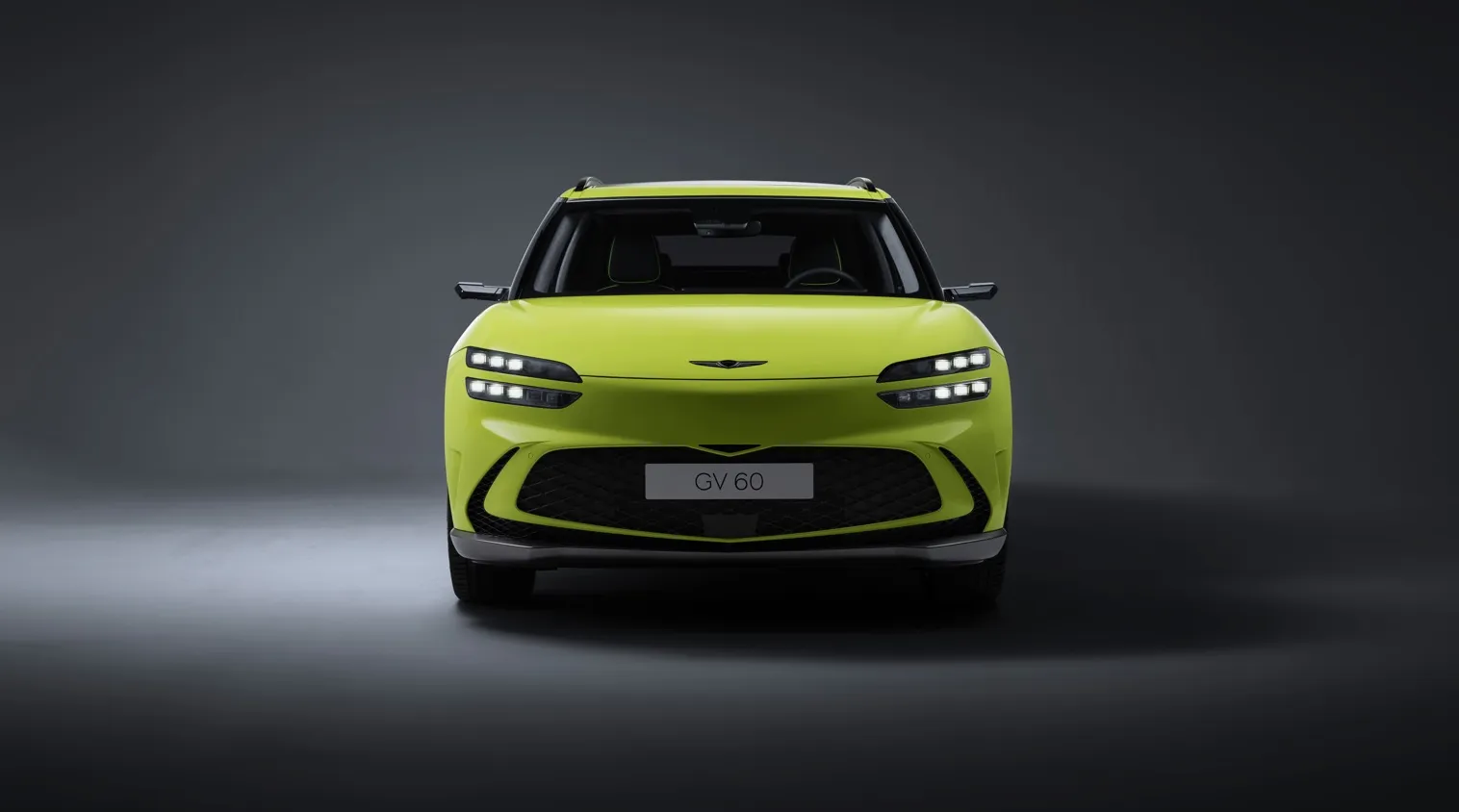

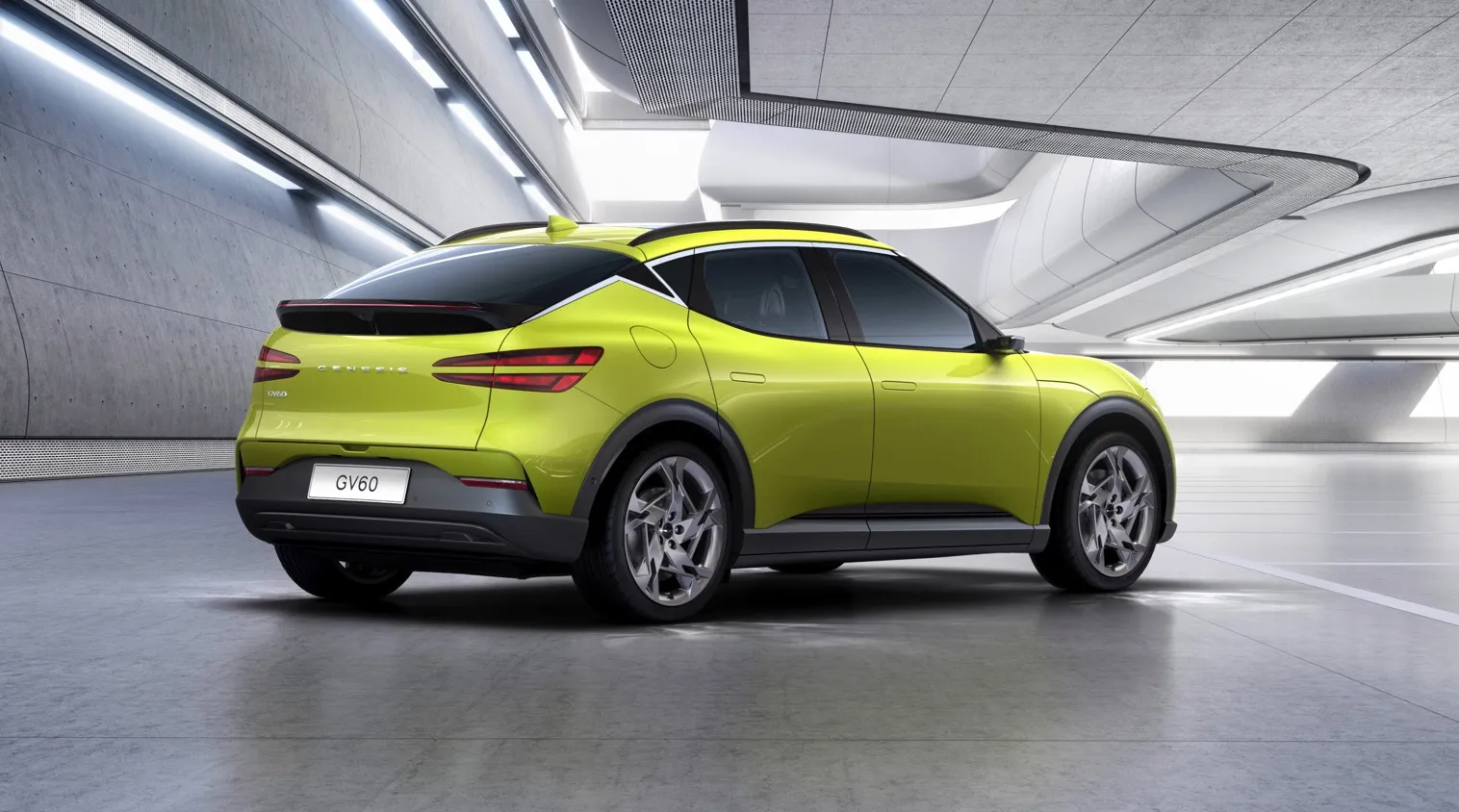

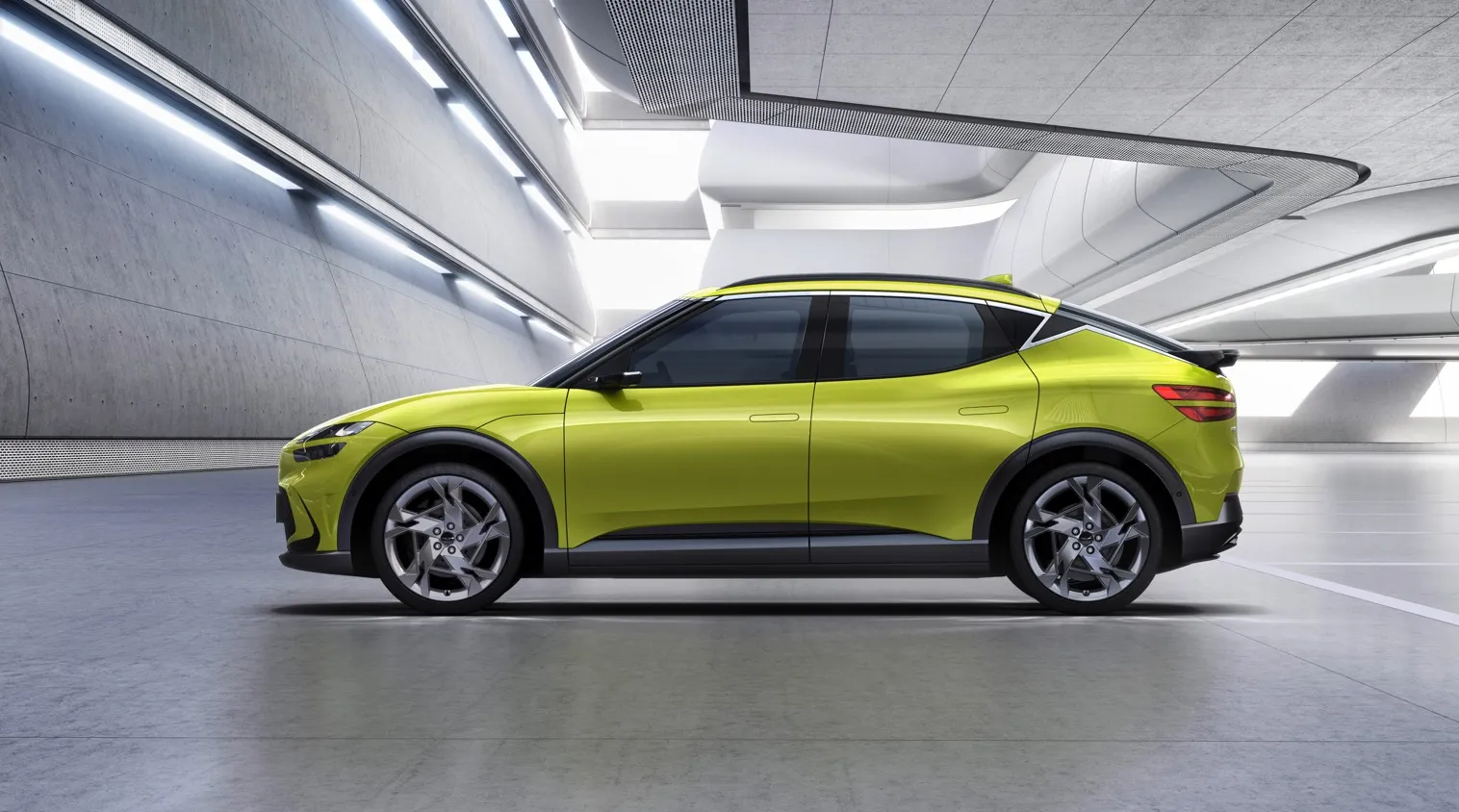

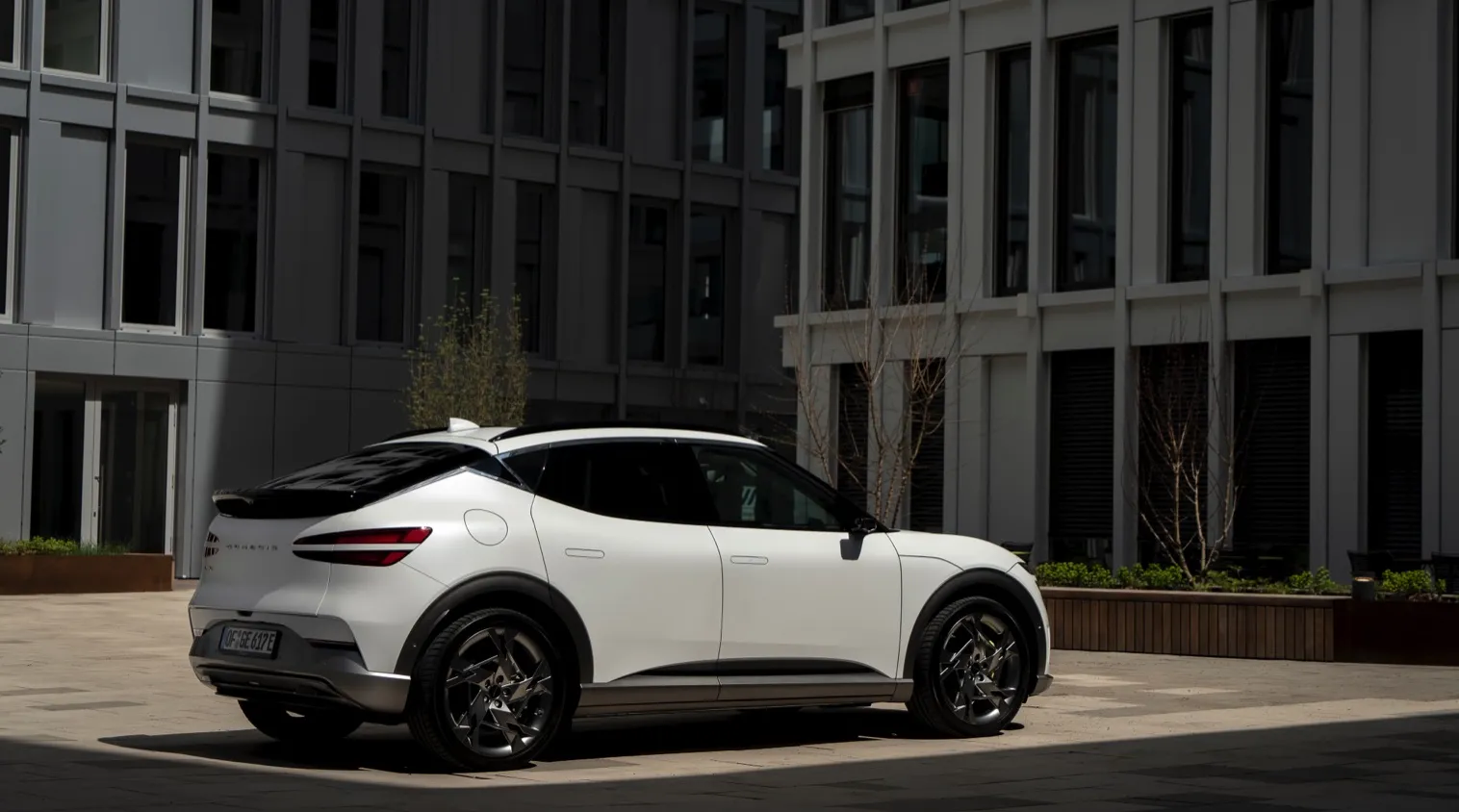

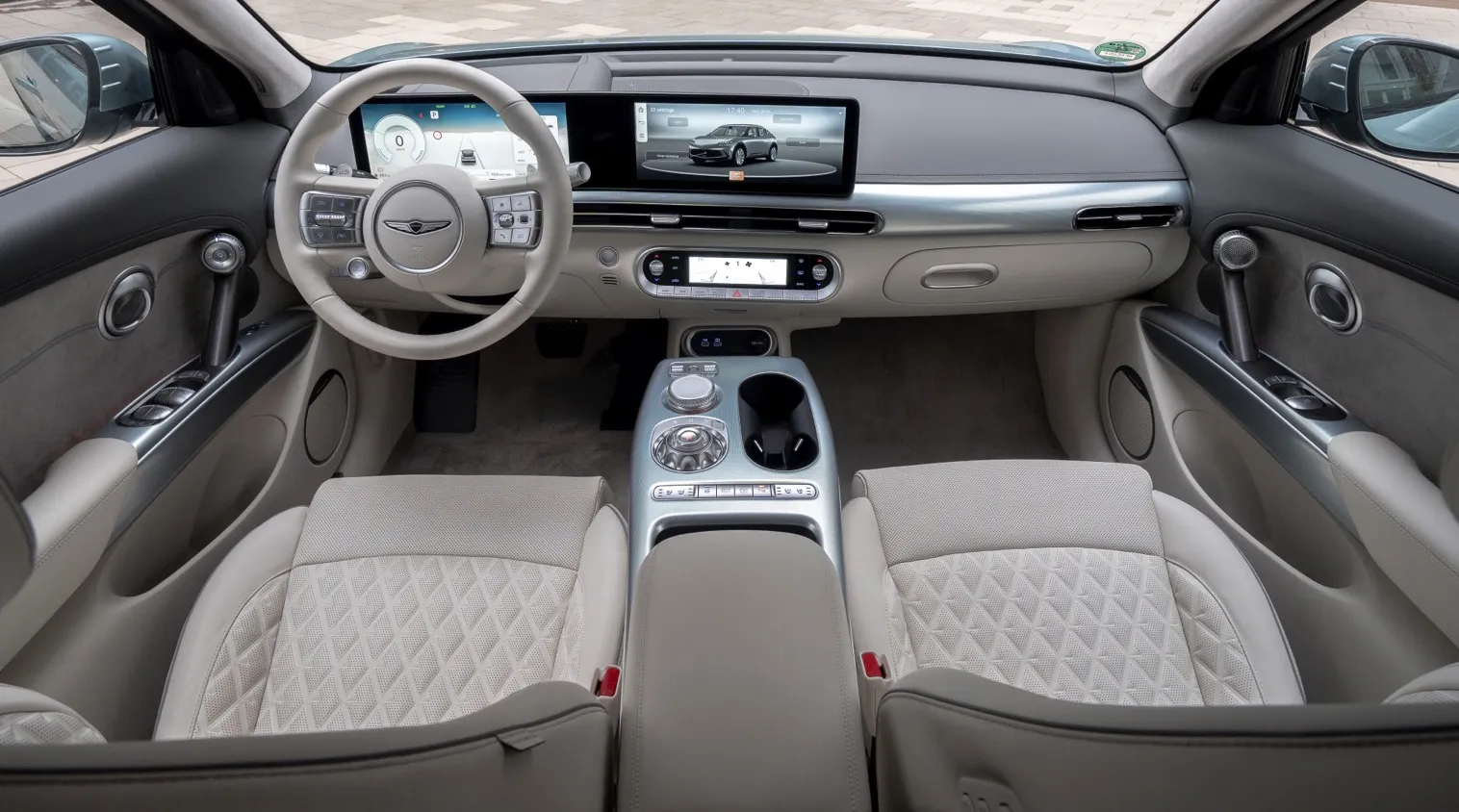

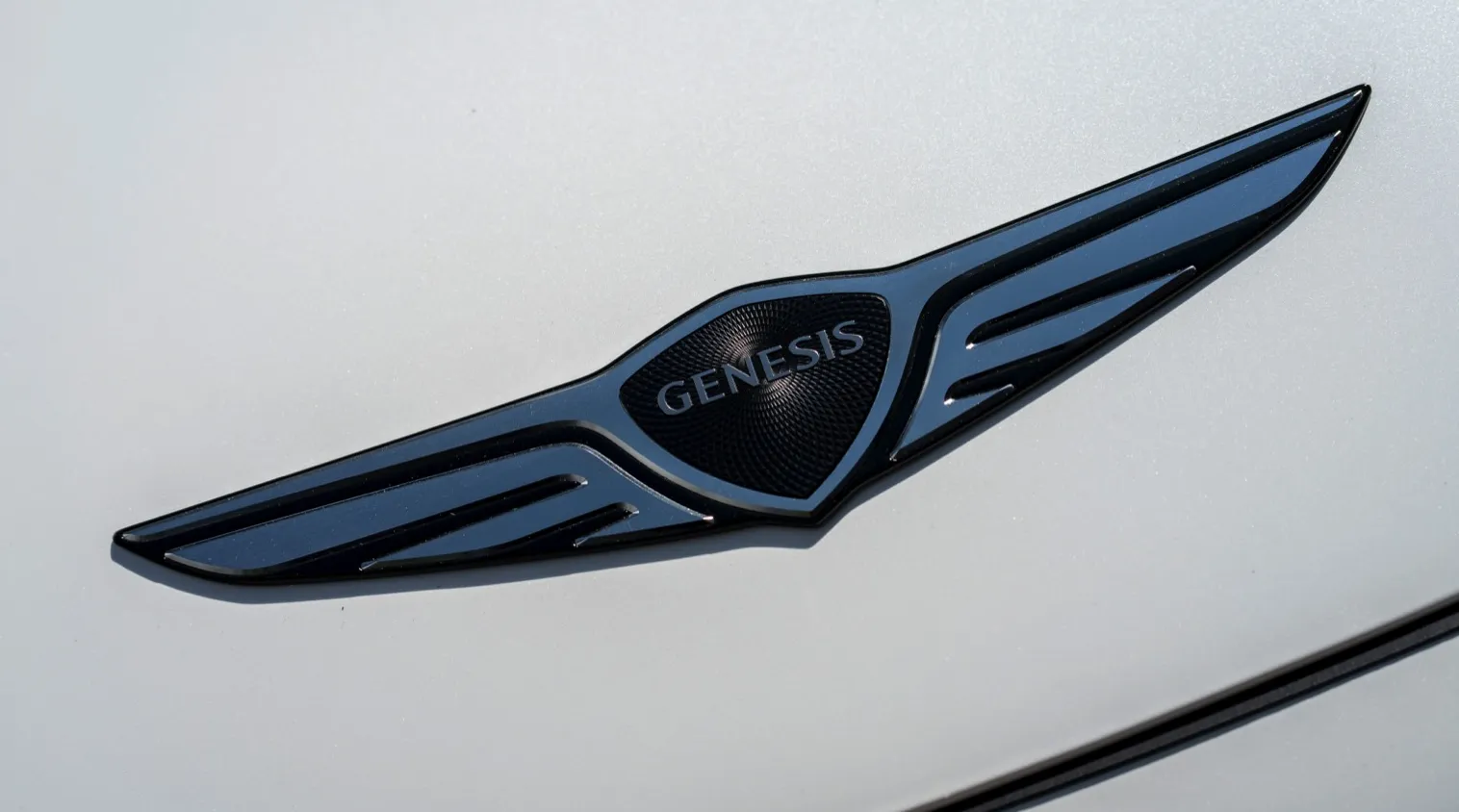

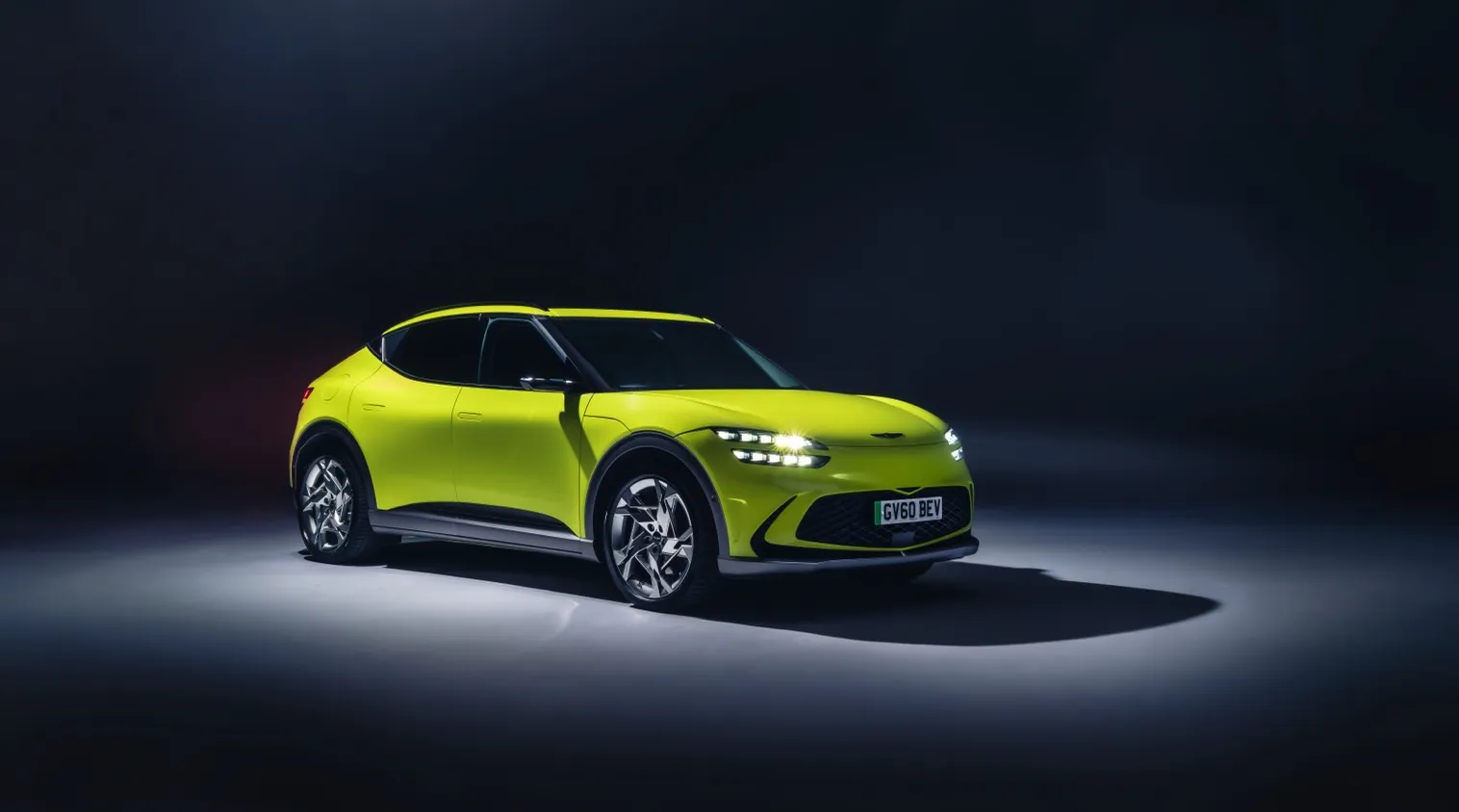

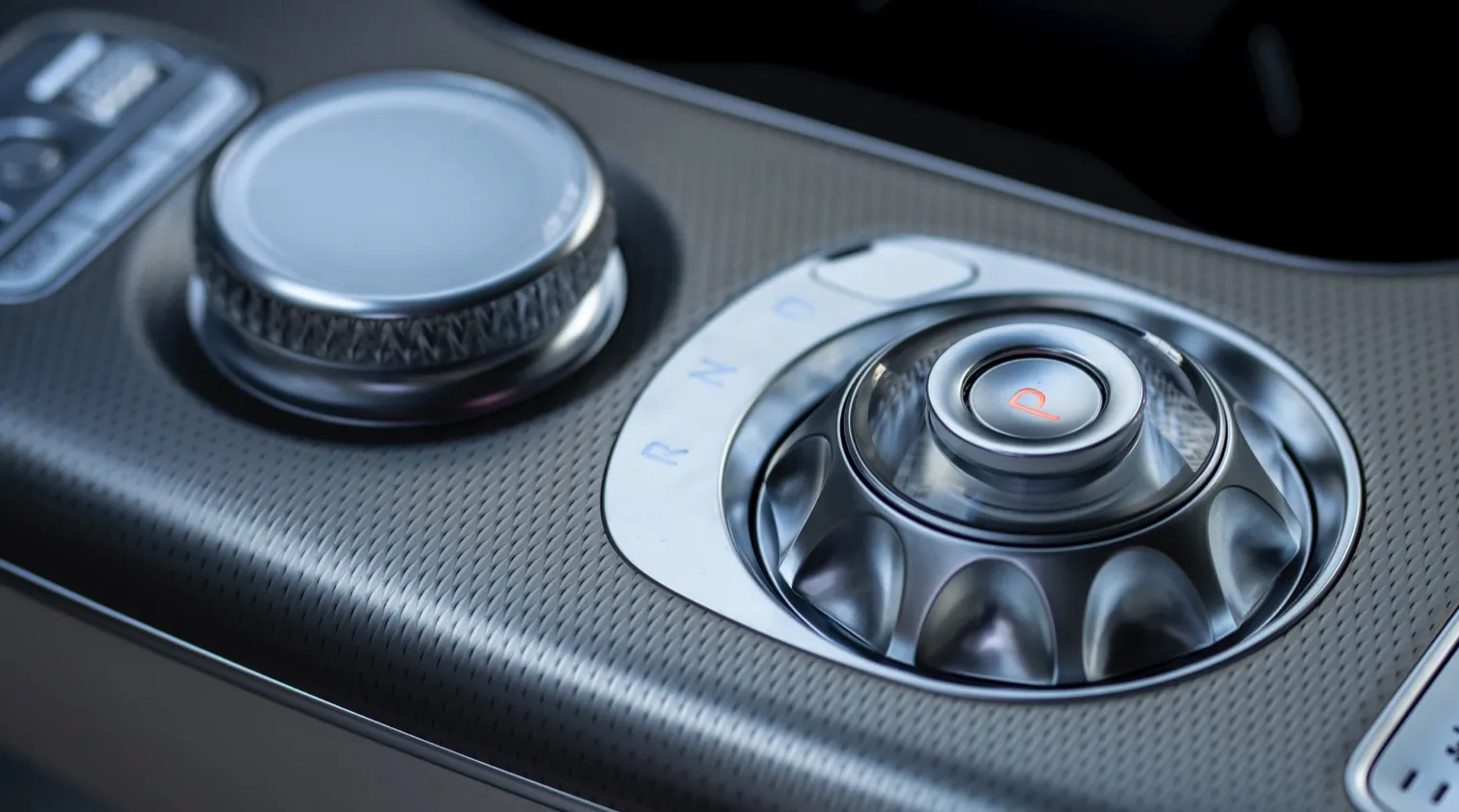

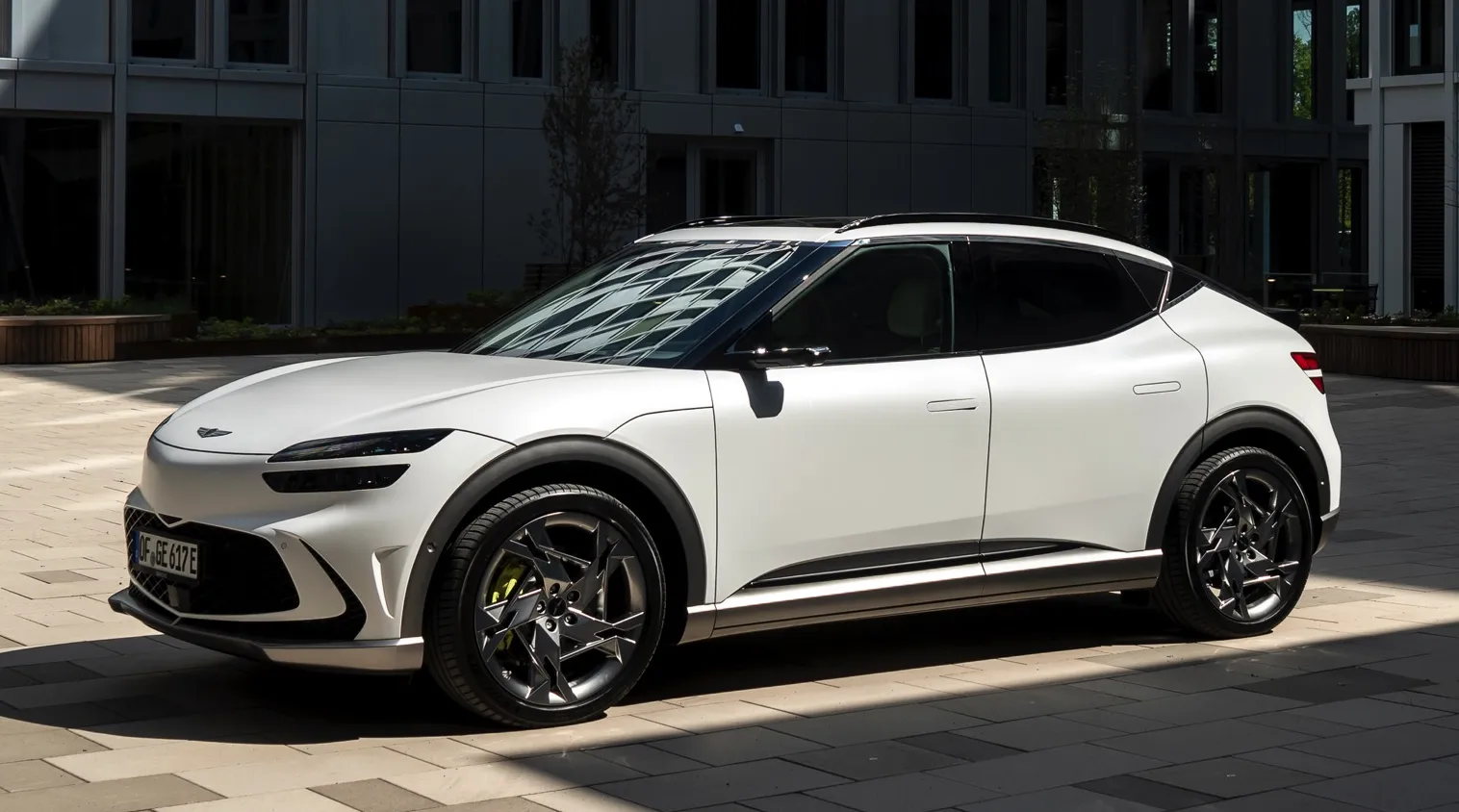

Genesis GV60 Sport Plus
Model: Genesis
- : 74.0 kWh *
- : 365 km *
- : 203 Wh/km *
Real Range Estimation
| City - Cold Weather * | 370 km |
| Highway - Cold Weather * | 265 km |
| Combined - Cold Weather * | 315 km |
between 265 - 535 km
| City - Mild Weather * | 535 km |
| Highway - Mild Weather * | 335 km |
| Combined - Mild Weather * | 415 km |
Performance
| Acceleration 0 - 100 km/h | 4.0 sec |
| Top Speed | 235 km/h |
| Electric Range * | 365 km |
| Total Power | 360 kW (489 PS) |
| Total Torque | 700 Nm |
| Drive | AWD |
Battery
| Nominal Capacity | 77.4 kWh |
| Battery Type | Lithium-ion |
| Number of Cells | 384 |
| Architecture | 800 V |
| Warranty Period | No Data |
| Warranty Mileage | No Data |
| Useable Capacity* | 74.0 kWh |
| Cathode Material | No Data |
| Pack Configuration | 192s2p |
| Nominal Voltage | 697 V |
| Form Factor | No Data |
| Name / Reference | No Data |
Bidirectional Charging (V2X / BPT)
Vehicle-to-Load (V2L)
| V2L Supported | Yes |
| Max. Output Power | 3.6 kW AC |
Vehicle-to-Home (V2H)
| V2H via AC Supported | No |
| Max. Output Power | - |
Vehicle-to-Grid (V2G)
| V2G via AC Supported | No |
| Max. Output Power | - |
Energy Consumption
EVDB Real Range
| Range * | 365 km |
| Vehicle Consumption * | 203 Wh/km |
WLTP Ratings
| Range | 465 km |
| Rated Consumption | 191 Wh/km |
| Vehicle Consumption | 159 Wh/km |
Dimensions and Weight
| Length | 4515 mm |
| Width | 1890 mm |
| Width with mirrors | No Data |
| Height | 1580 mm |
| Wheelbase | 2900 mm |
| Weight Unladen (EU) | 2145 kg |
| Gross Vehicle Weight (GVWR) | 2660 kg |
| Max. Payload | 590 kg |

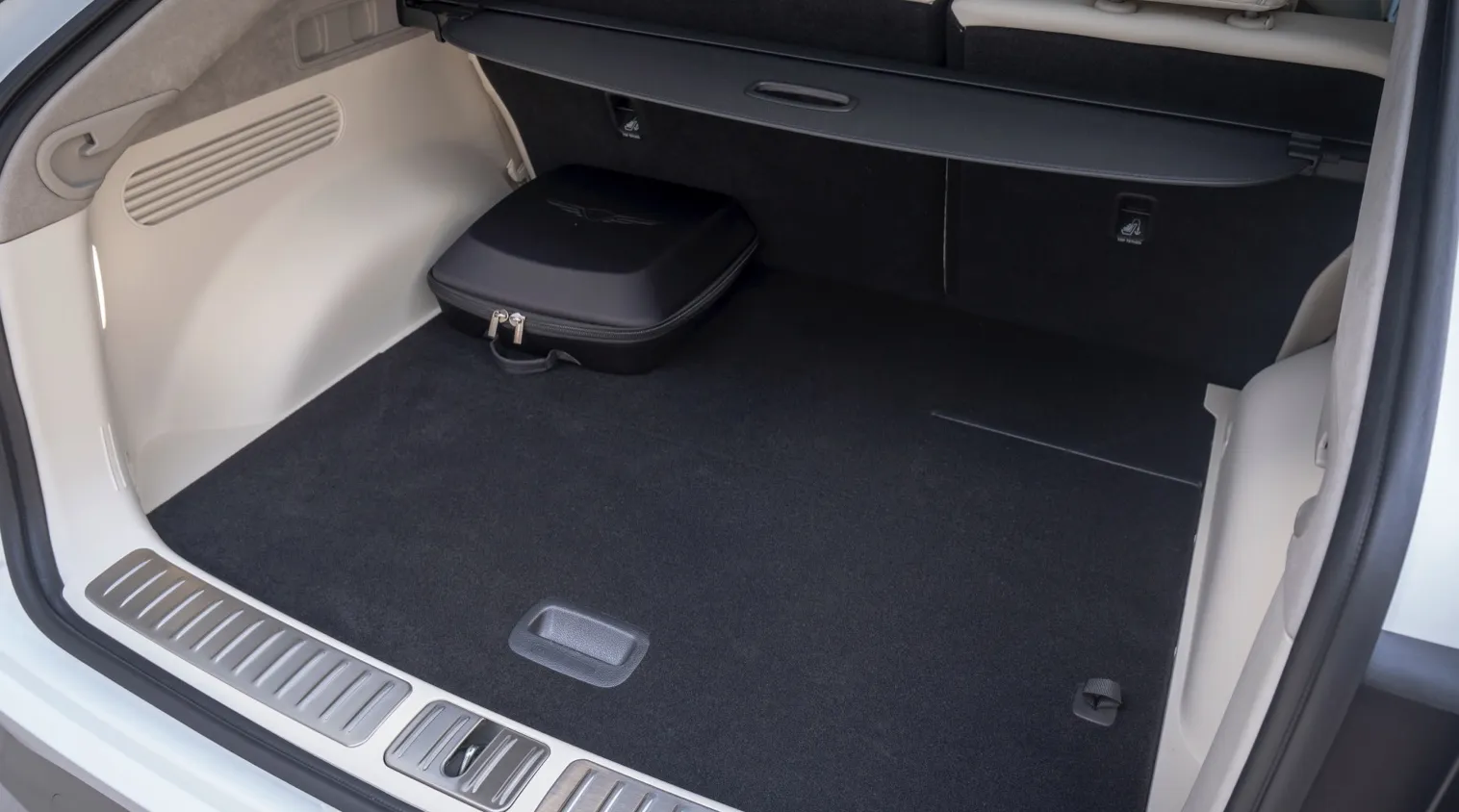

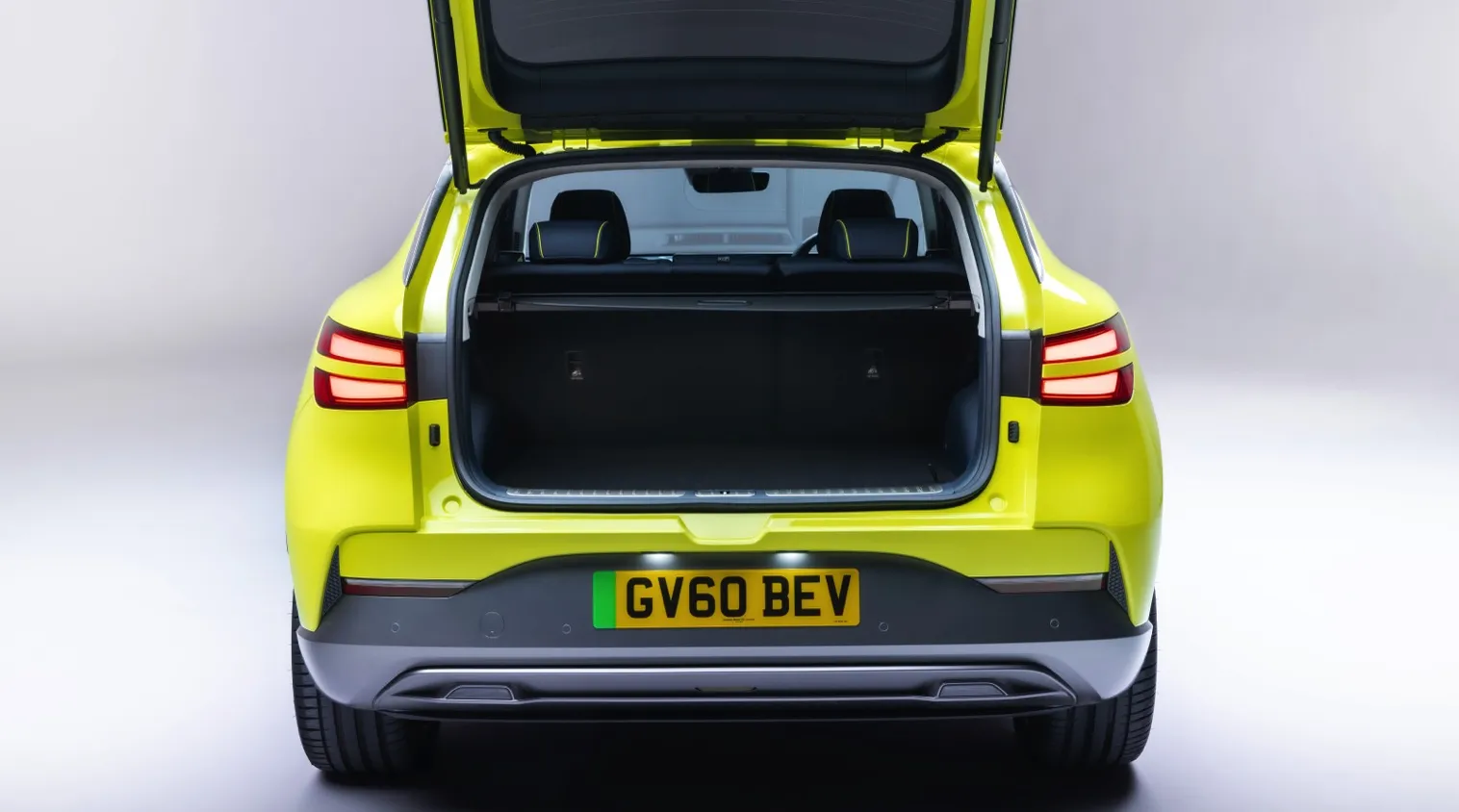

| Cargo Volume | 432 L |
| Cargo Volume Max | 1460 L |
| Cargo Volume Frunk | 0 L |
| Roof Load | No Data |
| Tow Hitch Possible | Yes |
| Towing Weight Unbraked | 750 kg |
| Towing Weight Braked | 1600 kg |
| Vertical Load Max | No Data |
Miscellaneous
| Seats | 5 people |
| Isofix | No Data |
| Turning Circle | 11.9 m |
| Platform | HMG E-GMP |
| EV Dedicated Platform | Yes |
| Car Body | SUV |
| Segment | JC - Medium |
| Roof Rails | No Data |
| Heat pump (HP) | No Data |
| HP Standard Equipment | No Data |

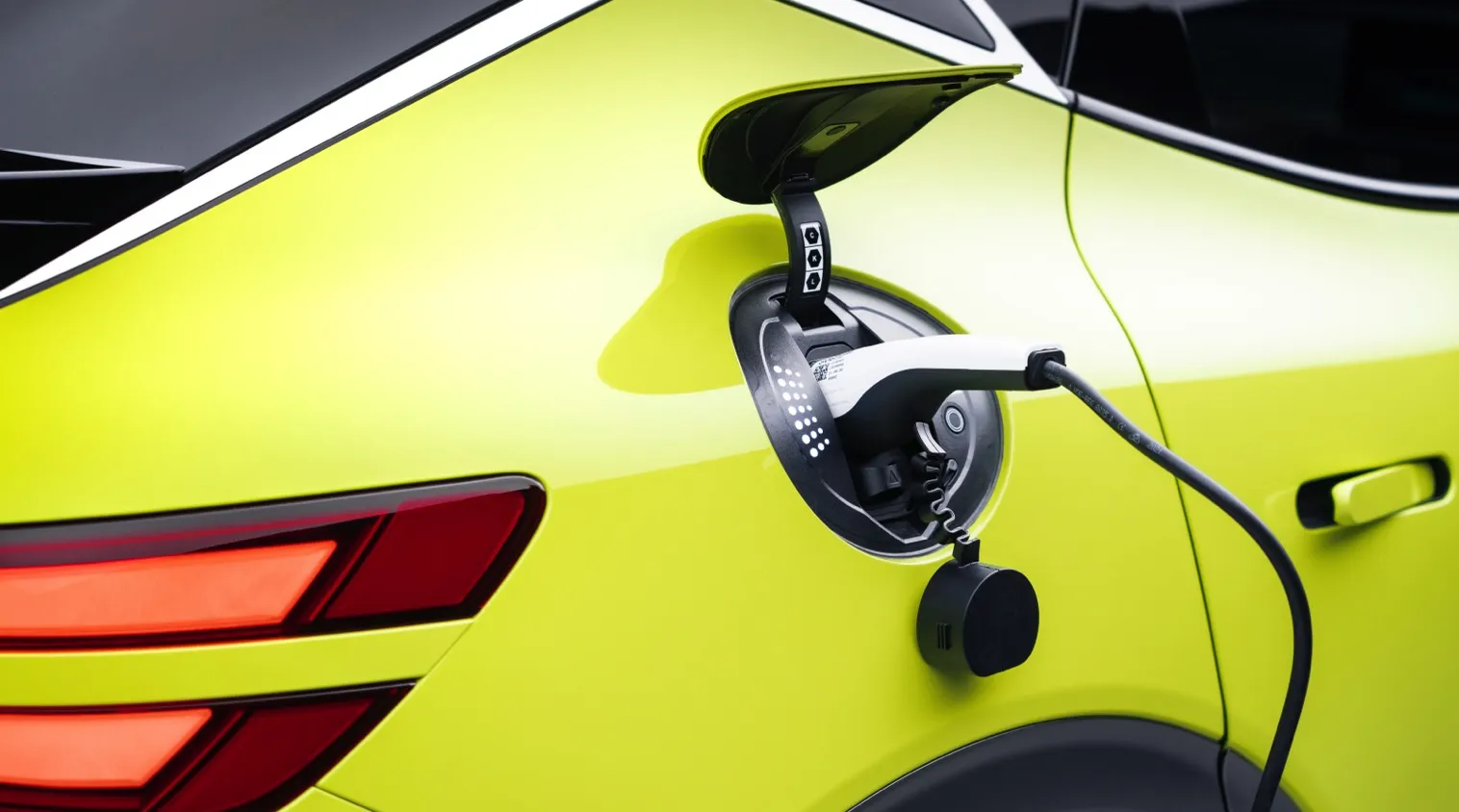

Home and Destination Charging (0 -> 100%)
Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Genesis GV60 Sport Plus. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Genesis GV60 Sport Plus can be charged, but some modes of charging might not be widely available in certain countries.
| Type 2 (Mennekes - IEC 62196) |
|---|
 |
| Charging Point | Max. Power | Power | Time | Rate |
|---|---|---|---|---|
| Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 38 hours | 10 km/h |
| 1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 23h45m | 15 km/h |
| 1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 11h45m | 31 km/h |
| 3-phase 16A (11 kW) | 400V / 3x16A | 11 kW | 8 hours | 46 km/h |
| 3-phase 32A (22 kW) | 400V / 3x16A | 11 kW † | 8 hours | 46 km/h |
† = Limited by on-board charger, vehicle cannot charge faster.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Genesis GV60 Sport Plus.
- Max. Power: maximum power provided by charge point
- Avg. Power: average power provided by charge point over a session from 10% to 80%
- Time: time needed to charge from 10% to 80%
- Rate: average charging speed over a session from 10% to 80%
| Combined Charging System (CCS Combo 2) |
|---|
 |
| Charging Point | Max. Power | Avg. Power | Time | Rate |
|---|---|---|---|---|
| CCS (50 kW DC) | 50 kW | 50 kW | 65 min | 230 km/h |
| CCS (150 kW DC) | 150 kW | 149 kW † | 22 min | 690 km/h |
| CCS (300 kW DC) | 233 kW † | 200 kW † | 16 min | 950 km/h |
| Charge Curve |
|---|
 |
Data made available by Fastned |
| This vehicle supports Autocharge |
|---|
| This vehicle supports Plug & Charge |
† = Limited by charging capabilities of vehicle
Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.
Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
