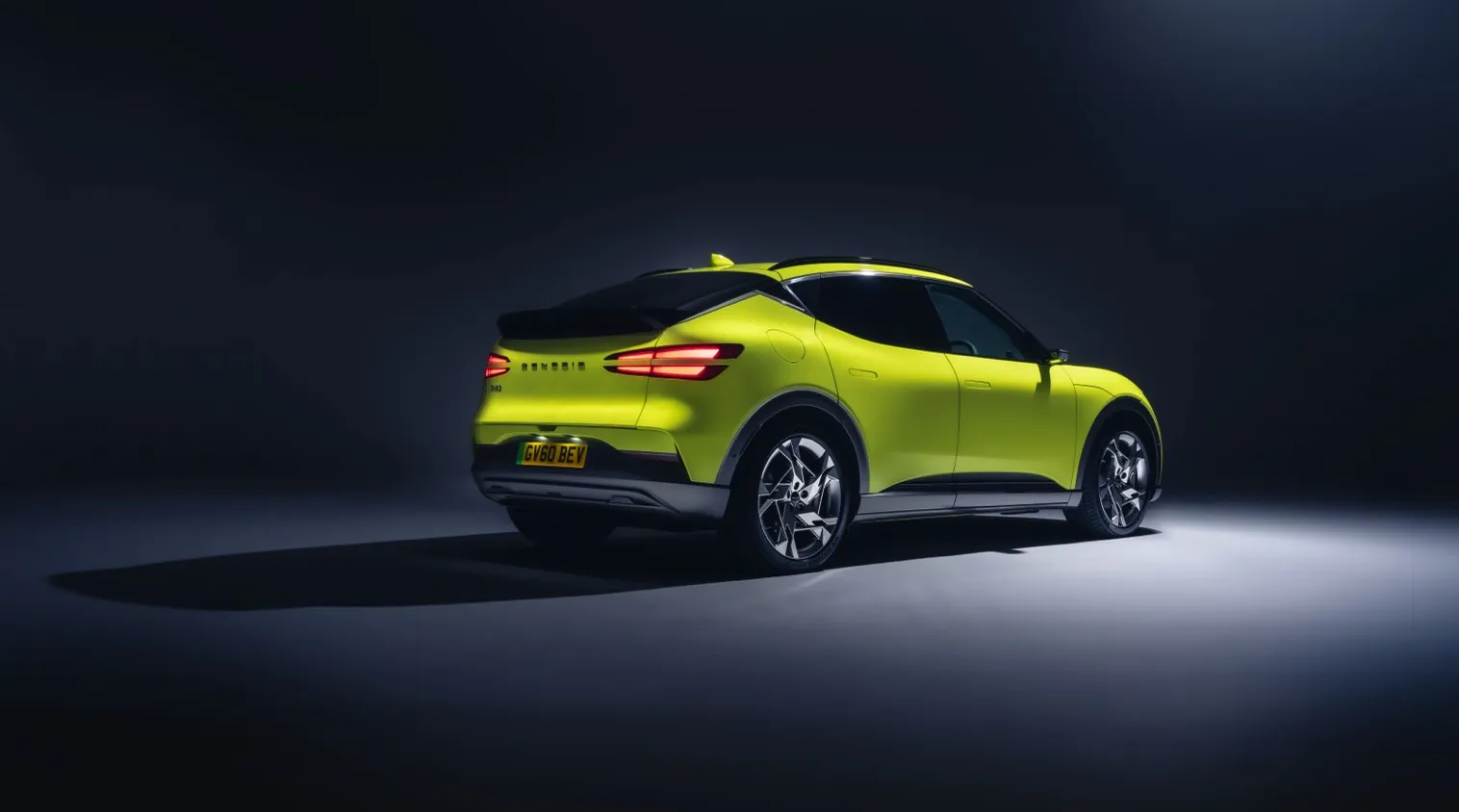

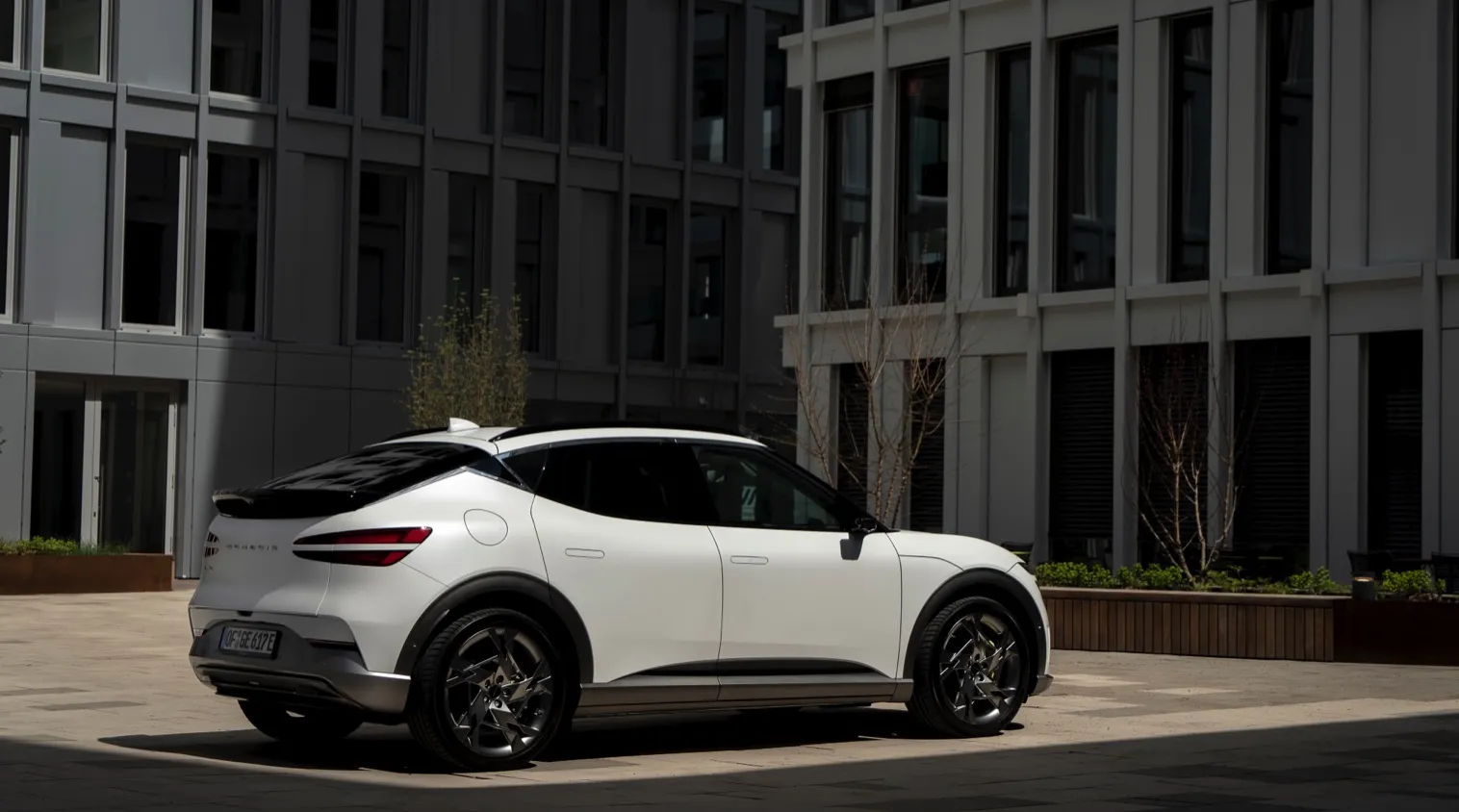

Genesis GV60 Premium
Model: Genesis
- : 74.0 kWh *
- : 390 km *
- : 190 Wh/km *
Real Range Estimation
| City - Cold Weather * | 390 km |
| Highway - Cold Weather * | 275 km |
| Combined - Cold Weather * | 330 km |
between 275 - 575 km
| City - Mild Weather * | 575 km |
| Highway - Mild Weather * | 355 km |
| Combined - Mild Weather * | 445 km |
Performance
| Acceleration 0 - 100 km/h | 7.8 sec |
| Top Speed | 185 km/h |
| Electric Range * | 390 km |
| Total Power | 168 kW (228 PS) |
| Total Torque | 350 Nm |
| Drive | Rear |
Battery
| Nominal Capacity | 77.4 kWh |
| Battery Type | Lithium-ion |
| Number of Cells | 384 |
| Architecture | 800 V |
| Warranty Period | No Data |
| Warranty Mileage | No Data |
| Useable Capacity* | 74.0 kWh |
| Cathode Material | No Data |
| Pack Configuration | 192s2p |
| Nominal Voltage | 697 V |
| Form Factor | No Data |
| Name / Reference | No Data |
Bidirectional Charging (V2X / BPT)
Vehicle-to-Load (V2L)
| V2L Supported | Yes |
| Max. Output Power | 3.6 kW AC |
Vehicle-to-Home (V2H)
| V2H via AC Supported | No |
| Max. Output Power | - |
Vehicle-to-Grid (V2G)
| V2G via AC Supported | No |
| Max. Output Power | - |
Energy Consumption
EVDB Real Range
| Range * | 390 km |
| Vehicle Consumption * | 190 Wh/km |
WLTP Ratings
| Range | 517 km |
| Rated Consumption | 170 Wh/km |
| Vehicle Consumption | 143 Wh/km |
Dimensions and Weight
| Length | 4515 mm |
| Width | 1890 mm |
| Width with mirrors | No Data |
| Height | 1580 mm |
| Wheelbase | 2900 mm |
| Weight Unladen (EU) | 1975 kg |
| Gross Vehicle Weight (GVWR) | 2495 kg |
| Max. Payload | 595 kg |

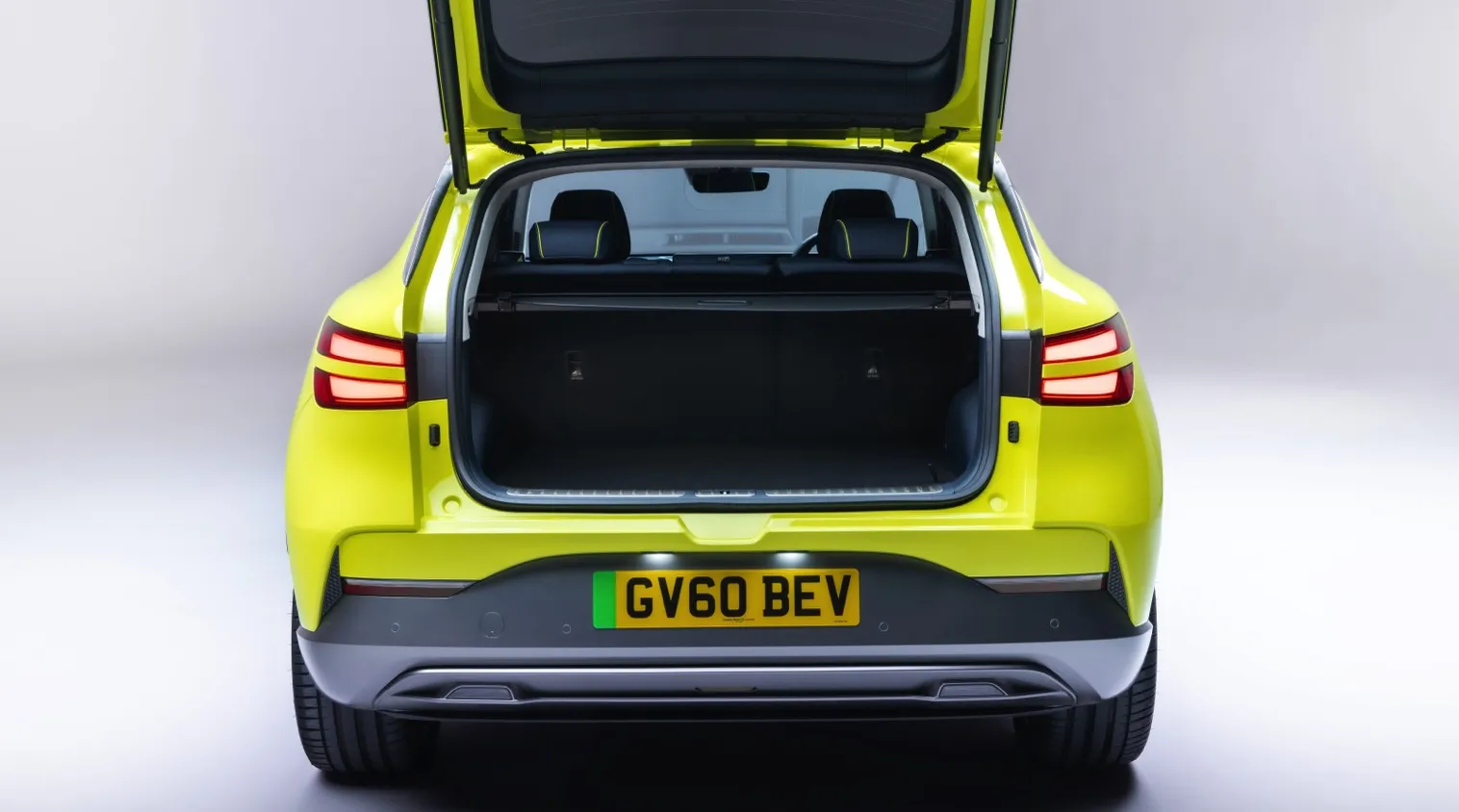

| Cargo Volume | 432 L |
| Cargo Volume Max | 1460 L |
| Cargo Volume Frunk | 0 L |
| Roof Load | No Data |
| Tow Hitch Possible | Yes |
| Towing Weight Unbraked | 750 kg |
| Towing Weight Braked | 1600 kg |
| Vertical Load Max | No Data |
Miscellaneous
| Seats | 5 people |
| Isofix | No Data |
| Turning Circle | 11.9 m |
| Platform | HMG E-GMP |
| EV Dedicated Platform | Yes |
| Car Body | SUV |
| Segment | JC - Medium |
| Roof Rails | No Data |
| Heat pump (HP) | No Data |
| HP Standard Equipment | No Data |

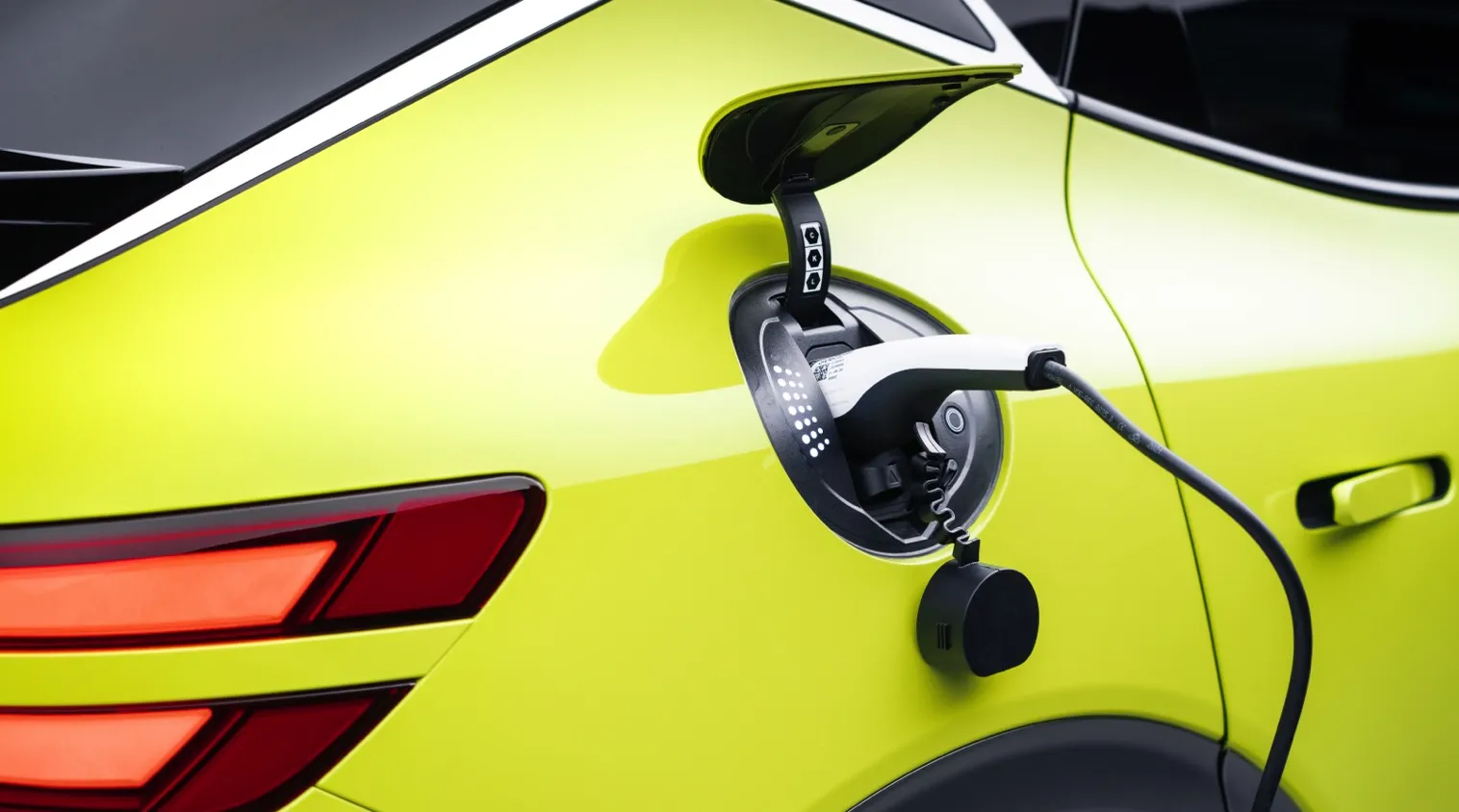

Home and Destination Charging (0 -> 100%)
Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Genesis GV60 Premium. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Genesis GV60 Premium can be charged, but some modes of charging might not be widely available in certain countries.
| Type 2 (Mennekes - IEC 62196) |
|---|
 |
| Charging Point | Max. Power | Power | Time | Rate |
|---|---|---|---|---|
| Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 38 hours | 10 km/h |
| 1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 23h45m | 16 km/h |
| 1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 11h45m | 33 km/h |
| 3-phase 16A (11 kW) | 400V / 3x16A | 11 kW | 8 hours | 49 km/h |
| 3-phase 32A (22 kW) | 400V / 3x16A | 11 kW † | 8 hours | 49 km/h |
† = Limited by on-board charger, vehicle cannot charge faster.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Genesis GV60 Premium.
- Max. Power: maximum power provided by charge point
- Avg. Power: average power provided by charge point over a session from 10% to 80%
- Time: time needed to charge from 10% to 80%
- Rate: average charging speed over a session from 10% to 80%
| Combined Charging System (CCS Combo 2) |
|---|
 |
| Charging Point | Max. Power | Avg. Power | Time | Rate |
|---|---|---|---|---|
| CCS (50 kW DC) | 50 kW | 50 kW | 65 min | 250 km/h |
| CCS (150 kW DC) | 150 kW | 149 kW † | 22 min | 740 km/h |
| CCS (300 kW DC) | 233 kW † | 200 kW † | 16 min | 1020 km/h |
| Charge Curve |
|---|
 |
Data made available by Fastned |
| This vehicle supports Autocharge |
|---|
| This vehicle supports Plug & Charge |
† = Limited by charging capabilities of vehicle
Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.
Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
