Citroen e-Berlingo M 50 kWh
Model: Citroen
- : 50.0 kWh
- : 235 km *
- : 213 Wh/km *
Real Range Estimation
| City - Cold Weather * | 245 km |
| Highway - Cold Weather * | 165 km |
| Combined - Cold Weather * | 200 km |
between 165 - 355 km
| City - Mild Weather * | 355 km |
| Highway - Mild Weather * | 205 km |
| Combined - Mild Weather * | 265 km |
Performance
| Acceleration 0 - 100 km/h | 11.7 sec |
| Top Speed | 132 km/h |
| Electric Range * | 235 km |
| Total Power | 100 kW (136 PS) |
| Total Torque | 260 Nm |
| Drive | Front |
Battery
| Nominal Capacity | 52.0 kWh |
| Battery Type | Lithium-ion |
| Number of Cells | No Data |
| Architecture | 400 V |
| Warranty Period | 8 years |
| Warranty Mileage | 160,000 km |
| Useable Capacity | 50.0 kWh |
| Cathode Material | LFP |
| Pack Configuration | No Data |
| Nominal Voltage | No Data |
| Form Factor | No Data |
| Name / Reference | No Data |
Bidirectional Charging (V2X / BPT)
Vehicle-to-Load (V2L)
| V2L Supported | No |
| Max. Output Power | - |
Vehicle-to-Home (V2H)
| V2H via AC Supported | No |
| Max. Output Power | - |
Vehicle-to-Grid (V2G)
| V2G via AC Supported | No |
| Max. Output Power | - |
Energy Consumption
EVDB Real Range
| Range * | 235 km |
| Vehicle Consumption * | 213 Wh/km |
WLTP Ratings (TEL)
| Range | 345 km |
| Rated Consumption | 180 Wh/km |
| Vehicle Consumption | 145 Wh/km |
WLTP Ratings (TEH)
| Range | 336 km |
| Rated Consumption | 186 Wh/km |
| Vehicle Consumption | 149 Wh/km |
Dimensions and Weight
| Length | 4403 mm |
| Width | 1921 mm |
| Width with mirrors | 2107 mm |
| Height | 1803 mm |
| Wheelbase | 2785 mm |
| Weight Unladen (EU) | 1811 kg |
| Gross Vehicle Weight (GVWR) | 2360 kg |
| Max. Payload | 624 kg |
| Cargo Volume | 775 L |
| Cargo Volume Max | 3000 L |
| Cargo Volume Frunk | 0 L |
| Roof Load | 100 kg |
| Tow Hitch Possible | Yes |
| Towing Weight Unbraked | 750 kg |
| Towing Weight Braked | 750 kg |
| Vertical Load Max | 50 kg |
Miscellaneous
| Seats | 5 people |
| Isofix | Yes, 2 seats |
| Turning Circle | No Data |
| Platform | PSA EMP2 |
| EV Dedicated Platform | No |
| Car Body | Small Passenger Van |
| Segment | N - Passenger Van |
| Roof Rails | Yes |
| Heat pump (HP) | Yes |
| HP Standard Equipment | Varies by country |

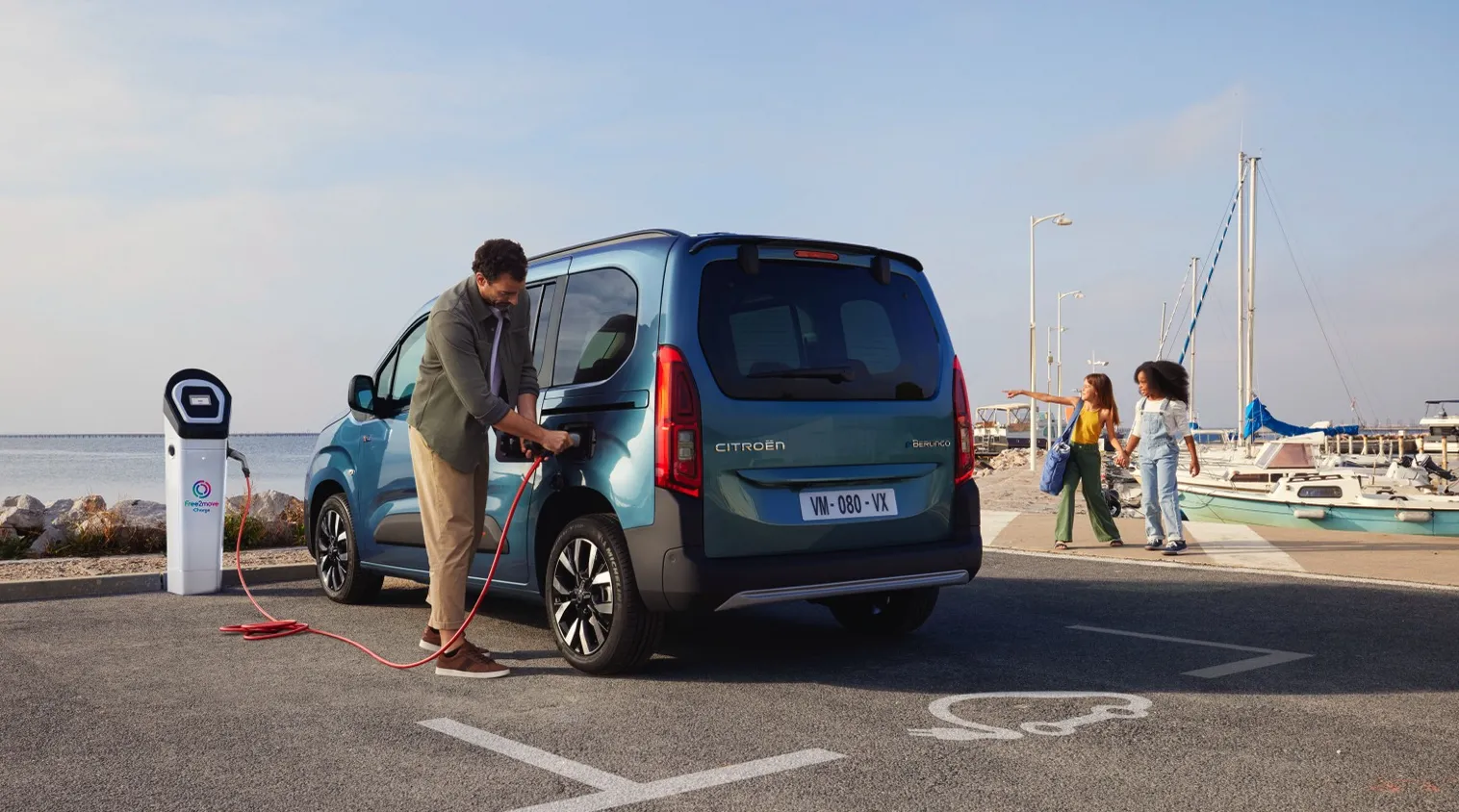

Home and Destination Charging (0 -> 100%)
Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Citroen e-Berlingo M 50 kWh. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Citroen e-Berlingo M 50 kWh can be charged, but some modes of charging might not be widely available in certain countries.
| Type 2 (Mennekes - IEC 62196) |
|---|
 |
| Charging Point | Max. Power | Power | Time | Rate |
|---|---|---|---|---|
| Standard 7.4 kW On-Board Charger | ||||
| Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 25h45m | 9 km/h |
| 1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 16 hours | 15 km/h |
| 1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 8 hours | 29 km/h |
| 3-phase 16A (11 kW) | 230V / 1x16A | 3.7 kW † | 16 hours | 15 km/h |
| 3-phase 32A (22 kW) | 230V / 1x32A | 7.4 kW † | 8 hours | 29 km/h |
| Optional 11.0kW On-Board Charger * | ||||
| Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 25h45m | 9 km/h |
| 1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 16 hours | 15 km/h |
| 1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 8 hours | 29 km/h |
| 3-phase 16A (11 kW) | 400V / 3x16A | 11 kW | 5h30m | 43 km/h |
| 3-phase 32A (22 kW) | 400V / 3x16A | 11 kW † | 5h30m | 43 km/h |
† = Limited by on-board charger, vehicle cannot charge faster.
* = Optional in some countries, standard in others. Check local specifications for details.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Citroen e-Berlingo M 50 kWh.
- Max. Power: maximum power provided by charge point
- Avg. Power: average power provided by charge point over a session from 10% to 80%
- Time: time needed to charge from 10% to 80%
- Rate: average charging speed over a session from 10% to 80%
| Combined Charging System (CCS Combo 2) |
|---|
 |
| Charging Point | Max. Power | Avg. Power | Time | Rate |
|---|---|---|---|---|
| CCS (50 kW DC) | 50 kW | 45 kW † | 49 min | 200 km/h |
| CCS (100 kW DC) | 100 kW | 80 kW † | 28 min | 350 km/h |
| CCS (150 kW DC) | 100 kW † | 80 kW † | 28 min | 350 km/h |
| This vehicle supports Autocharge |
|---|
| This vehicle does not support Plug & Charge |
† = Limited by charging capabilities of vehicle
Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.
Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
Citroen Claimed Specifications
The table below shows the claimed specifications from the manufacturer for charging the Citroen e-Berlingo M 50 kWh. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.
- Max. Power: maximum charge power during charging session
- Charge From: battery percentage (% SoC) where charging session is started
- Charge To: battery percentage (% SoC) where charging session is ended
- Time: time needed for charging session
| Citroen Claimed Specifications |
|---|
| Max. Power | Charge From | Charge To | Time |
|---|---|---|---|
| 100 kW | 0 % | 80 % | 30 min |
