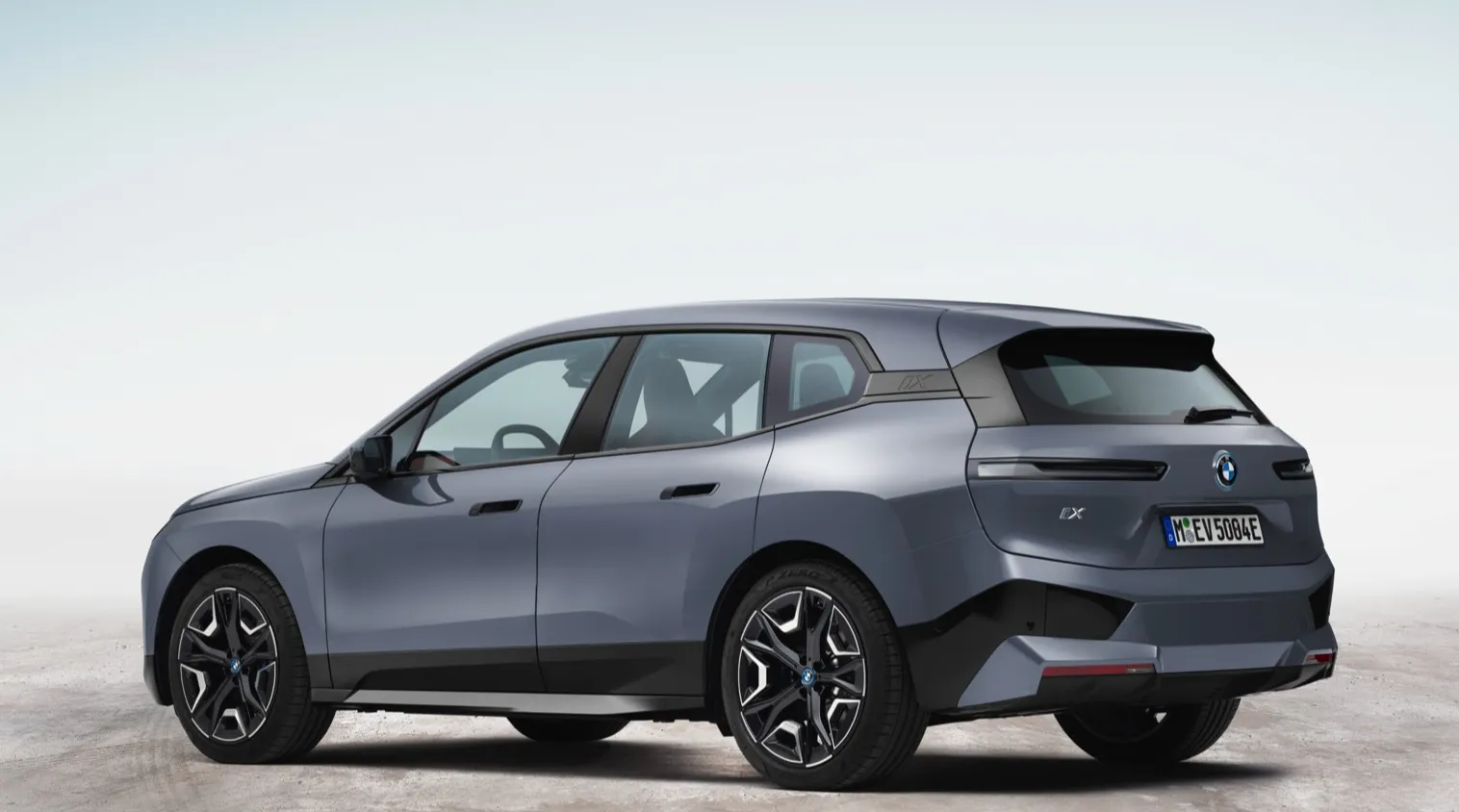

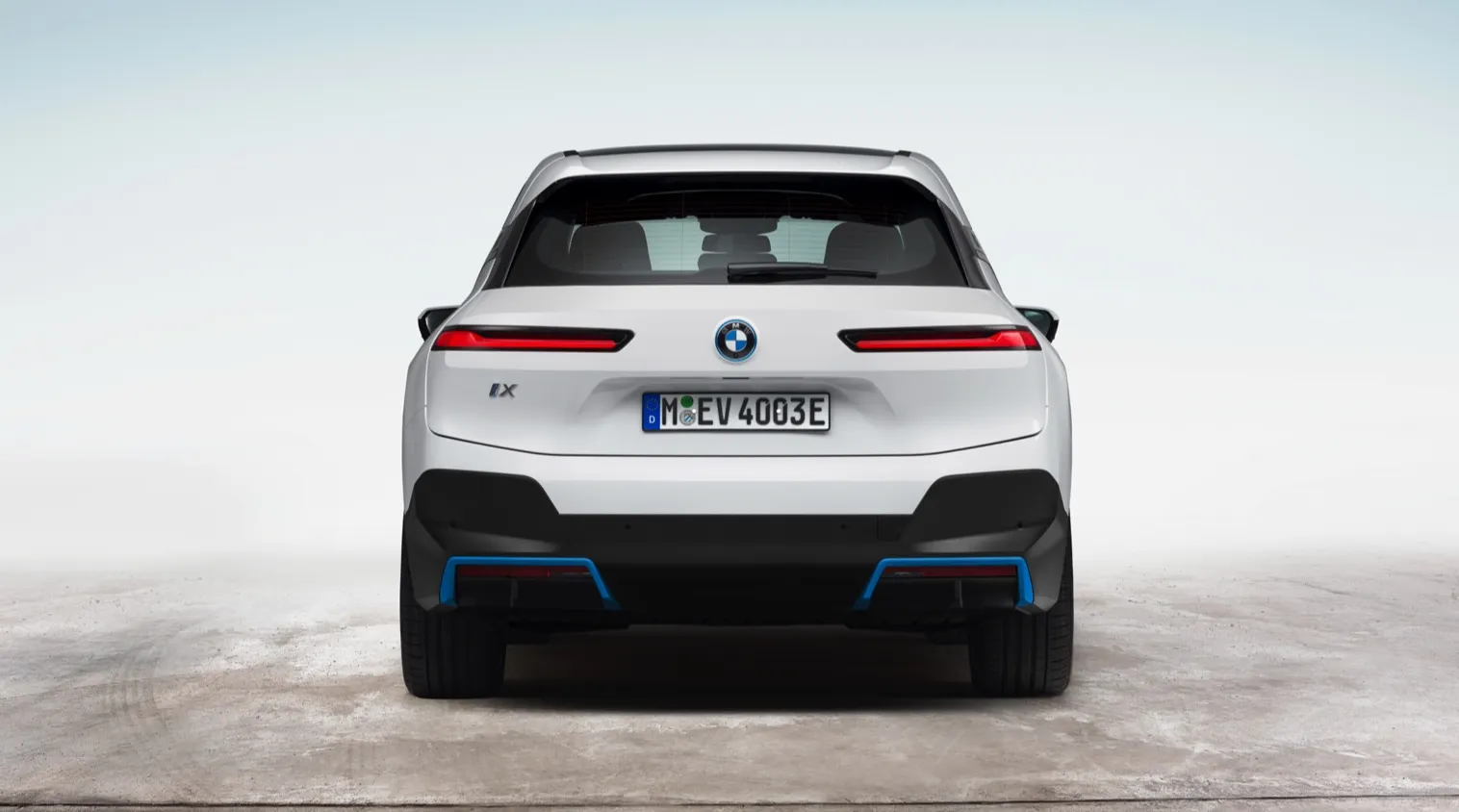

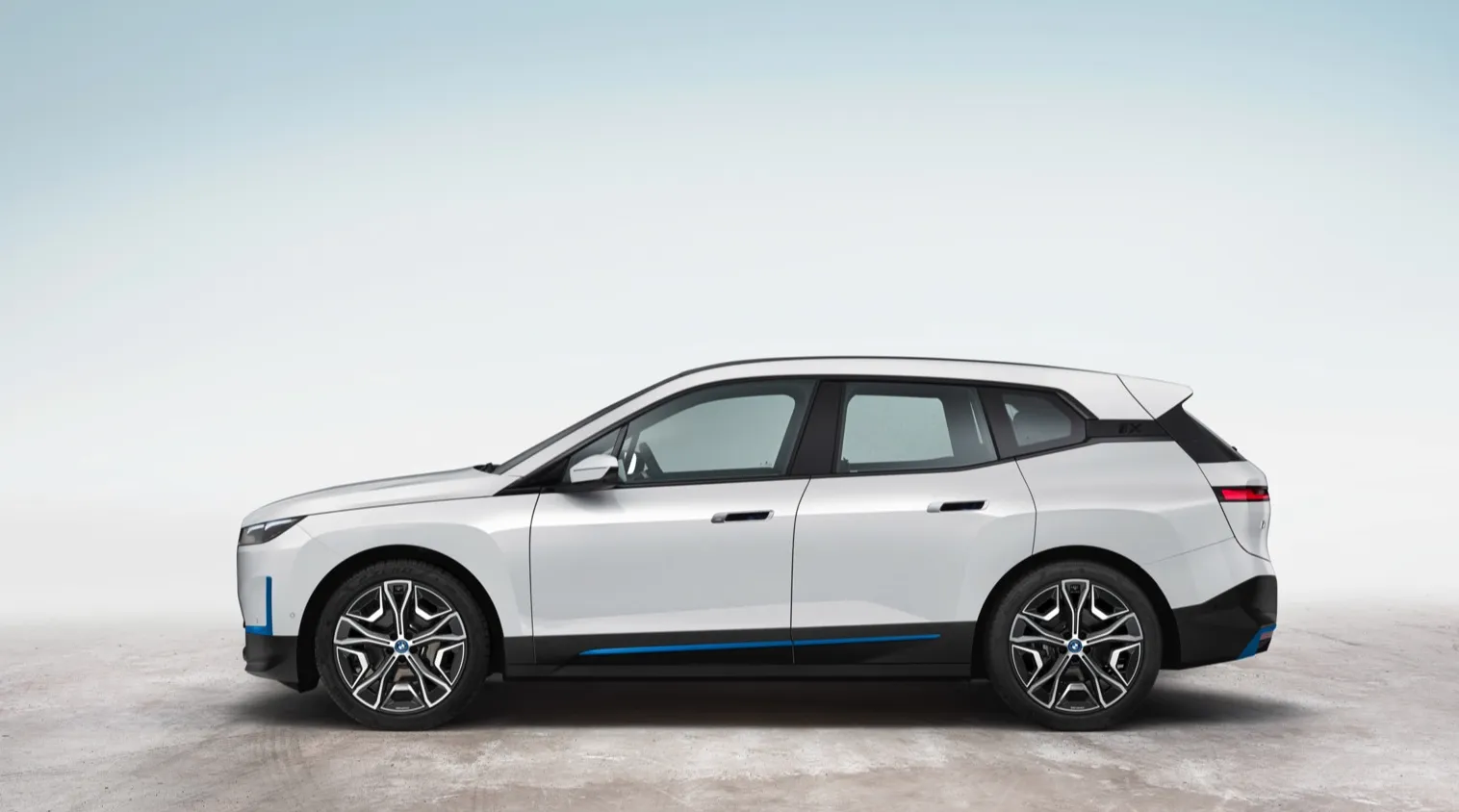

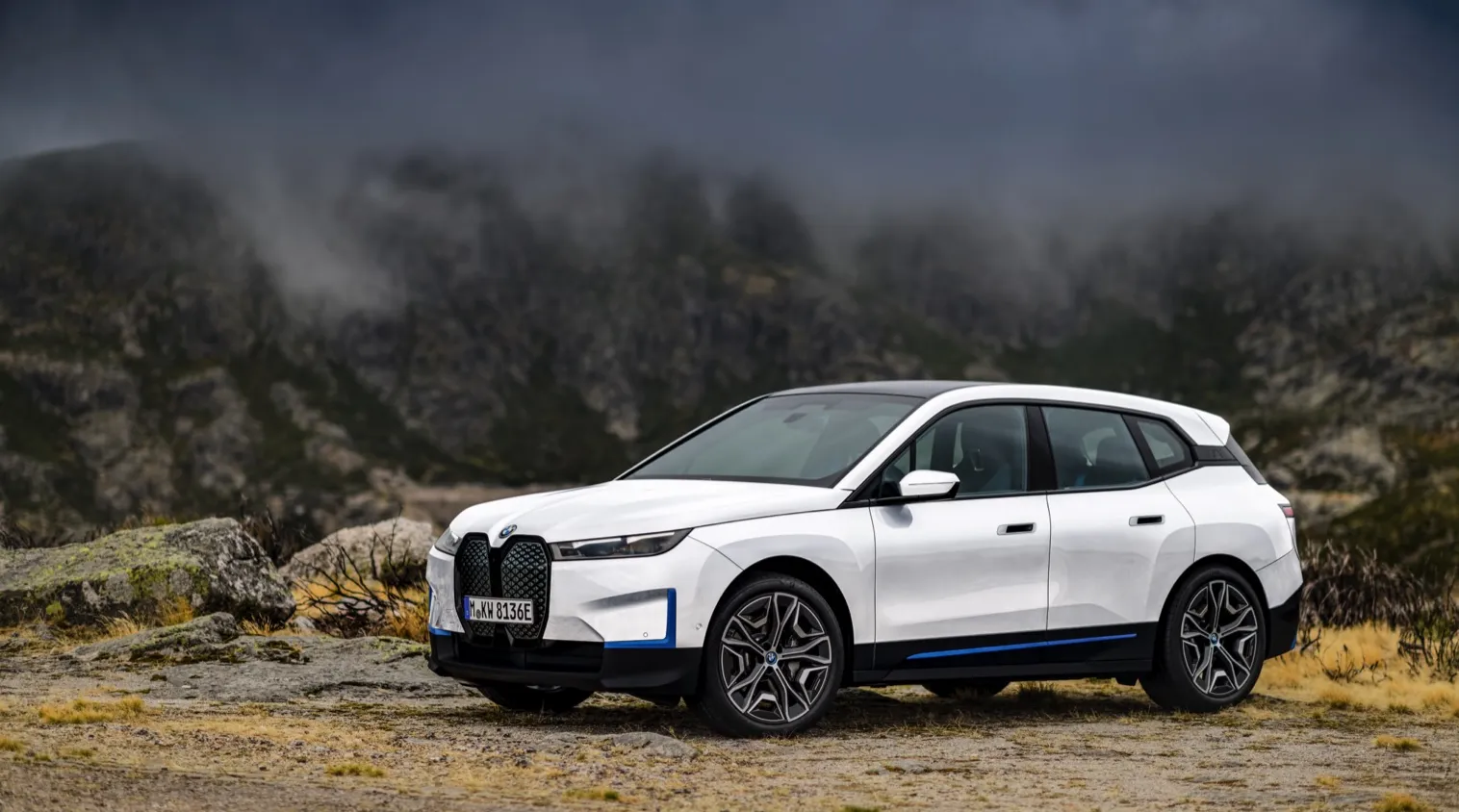

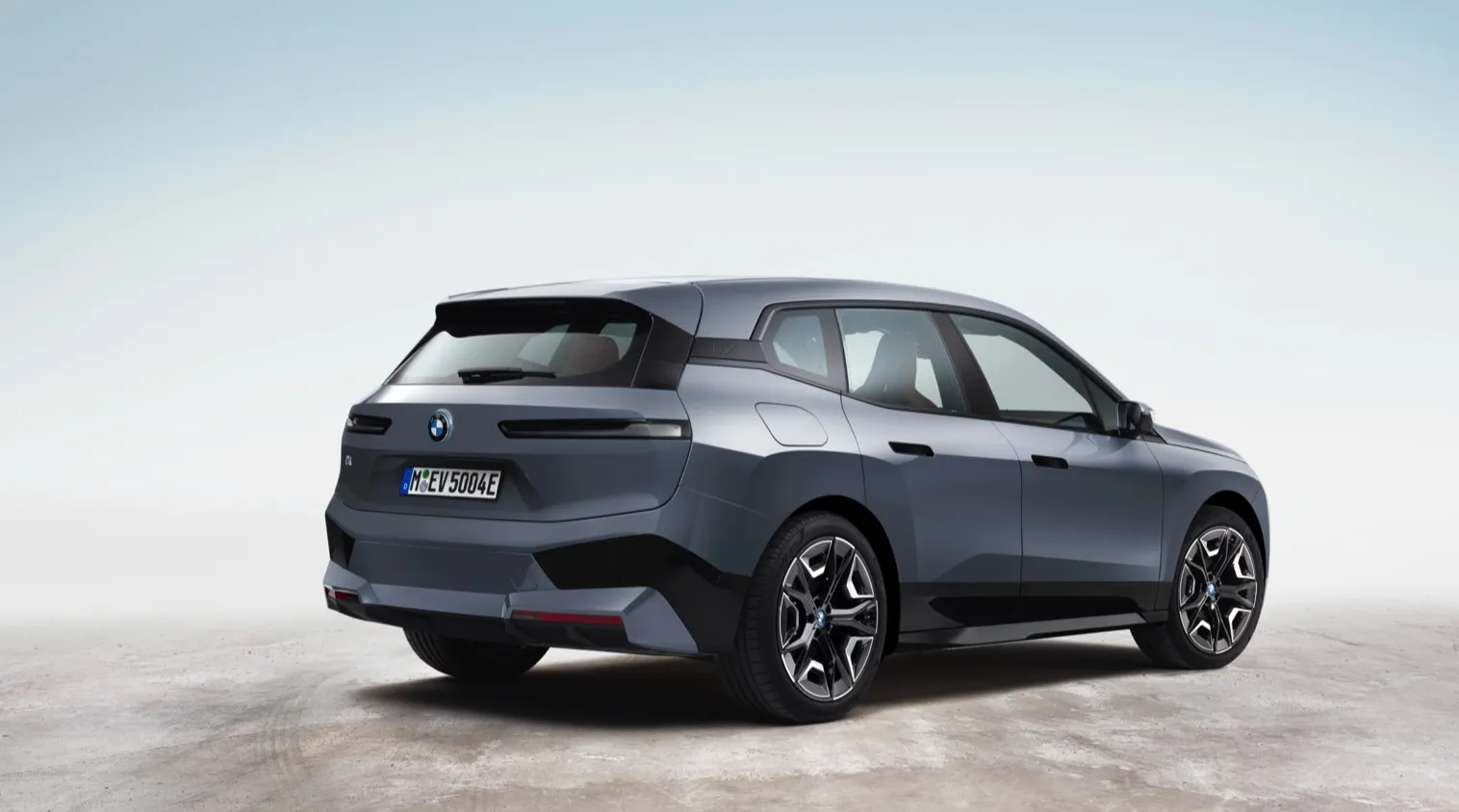

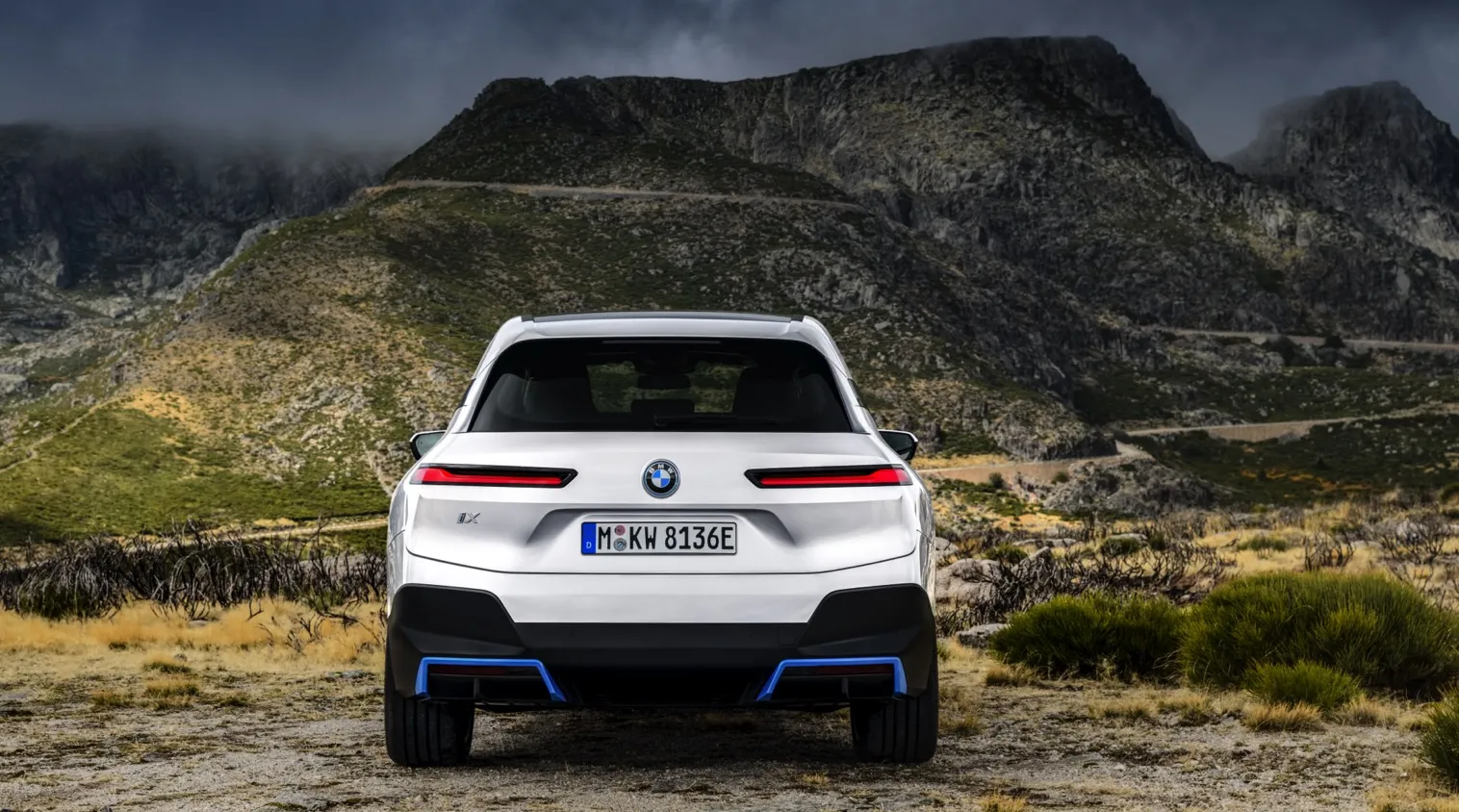

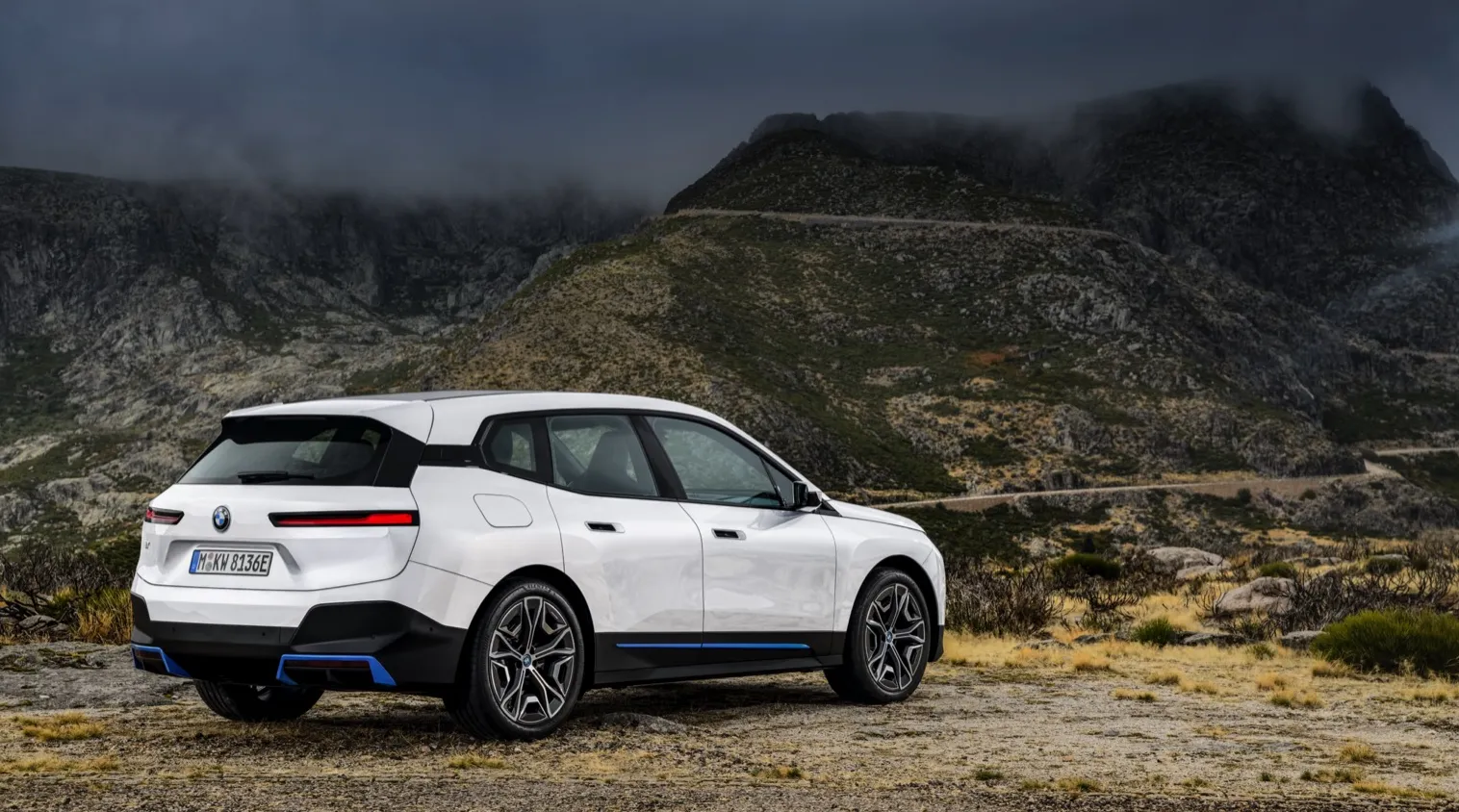

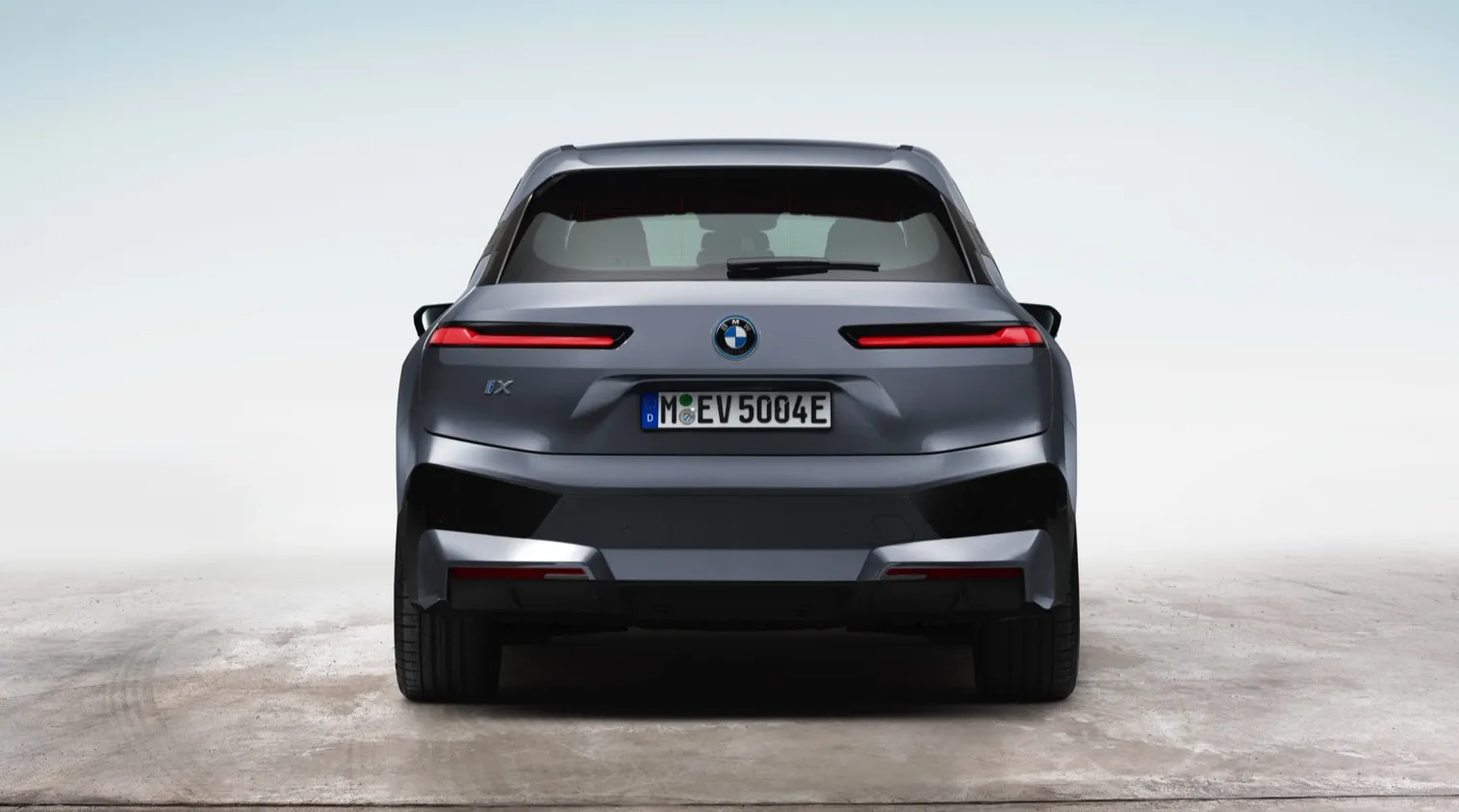

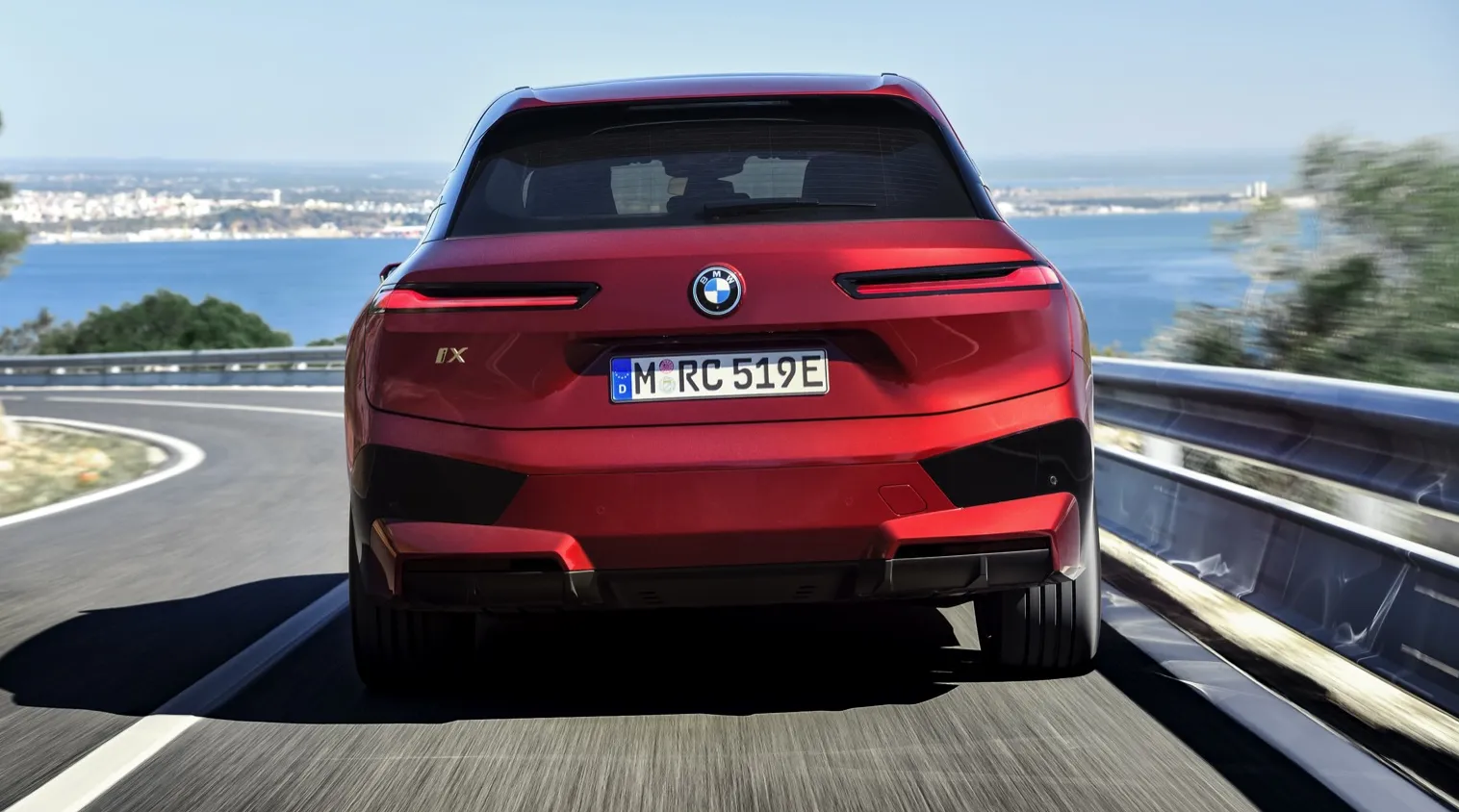

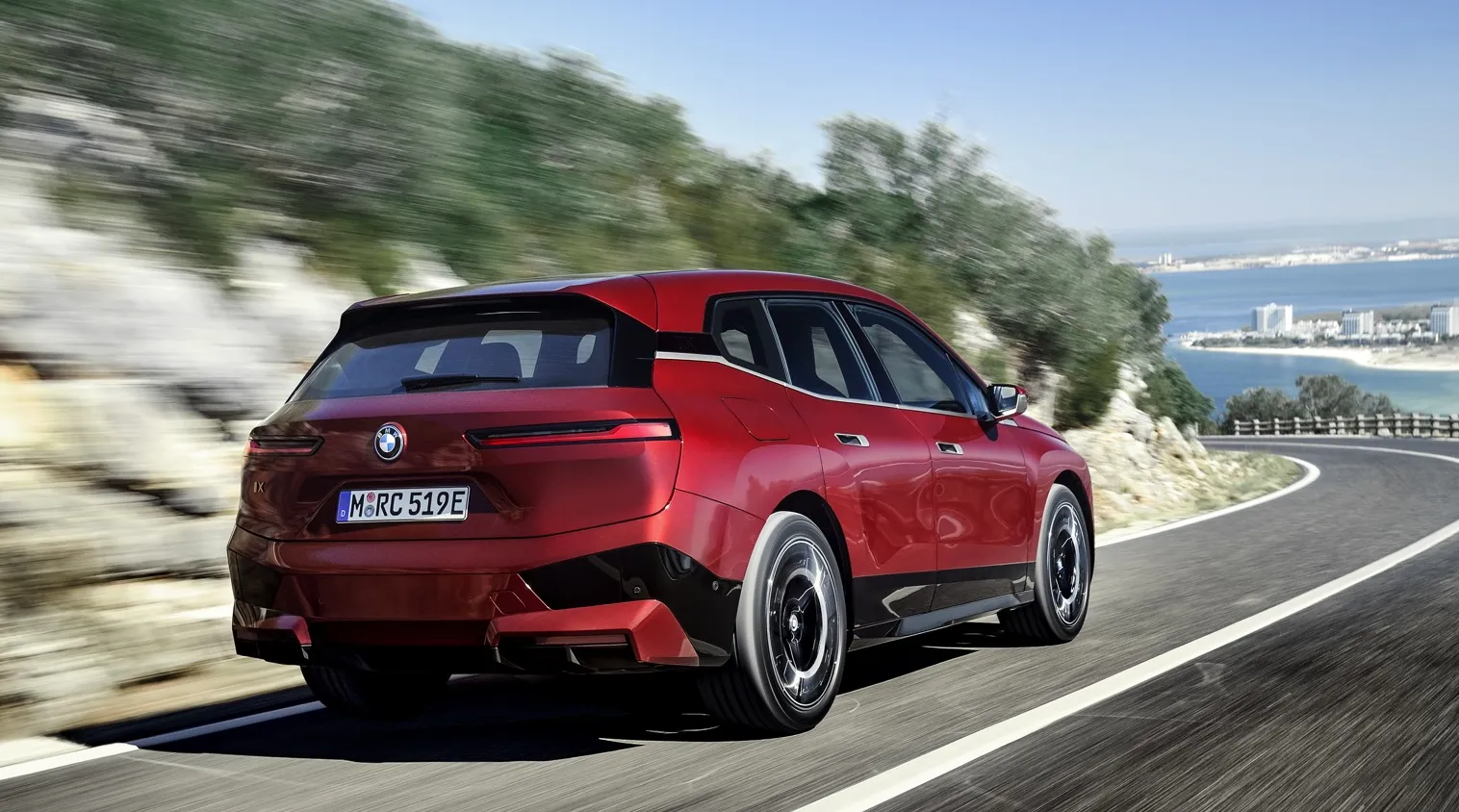

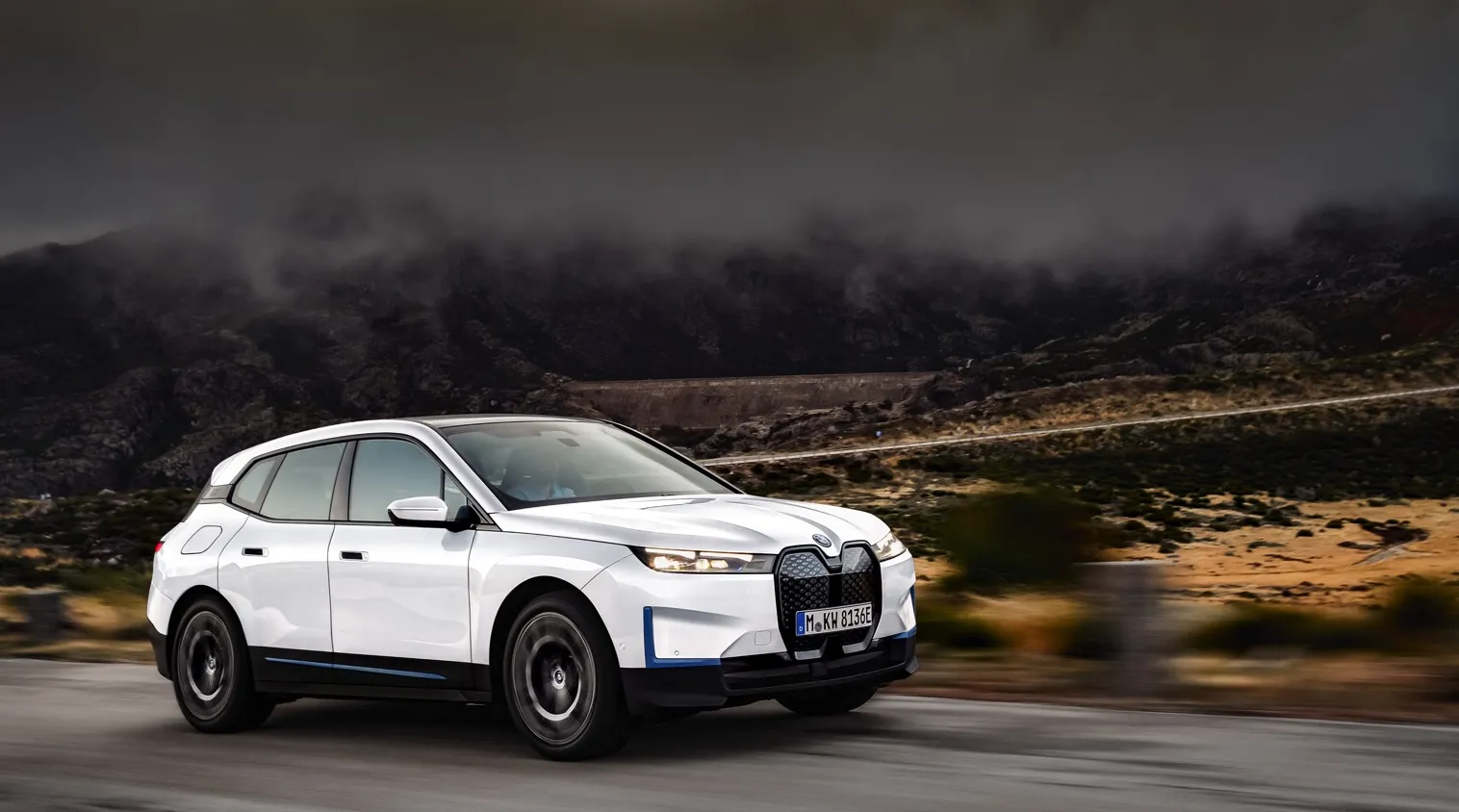

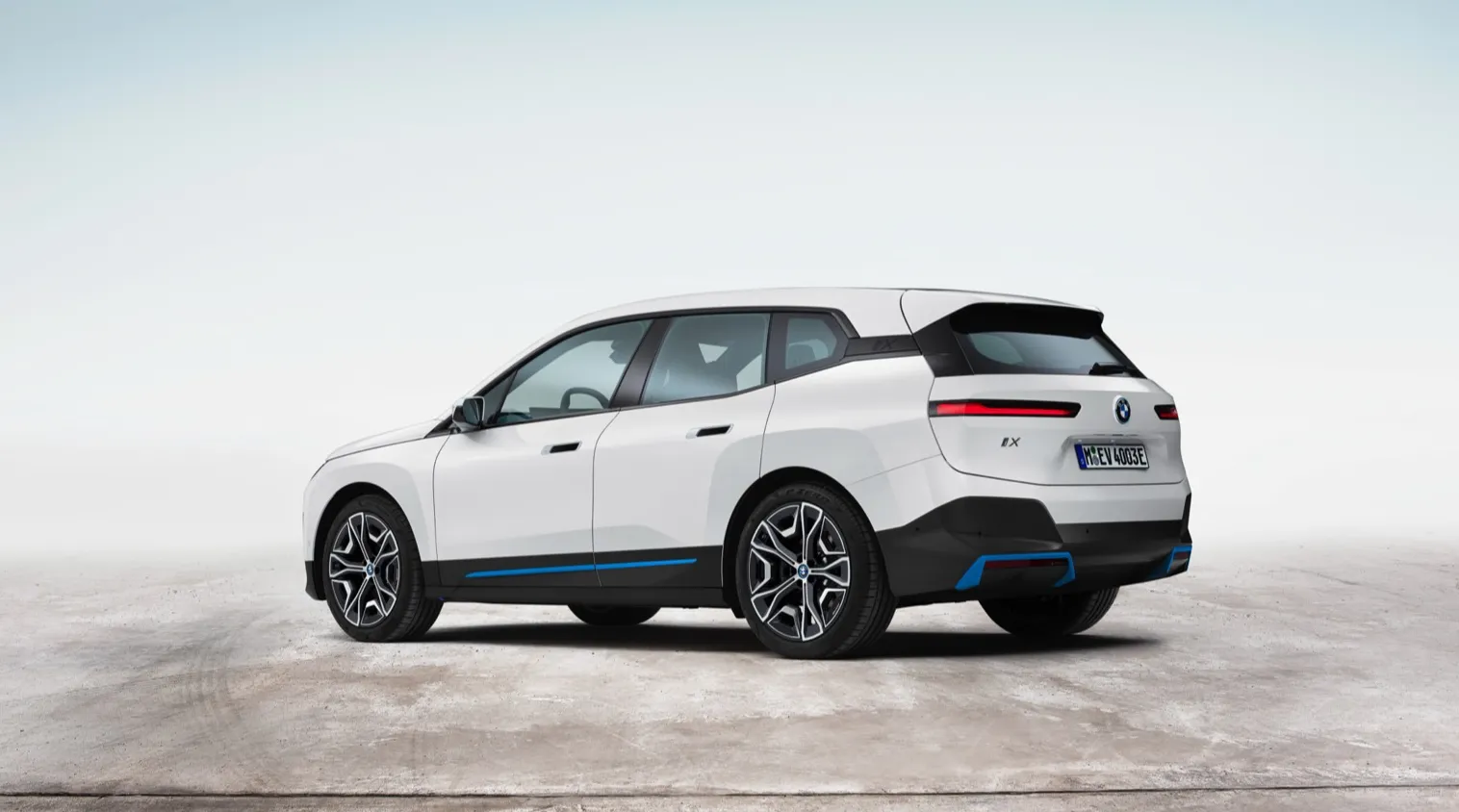

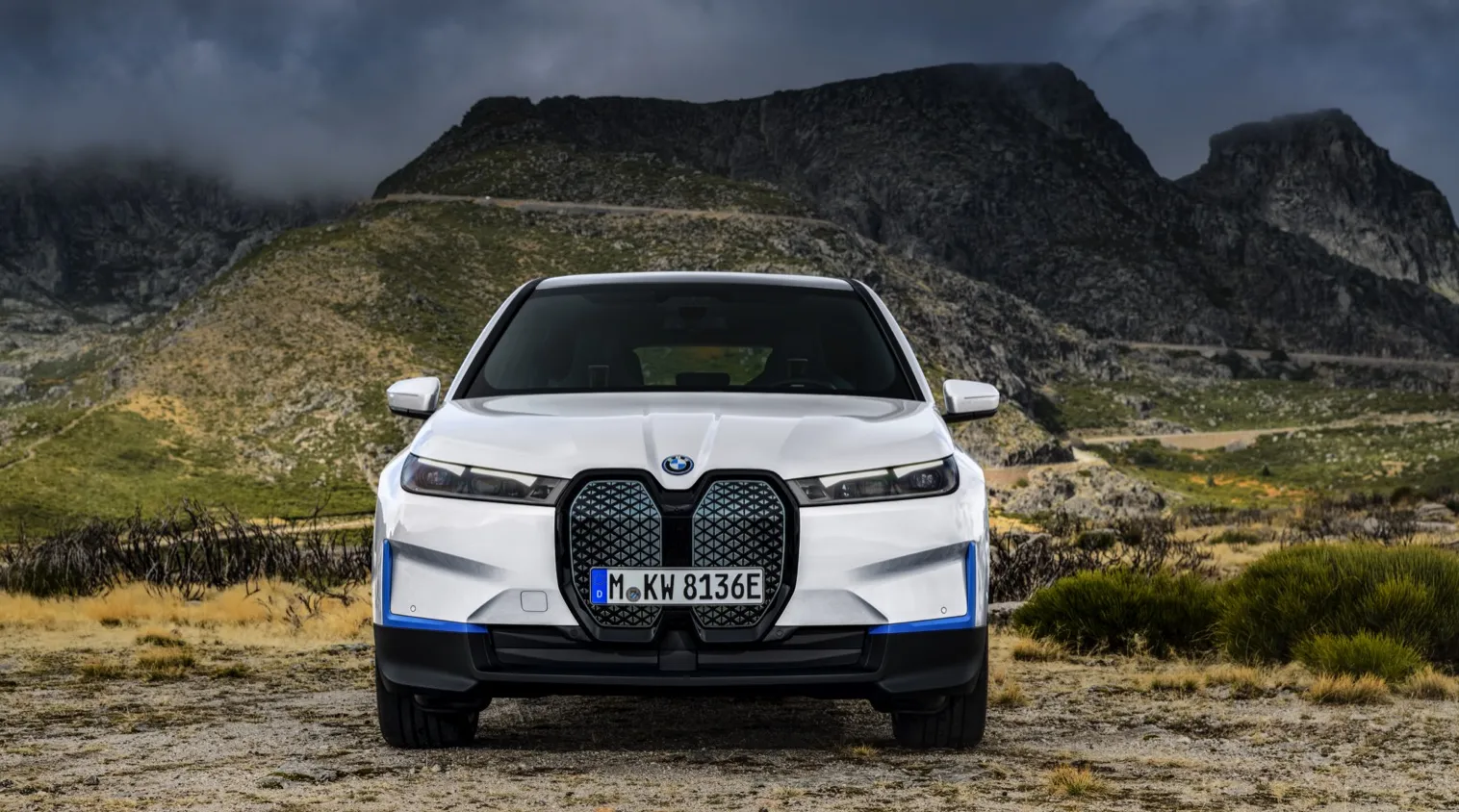

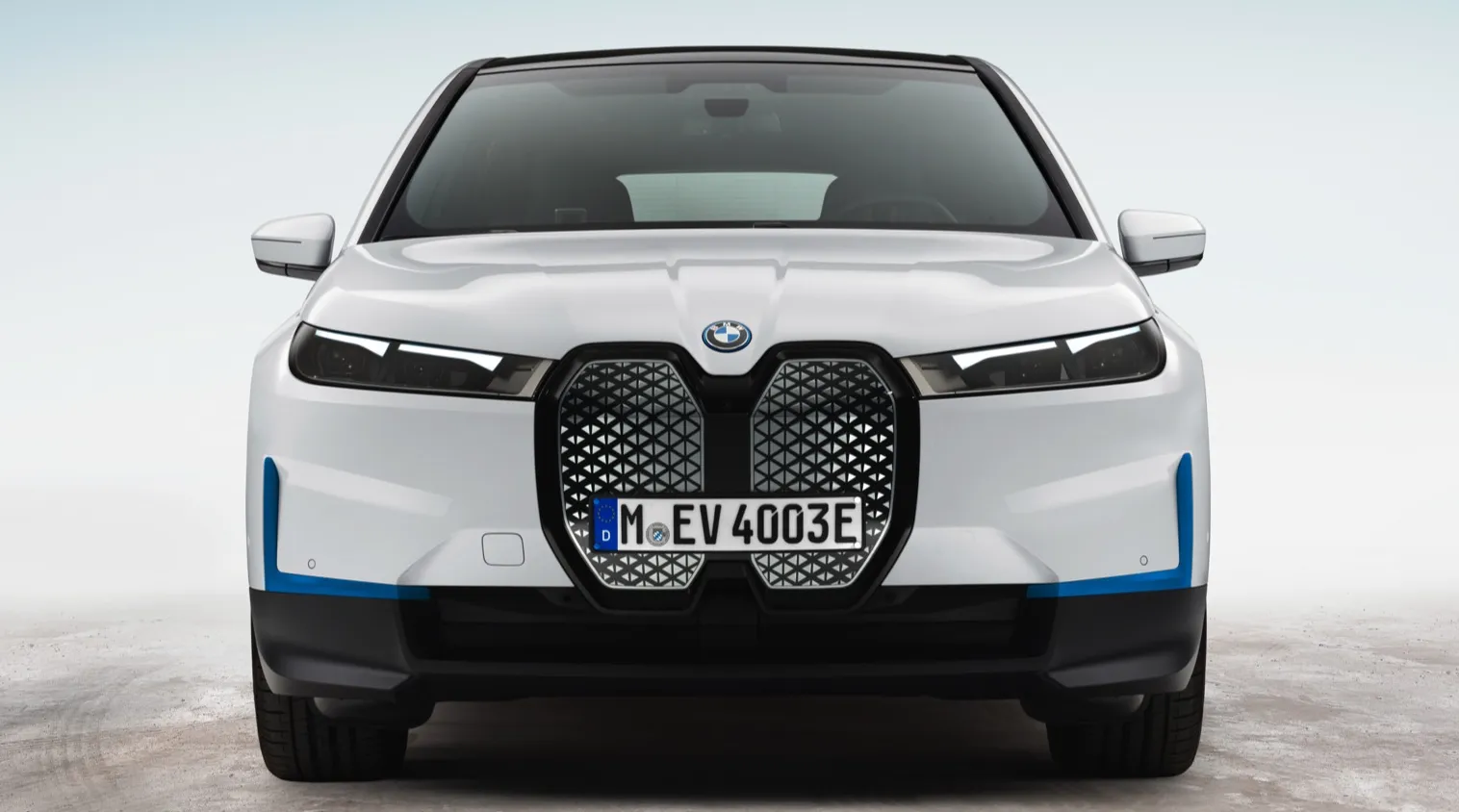

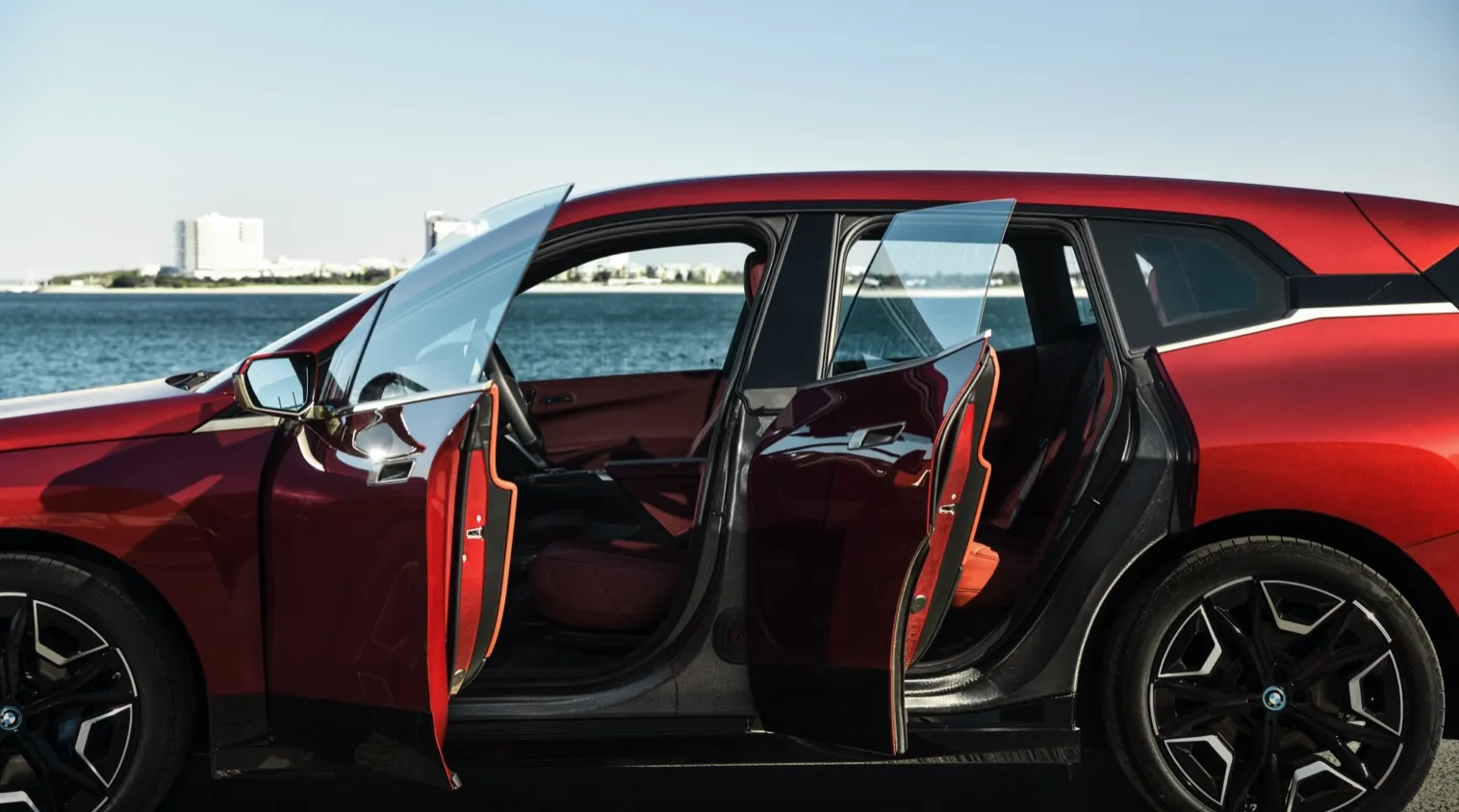

BMW iX xDrive50
Model: BMW
- : 105.2 kWh
- : 505 km *
- : 208 Wh/km *
Real Range Estimation
| City - Cold Weather * | 500 km |
| Highway - Cold Weather * | 365 km |
| Combined - Cold Weather * | 430 km |
between 365 - 720 km
| City - Mild Weather * | 720 km |
| Highway - Mild Weather * | 465 km |
| Combined - Mild Weather * | 575 km |
Performance
| Acceleration 0 - 100 km/h | 4.6 sec |
| Top Speed | 200 km/h |
| Electric Range * | 505 km |
| Total Power | 385 kW (523 PS) |
| Total Torque | 765 Nm |
| Drive | AWD |
Battery
| Nominal Capacity | 111.5 kWh |
| Battery Type | Lithium-ion |
| Number of Cells | No Data |
| Architecture | 400 V |
| Warranty Period | No Data |
| Warranty Mileage | No Data |
| Useable Capacity | 105.2 kWh |
| Cathode Material | No Data |
| Pack Configuration | No Data |
| Nominal Voltage | 369 V |
| Form Factor | No Data |
| Name / Reference | No Data |
Bidirectional Charging (V2X / BPT)
Vehicle-to-Load (V2L)
| V2L Supported | No |
| Max. Output Power | - |
Vehicle-to-Home (V2H)
| V2H via AC Supported | No |
| Max. Output Power | - |
Vehicle-to-Grid (V2G)
| V2G via AC Supported | No |
| Max. Output Power | - |
Energy Consumption
EVDB Real Range
| Range * | 505 km |
| Vehicle Consumption * | 208 Wh/km |
WLTP Ratings (TEL)
| Range | 630 km |
| Rated Consumption | 198 Wh/km |
| Vehicle Consumption | 167 Wh/km |
WLTP Ratings (TEH)
| Range | 549 km |
| Rated Consumption | 230 Wh/km |
| Vehicle Consumption | 192 Wh/km |
Miscellaneous
| Seats | 5 people |
| Isofix | No Data |
| Turning Circle | 12.8 m |
| Platform | BMW CLAR |
| EV Dedicated Platform | No |
| Car Body | SUV |
| Segment | JE - Executive |
| Roof Rails | No |
| Heat pump (HP) | Yes |
| HP Standard Equipment | Yes |
Home and Destination Charging (0 -> 100%)
Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the BMW iX xDrive50. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the BMW iX xDrive50 can be charged, but some modes of charging might not be widely available in certain countries.
| Type 2 (Mennekes - IEC 62196) |
|---|
 |
| Charging Point | Max. Power | Power | Time | Rate |
|---|---|---|---|---|
| Standard 11.0 kW On-Board Charger | ||||
| Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 54 hours | 9 km/h |
| 1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 33h30m | 15 km/h |
| 1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 16h45m | 30 km/h |
| 3-phase 16A (11 kW) | 400V / 3x16A | 11 kW | 11h15m | 45 km/h |
| 3-phase 32A (22 kW) | 400V / 3x16A | 11 kW † | 11h15m | 45 km/h |
| Optional 22.0kW On-Board Charger | ||||
| Wall Plug (2.3 kW) | 230V / 1x10A | 2.3 kW | 54 hours | 9 km/h |
| 1-phase 16A (3.7 kW) | 230V / 1x16A | 3.7 kW | 33h30m | 15 km/h |
| 1-phase 32A (7.4 kW) | 230V / 1x32A | 7.4 kW | 16h45m | 30 km/h |
| 3-phase 16A (11 kW) | 400V / 3x16A | 11 kW | 11h15m | 45 km/h |
| 3-phase 32A (22 kW) | 400V / 3x32A | 22 kW † | 5h45m | 88 km/h |
† = Limited by on-board charger, vehicle cannot charge faster.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the BMW iX xDrive50.
- Max. Power: maximum power provided by charge point
- Avg. Power: average power provided by charge point over a session from 10% to 80%
- Time: time needed to charge from 10% to 80%
- Rate: average charging speed over a session from 10% to 80%
| Combined Charging System (CCS Combo 2) |
|---|
 |
| Charging Point | Max. Power | Avg. Power | Time | Rate |
|---|---|---|---|---|
| CCS (50 kW DC) | 50 kW | 49 kW † | 95 min | 220 km/h |
| CCS (150 kW DC) | 150 kW | 132 kW † | 35 min | 600 km/h |
| CCS (300 kW DC) | 195 kW † | 148 kW † | 31 min | 680 km/h |
| Charge Curve |
|---|
 |
Data made available by Fastned |
| This vehicle does not support Autocharge |
|---|
| This vehicle supports Plug & Charge |
† = Limited by charging capabilities of vehicle
Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.
Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
BMW Claimed Specifications
The table below shows the claimed specifications from the manufacturer for charging the BMW iX xDrive50. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.
- Max. Power: maximum charge power during charging session
- Charge From: battery percentage (% SoC) where charging session is started
- Charge To: battery percentage (% SoC) where charging session is ended
- Time: time needed for charging session
| BMW Claimed Specifications |
|---|
| Max. Power | Charge From | Charge To | Time |
|---|---|---|---|
| 195 kW | No Data | No Data | No Data |
