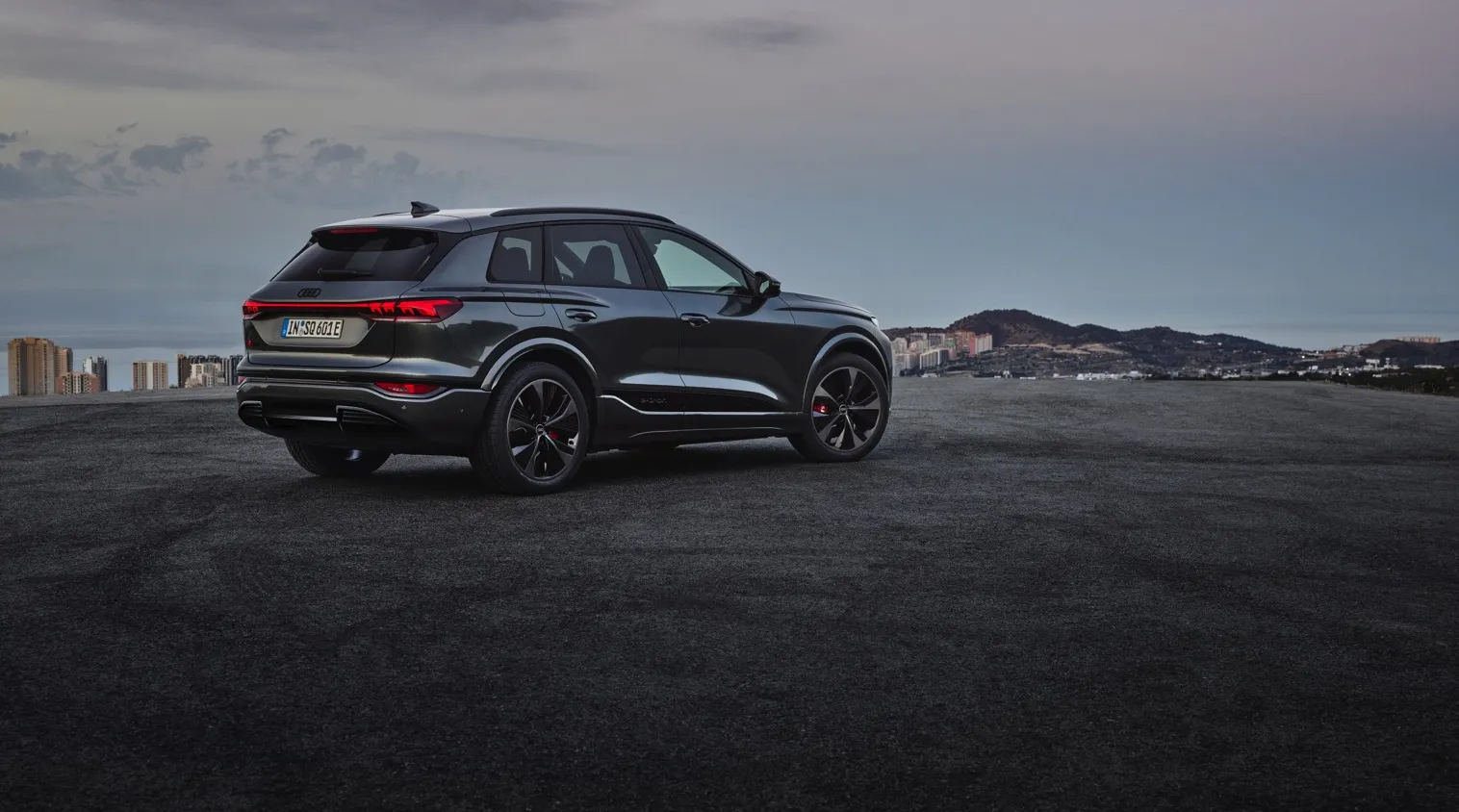

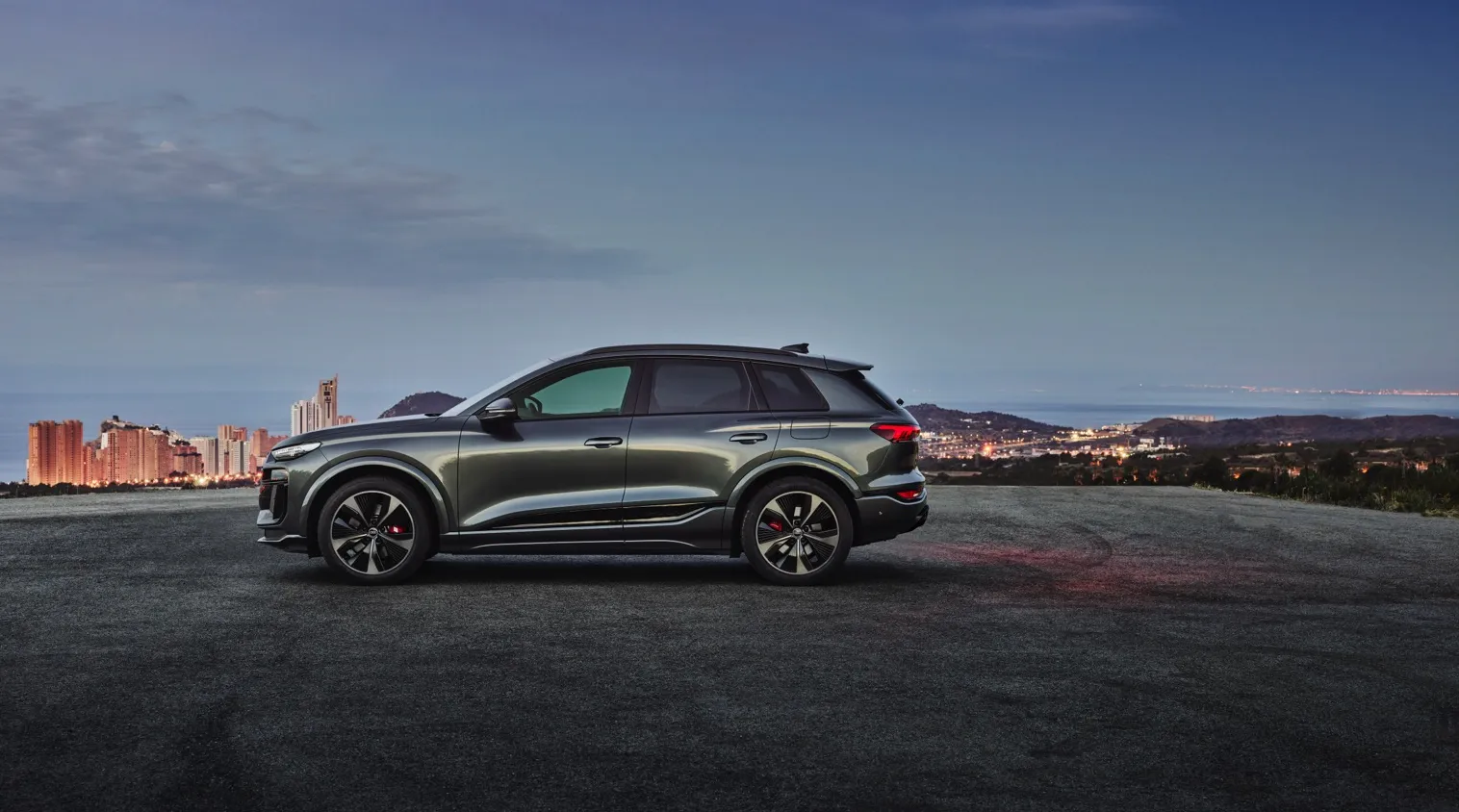

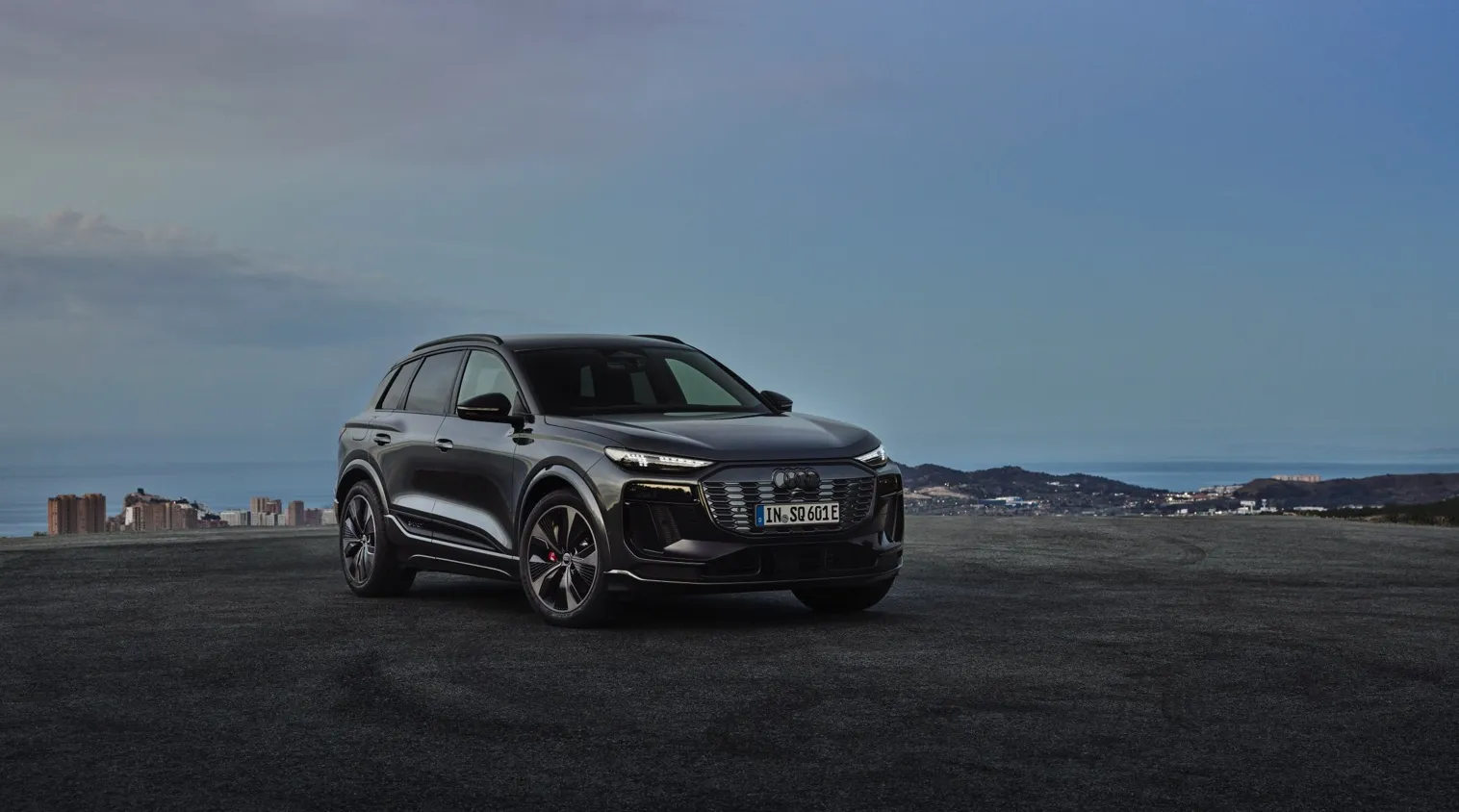

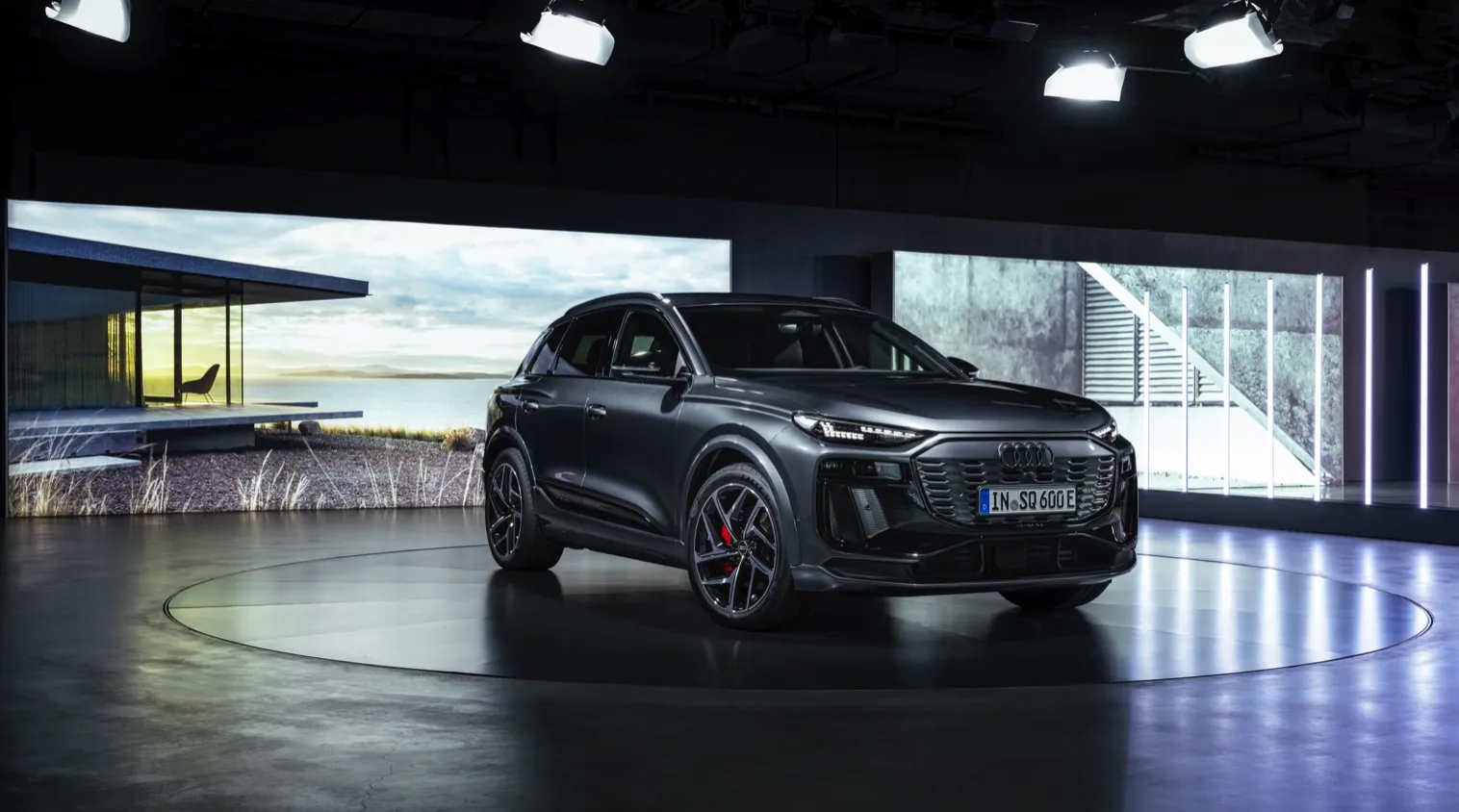

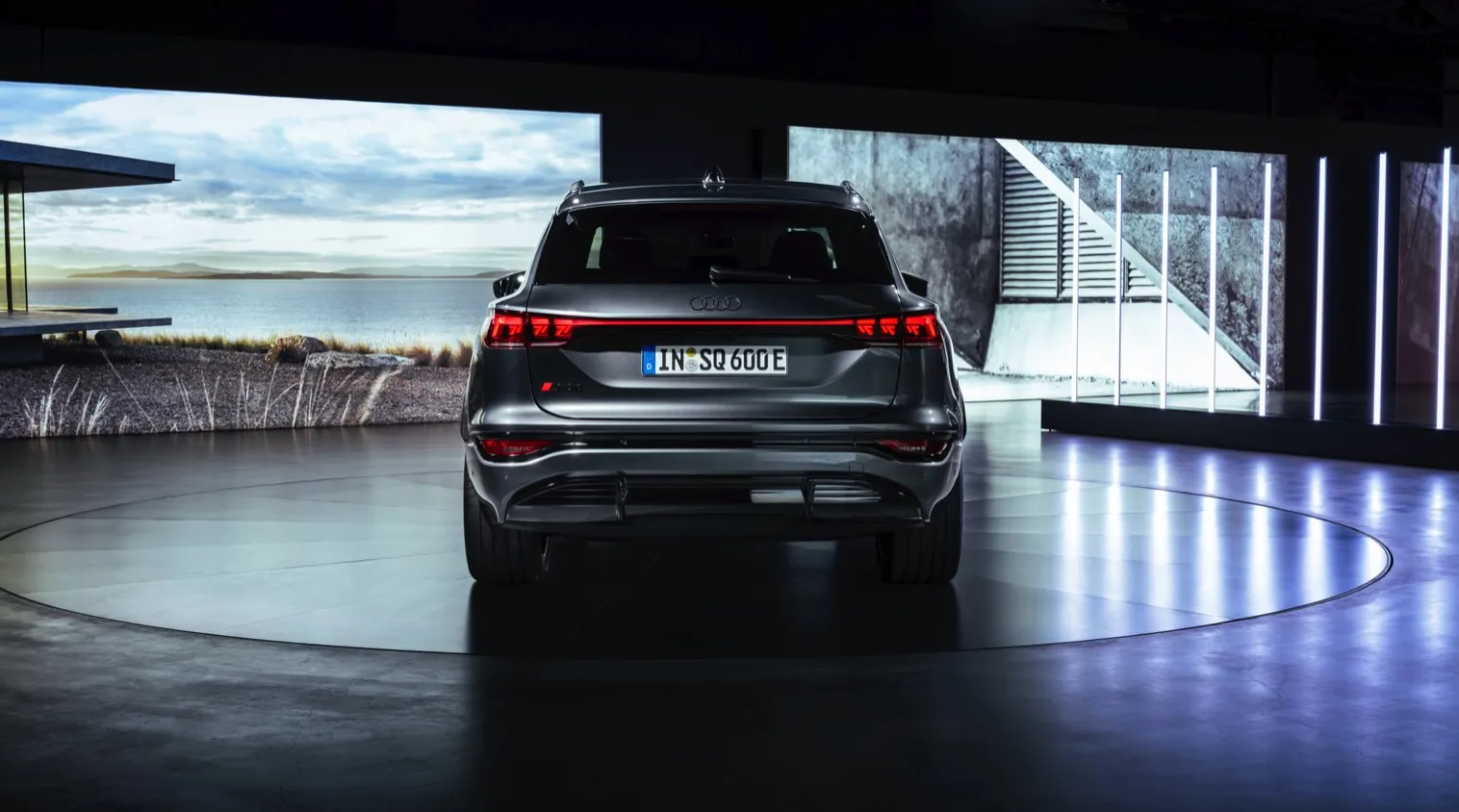

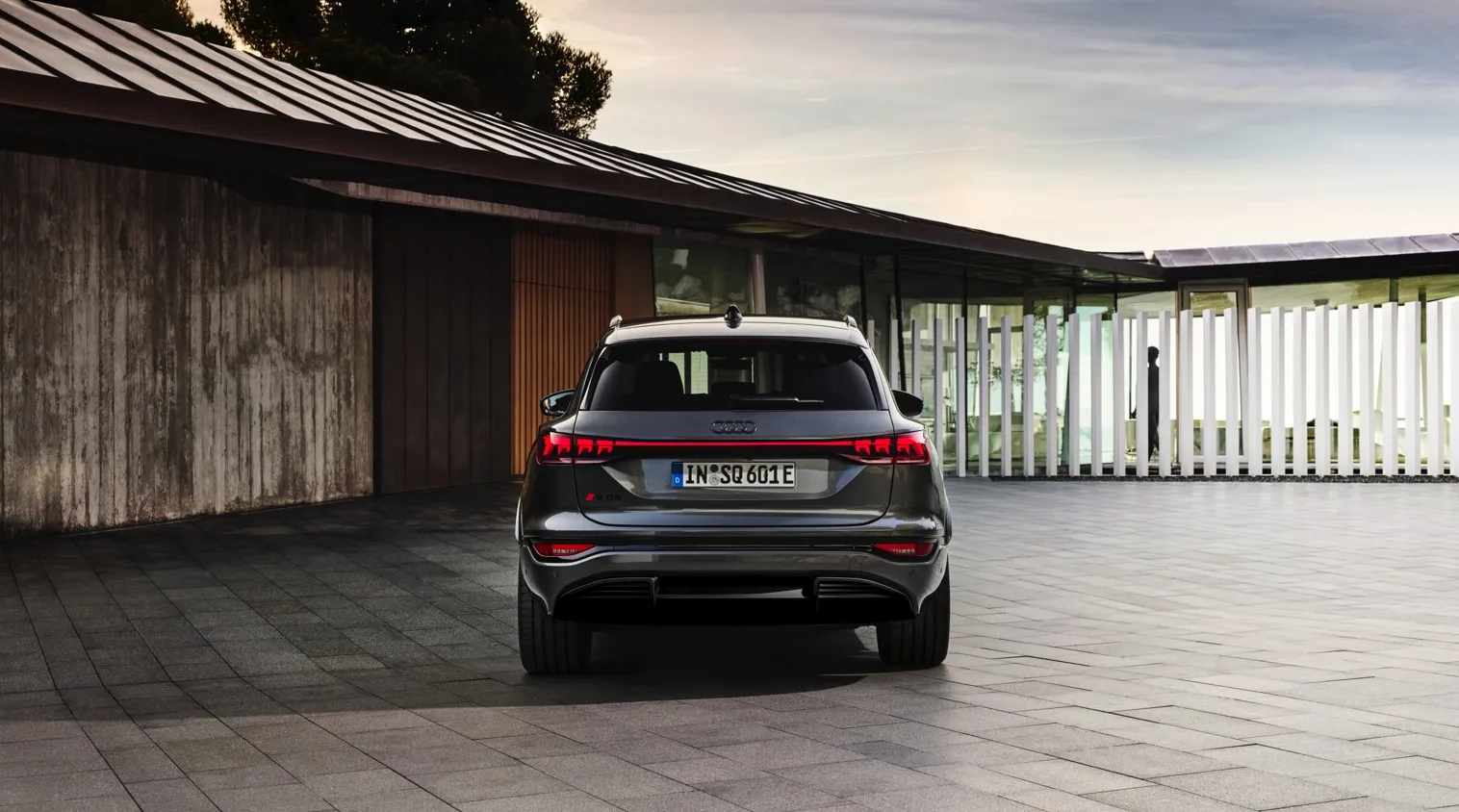

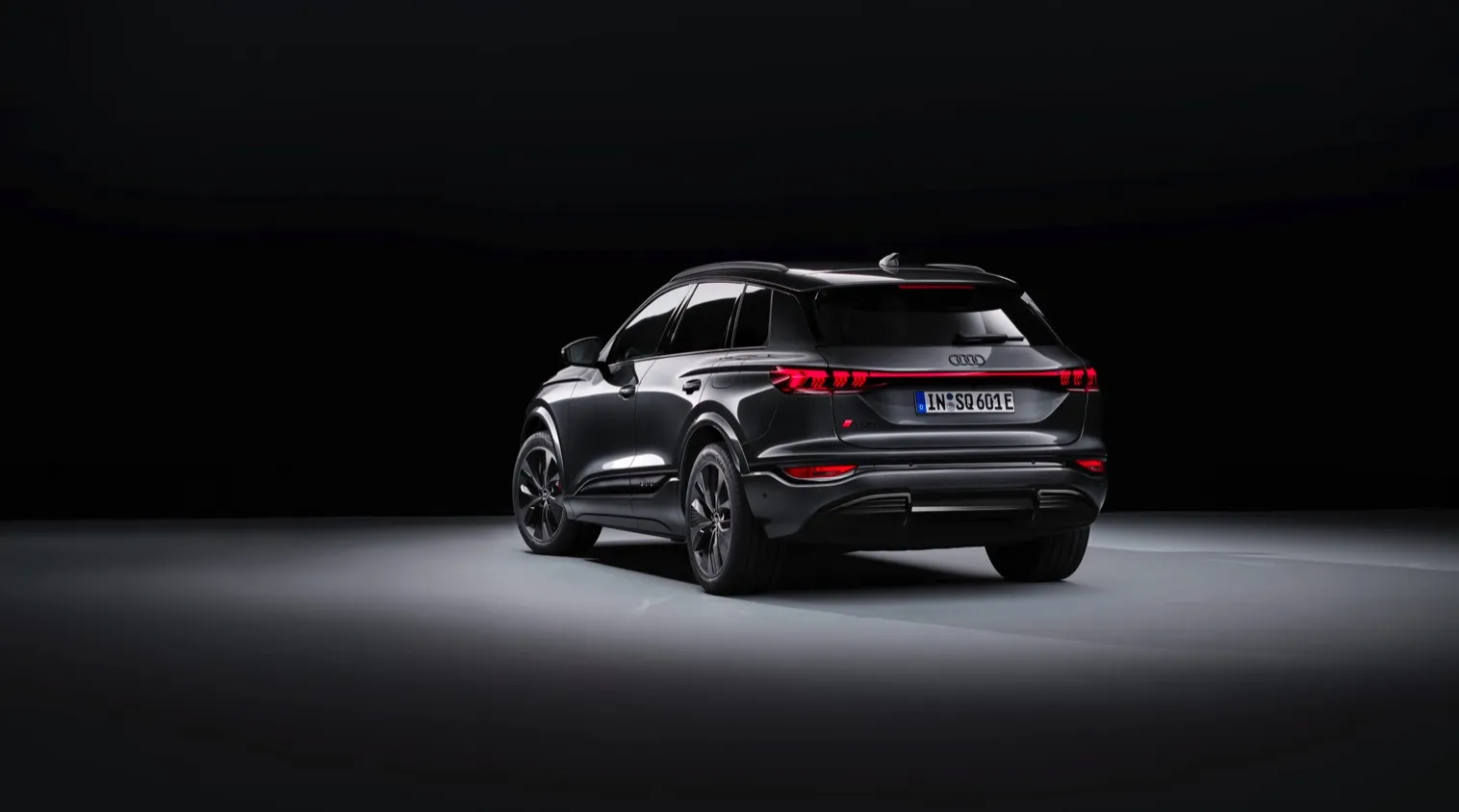

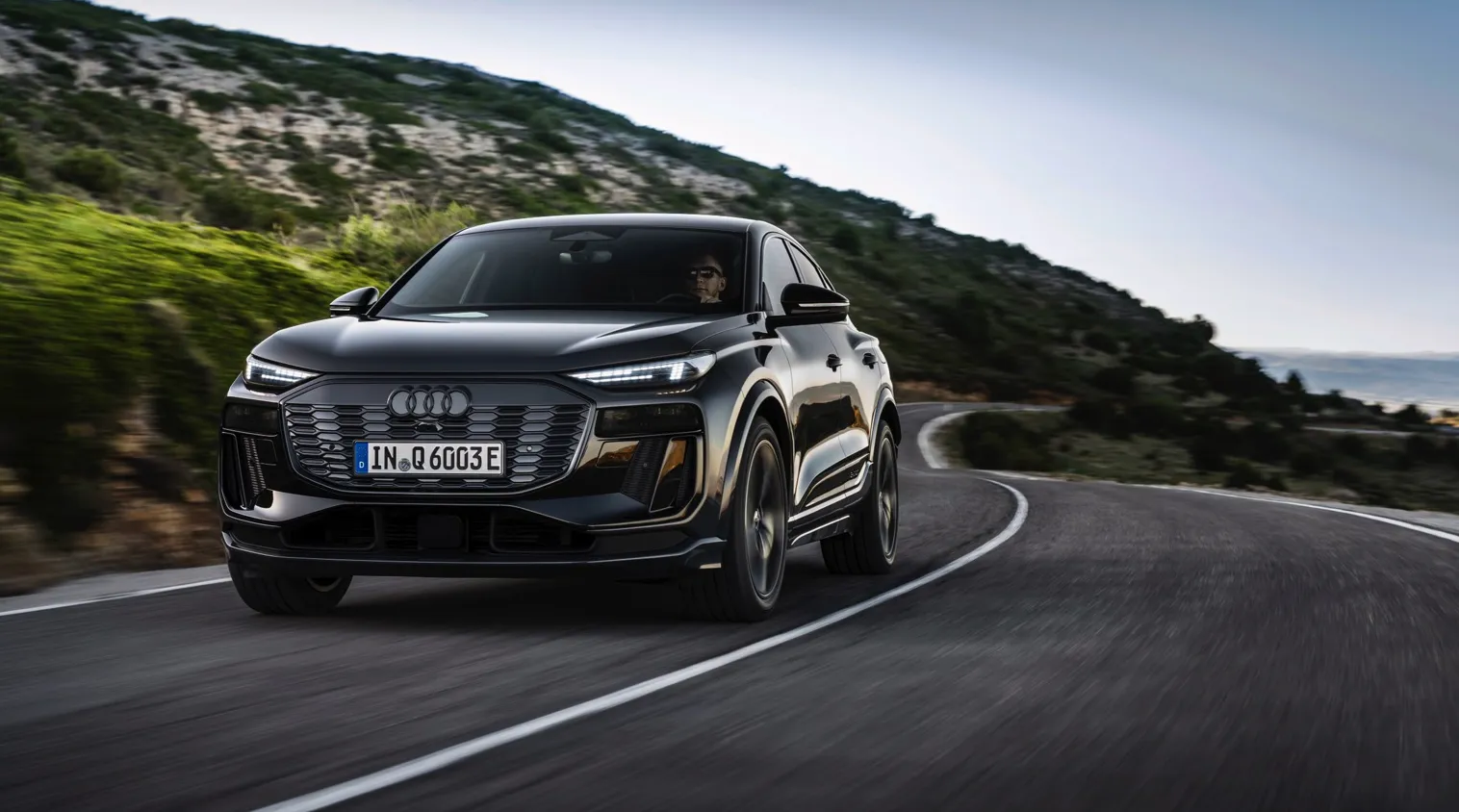

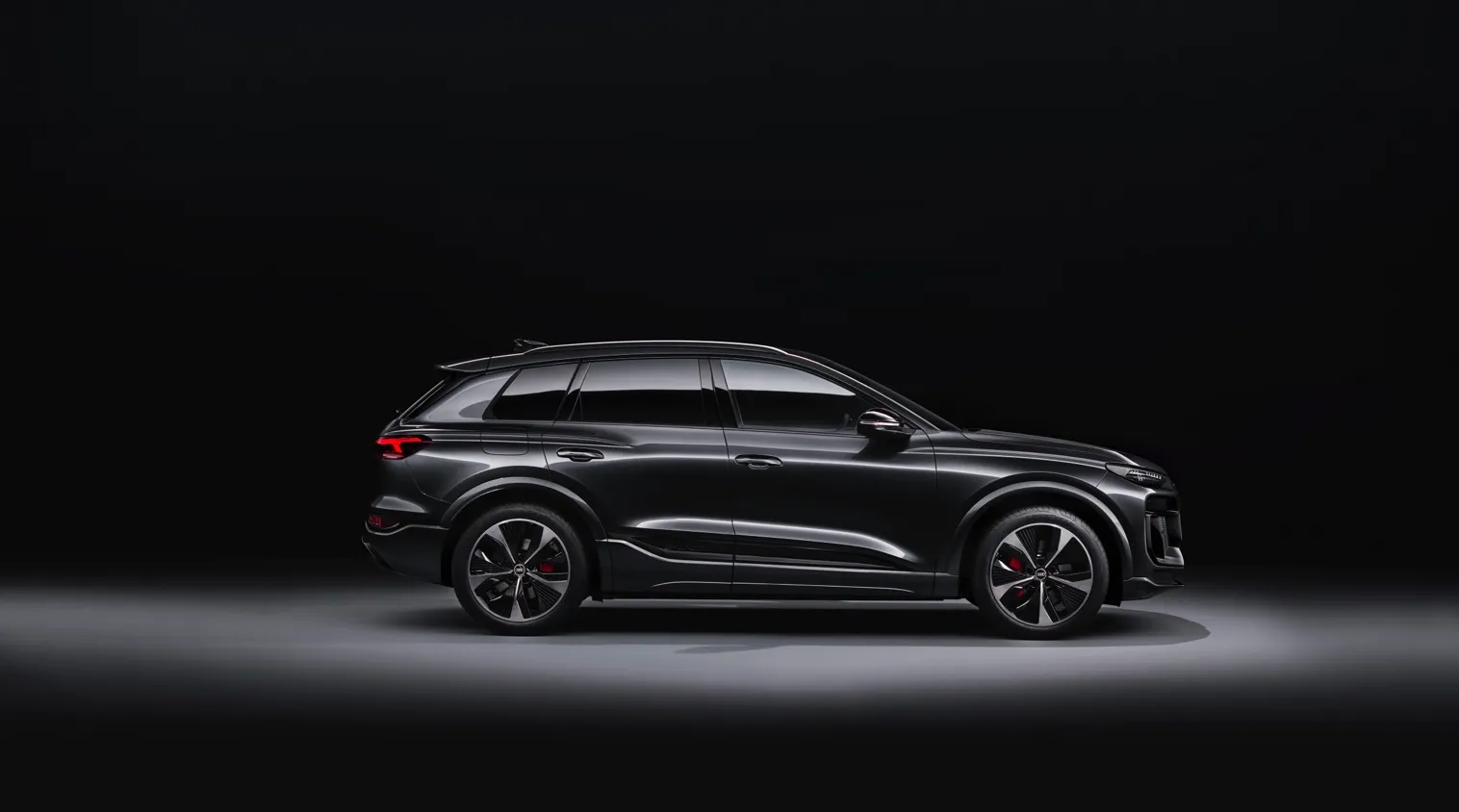

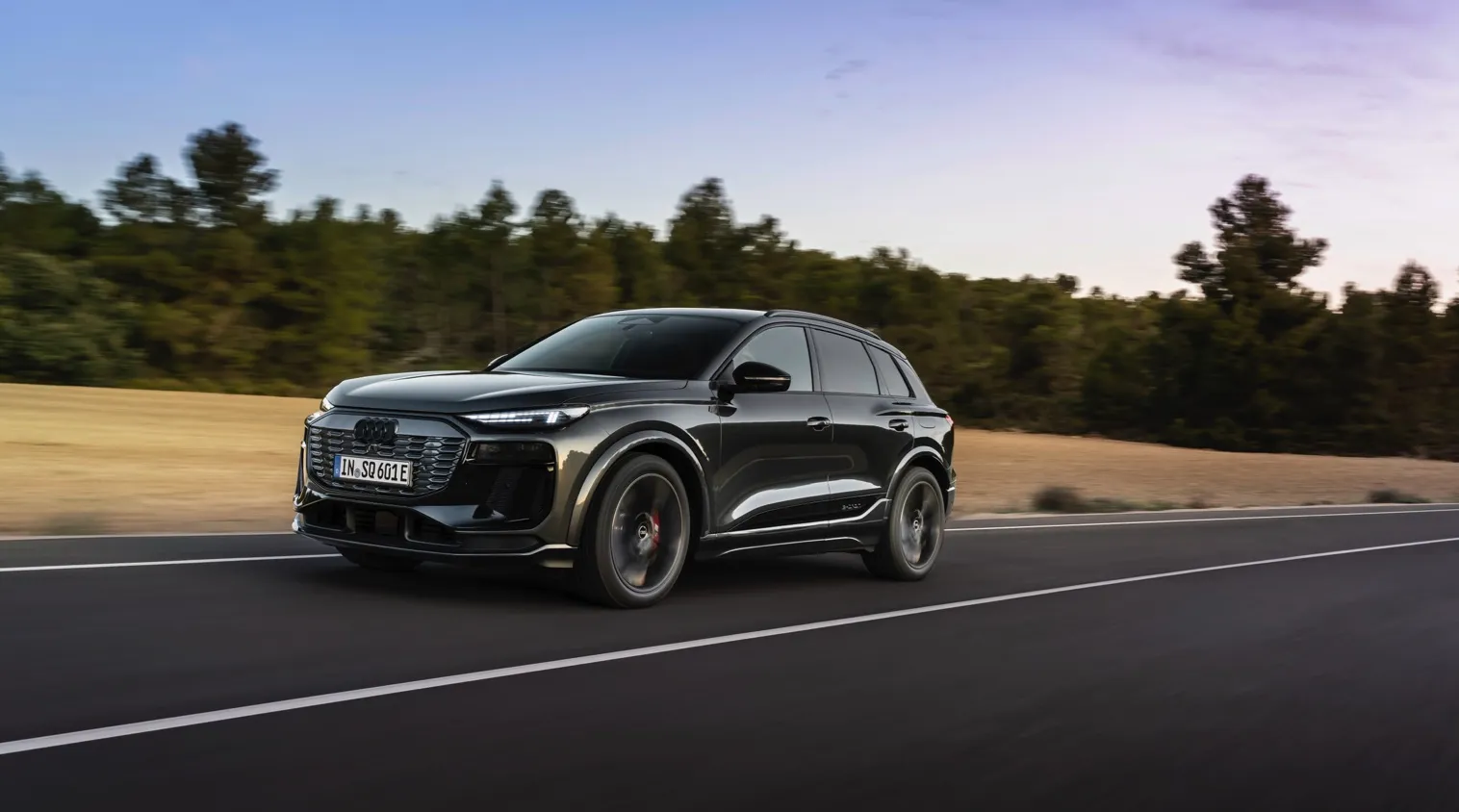

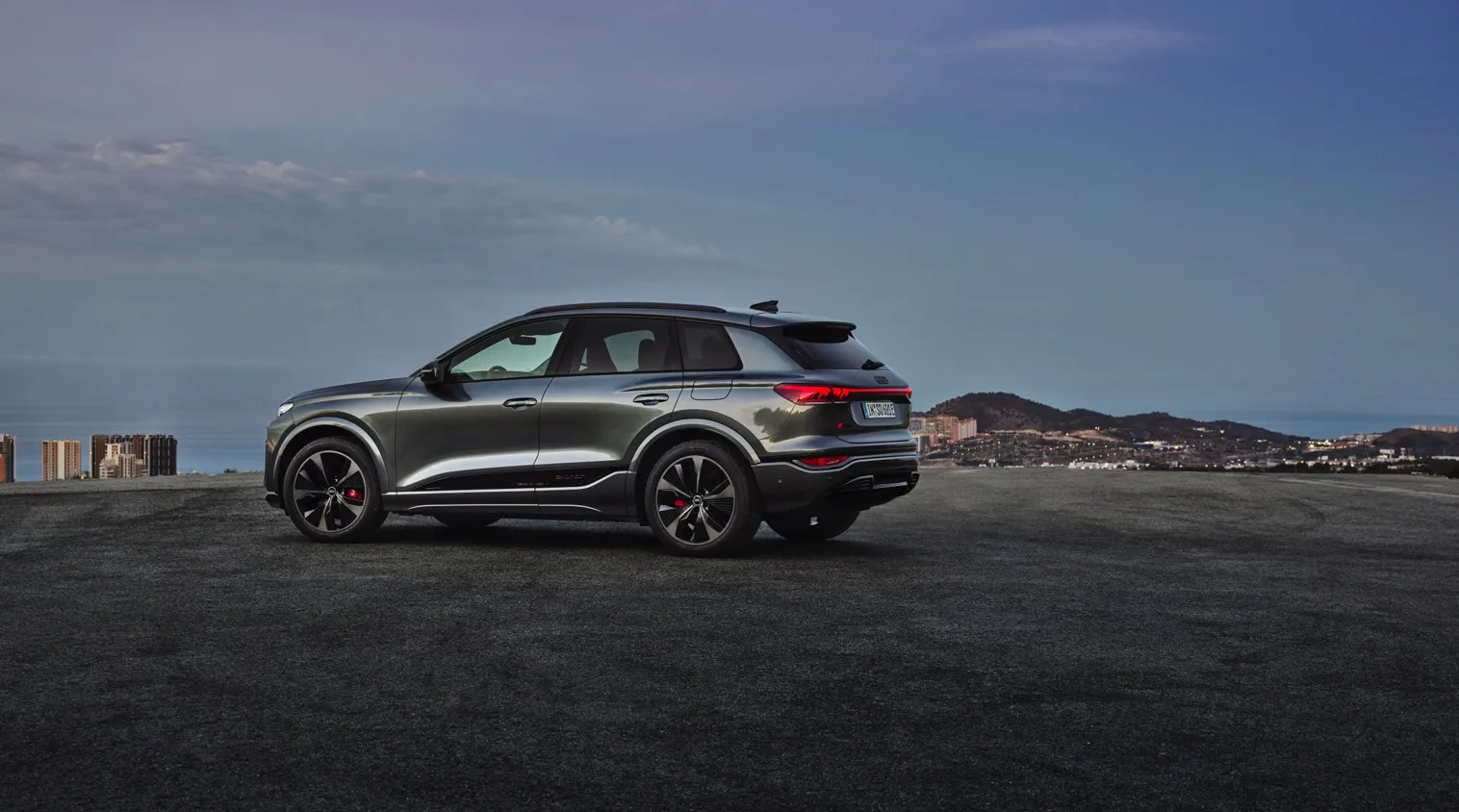

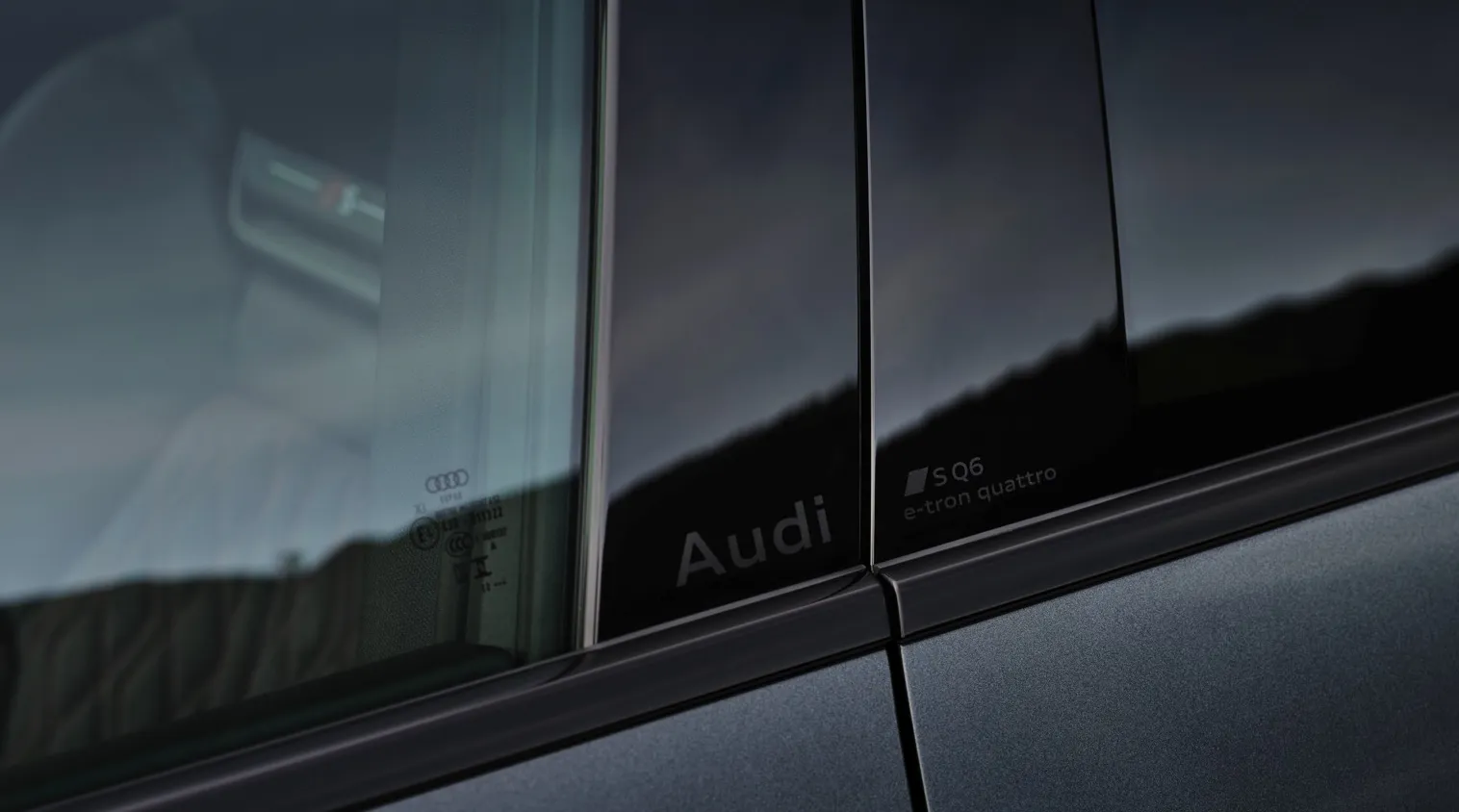

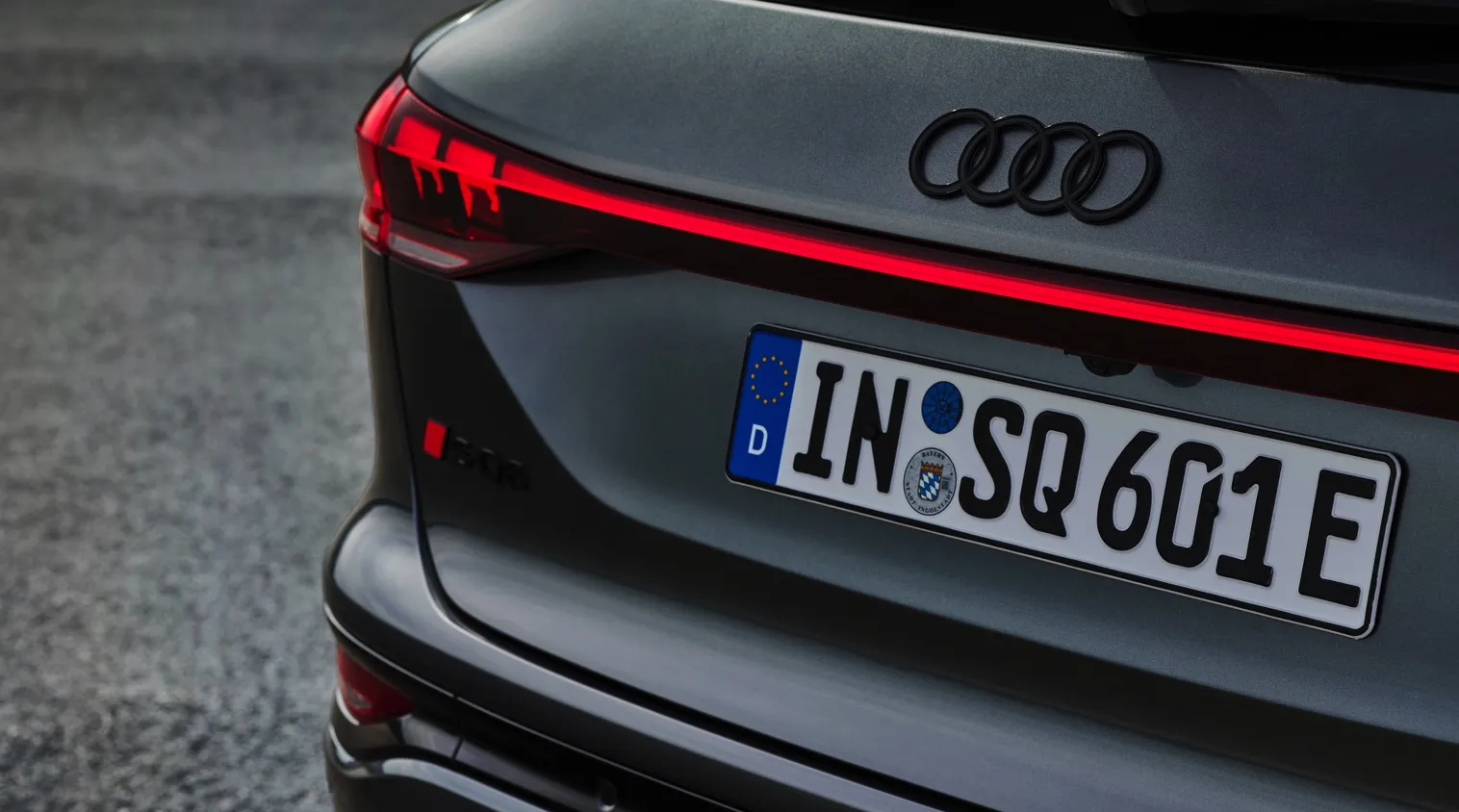

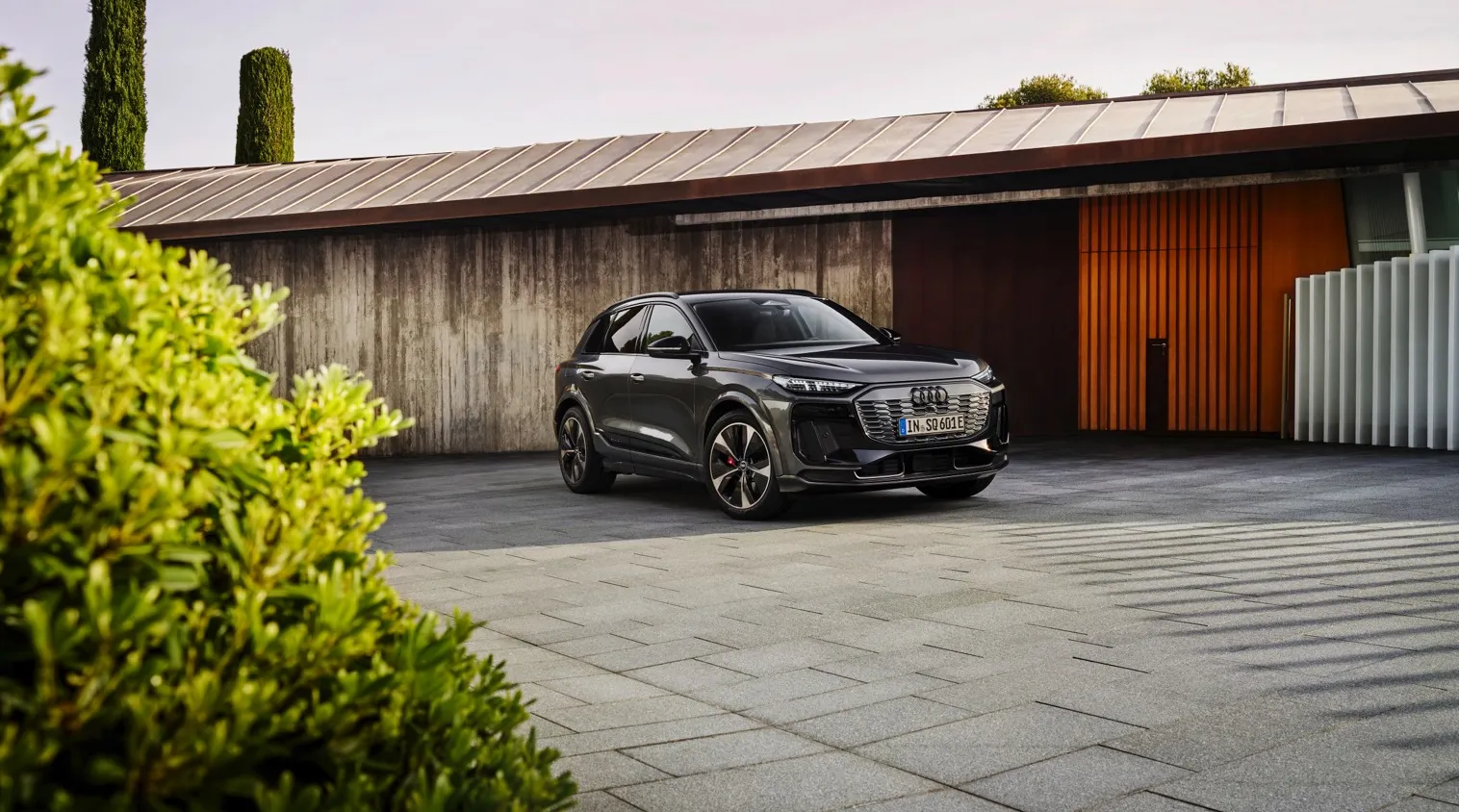

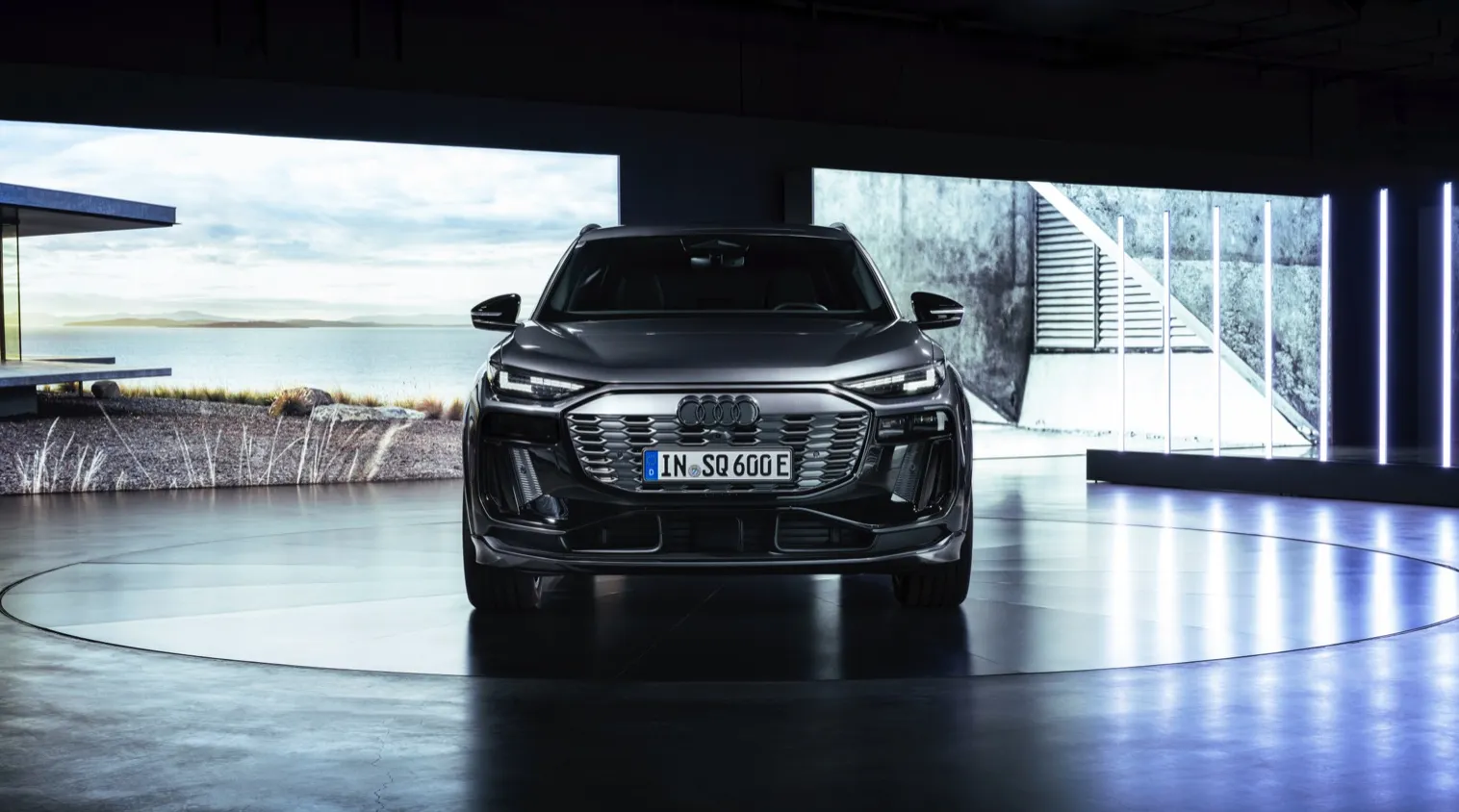

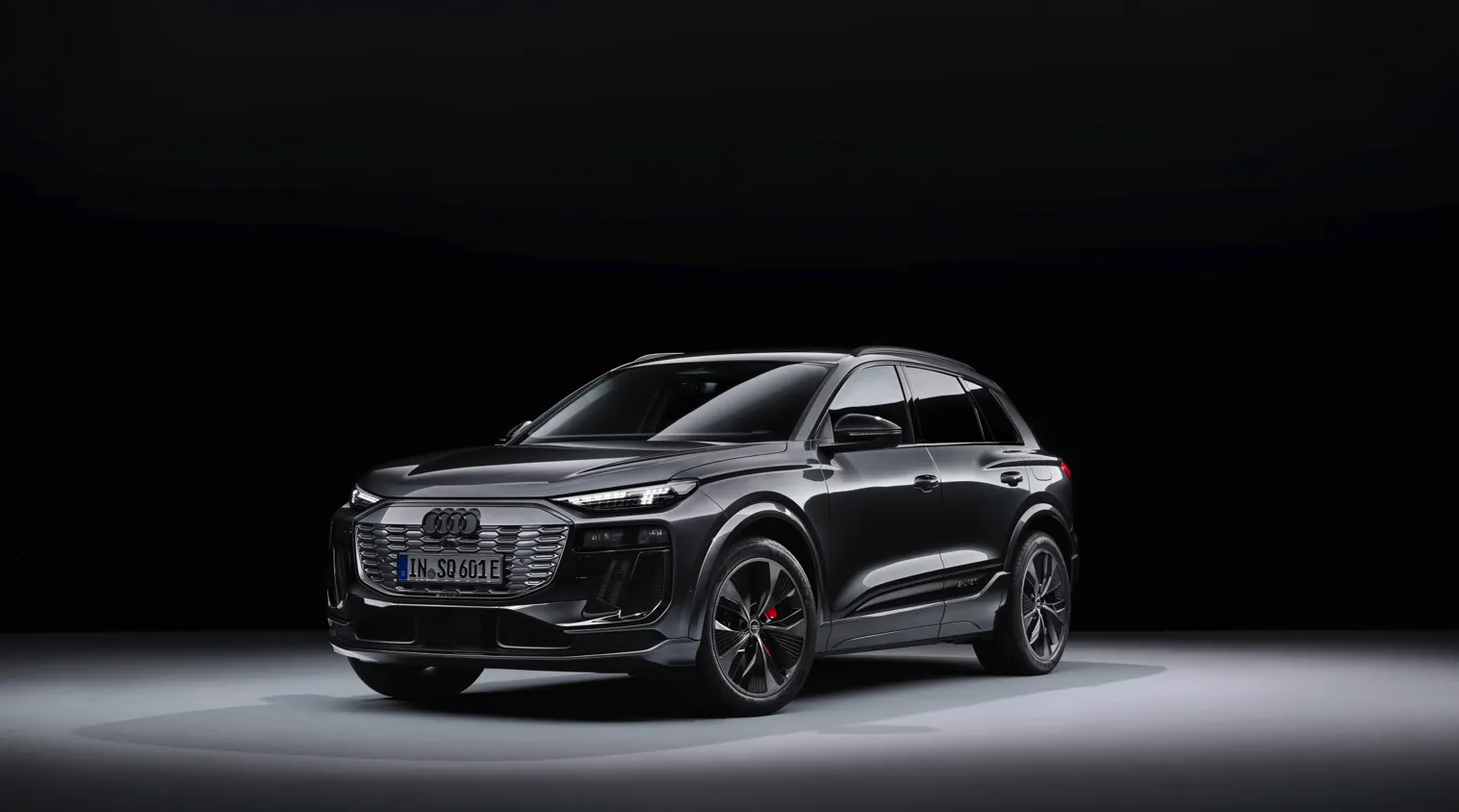

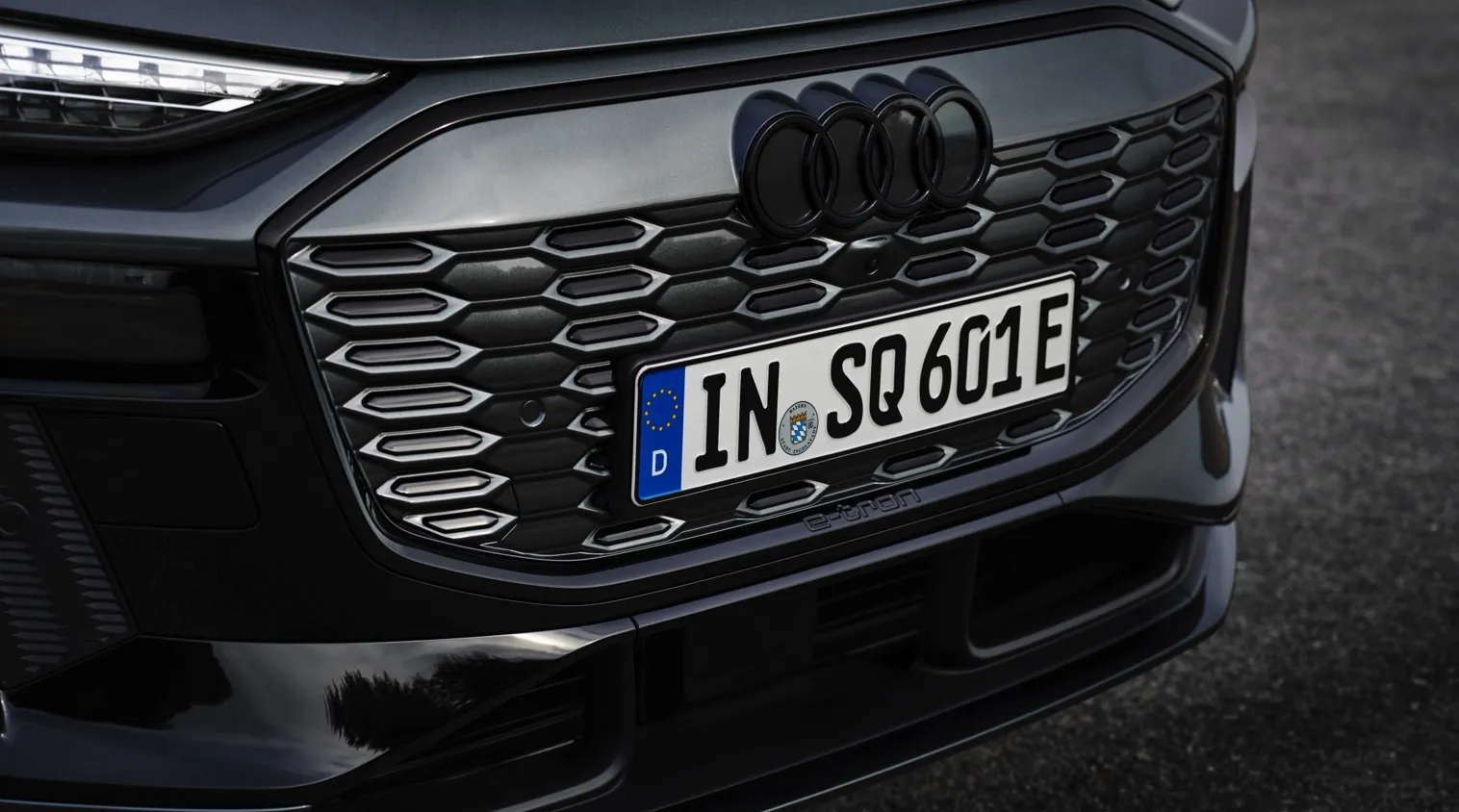

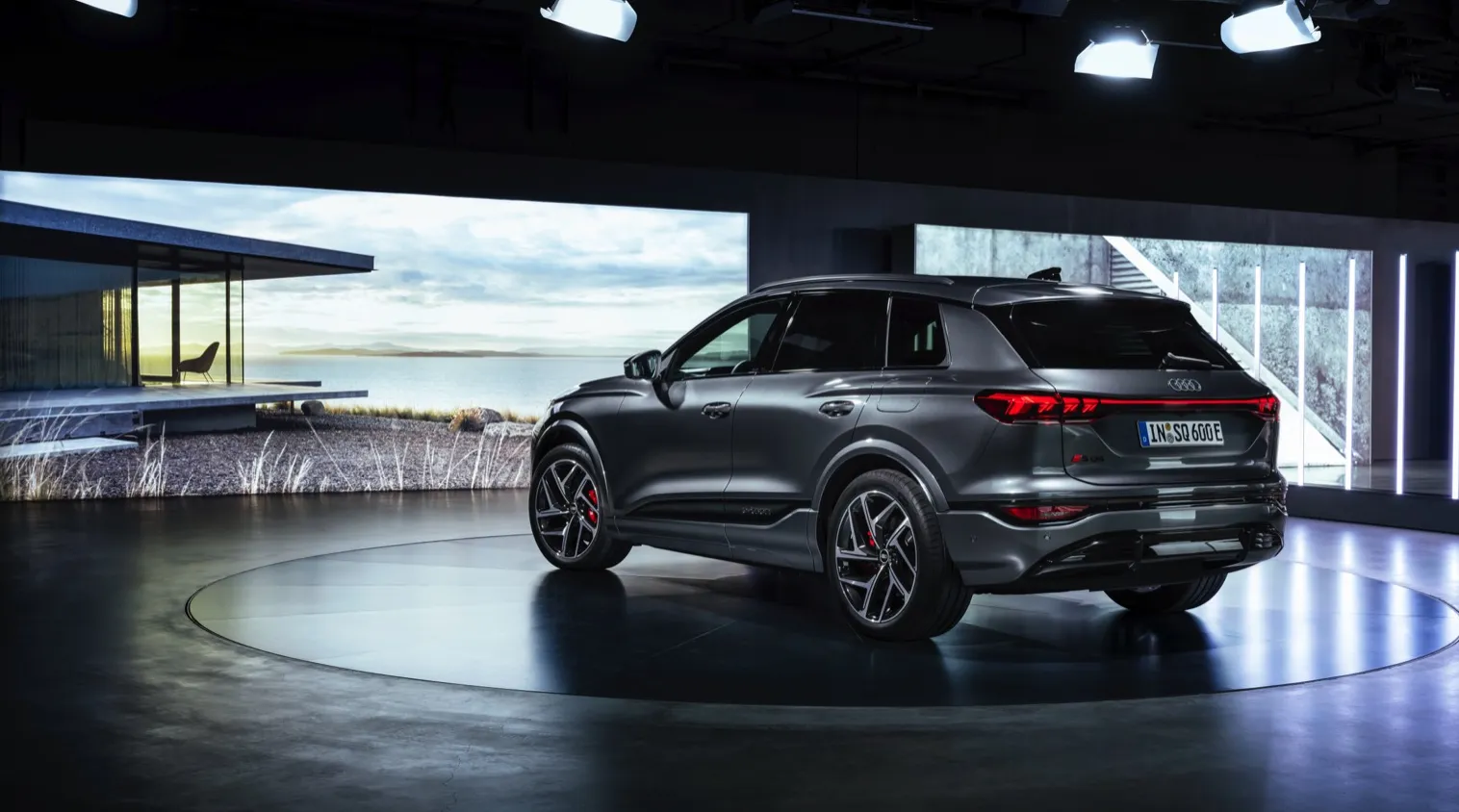

Audi SQ6 e-tron

Model: Audi


  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     94.9 kWh

  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     470 km *

  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     202 Wh/km *

Real Range Estimation

City - Cold Weather *470 km
Highway - Cold Weather *340 km
Combined - Cold Weather *400 km

between 340 - 685 km

City - Mild Weather *685 km
Highway - Mild Weather *430 km
Combined - Mild Weather *535 km

Performance

Acceleration 0 - 100 km/h4.3 sec
Top Speed230 km/h
Electric Range *470 km
Total Power380 kW (517 PS)
Total Torque855 Nm
DriveAWD

Battery

Nominal Capacity100.0 kWh
Battery TypeLithium-ion
Number of Cells180
Architecture800 V
Warranty PeriodNo Data
Warranty MileageNo Data
Useable Capacity94.9 kWh
Cathode MaterialNCM811
Pack Configuration180s1p
Nominal Voltage662 V
Form FactorPrismatic
Name / ReferenceNo Data

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L SupportedNo
Max. Output Power-

Vehicle-to-Home (V2H)

V2H via AC SupportedNo
Max. Output Power-

Vehicle-to-Grid (V2G)

V2G via AC SupportedNo
Max. Output Power-

Energy Consumption

EVDB Real Range

Range *470 km
Vehicle Consumption *202 Wh/km

WLTP Ratings (TEL)

Range598 km
Rated Consumption175 Wh/km
Vehicle Consumption159 Wh/km

WLTP Ratings (TEH)

Range565 km
Rated Consumption184 Wh/km
Vehicle Consumption168 Wh/km

Dimensions and Weight

Length4771 mm
Width1965 mm
Width with mirrors2193 mm
Height1685 mm
Wheelbase2889 mm
Weight Unladen (EU)2425 kg
Gross Vehicle Weight (GVWR)2965 kg
Max. Payload615 kg

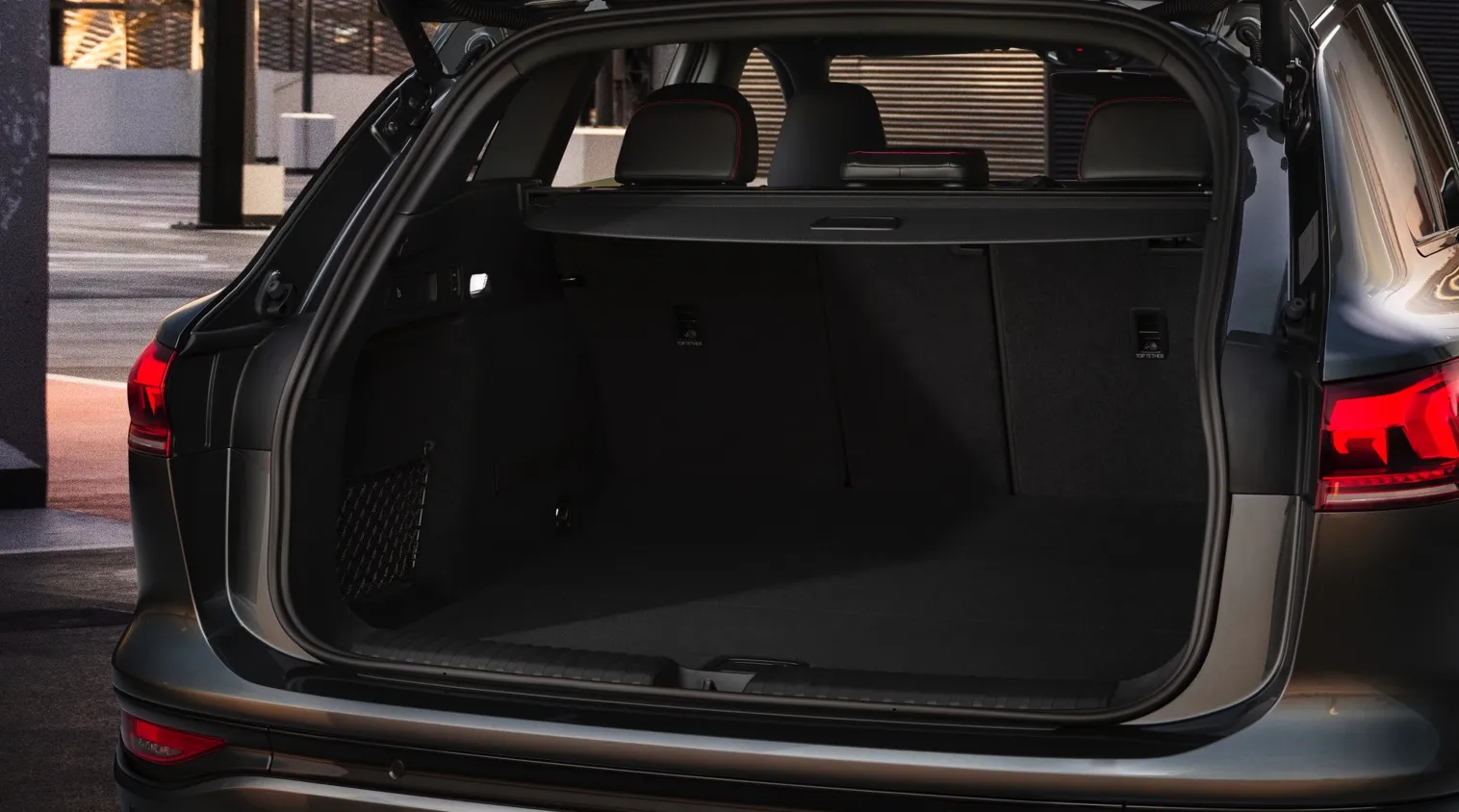

Cargo Volume514 L
Cargo Volume Max1517 L
Cargo Volume Frunk64 L
Roof Load75 kg
Tow Hitch PossibleYes
Towing Weight Unbraked750 kg
Towing Weight Braked2400 kg
Vertical Load Max100 kg

Miscellaneous

Seats 5 people
IsofixYes, 3 seats
Turning Circle12.1 m
PlatformVW PPE
EV Dedicated PlatformYes
Car BodySUV
SegmentJD - Large
Roof RailsYes
Heat pump (HP)Yes
HP Standard EquipmentYes

Home and Destination Charging (0 -> 100%)

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Audi SQ6 e-tron. Each option shows how fast the battery can be charged from empty to full.

Europe

Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Audi SQ6 e-tron can be charged, but some modes of charging might not be widely available in certain countries.

Type 2 (Mennekes - IEC 62196)
Charging PointMax. PowerPowerTimeRate
Standard 11.0 kW On-Board Charger
Wall Plug (2.3 kW)230V / 1x10A2.3 kW48h45m10 km/h
1-phase 16A (3.7 kW)230V / 1x16A3.7 kW30h15m16 km/h
1-phase 32A (7.4 kW)230V / 1x32A7.4 kW15h15m31 km/h
3-phase 16A (11 kW)400V / 3x16A11 kW10h15m46 km/h
3-phase 32A (22 kW)400V / 3x16A11 kW †10h15m46 km/h
Optional 22.0kW On-Board Charger
Wall Plug (2.3 kW)230V / 1x10A2.3 kW48h45m10 km/h
1-phase 16A (3.7 kW)230V / 1x16A3.7 kW30h15m16 km/h
1-phase 32A (7.4 kW)230V / 1x32A7.4 kW15h15m31 km/h
3-phase 16A (11 kW)400V / 3x16A11 kW10h15m46 km/h
3-phase 32A (22 kW)400V / 3x32A22 kW †5h15m90 km/h

† = Limited by on-board charger, vehicle cannot charge faster.

Fast Charging (10 -> 80%)

Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Audi SQ6 e-tron.

  • Max. Power: maximum power provided by charge point
  • Avg. Power: average power provided by charge point over a session from 10% to 80%
  • Time: time needed to charge from 10% to 80%
  • Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2)
Charging PointMax. PowerAvg. PowerTimeRate
CCS (50 kW DC)50 kW50 kW84 min230 km/h
CCS (100 kW DC)100 kW95 kW †44 min440 km/h
CCS (150 kW DC)150 kW125 kW †34 min580 km/h
CCS (175 kW DC)175 kW145 kW †29 min680 km/h
CCS (350 kW DC)270 kW †200 kW †21 min940 km/h
This vehicle supports Plug & Charge

† = Limited by charging capabilities of vehicle

Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.

Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.

Audi Claimed Specifications

The table below shows the claimed specifications from the manufacturer for charging the Audi SQ6 e-tron. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.

  • Max. Power: maximum charge power during charging session
  • Charge From: battery percentage (% SoC) where charging session is started
  • Charge To: battery percentage (% SoC) where charging session is ended
  • Time: time needed for charging session
Audi Claimed Specifications
Max. PowerCharge FromCharge ToTime
270 kW 10 % 80 % 21 min
