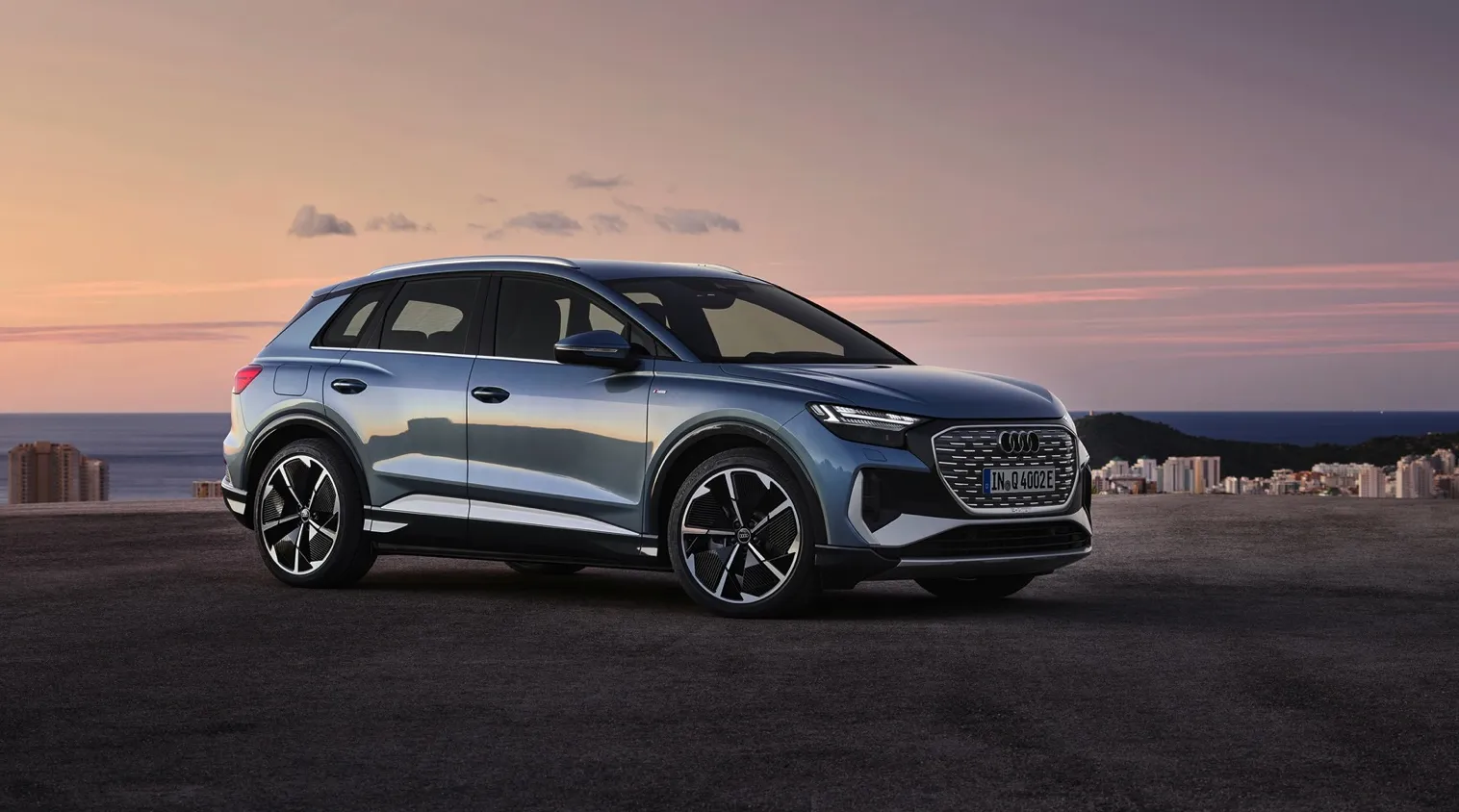

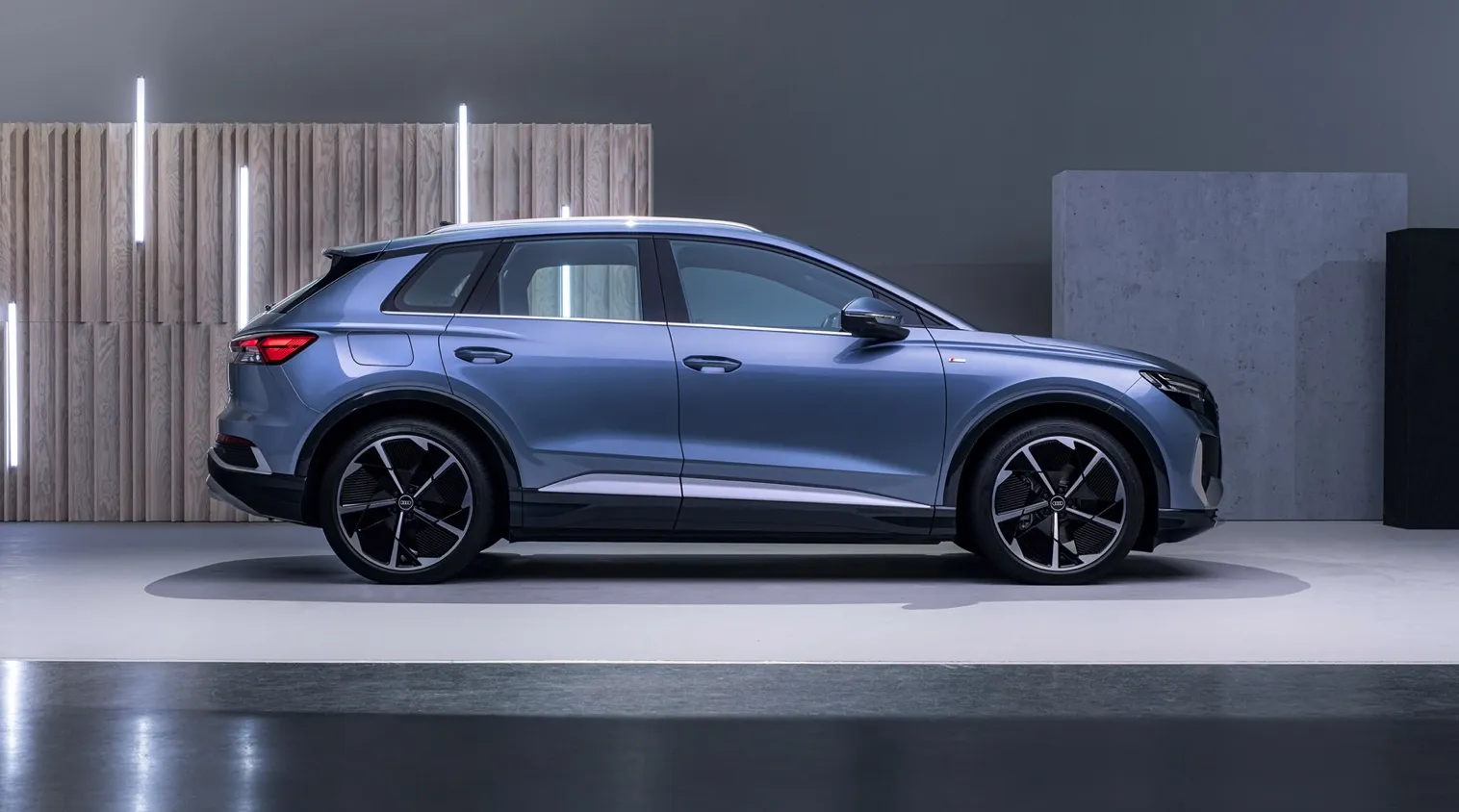

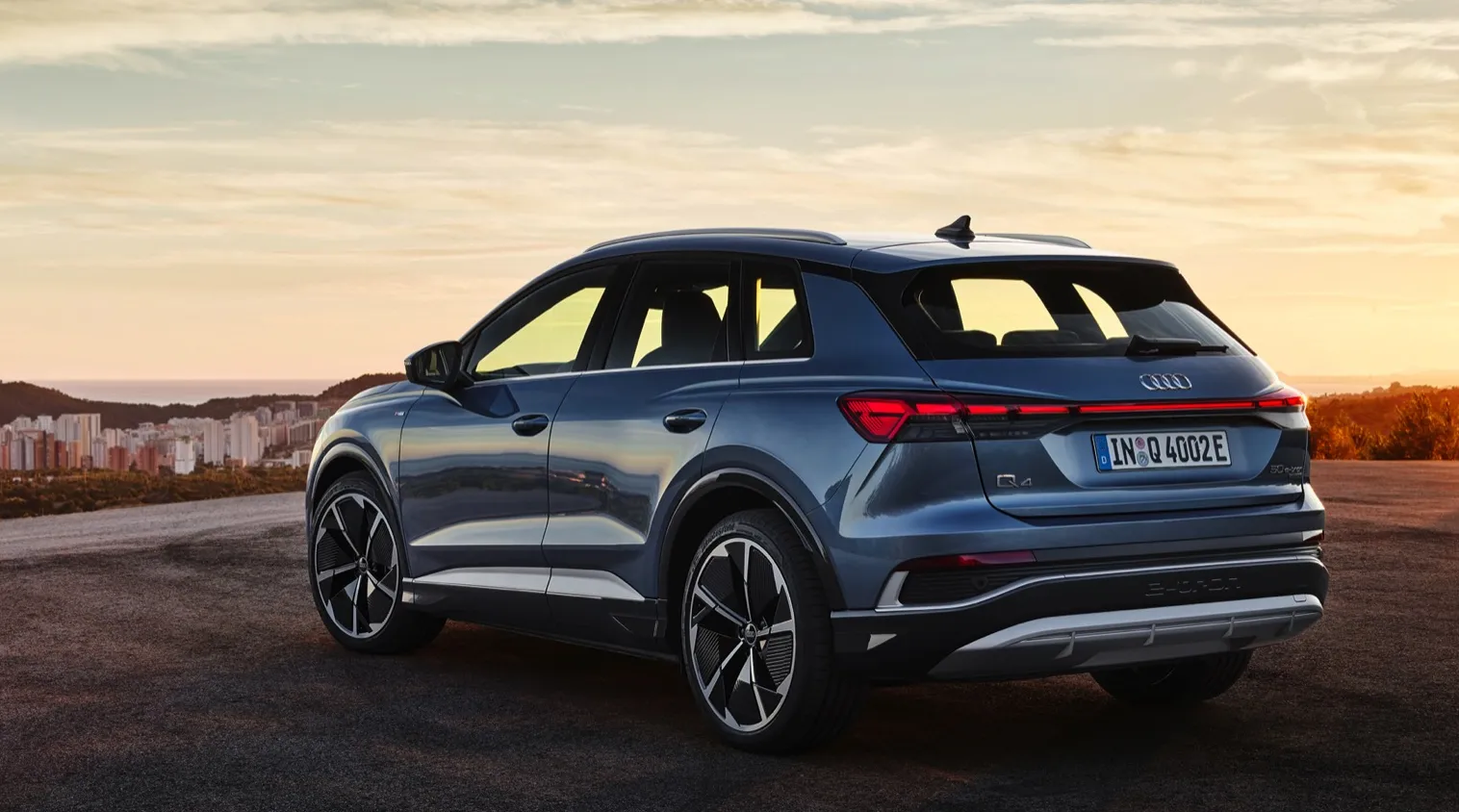

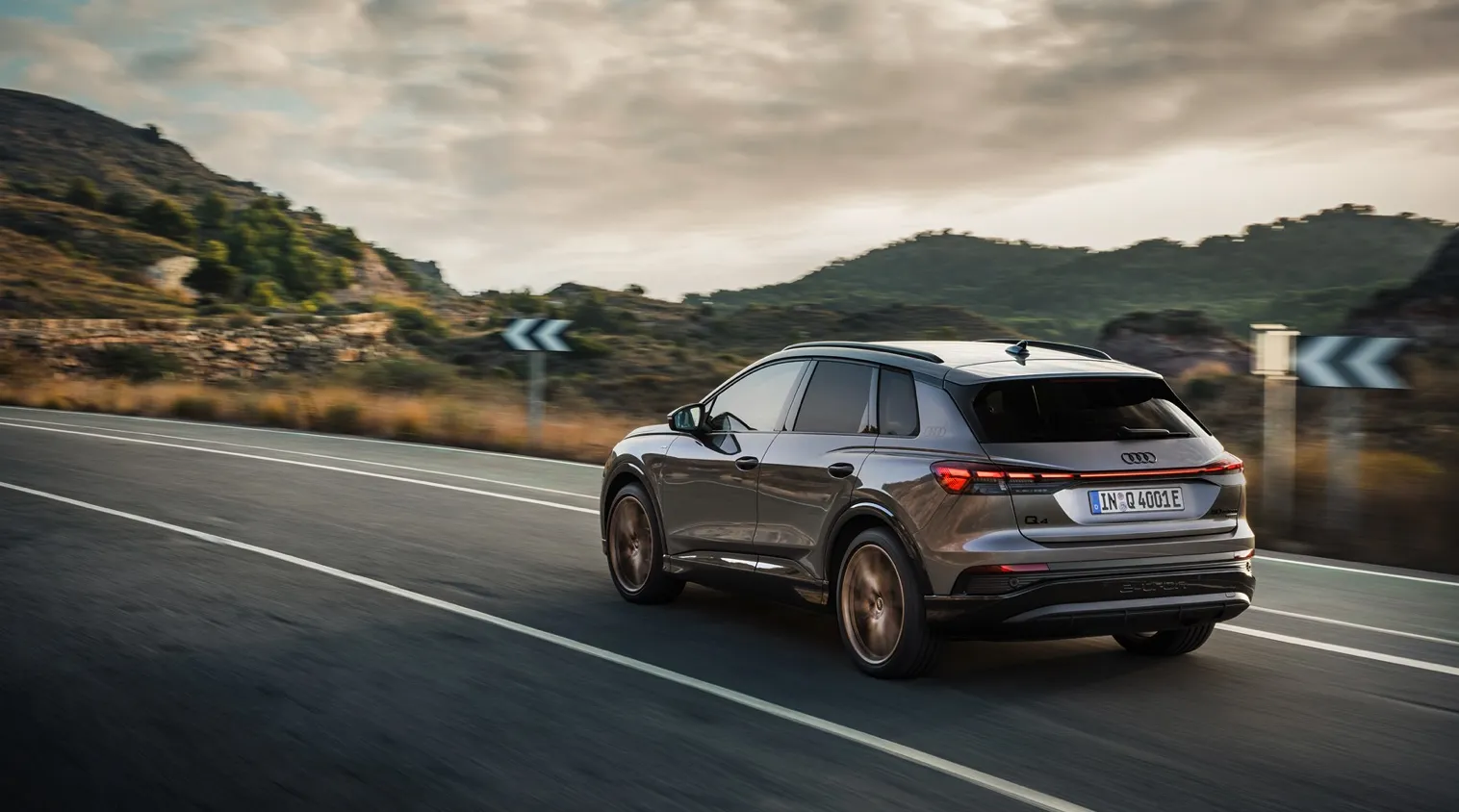

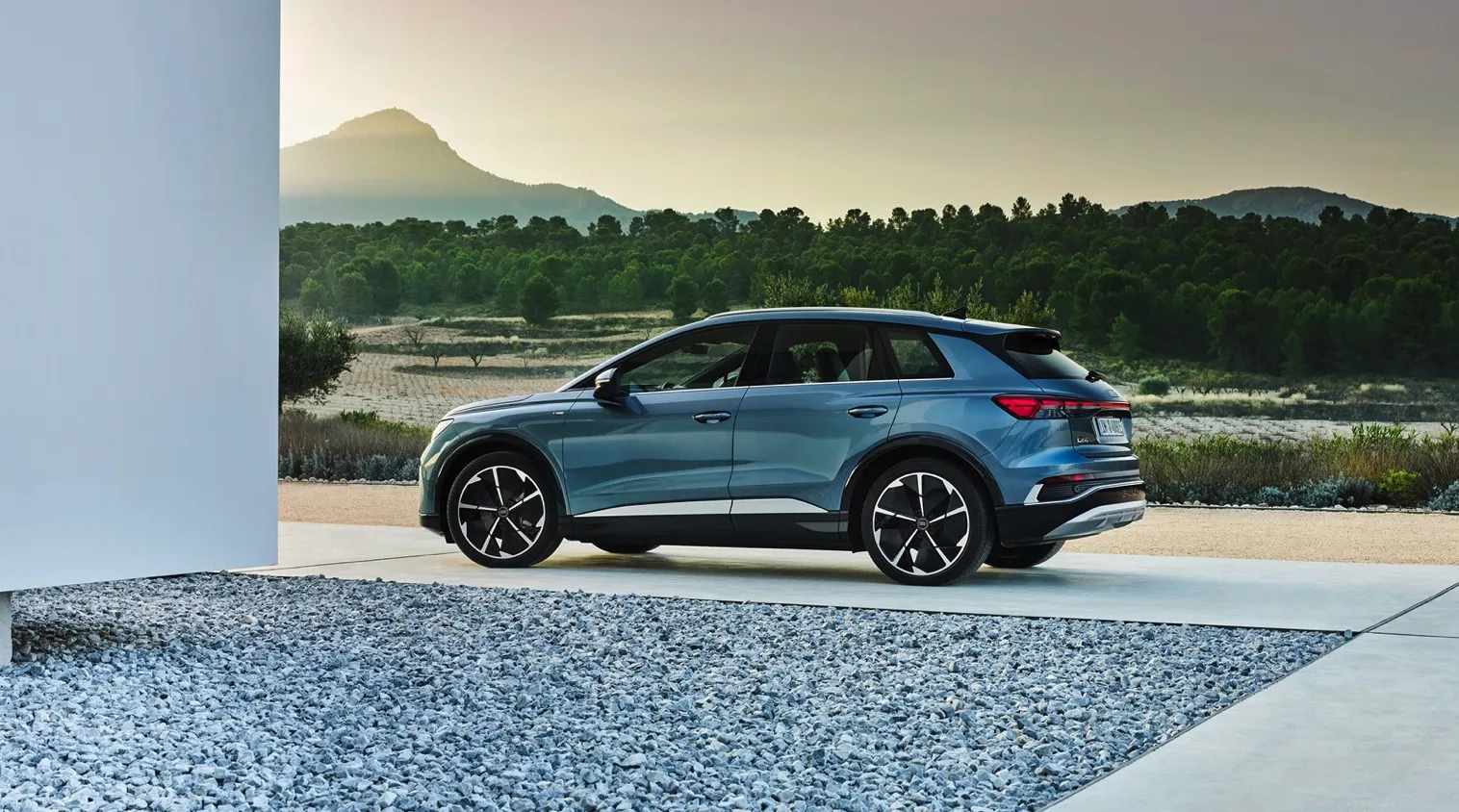

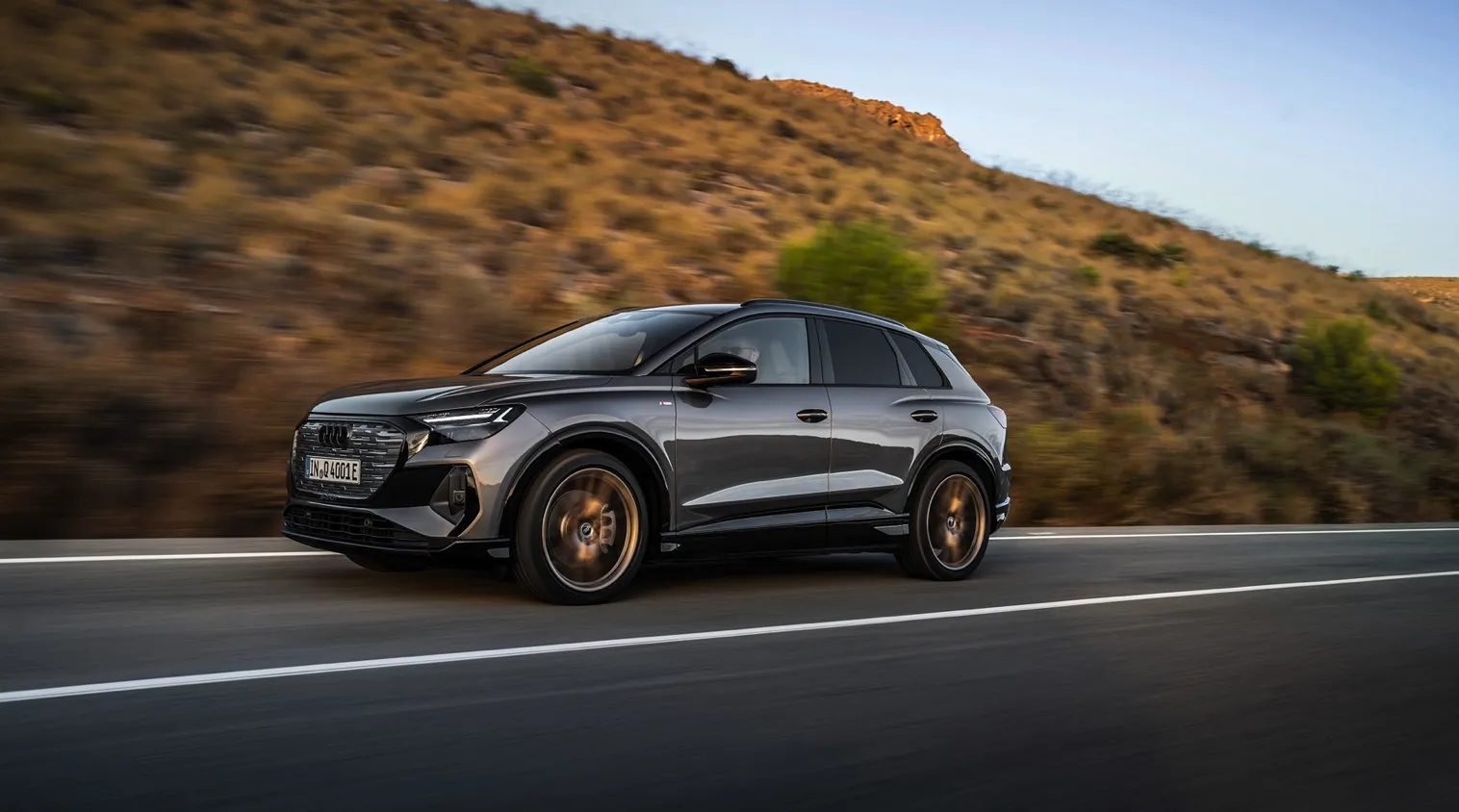

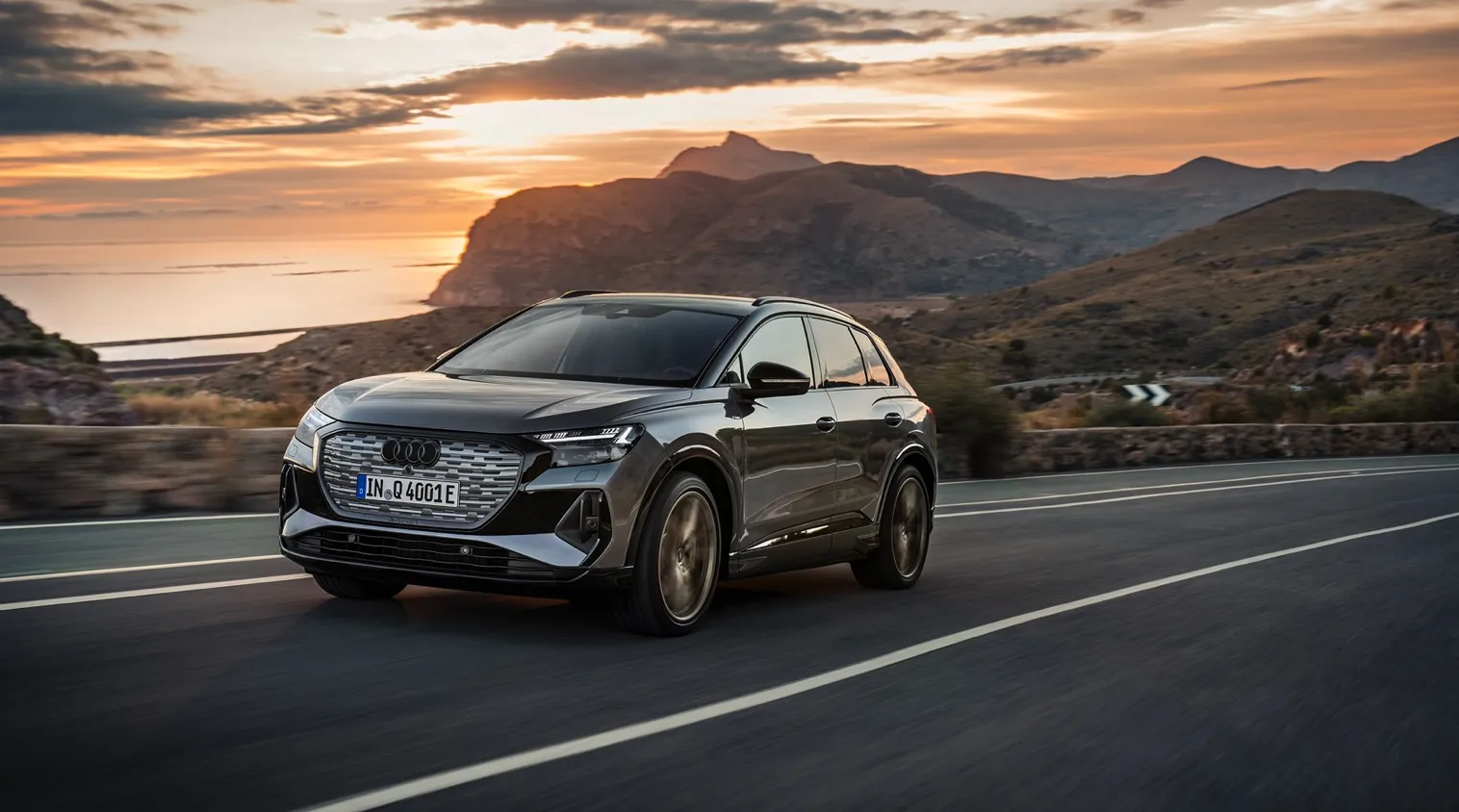

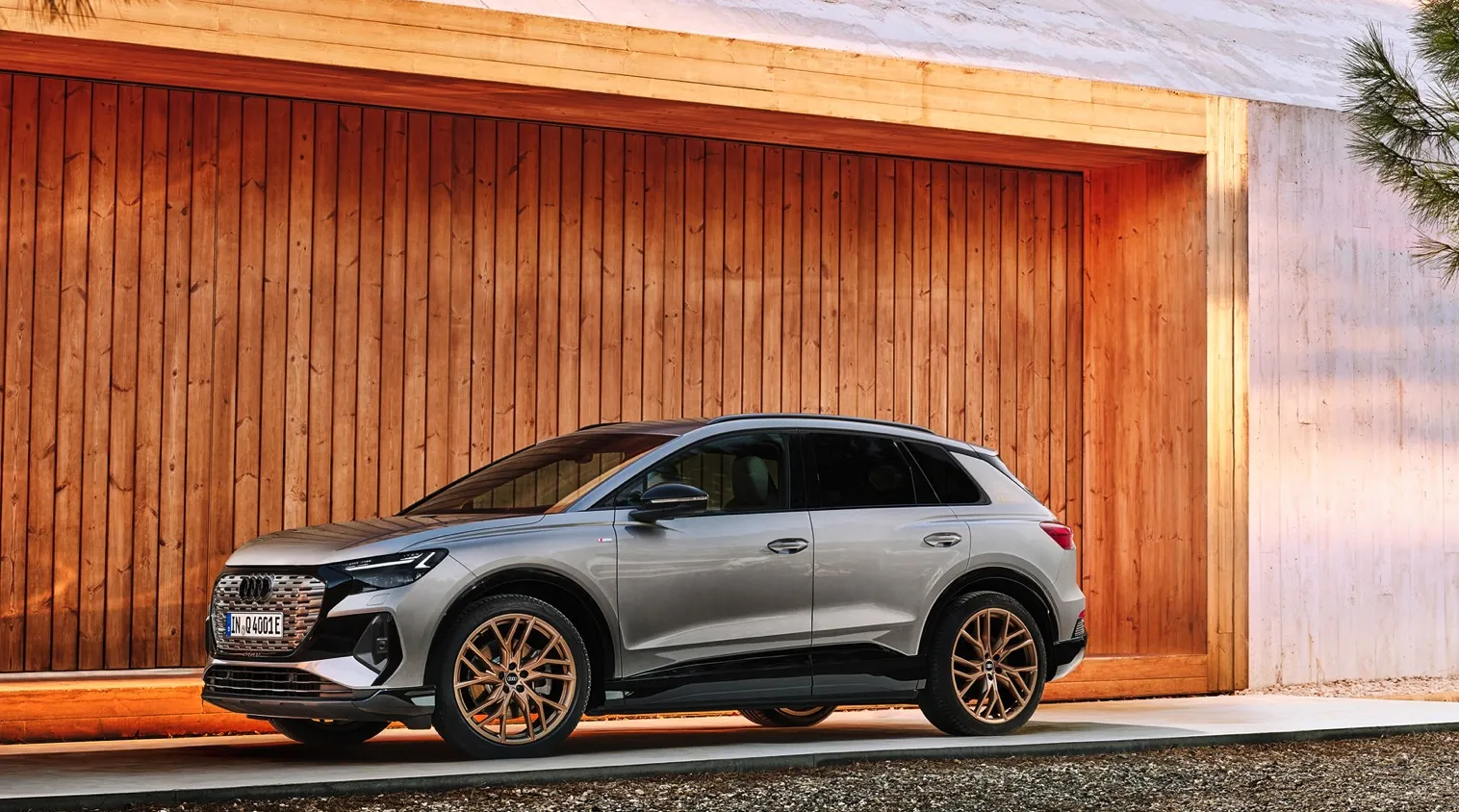

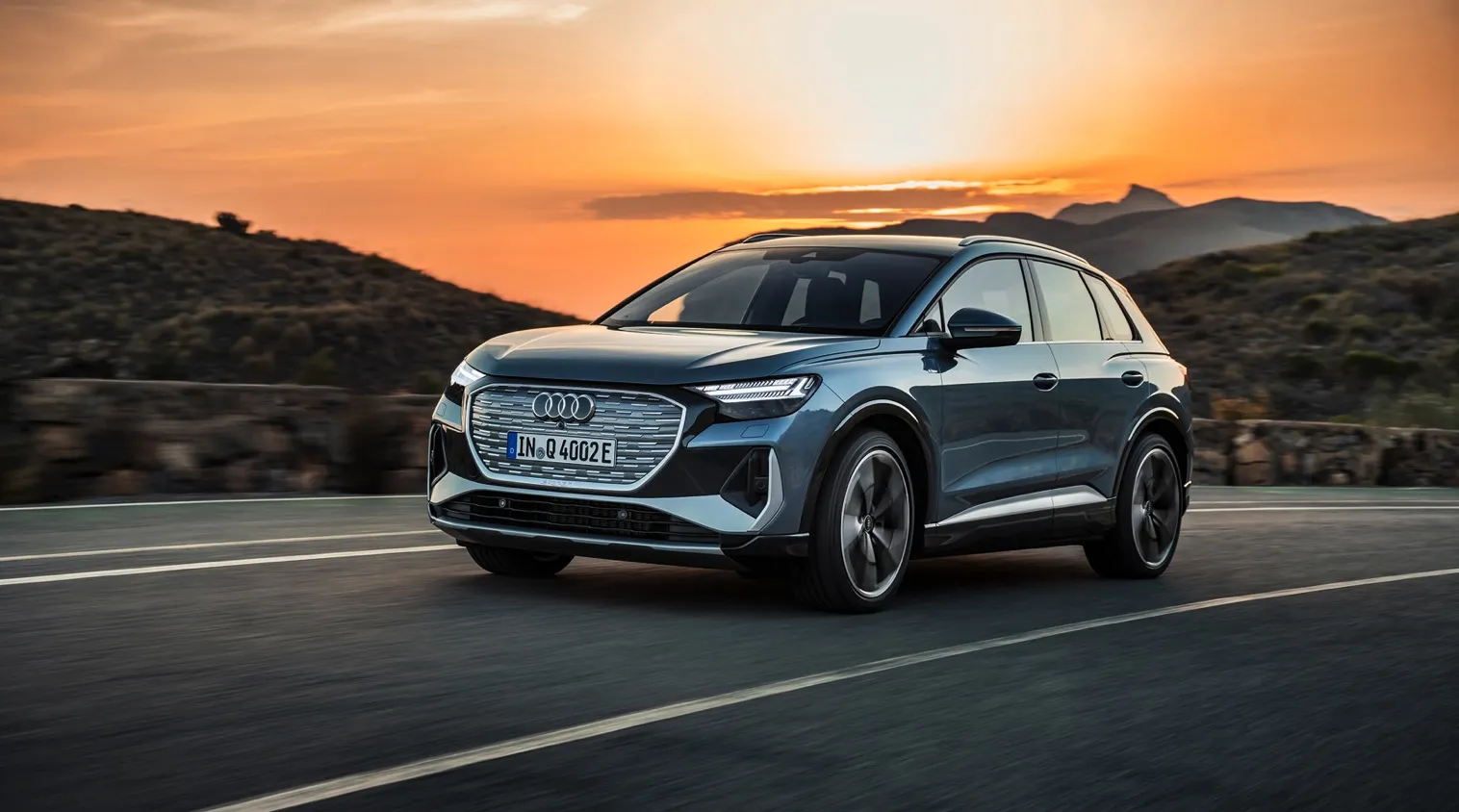

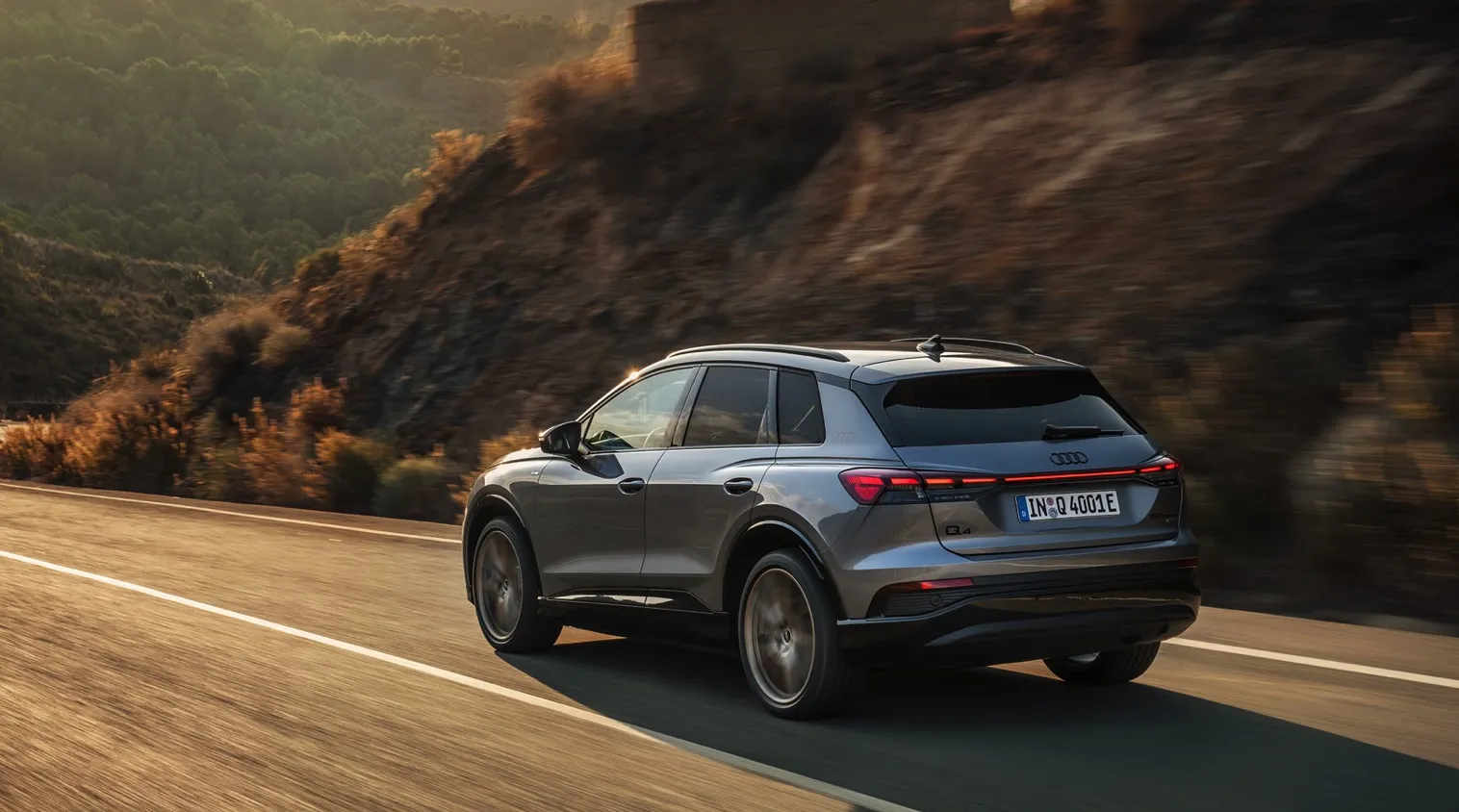

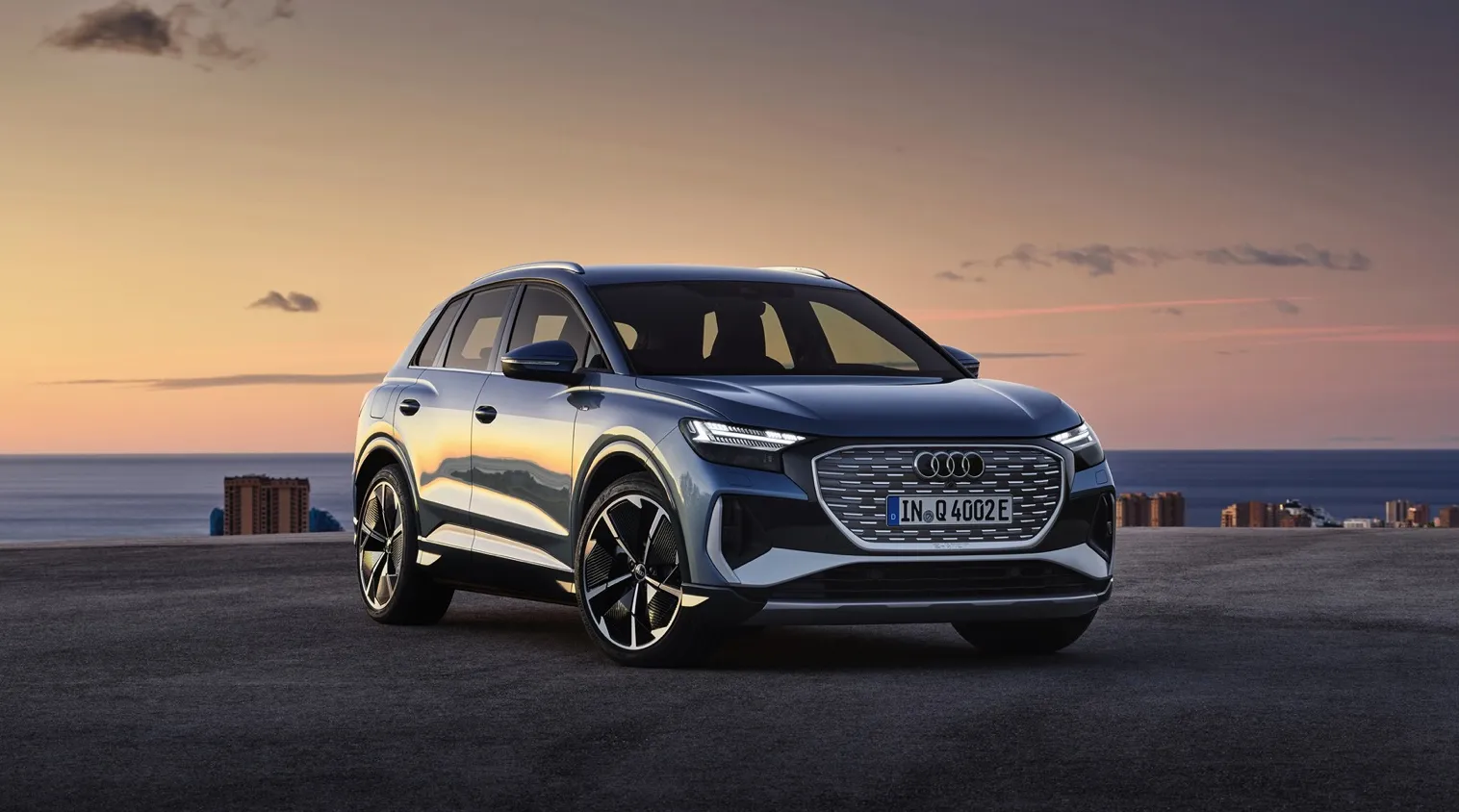

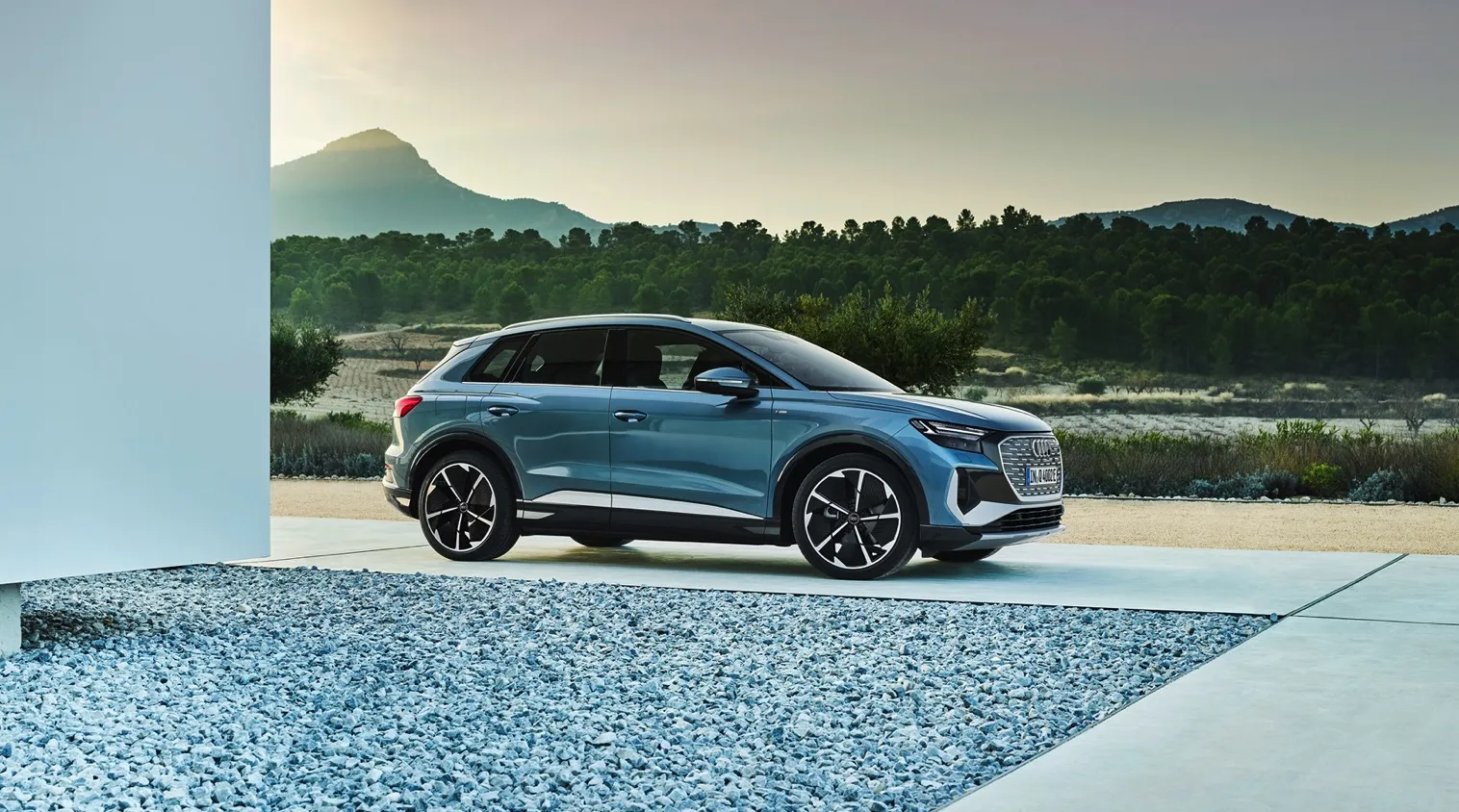

Audi Q4 e-tron 55 quattro

Model: Audi


  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     77.0 kWh

  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     395 km *

  • Warning: Undefined array key "spec_key" in /home/bike-ev.com/public_html/wp-content/themes/bike_ev_template/single-vehicle.php on line 50
    :     195 Wh/km *

Real Range Estimation

City - Cold Weather *395 km
Highway - Cold Weather *285 km
Combined - Cold Weather *335 km

between 285 - 575 km

City - Mild Weather *575 km
Highway - Mild Weather *365 km
Combined - Mild Weather *450 km

Performance

Acceleration 0 - 100 km/h5.4 sec
Top Speed180 km/h
Electric Range *395 km
Total Power250 kW (340 PS)
Total Torque679 Nm
DriveAWD

Battery

Nominal Capacity82.0 kWh
Battery TypeLithium-ion
Number of Cells288
Architecture400 V
Warranty Period8 years
Warranty Mileage160,000 km
Useable Capacity77.0 kWh
Cathode MaterialNCM
Pack Configuration96s3p
Nominal Voltage352 V
Form FactorNo Data
Name / ReferenceNo Data

Bidirectional Charging (V2X / BPT)

Vehicle-to-Load (V2L)

V2L SupportedNo
Max. Output Power-

Vehicle-to-Home (V2H)

V2H via AC SupportedNo
Max. Output Power-

Vehicle-to-Grid (V2G)

V2G via AC SupportedNo
Max. Output Power-

Energy Consumption

EVDB Real Range

Range *395 km
Vehicle Consumption *195 Wh/km

WLTP Ratings (TEL)

Range525 km
Rated Consumption167 Wh/km
Vehicle Consumption147 Wh/km

WLTP Ratings (TEH)

Range450 km
Rated Consumption194 Wh/km
Vehicle Consumption171 Wh/km

Dimensions and Weight

Length4588 mm
Width1865 mm
Width with mirrors2108 mm
Height1632 mm
Wheelbase2764 mm
Weight Unladen (EU)2235 kg
Gross Vehicle Weight (GVWR)2750 kg
Max. Payload590 kg

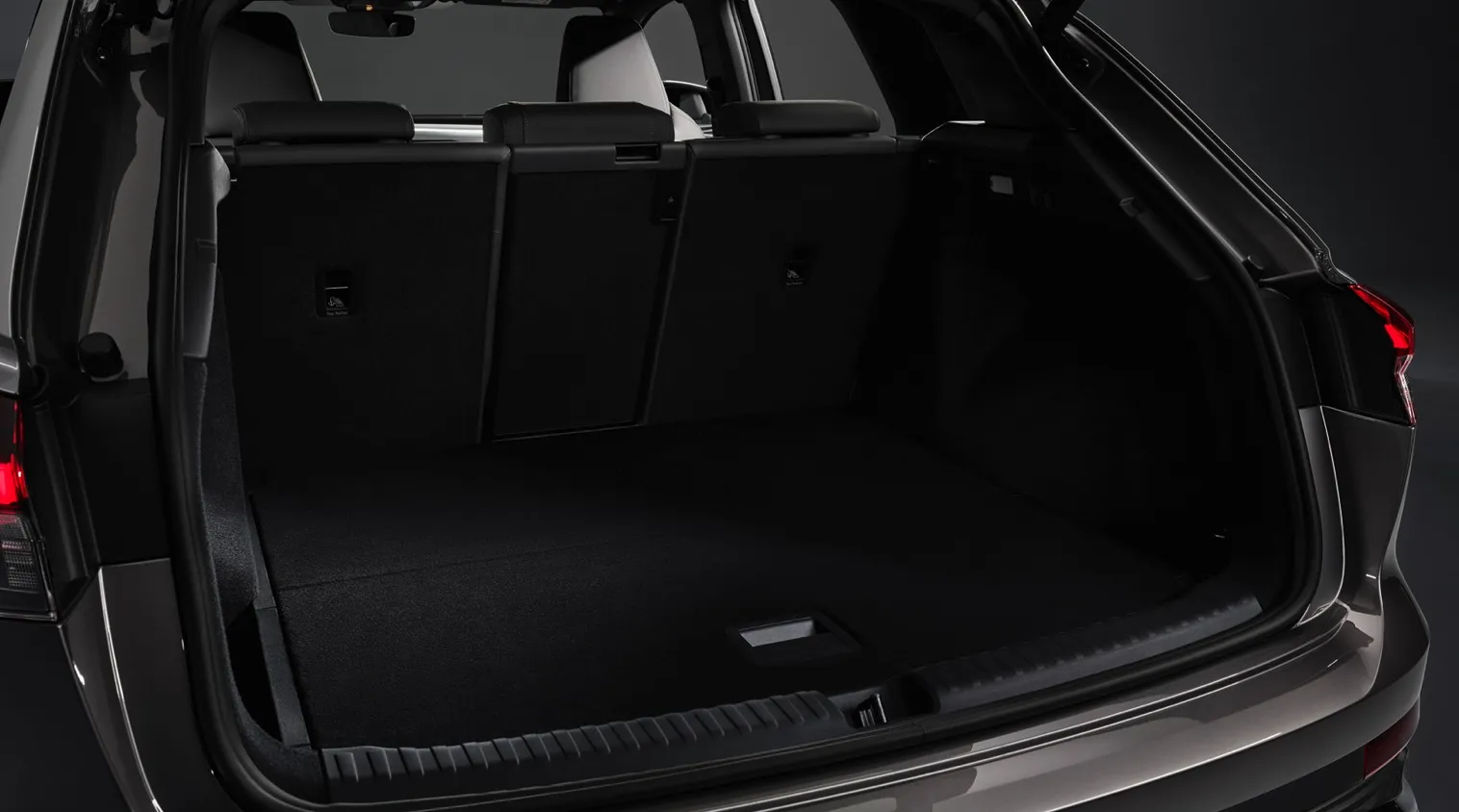

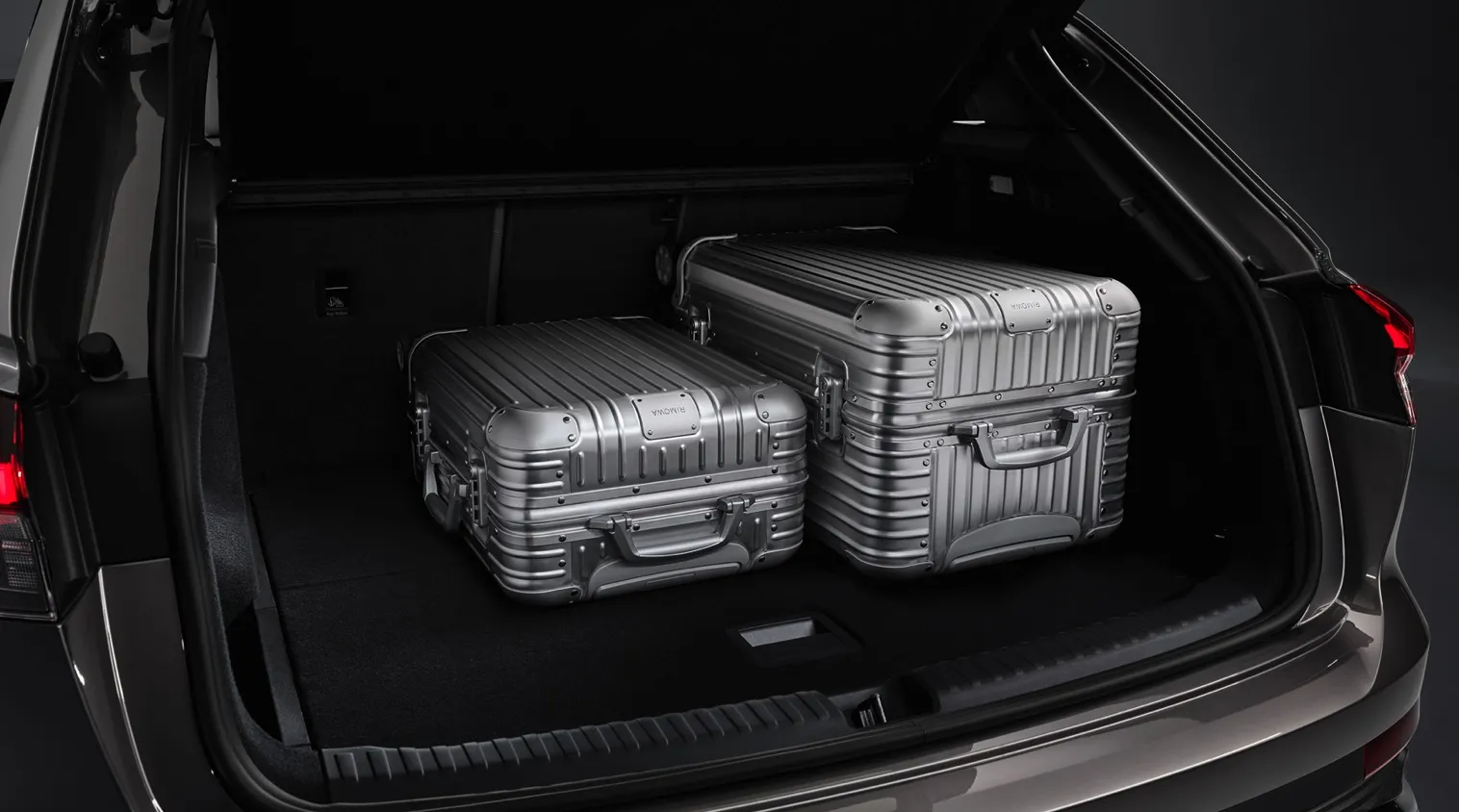

Cargo Volume520 L
Cargo Volume Max1490 L
Cargo Volume Frunk0 L
Roof Load75 kg
Tow Hitch PossibleYes
Towing Weight Unbraked750 kg
Towing Weight Braked1200 kg
Vertical Load Max75 kg

Miscellaneous

Seats 5 people
IsofixYes, 3 seats
Turning CircleNo Data
PlatformVW MEB
EV Dedicated PlatformYes
Car BodySUV
SegmentJC - Medium
Roof RailsYes
Heat pump (HP)Yes
HP Standard EquipmentNo, optional

Home and Destination Charging (0 -> 100%)

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Audi Q4 e-tron 55 quattro. Each option shows how fast the battery can be charged from empty to full.

Europe

Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Audi Q4 e-tron 55 quattro can be charged, but some modes of charging might not be widely available in certain countries.

Type 2 (Mennekes - IEC 62196)
Charging PointMax. PowerPowerTimeRate
Wall Plug (2.3 kW)230V / 1x10A2.3 kW39h30m10 km/h
1-phase 16A (3.7 kW)230V / 1x16A3.7 kW24h30m16 km/h
1-phase 32A (7.4 kW)230V / 1x32A7.4 kW12h15m32 km/h
3-phase 16A (11 kW)400V / 3x16A11 kW8h15m48 km/h
3-phase 32A (22 kW)400V / 3x16A11 kW †8h15m48 km/h

† = Limited by on-board charger, vehicle cannot charge faster.

Fast Charging (10 -> 80%)

Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Audi Q4 e-tron 55 quattro.

  • Max. Power: maximum power provided by charge point
  • Avg. Power: average power provided by charge point over a session from 10% to 80%
  • Time: time needed to charge from 10% to 80%
  • Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2)
Charging PointMax. PowerAvg. PowerTimeRate
CCS (50 kW DC)50 kW50 kW68 min240 km/h
CCS (100 kW DC)100 kW85 kW †40 min410 km/h
CCS (150 kW DC)150 kW105 kW †32 min510 km/h
CCS (175 kW DC)175 kW120 kW †28 min590 km/h
CCS (350 kW DC)175 kW †120 kW †28 min590 km/h
This vehicle does not support Autocharge
This vehicle supports Plug & Charge

† = Limited by charging capabilities of vehicle

Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.

Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.

Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.

Audi Claimed Specifications

The table below shows the claimed specifications from the manufacturer for charging the Audi Q4 e-tron 55 quattro. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.

  • Max. Power: maximum charge power during charging session
  • Charge From: battery percentage (% SoC) where charging session is started
  • Charge To: battery percentage (% SoC) where charging session is ended
  • Time: time needed for charging session
Audi Claimed Specifications
Max. PowerCharge FromCharge ToTime
175 kW 10 % 80 % 28 min
