Zero DSR/BF ZF 14.4 + POWER TANK
Zero DSR/BF ZF 14.4 + POWER TANK
The Zero DSR/BF ZF 14.4 + POWER TANK heralds a new era in electric adventure riding. With its cutting-edge technology and extended range, this bike empowers riders to explore farther and faster than ever before, all while leaving a minimal environmental footprint.
Key Features:
- Enhanced Range: Equipped with the POWER TANK, the Zero DSR/BF ZF 14.4 boasts an impressive battery capacity of 18.6 kWh. This translates to an extended range of up to 223 miles in the city and 112 miles on the highway, giving riders the freedom to embark on epic journeys with confidence.
- Powerful Performance: The Zero DSR/BF ZF 14.4 features a high-performance motor delivering 70 hp (52 kW) and 116 ft-lb (157 Nm) of torque. This allows for exhilarating acceleration and seamless power delivery, whether cruising through urban streets or navigating challenging off-road terrain.
- Fast Charging: Despite its high capacity, the Zero DSR/BF ZF 14.4 + POWER TANK maintains fast charging capability. With a Level 2 charger, riders can recharge the battery to 95% in just one hour, ensuring minimal downtime and maximum enjoyment on the road.
- Versatile Riding Modes: Riders can customize their riding experience with the DSR/BF ZF 14.4’s multiple riding modes. Whether seeking maximum efficiency or adrenaline-pumping performance, the bike offers the flexibility to tailor its behavior to suit individual preferences.
Technical Specifications:
- Battery Capacity: 18.6 kWh
- Motor Power: 70 hp (52 kW)
- Torque: 116 ft-lb (157 Nm)
- Top Speed: 102 mph (164 km/h)
- Range (City/Highway): Up to 223 miles / 112 miles
- Charging Time (95%): 1 hour (Level 2 charger)
Riding Experience:
The Zero DSR/BF ZF 14.4 + POWER TANK delivers an unparalleled riding experience, blending power, range, and agility in a single package. Whether embarking on a cross-country adventure or tackling challenging trails, riders can trust in the bike’s responsive handling and dependable performance. With its eco-friendly design and advanced features, the DSR/BF ZF 14.4 + POWER TANK represents the future of electric adventure riding.
Conclusion:
In conclusion, the Zero DSR/BF ZF 14.4 + POWER TANK redefines the possibilities of electric motorcycles, offering unmatched range, performance, and versatility. Whether you’re a seasoned adventurer or a casual rider, this bike provides the freedom to explore the world with confidence and style. Embrace the electric revolution and experience the thrill of emission-free adventure riding with the Zero DSR/BF ZF 14.4 + POWER TANK.
| RANGE | Zero DSR/BF ZF 14.4 + POWER TANK |
| City | 196 miles (315 km) |
| Highway, 55 mph (89 km/h) | 110 miles (177 km) |
| Combined | 141 miles (227 km) |
| Highway, 70 mph (113 km/h) | 80 miles (129 km) |
| Combined | 114 miles (183 km) |
| MOTOR | |
| Peak torque | 116 ft-lb (157 Nm) |
| Peak power | 70 hp (52 kW) @ 3,500 rpm |
| Top speed (max) | 102 mph (163 km/h) |
| Top speed (sustained) | 90 mph (145 km/h) |
| Type | Z-Force® 75-7R passively air-cooled, high efficiency, radial flux, interior permanent hi-temp magnet, brushless motor |
| Controller | High efficiency, 775 amp, 3-phase brushless controller with regenerative deceleration |
| POWER SYSTEM | |
| Power pack | Z-Force® Li-Ion intelligent integrated / Z-Force® Li-Ion intelligent integrated |
| Max capacity | 18.0 kWh |
| Nominal capacity | 15.8 kWh |
| Charger type | 1.3 kW, integrated |
| Charge time (standard) | 12.1 hours (100% charged) / 11.6 hours (95% charged) |
| With the Charge Tank option | |
| With one accessory charger | 7.0 hours (100% charged) / 6.5 hours (95% charged) |
| With max accessory chargers | 3.3 hours (100% charged) / 2.8 hours (95% charged) |
| Input | Standard 110 V or 220 V |
| DRIVETRAIN | |
| Transmission | |

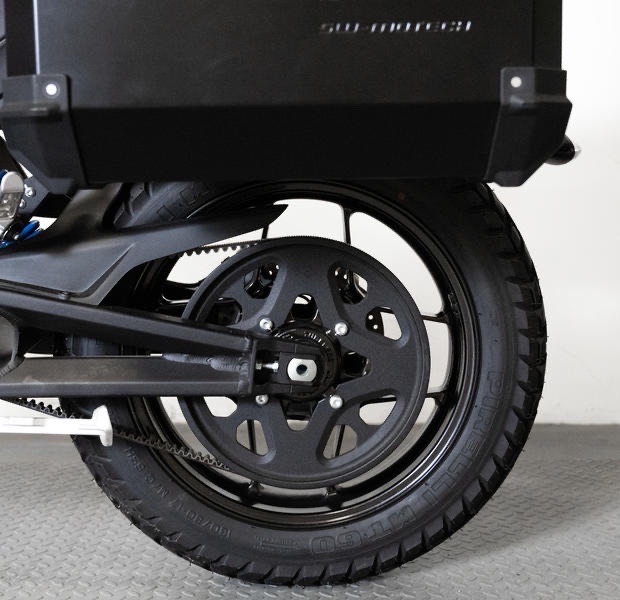

| Final drive | 90T / 20T, Poly Chain® HTD® Carbon™ belt |
| CHASSIS / SUSPENSION / BRAKES | |
| Front Suspension | Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping |
| Rear Suspension | Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping |
| Front suspension travel | 7.00 in (178 mm) |
| Rear suspension travel | 7.03 in (179 mm) |
| Front brakes | Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc |
| Rear brakes | Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc |
| Front tire | Pirelli MT-60 100/90-19 |
| Rear tire | Pirelli MT-60 130/80-17 |
| Front-wheel | 2.50 x 19 |
| Rear wheel | 3.50 x 17 |
| DIMENSIONS | |
| Wheelbase | 56.2 in (1,427 mm) |
| Seat height | 33.2 in (843 mm) |
| Rake | 26.5° |
| Trail | 4.6 in (117 mm) |
| WEIGHT | |
| Curb weight | 531 lb (241 kg) |
| Carrying capacity | 375 lb (170 kg) |
| WARRANTY | |
| Standard motorcycle warranty | 2 years |
| RANGE | 5 years/unlimited km |
| Brand | Zero |
| Model | DSR/BF ZF 14.4 + POWER TANK |
| Motor power | Electric |
| Maximum power, kW | 52 |
| Maximum power, kW/h | 18.0 |
| Maximum torque, Nm | 157 |
| Battery type | Z-Force® Li-Ion intelligent integrated |
| Charging time, hours | 3.3 |
| Electrical Acceleration, 0-100 km/h | 4.4 |
| Top Speed, km/h | 163 |
| Weight, kg | 241 |
| Power reserve, km | 315 |
